KMH-1900AF Electric Hinge Sweeper

Product Specifications:

Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd
Product Name: KMH-1900AF Electric Hinge Sweeper
Keywords: Road Sweeper
Attributes: With After-Sale Service, One Year Warranty, Semi-Trailer

Availability:

Quantity:



Inquire Add to Basket

Brand:
KANGMU

Features

KMH-1900AF Electric Hinge Sweeper

	NAME	SPECIFICATIONS
1	Garbage Tank Volume	650L
2	Vehicle Dimension	3600X1600X2200 MM
3	Driving Motor	5KW
4	Disk Brush Motor	160 Ml/R
5	Fan Motor	5.5KW
6	Hydraulic Unit Motor	4KW
7	Air Conditioning	1000W
8	Water Pump Motor	1.2KW
9	Curb Weight	1600KG
10	Turning Radius	＜2500MM
11	Working Speed	0-10KM/H
12	Continuous Operation Time	4-6 Hours
13	Gradeability	20%
14	Sweep Width	1400-1900MM
15	Highest Working Ability	95M2/H
16	Maximum Water Tank Volume	200L
17	Battery Capacity	36Kw.H
18	Lithium Iron Phosphate Battery	72V/500AH
19	Vehicle Charger	72V

Product Performance:

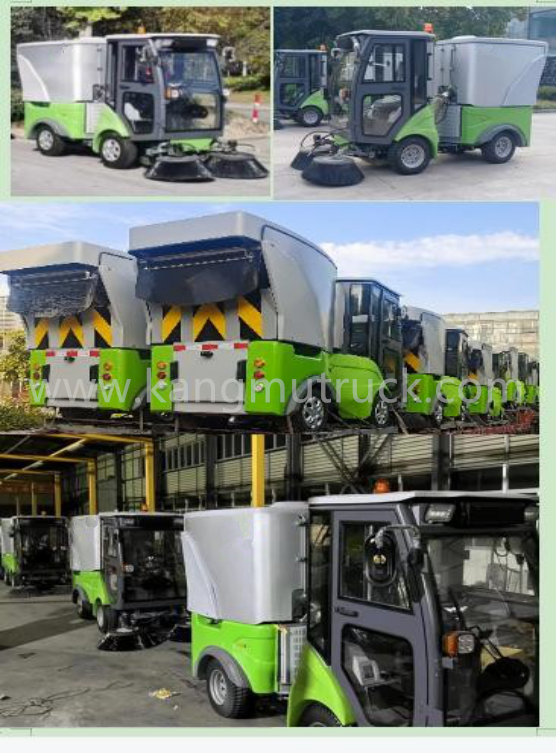

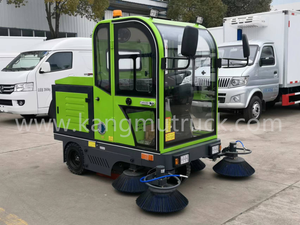

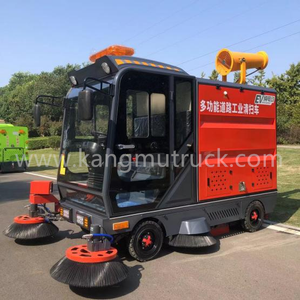

The pure electric articulated road sweeper is a specialized articulated chassis sweeper with a sweeping and suction function. It is a small-sized sweeper that outperforms similar products in terms of technical performance. It features an attractive appearance and agile operation. It is powered by a 72V/450Ah high-capacity lithium battery pack to drive all its functions. The two sweeping brushes are located on either side in front of the driver's cab, and the suction port is positioned directly below the cab in the center. This layout offers a clear view for cleaning operations and makes the machine easy to operate.
