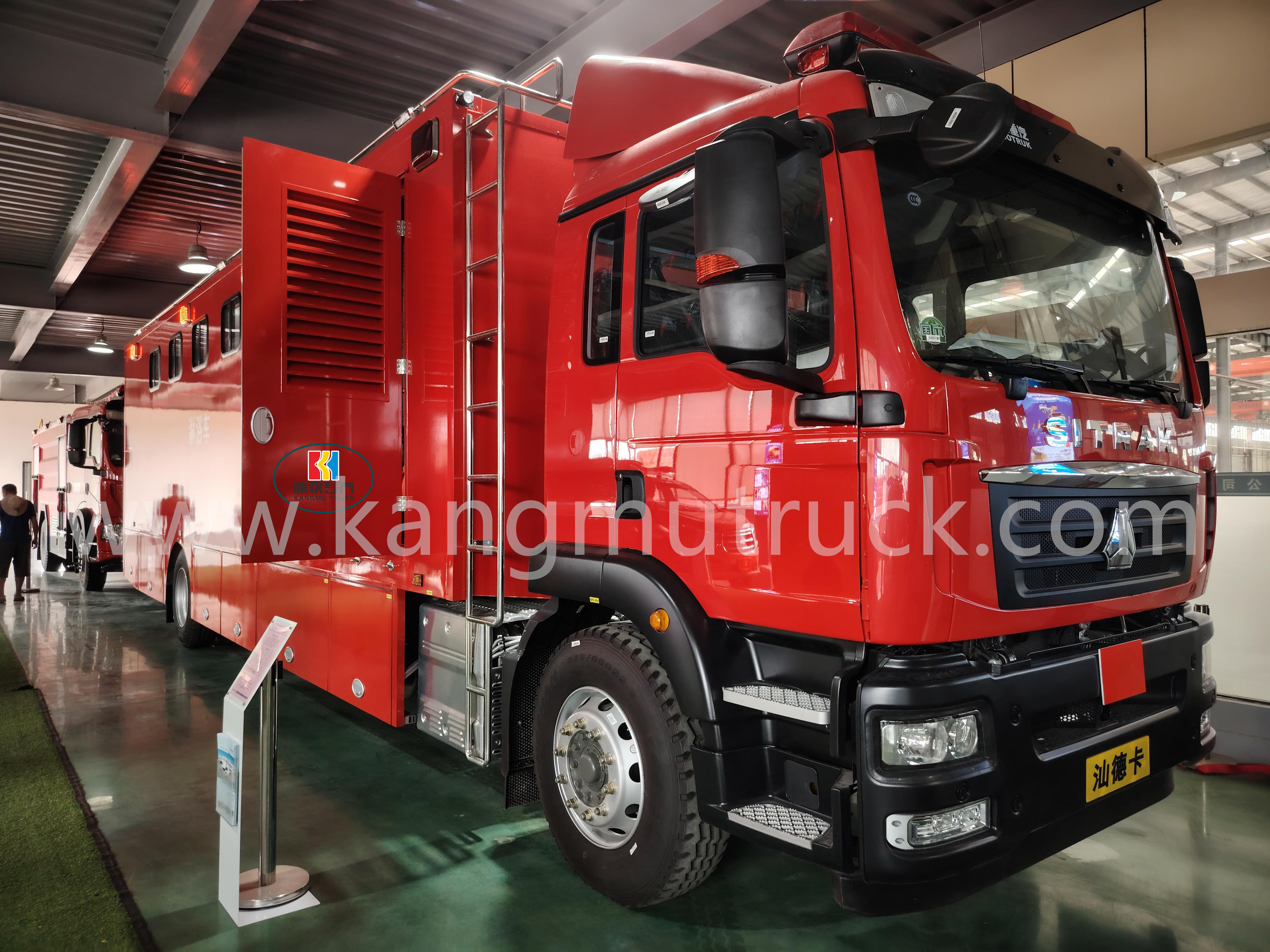

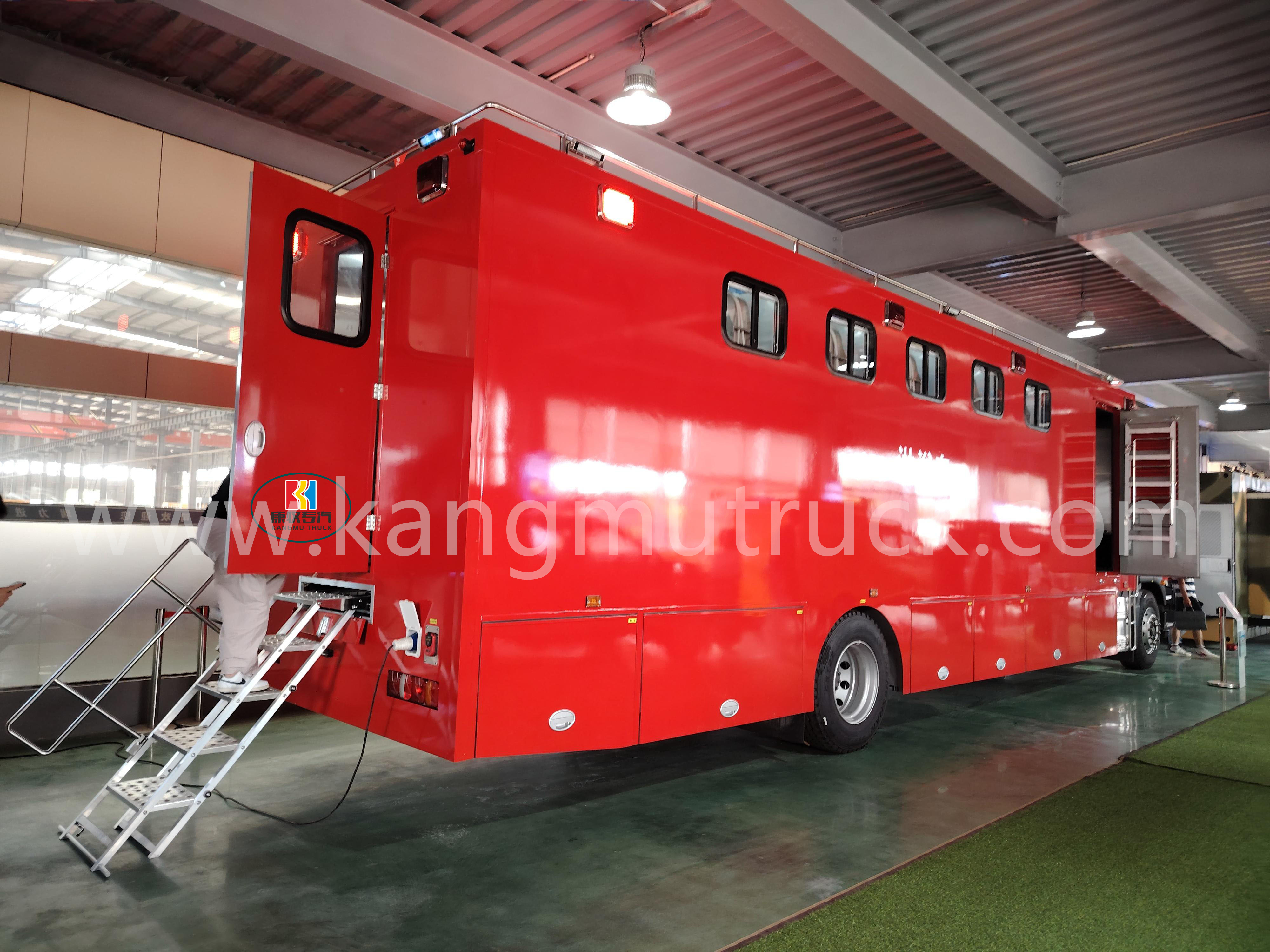

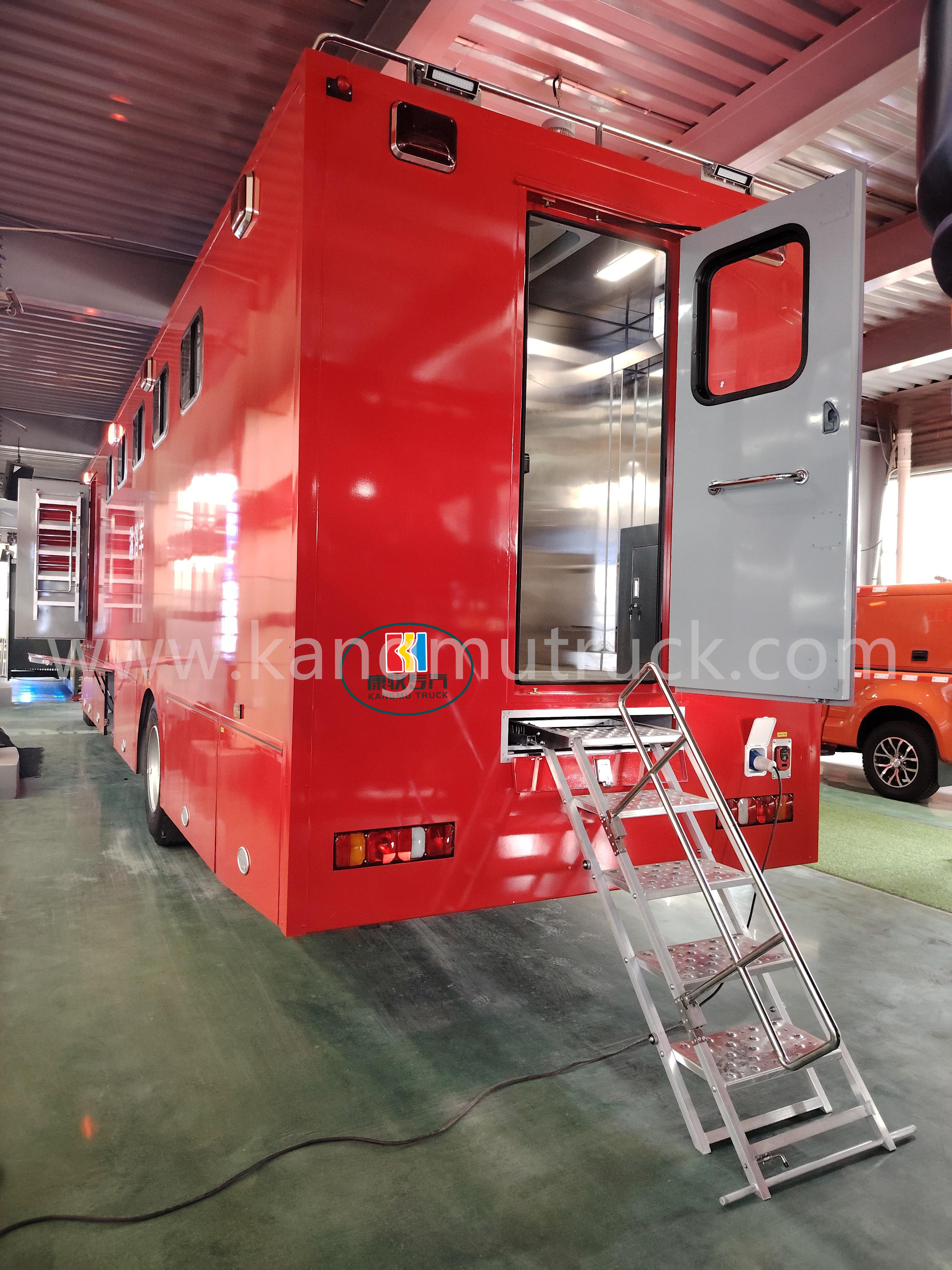

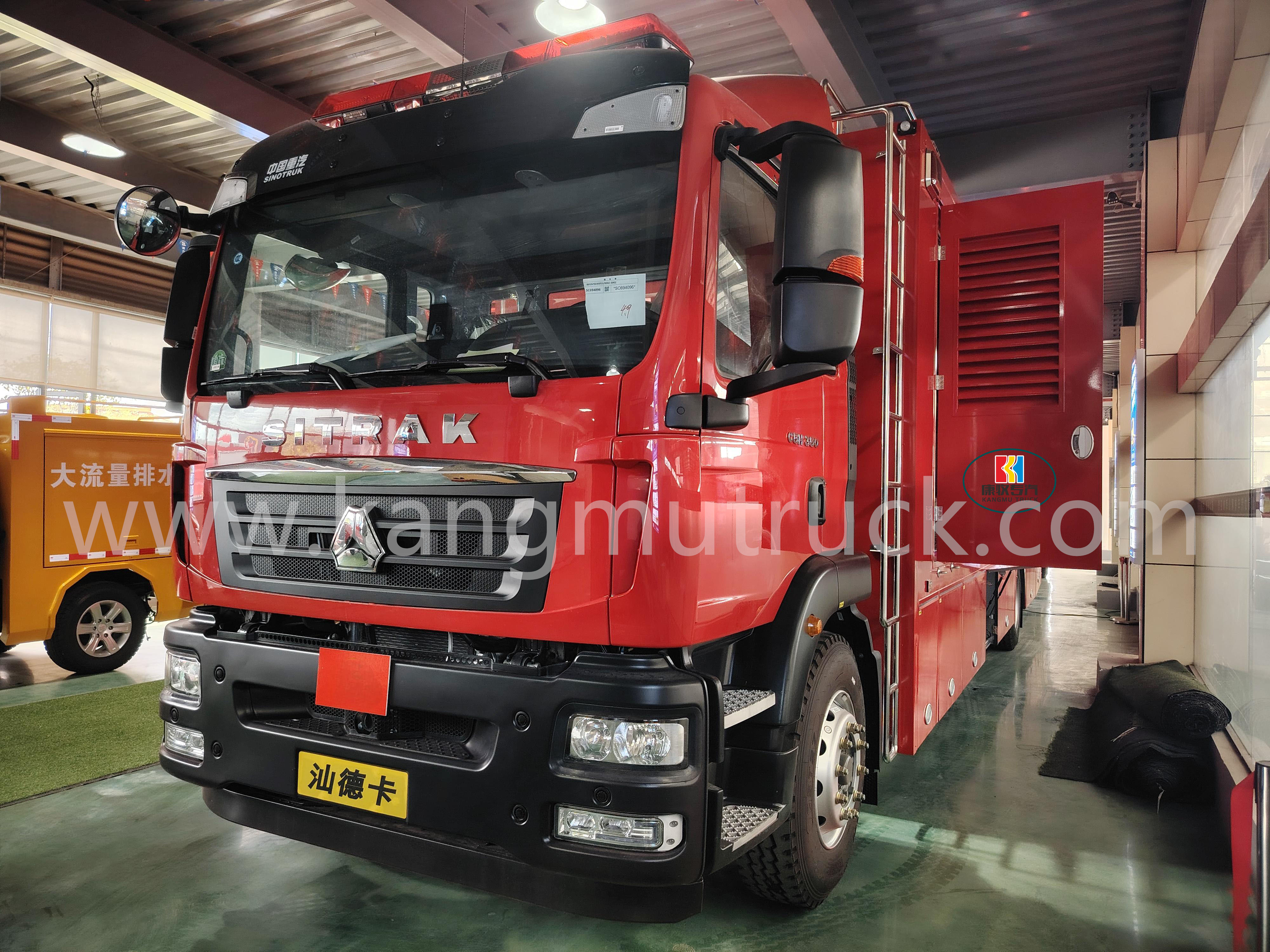

Sinotruk Sitrak 350HP Shower Truck |
| Main Technical Parameters |
| Product Name | Shower Vehicle | Model Number | KMH5166XLYZ6 |
| Total Mass (Kg) | 16000 | Cab Capacity (Persons) | 2, 3 |
| Curb Mass (Kg) | 15870, 15805 | Dimensions (mm) | 12000x2550x3650 |
| Transmission | Manual | Drive Type | Rear-wheel drive |
| Approach/Departure Angle | 16/10 | Front/Rear Overhang (mm) | 1450/3450 |
| Axle Load (Kg) | 5750/10250 | Maximum Speed (Km/h) | 110 |
| Remarks | 1. Side protection is an integral skirt plate (material: Q235); rear protection is welded (material: Q235), cross-section 60x120mm, lower edge 480mm from the ground. |
| 2. Carriage top is closed and non-openable. |
| 3. Mainly used for field shower support; special devices: cold/hot water supply system, shower equipment. |
| Chassis Technical Parameters |
| Number of Axles | 2 | Number of Tires | 6 |
| Wheelbase (mm) | 7100 | Tire Specification | 295/80R22.5 18PR |
| Leaf Spring Plates | 2/3+2, 3/3+2, 3/3+3 | Front Track (mm) | 1998, 2015, 2035, 1900, 1950 |
| Fuel Type | Diesel | Rear Track (mm) | 1850 |
| Emission Standard | National VI | Displacement (ml) | 7360 |
| Power (Kw) | 257 | Engine Model | MC07H.35-60 |
| Manufacturer | Sinotruk Group |
|
|
Vehicle Introduction:

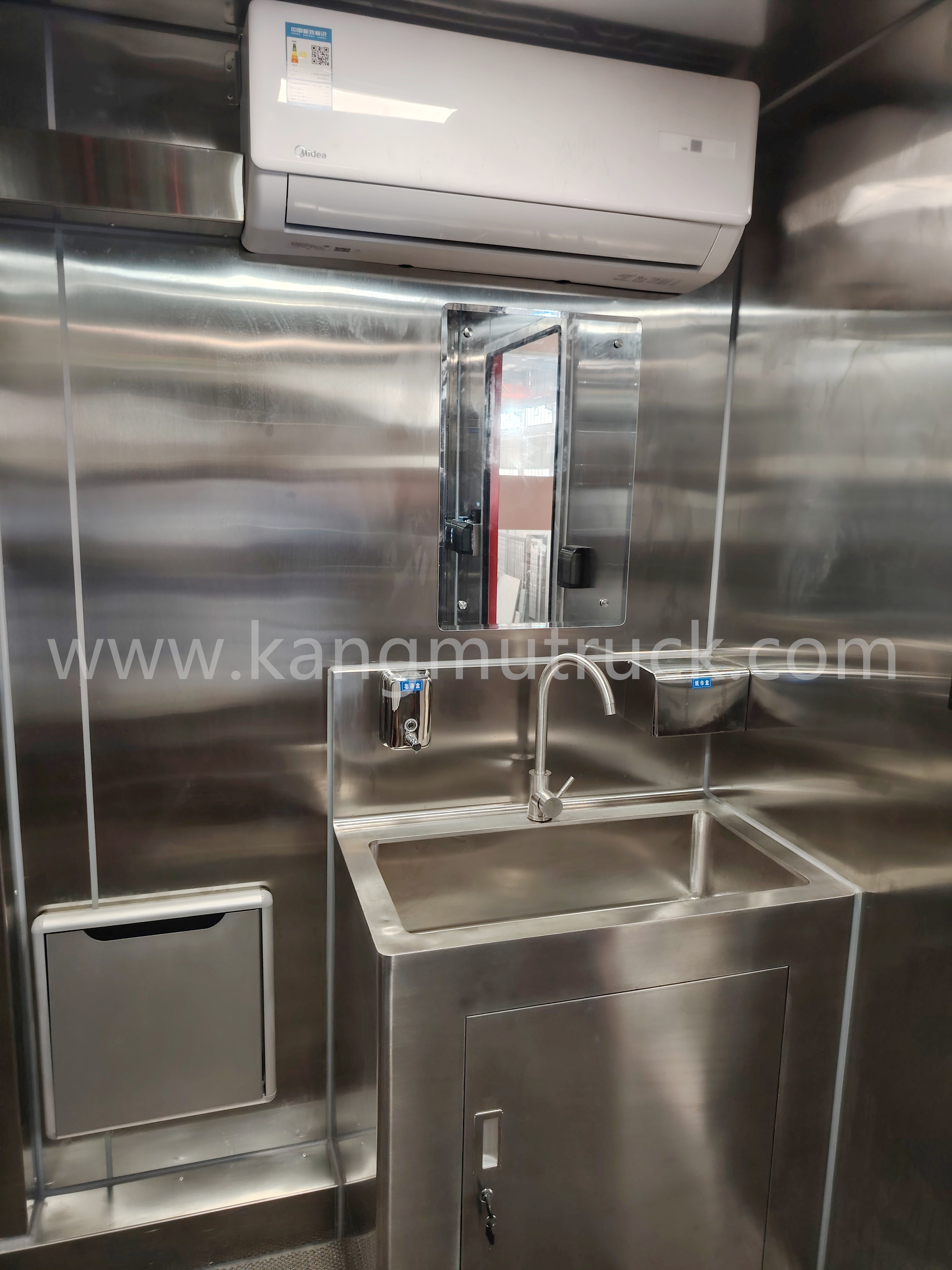

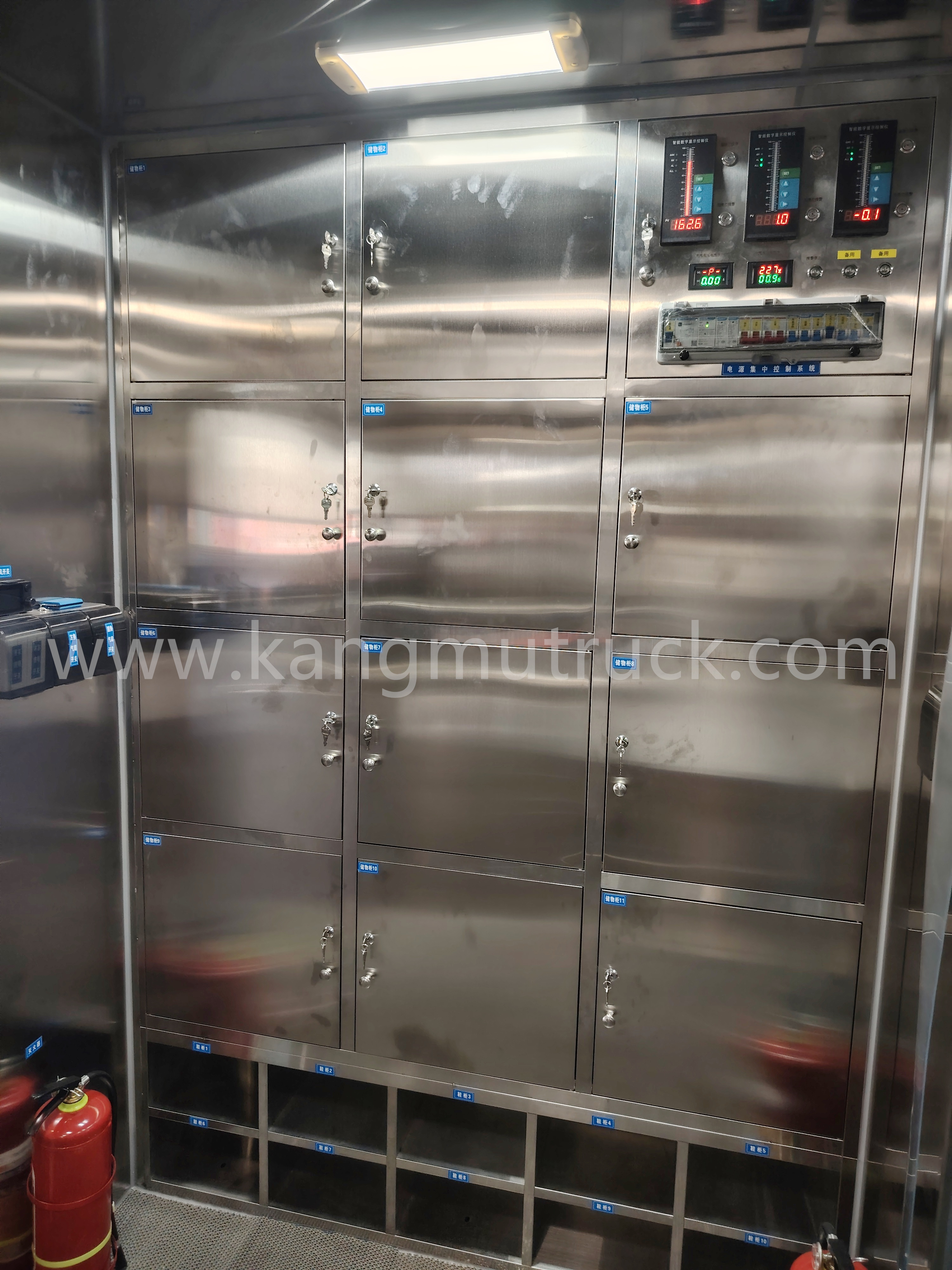

The KMH5166XLYZ6 logistics support shower vehicle features intelligent temperature control and strong independence. Developed based on the needs of public security, fire protection, SWAT, and medical epidemic prevention systems for field operations, it is a new-type logistics support vehicle. Key equipment includes a boiler, clean water tank, water purifier, and booster pump, offering comprehensive shower functions and a changing space. The middle of the carriage is a shower room with a left-right symmetrical layout, while the tail serves as a changing room equipped with lockers, hand basins, grooming mirrors, shower stools, and air conditioning.
In emergency situations, it quickly provides shower support, suitable for field engineering, emergency disaster relief, military logistics, and other scenarios. It meets the bathing needs of different fields and scales, enhancing the quality of field duty life.
Other Parameters:
Cab structure: Semi-flat cab.
Safety configurations: ABS+EBD, 360° panoramic camera, reversing camera, central control multimedia screen, mobile phone interconnection, car Bluetooth, power steering system, automatic air conditioning, driving recorder.
Carriage: Shelter panel structure, formed by one-time pressing.
Shower system: Supports 10 people showering simultaneously, with urinal function.
Water system: Composed of a 1200L large cold water tank + 800L insulated water tank; all pipelines and tanks have heat preservation and heating functions.
