KMH5310GPSDF6
KANGMU

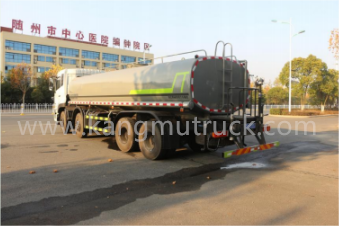

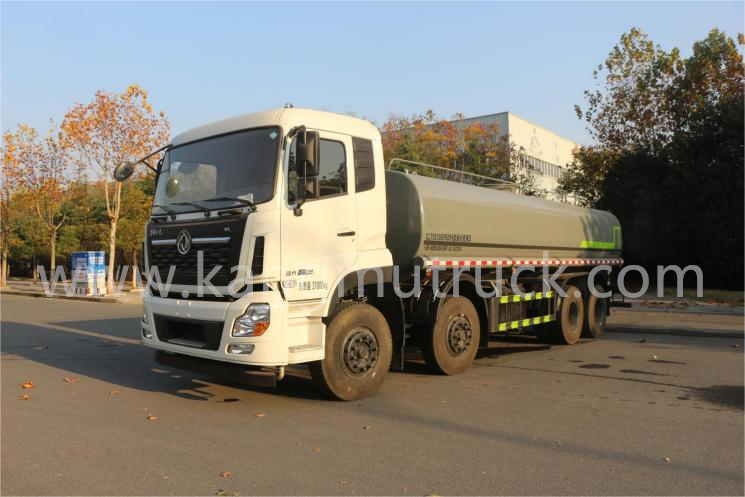

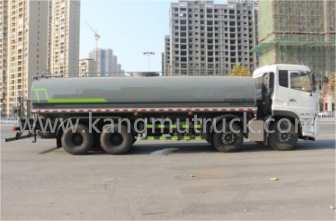

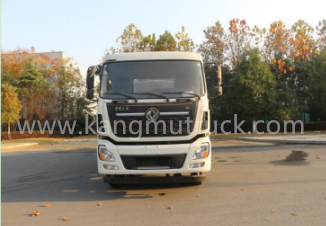

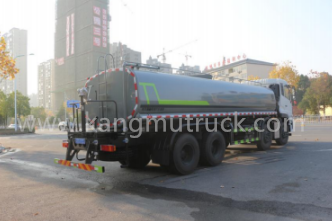

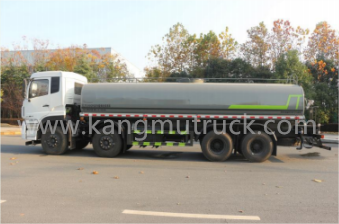

Dongfeng KL 25CBM Sprinkler Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5310GPSDF6 sprinkler truck |
2 | Engine Model | DDi75E350-60 |
3 | Engine Horsepower/Power | Longqing 350 horsepower/250KW |
4 | Engine Displacement | 7500ML |
5 | Transmission Case | Fast 9 gear |
6 | Tire Specifications | 11.00 steel wire tire |
7 | Wheelbase | 1995+3800+1350 |
8 | Total Quality | 31000KG |
9 | Curb Weight | 13000KG |
10 | Rated Load Capacity | 17870KG |
11 | Vehicle Dimensions(L*W*H) | 10.9*2.53*3.3 |
12 | Tank Volume | 25cbm |
13 | Fuel Type | Diesel oil |
14 | Emission Standard | National VI |
15 | Pump Model | 60/90 |
16 | Tank Material | Q235 carbon steel |
Chassis configuration:
The engine is equipped with a Longqing 350 horsepower (six cylinder) engine, a Fast 9-speed transmission, a wheelbase of 1995+3800+1350mm, 11.00 steel wire tires, central locking system, electric glass, directional assistance, and original air conditioning.
Upper body configuration:
1. The tank body is approximately 25 cubic meters.
2. The side lights are electrified, and two red width lights are standard above the tail of the tank.

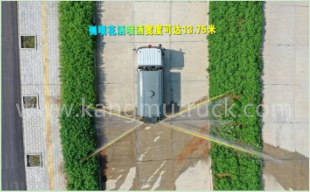

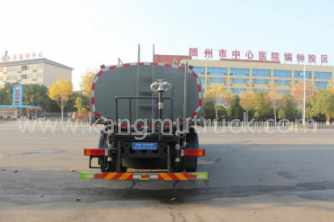

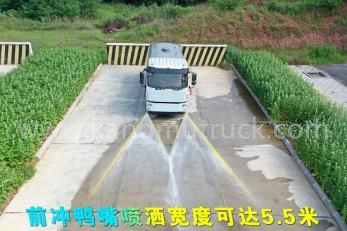

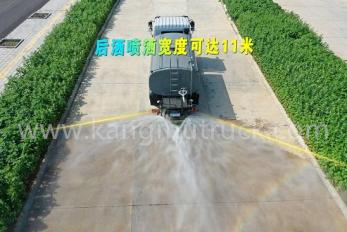

3. The standard front spray is a duckbill straight jet, and the standard rear spray allows users to adjust the offset position according to their own needs.
4. Punching platform (with enhanced load-bearing capacity), and the rear cover of the barrel is a customized bolt buckle.
5. The front spray, back flush, back spray, and side spray, as well as the green anti-aircraft gun switch ball valve, all use 50 large diameter stainless steel ball valves.

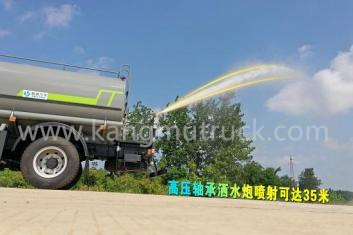

6. The new bearing type water cannon is more durable.
7. 60-90 type water pump.
8. Anti-corruption flange gasket.
9. Aluminum is not easy to explode after sprinkling.
10. Automatic welding of tank body (Lincoln welding machine and power supply from the United States), automatic welding of panel assembly, welding of head ring seam, no porosity, and beautiful weld seam.
11. The side guard and rear bumper are all bolted together for easy disassembly and maintenance.
12. Plastic mudguards, replacing iron mudguards, are more lightweight and connected with bolts for easy disassembly.
13. The connection between the front and rear main pipes is a 6-hole circular flange, which is not easy to pad.
