KANGMU

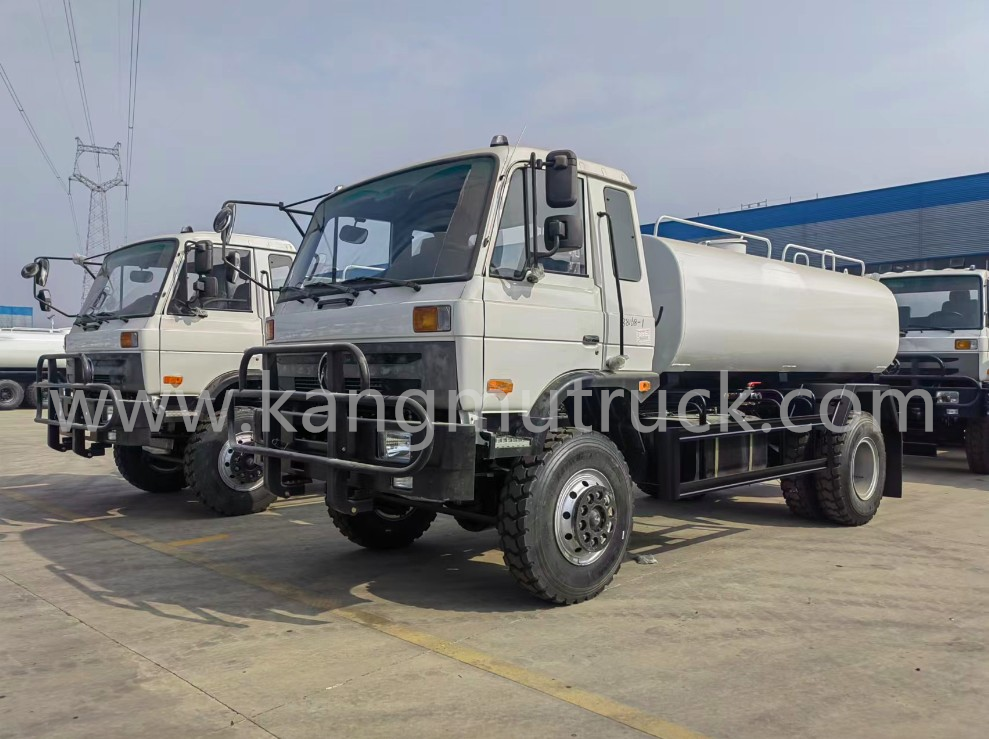

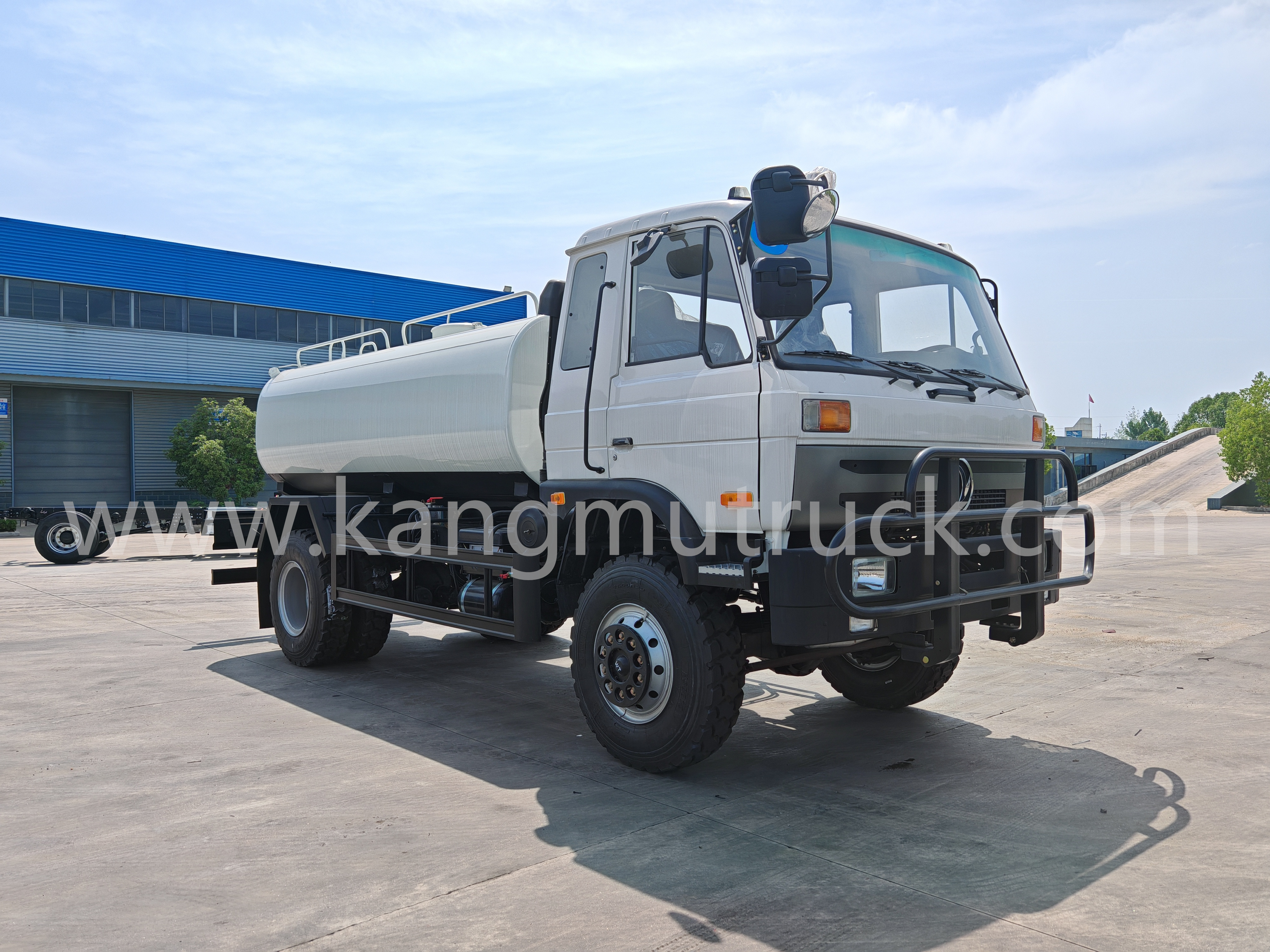

4*4 8000L Water Tank Truck
General | Model | ||||||
Brand | |||||||

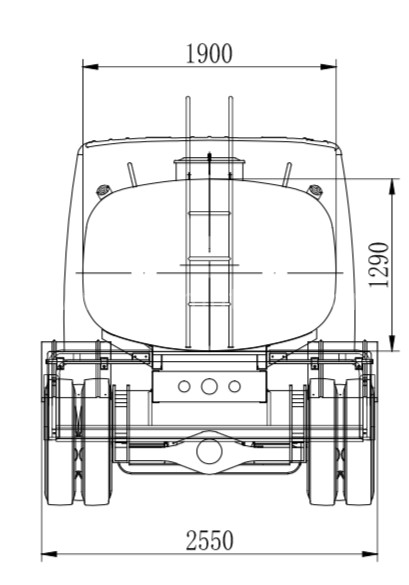

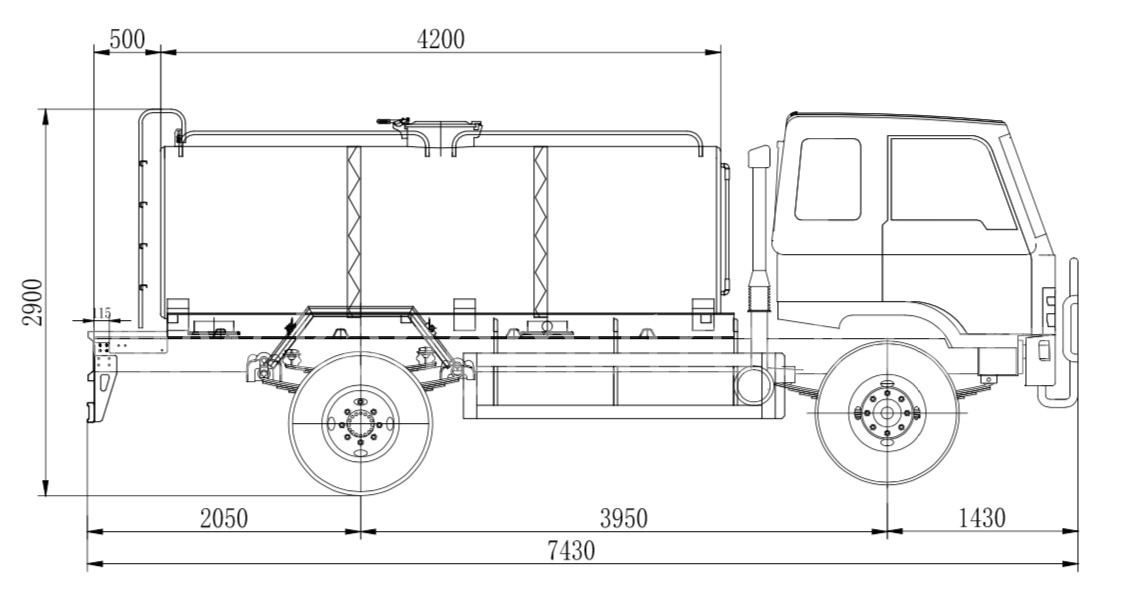

Overall Dimension | Appro 7430 ×2550×2900mm | ||||||
GVW | 14000(kg) | ||||||
Kerb Weight | 7880 kg | ||||||
Payload | 8000 kg | ||||||

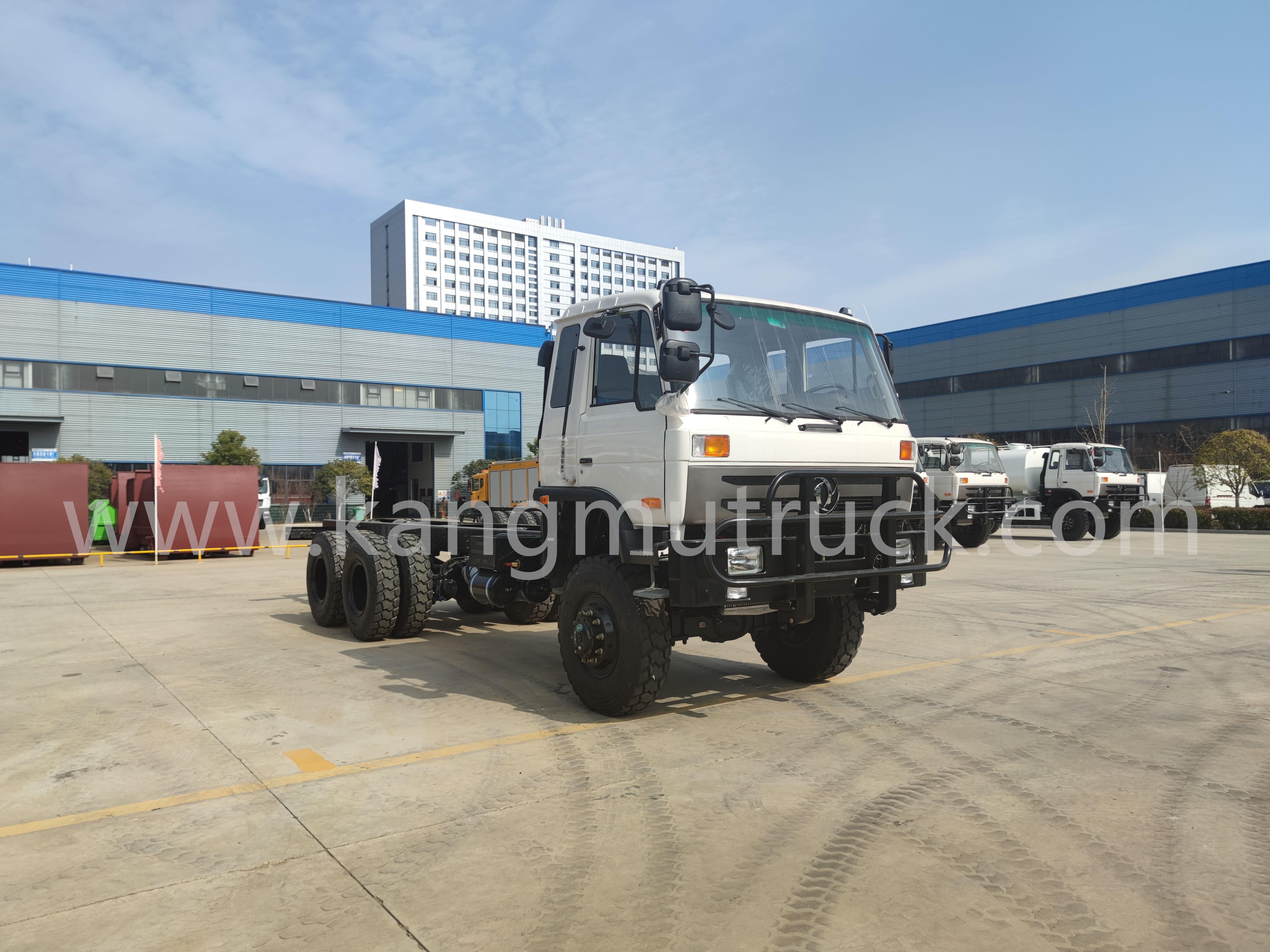

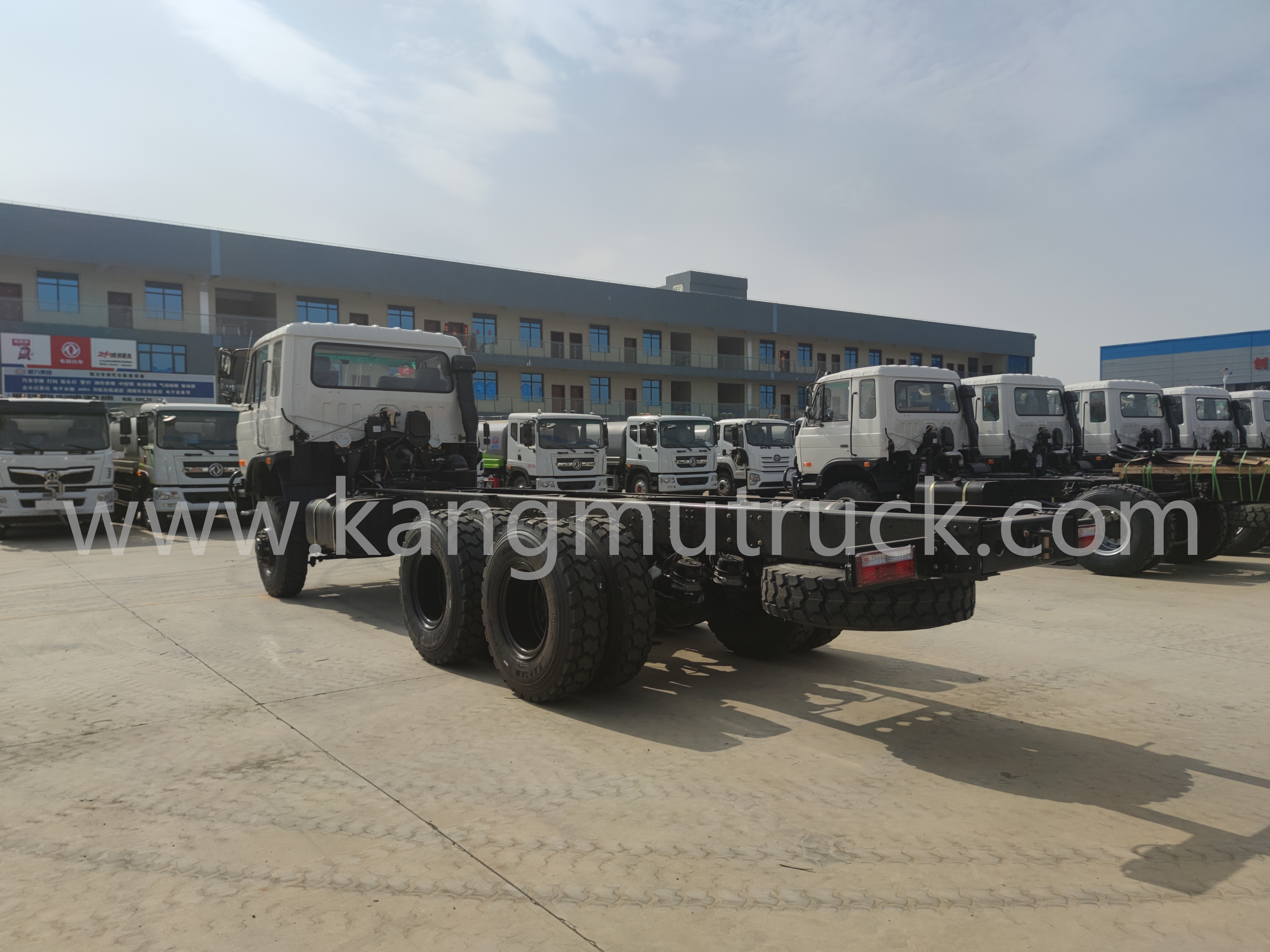

Chassis | Brand | Dongfeng | |||||
Cabin | Dongfeng 153 cab, single row with one bed, white color, With Front Protector bar, With Air condition | ||||||
Driving type | 4*4 Left Hand Drive | ||||||
Wheelbase | 3950mm | ||||||
Engine | Model: B170 33; Manufacturer: Dongfeng Cummins Engine Co.,Ltd Rated Power: 125kw/170hp, Torque: 560N.m, Displacement: 5.9L | ||||||
Gear | 8JS85C-FDX; 8Forward +2Reverse | ||||||
Front Axle | 4.5T | ||||||
Rear axle | 9T; | ||||||
Frame | 250*80*7+4mm | ||||||
Suspension | Spring 8/10+8 | ||||||
Tire | 11.00R20; 6+1pcs | ||||||
Water Tank | Volume of tank | 8000L | |||||
Material | Q235 carbon steel | ||||||
Thickness | Tank body: 4mm ; Tank head: 5mm. | ||||||
Wave-proof wave plate | two pieces | ||||||
Valve | Y-type 65# copper ball valve with filter screen and self-flow device | ||||||
Manhole | 1nos; With sealing ring and manual locking | ||||||

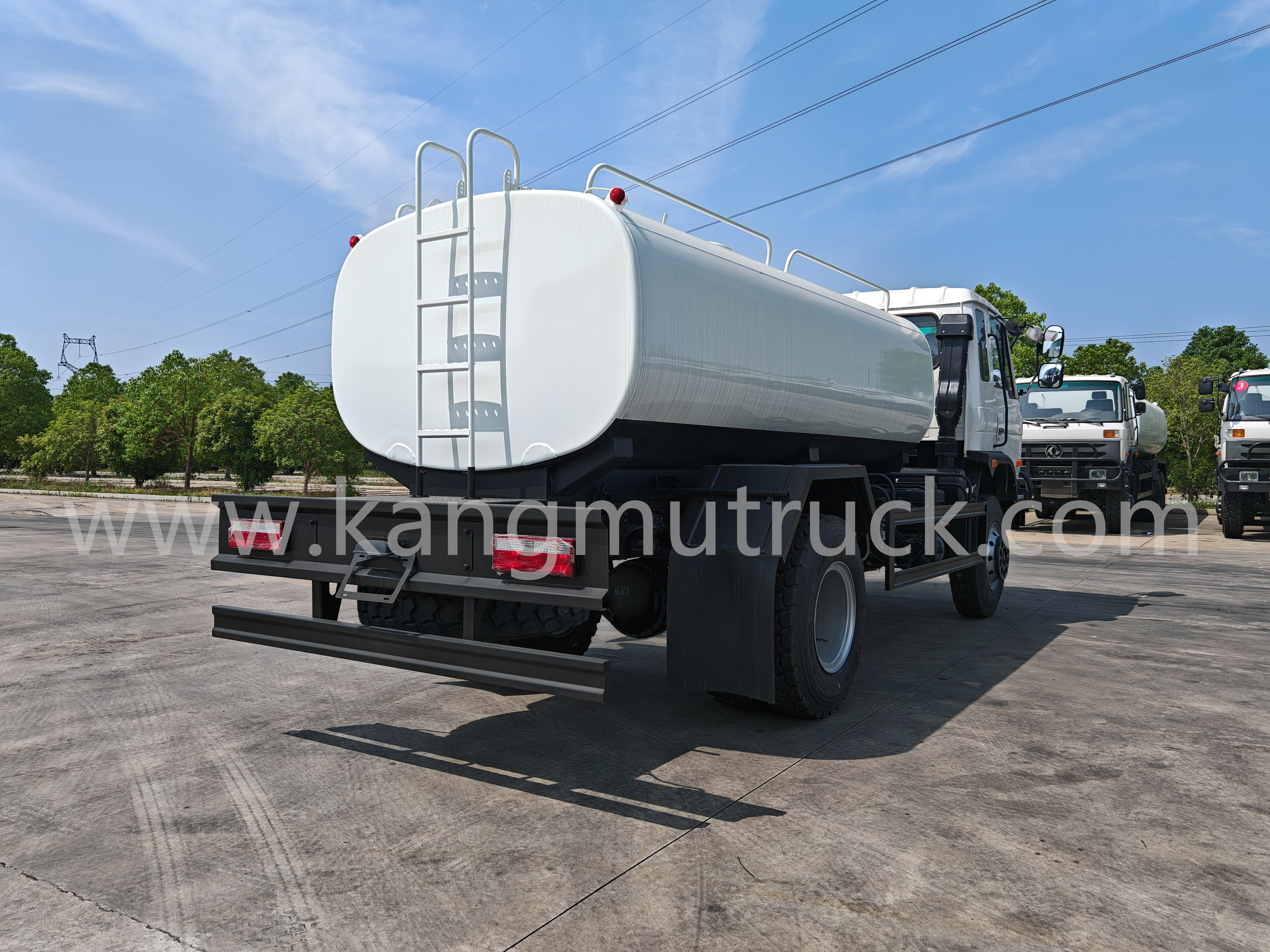

Ladder | The rear of the tank is equipped with a ladder and a non-slip patterned plate platform, which is convenient for climbing to the top of the tank. | ||||||
Paint | Can body and all metal accessories are electromagnetically treated, Color: White and black |
