KMH5253GSSDF6
KANGMU

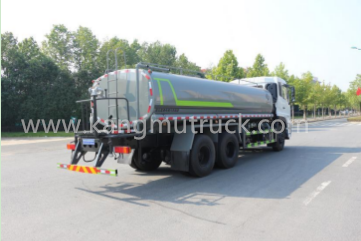

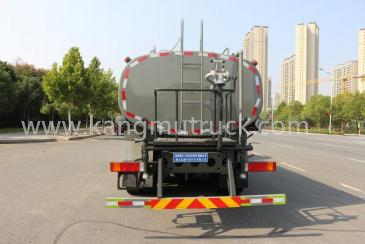

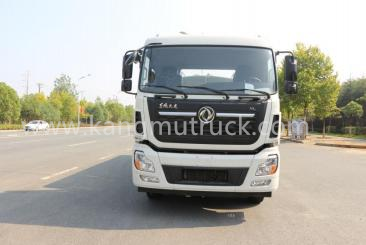

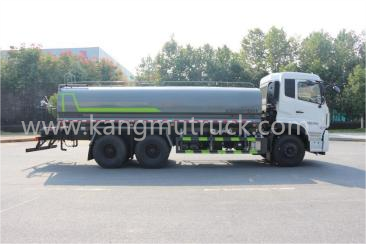

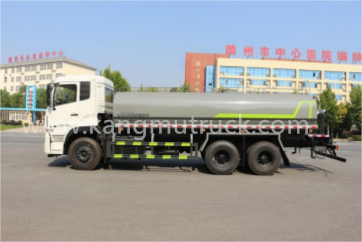

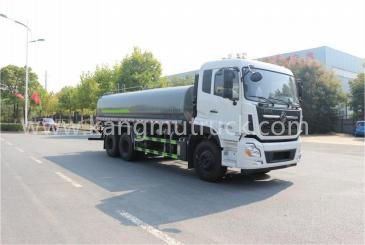

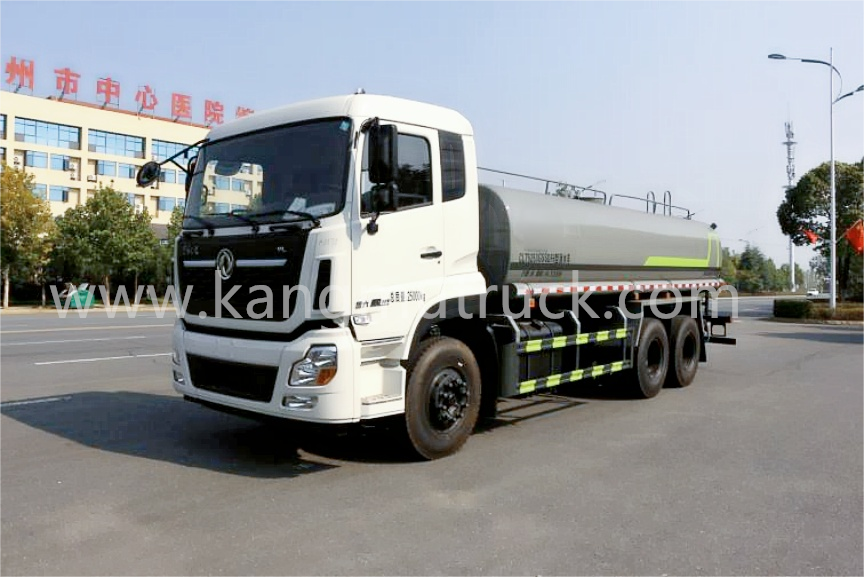

Dongfeng KL 6X4 18CBM Sprinkler Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5253GSSDF6 sprinkler truck |
2 | Engine Model | DDi75E340-60 |
3 | Engine Horsepower/Power | Longqing 340 horsepower/250KW |
4 | Engine Displacement | 7500ML |
5 | Transmission Case | Fast 9 gear |
6 | Tire Specifications | 295 vacuum tire |
7 | Wheelbase | 4350+1350 |
8 | Total Quality | 25000KG |
9 | Curb Weight | 10800KG |
10 | Rated Load Capacity | 14070KG |
11 | Vehicle Dimensions(L*W*H) | 10*2.5*3.2 |
12 | Tank Volume | 18cbm |
13 | Fuel Type | Diesel oil |
14 | Emission Standard | National VI |
15 | Pump Model | 60/90 |
16 | Tank Material | Q235 carbon steel |
Chassis configuration:
The engine is equipped with a Longqing 340 horsepower (six cylinder) engine, a Faust 9-speed transmission, a wheelbase of 4350+1350295 vacuum tires, a front axle of 5.5 tons and a rear double of 10 tons, electric glass, central locking system, original air conditioning, and driving recorder.
Upper body configuration:
1. The tank body is approximately 18 square meters.
2. The side lights are electrified, and two red width lights are standard above the tail of the tank.

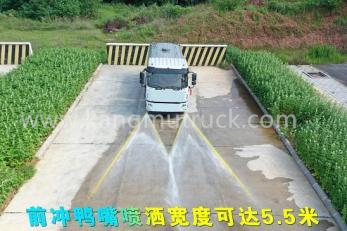

3. The standard front spray is a duckbill straight jet, and the standard rear spray allows users to adjust the offset position according to their own needs.
4. Punching platform (with enhanced load-bearing capacity), and the rear cover of the barrel is a customized bolt buckle.
5. The front spray, back flush, back spray, and side spray, as well as the green anti-aircraft gun switch ball valve, all use 50 large diameter stainless steel ball valves.
6. The new bearing type water cannon is more durable.
7. 60-90 type water pump.
8. Anti corrosion flange gasket.
9. Aluminum is not easy to explode after sprinkling.
10. Automatic welding of tank body (Lincoln welding machine and power supply from the United States), automatic welding of panel assembly, welding of head ring seam, no porosity, and beautiful weld seam.
11. The side guard and rear bumper are all bolted together for easy disassembly and maintenance.
12. Plastic mudguards, replacing iron mudguards, are more lightweight and connected with bolts for easy disassembly.
13. The connection between the front and rear main pipes is a 6-hole circular flange, which is not easy to pad.
