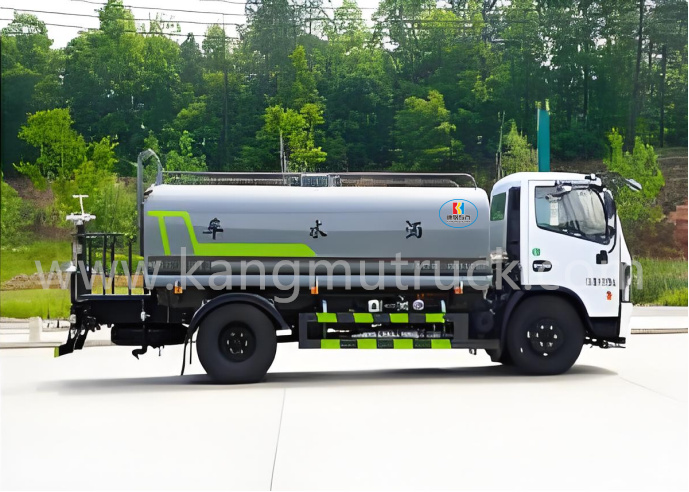

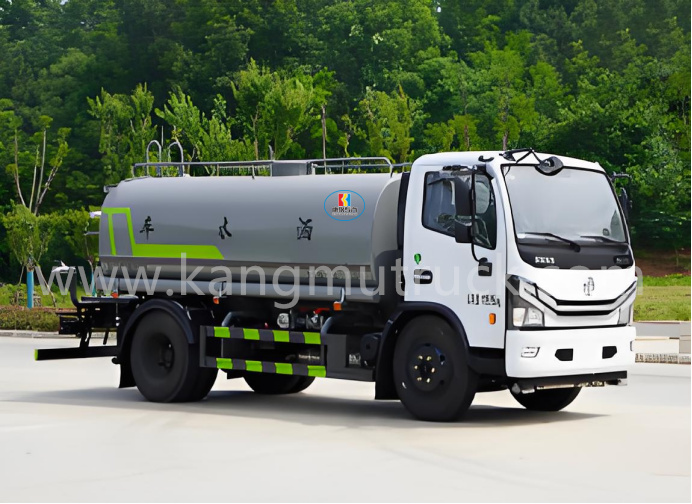

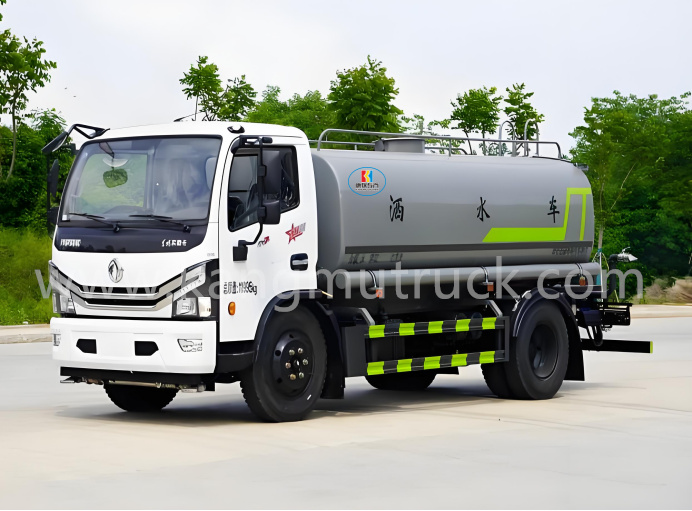

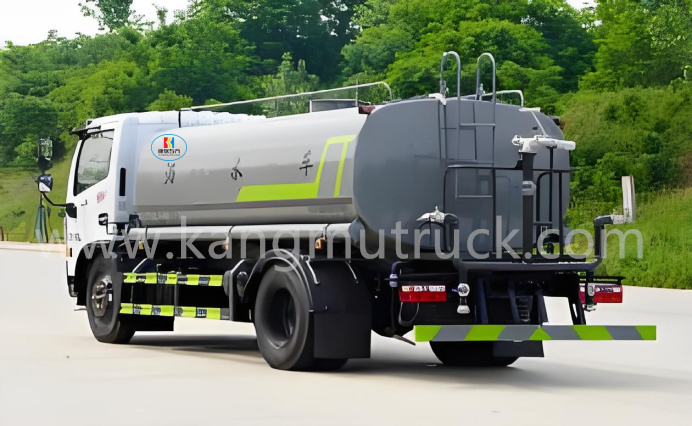

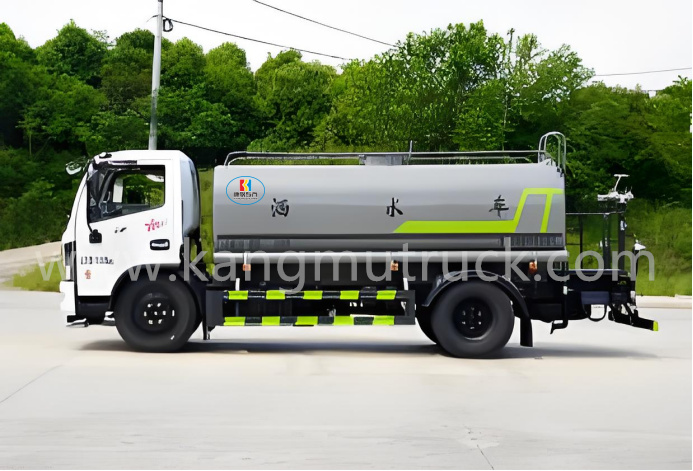

Dongfeng Dolika 9 CBM 156HP Sprinkler Truck
| Name | Specifications |
| 1 | Vehicle Model | KMH5120GSSEQ6 |
| 2 | Engine Model | Q28-156E60 |
| 3 | Engine Power | 115KW |
| 4 | Engine Displacement | 2800ML |
| 5 | Transmission | Wanliyang 6 Gear |
| 6 | Tire Specification | 8.25 Steel Wire Tire |
| 7 | Wheelbase | 3800MM |
| 8 | Total Quality | 11995KG |
| 9 | Curb Weight | 4600KG |
| 10 | Rated Loading Capacity | 7200KG |
| 11 | Vehicle Dimension | 7.1*2.25*2.8M |
| 12 | Tank Volume | 9 CBM |
| 13 | Fuel Type | Diesel |
| 14 | Emission Standard | National VI |
| 15 | Pump Model | 40/50 |
| 16 | Tank Material | Q235 Carbon Steel |
Chassis Configuration:

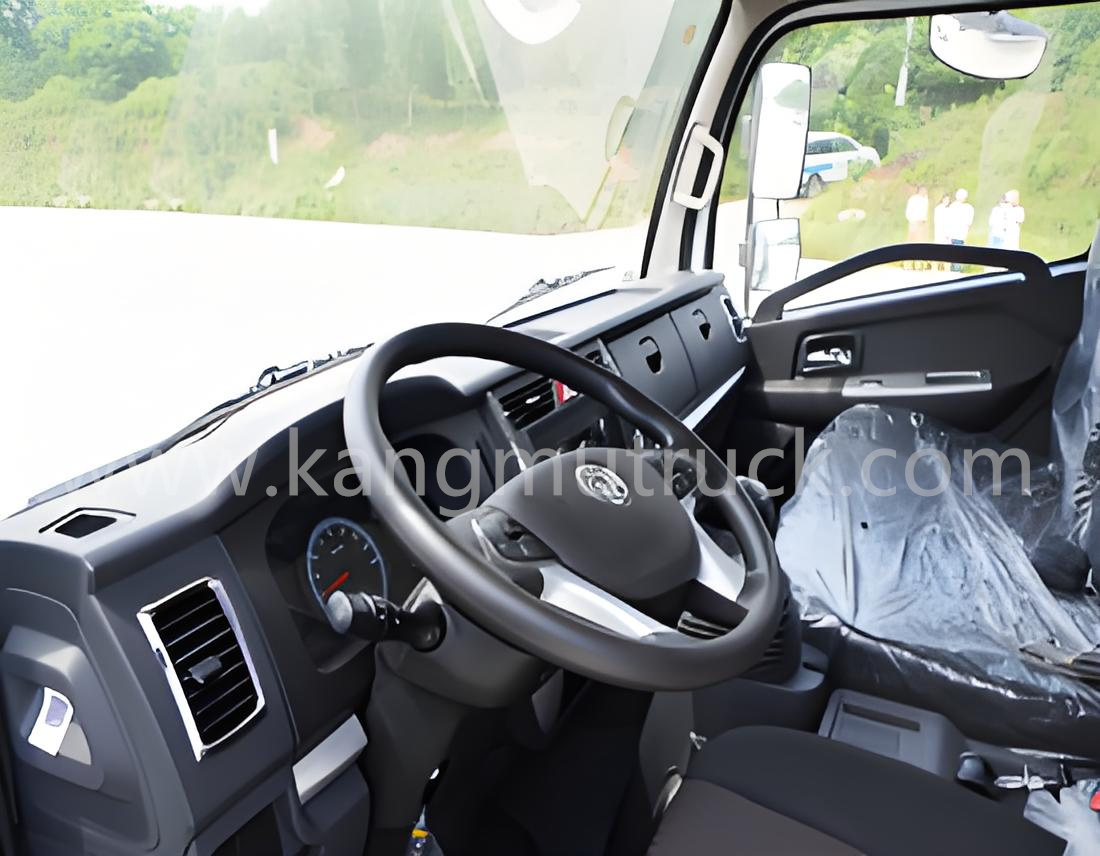

The engine is Quanchai with a power of 156 horsepower (four-cylinder), equipped with a Wanliyang 6-speed gearbox, a 2.7T front axle, a 4.2T rear axle, 8.25 steel wire tires, a wheelbase of 3800mm, a pneumatic parking brake, air conditioning, electric windows, a multi-function steering wheel, and a central locking system.
Upper body Configuration:
1. The tank has a volume of approximately 9 cubic meters. The side lights are electrified, and 2 red width indicator lights are standardly installed above the rear of the tank.
2. The standard front spray is a duckbill direct spray, and the standard rear spray is available. Users can adjust the position of the opposite spray according to their own needs.
3. Perforated platform (with enhanced load-bearing capacity), and the cannon tube rear cover is a customized bolt buckle.
4. The on-off ball valves for the front spray, rear spray, rear sprinkling, side spray, and the greening high cannon are all engineering-specific 50 large-diameter copper ball valves.
5. The new-type bearing water cannon is more durable.
6. 40-50 type water pump.
7. Anti-corrosion flange gaskets.
8. The aluminum rear sprinkler is not easy to burst.
9. The tank is automatically welded (using American Lincoln welding machine and power supply), with automatic welding of the assembled plates and circumferential welding of the head. There are no air holes, and the welds are beautiful.
10. The side protection net and the rear bumper are both connected by bolts, which is convenient for disassembly and maintenance.
11. The plastic mudguards replace the iron mudguards, which are lighter and are connected by bolts for easy disassembly.
12. The connection points of the main pipes at the front and rear are 6-hole round flanges, which are not easy to have the gaskets washed out.
