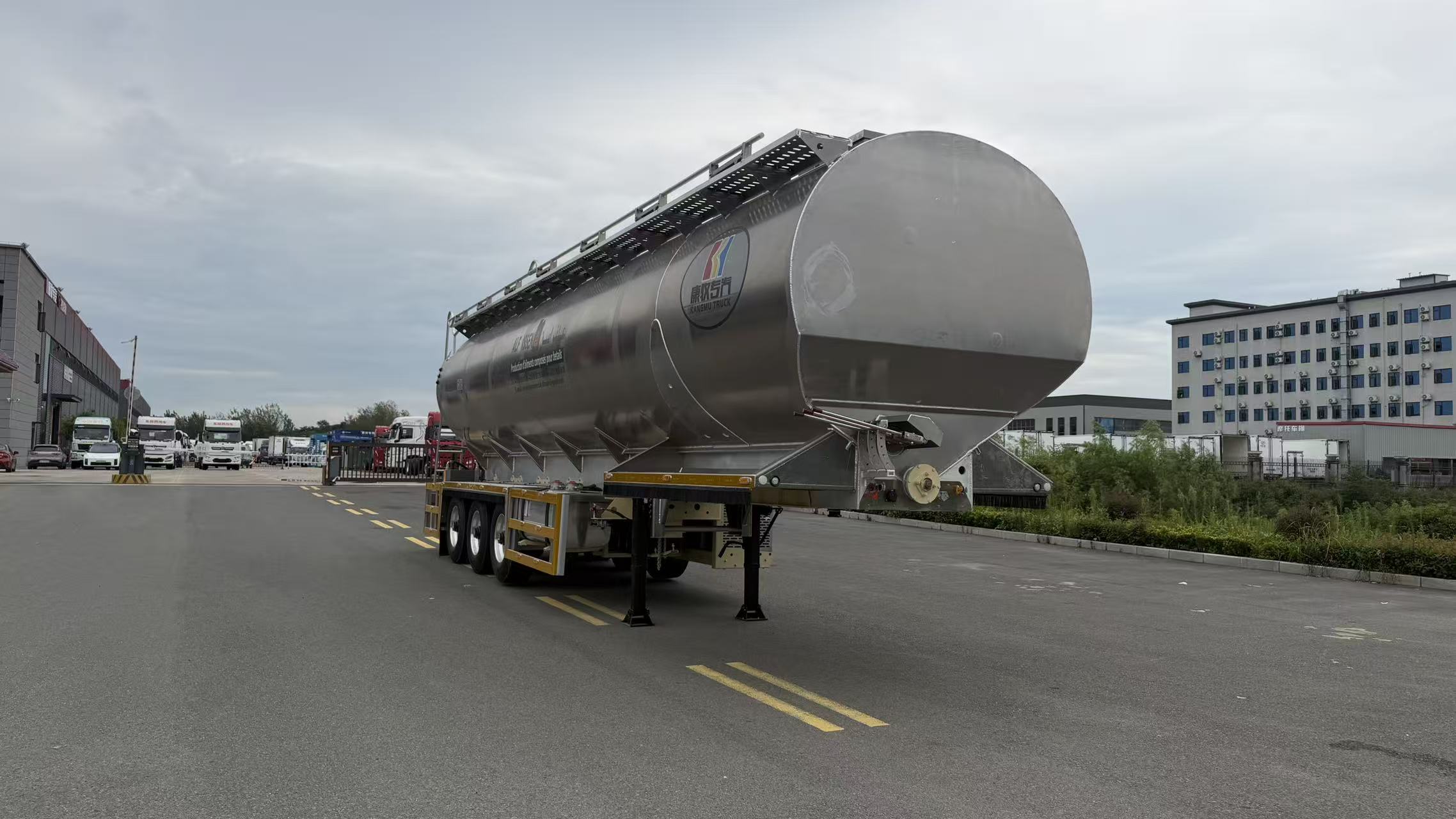

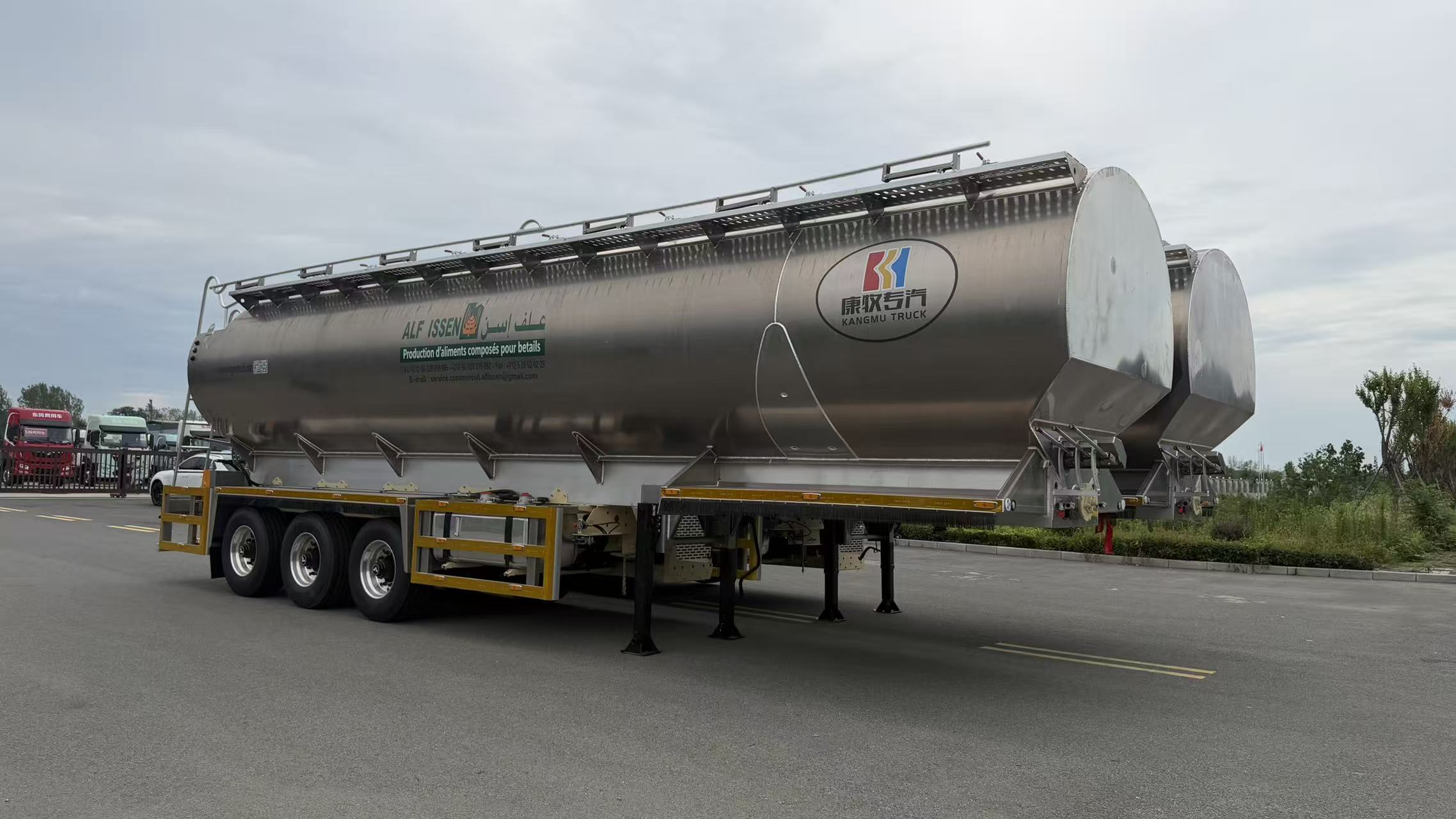

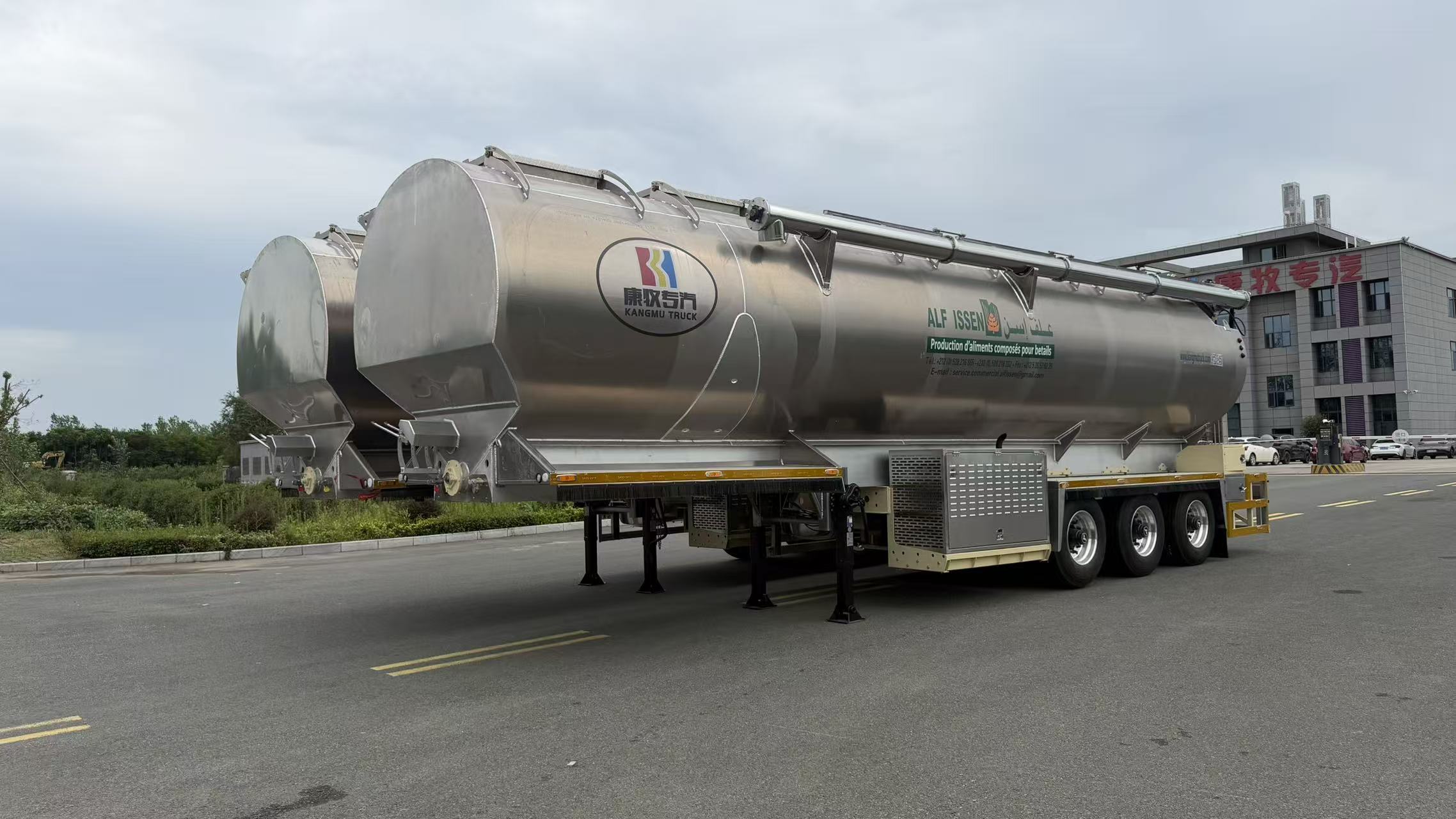

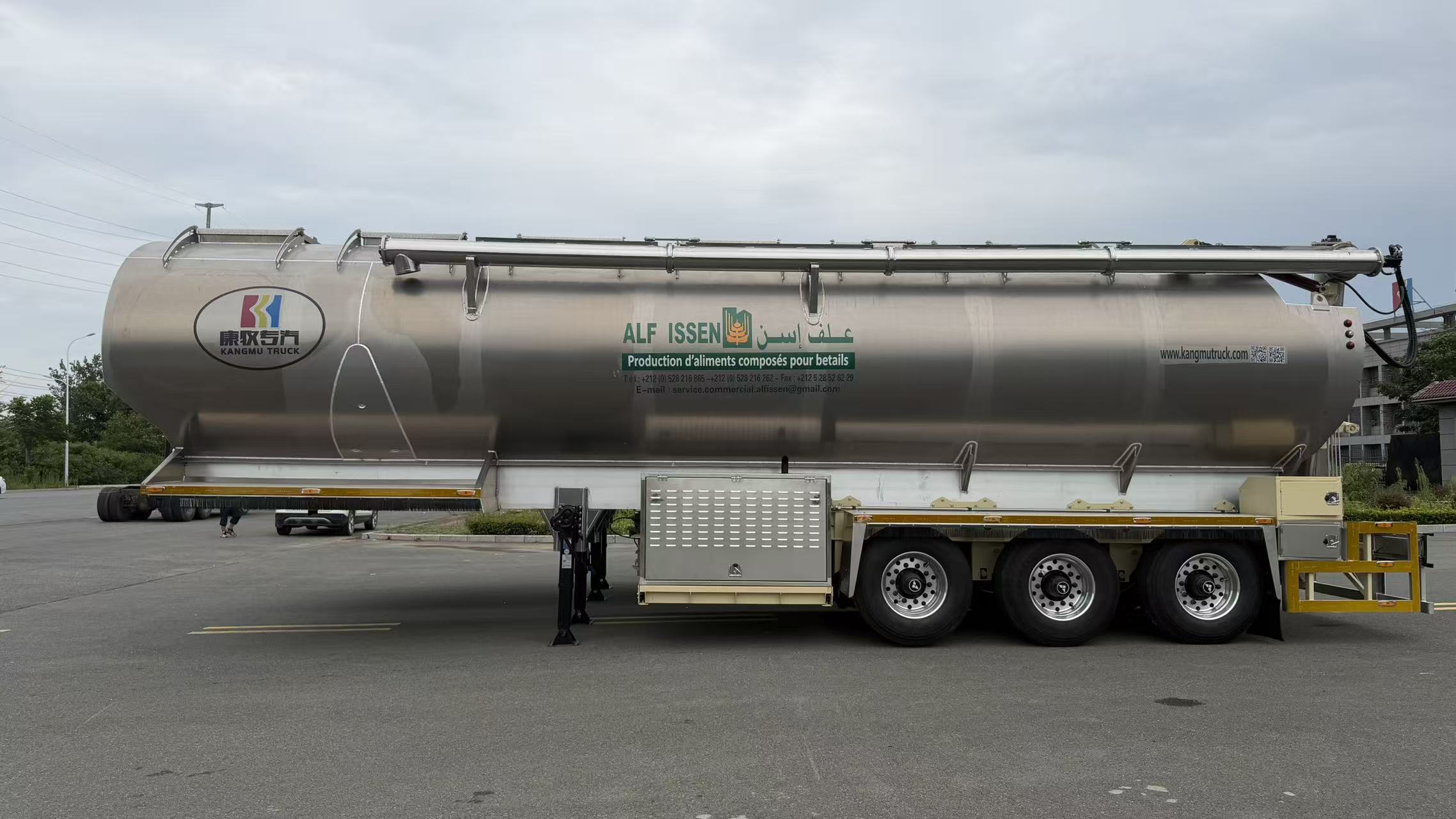

HIGH QUALITY BULK FEED TRAILER MAIN TECHNICAL DATA
MODEL: KMH9401ZSL |
| Item 项目 | Description 内容 | Parameter 参数 |
Overall Parameter
整车参数 | Dimension(LxWxh) 外廓尺寸长宽高 | Around 11730x2550x3998mm |
| Wheel Base 轴距 | 5650+1310+1310mm |
| G.V.W. 最大总质量 | / |
| Kerb Weight 整备质量 | Around 9210KG |
| Payload 额定质量 | 32000-40000KG |
Chassis Parameter
底盘参数 | Diesel Engine 柴油发动机 | 75KW ISUZU（CHINA） |
| Diesel Fuel Tank 发动机油箱 | 130L, STEEL |
| Axles No. & Brand 轴数/品牌 | 3 / KANGMU/FENGBAO |
| Air Suspension 空气悬挂车桥 | AIR SUSPENSION,
FRONT AXLE LIFTING |
| Beam 大梁 | HIGH STRENGTH ALUMINUM |
| Landing Leg 支腿 | FUWA |
| ABS & RELAY VALVE 刹车系统和继动阀 | WABCO |
| Tire 轮胎 | 385/65R22.5，7PCS |
Bodyparts Parameter
上装参数 | Tank Volume 罐体容积 | 45-48CBM |
| Compartment 料仓数量 | 7 |
| Tank Material 罐体材料 | HIGH-END ALUMINUM |
| Tank Thikness 罐体厚度 | 5-6 MM |

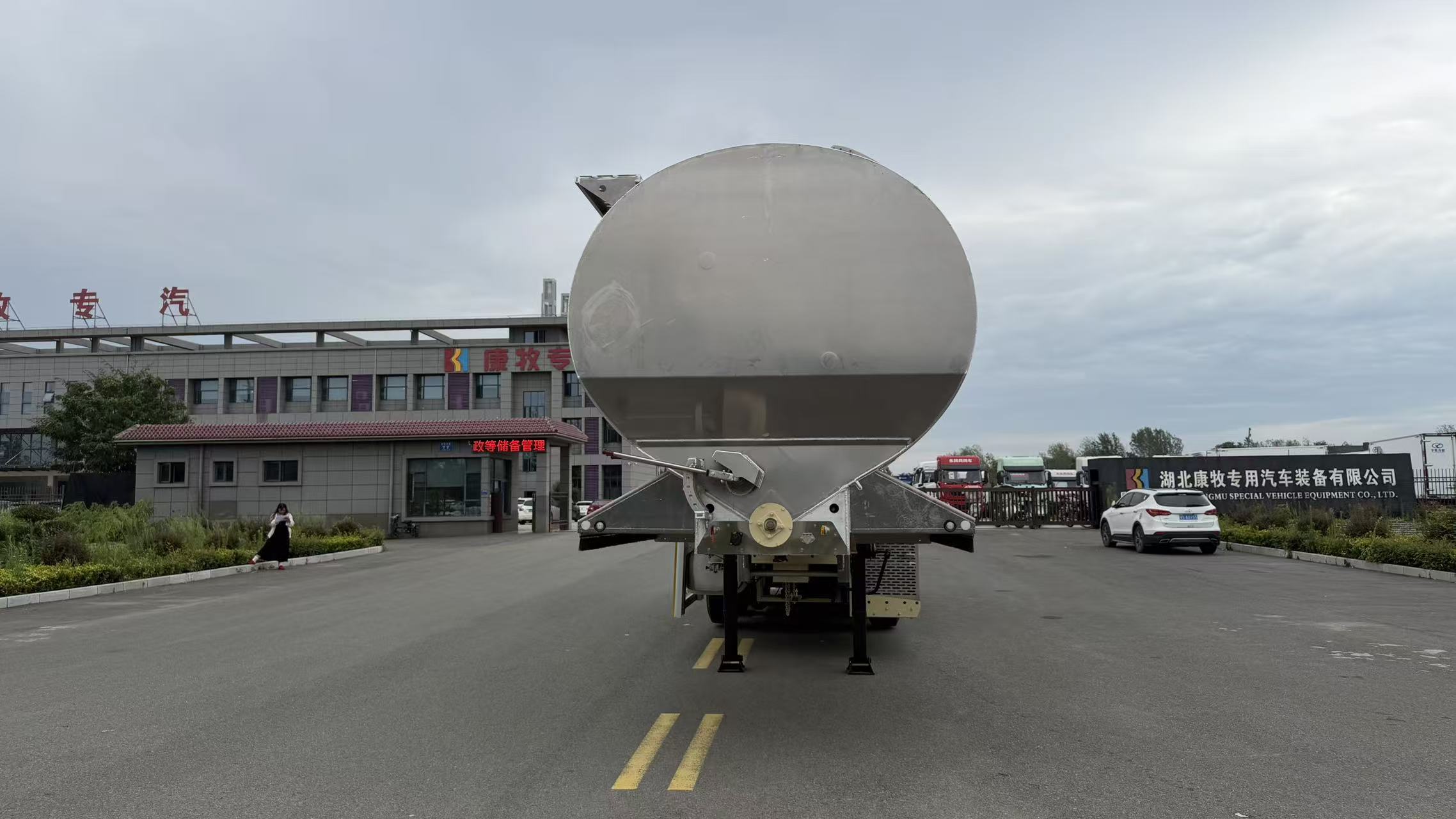

| Tank Shape 罐体形状 | ROUND |
| Top Auger 顶部蛟龙长度及材质 | 9M, STAINLESS STEEL |
| Discharge Method 卸料方式 | HYDRAULIC |
| Hydraulic Pump 液压泵 | DENISON |
| Motor 液压马达 | DANFOSS |
| Multitandem Valve 操作阀 | TAIWAN YOULI |
| Hydraulic Oil Tank 液压油箱 | 450L, ALUMINUM ALLOY |
| Hydraulic Oil Cooling Fan 液压油散热风扇 | 2PCS |
Other Details

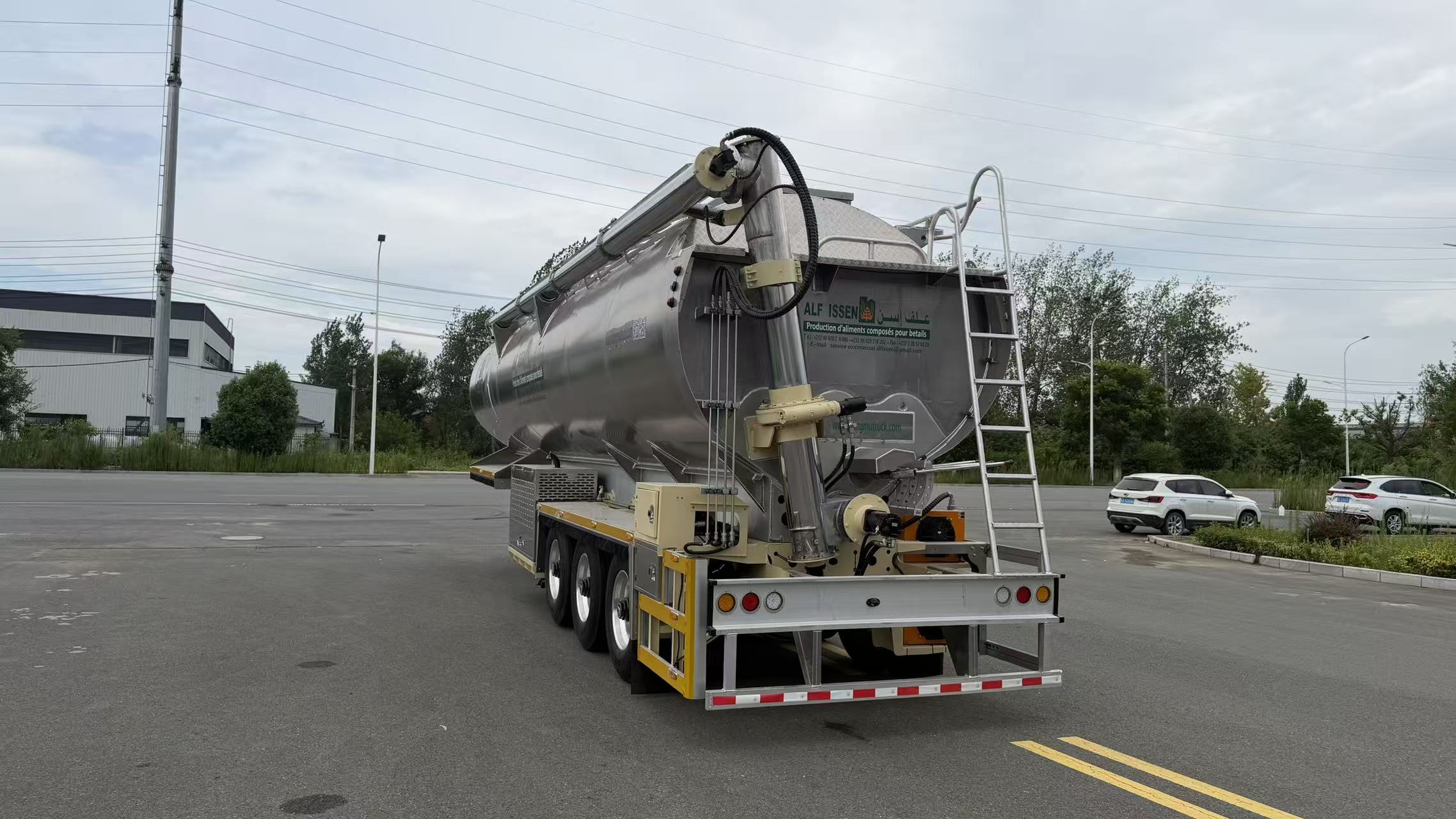

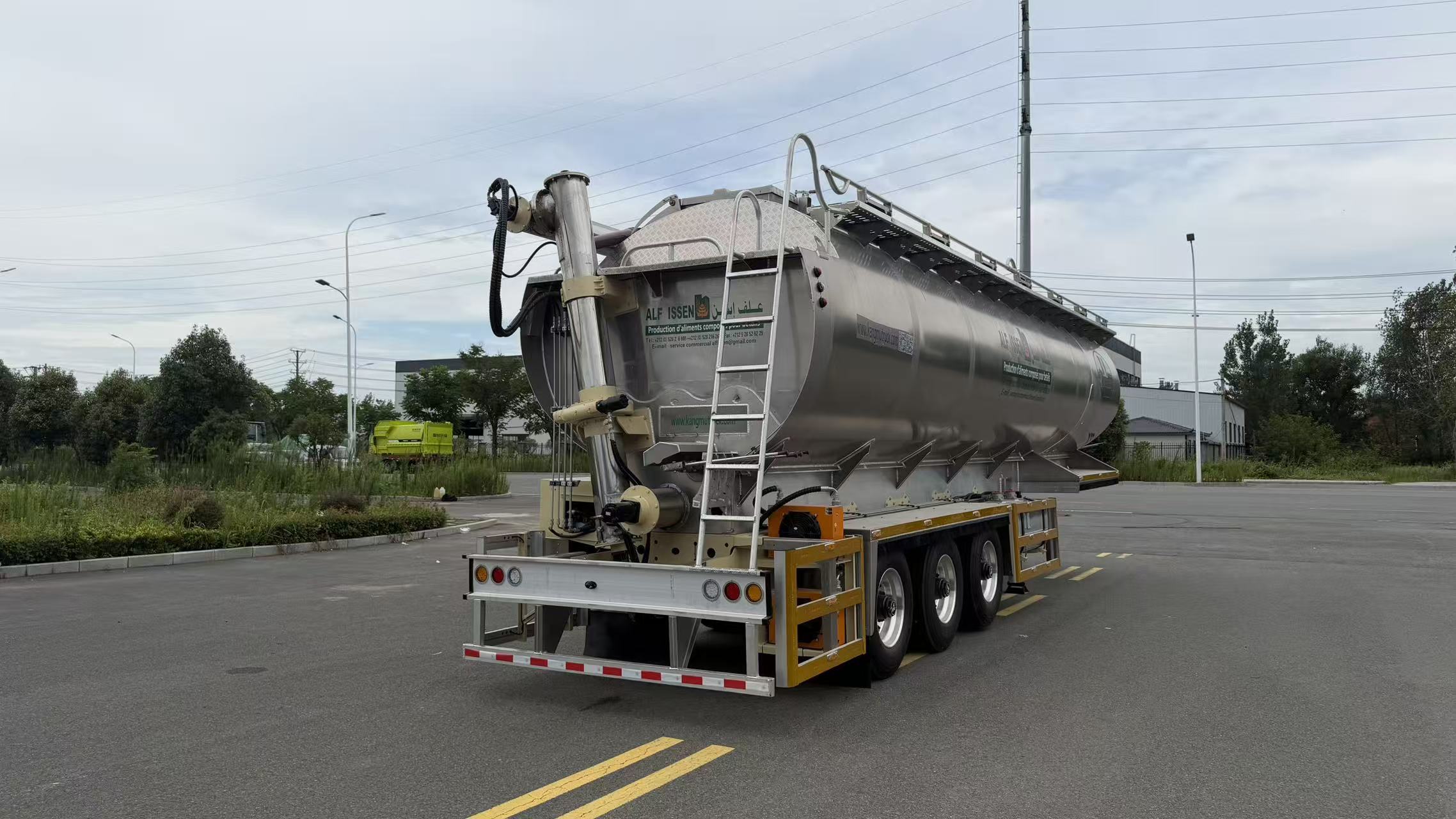

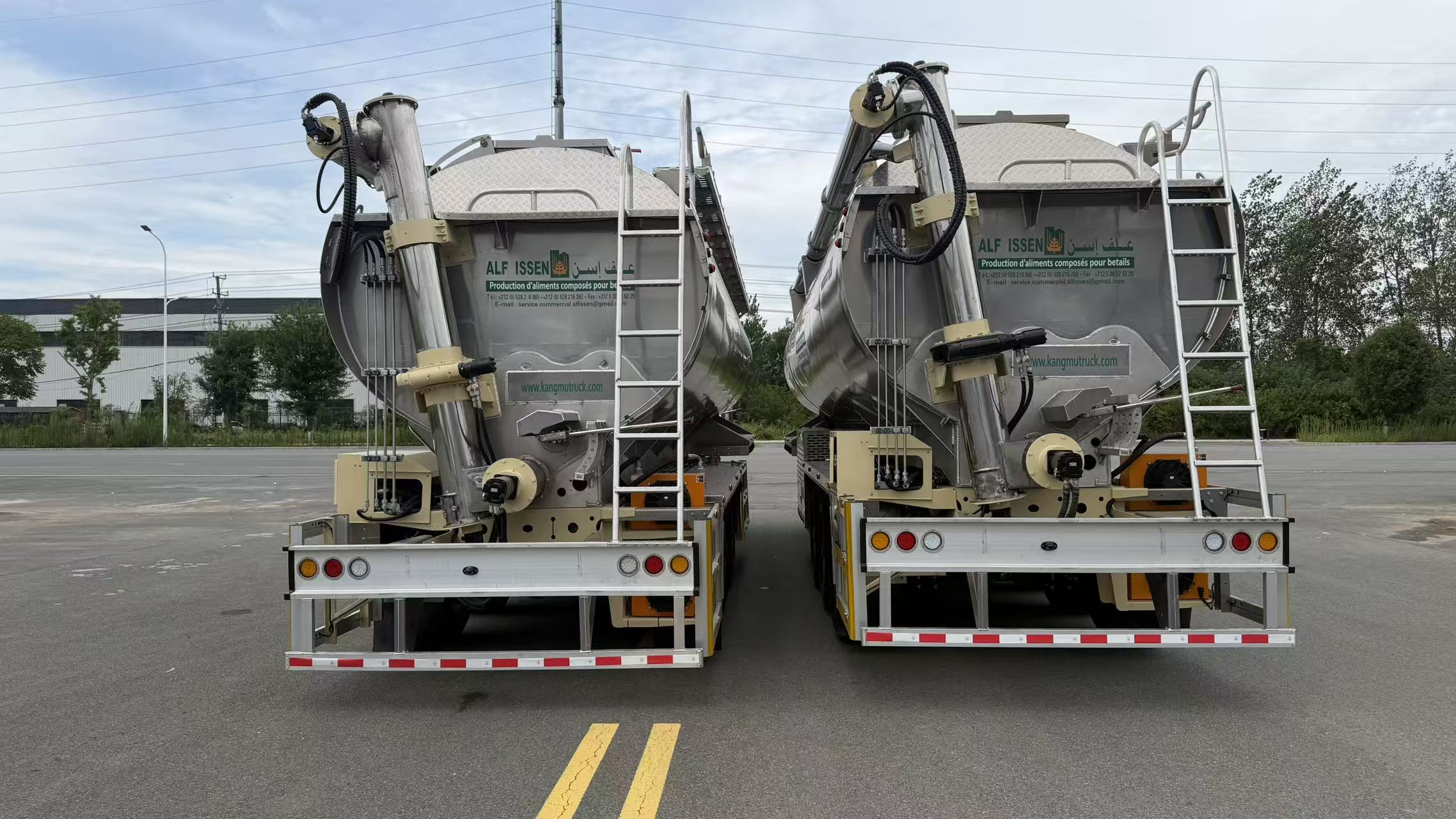

其他细节 | 1. The top auger conveyor rotates and positions with plus or minus 180 degree.
2. Equipped with TOP HYDRAULIC SYSTEM to ensure effective work.
3. Use high-quality Aluminum Alloy material for the ROUND TANK to make the discharge faster. |
|
|
|
