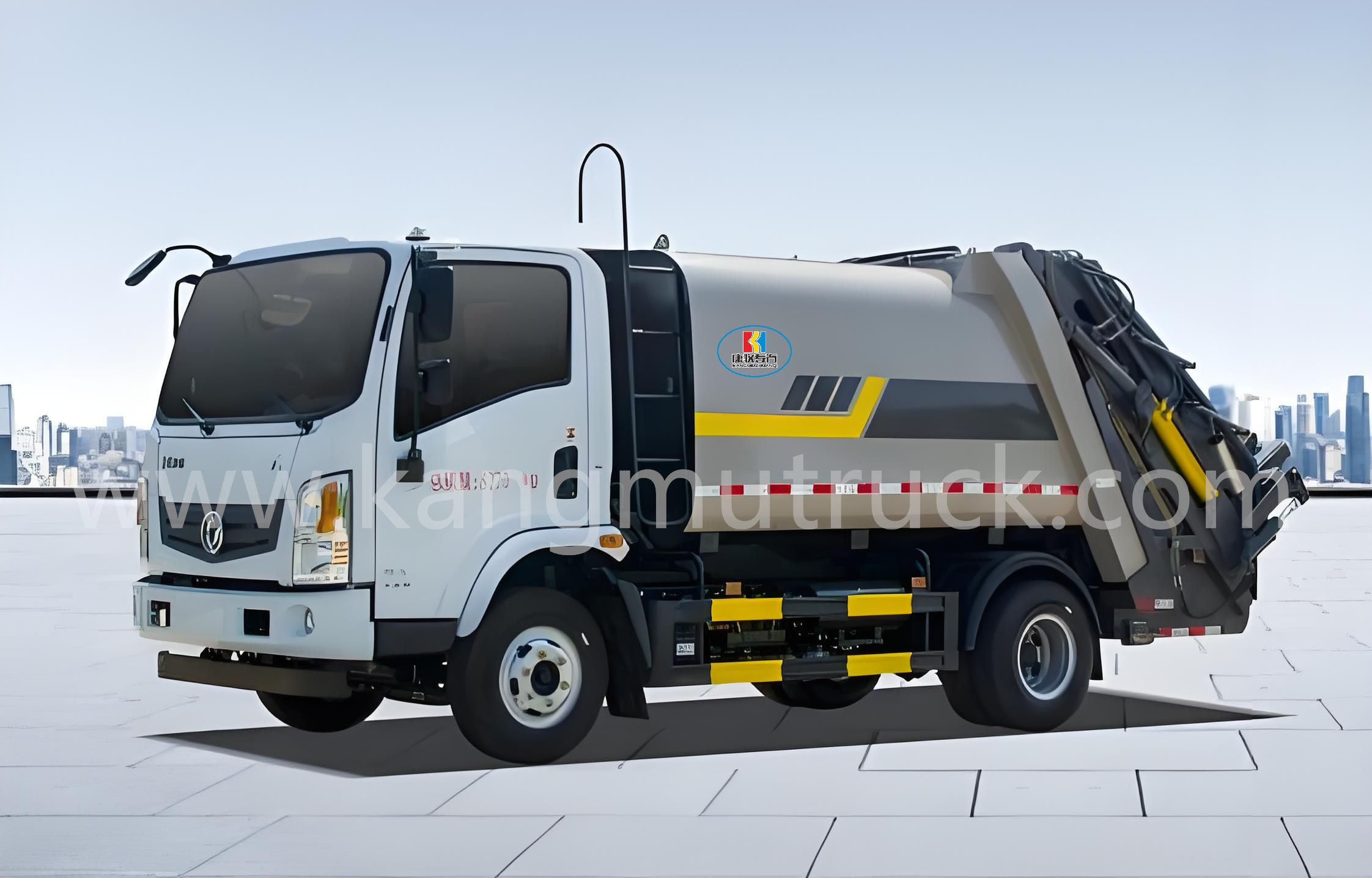

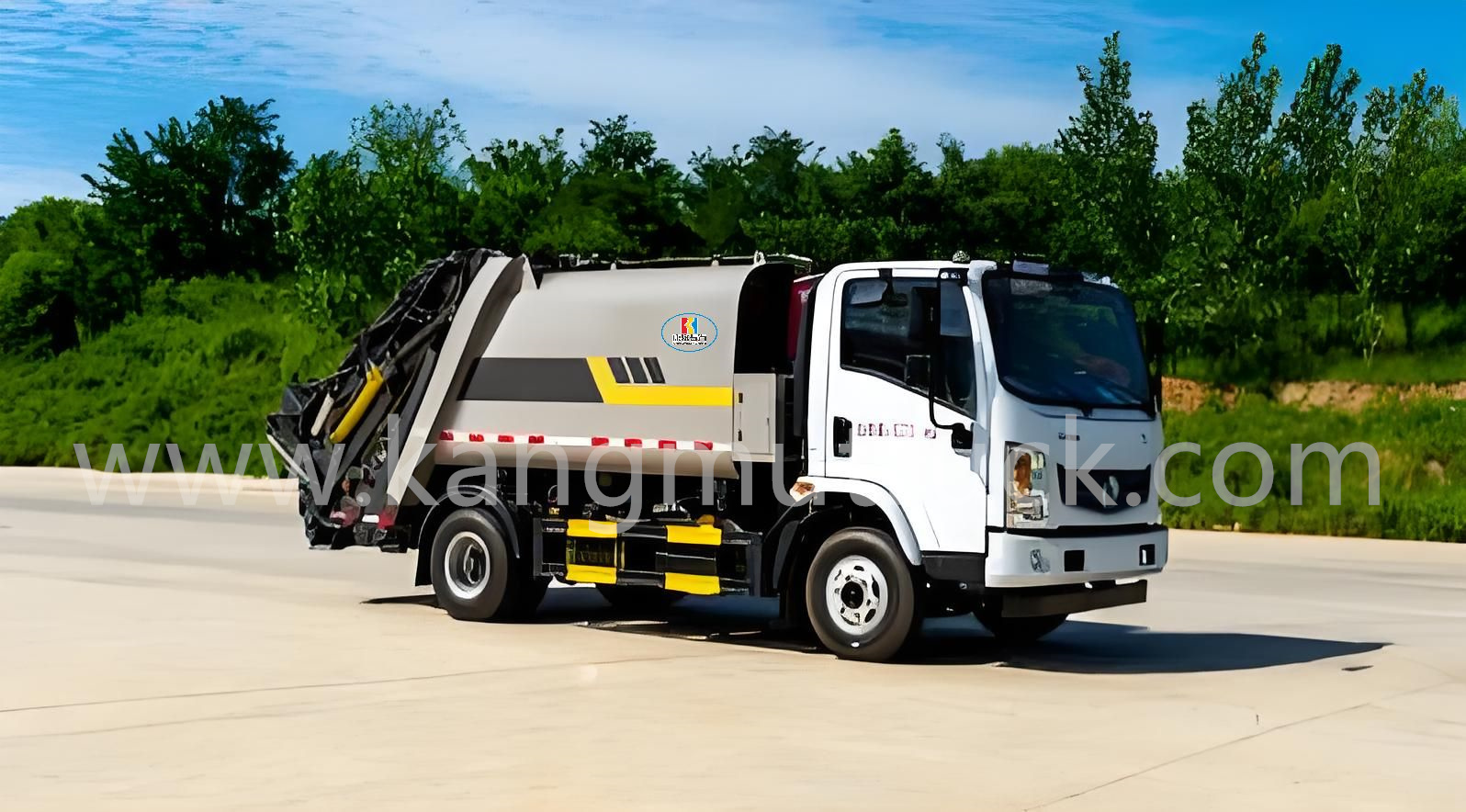

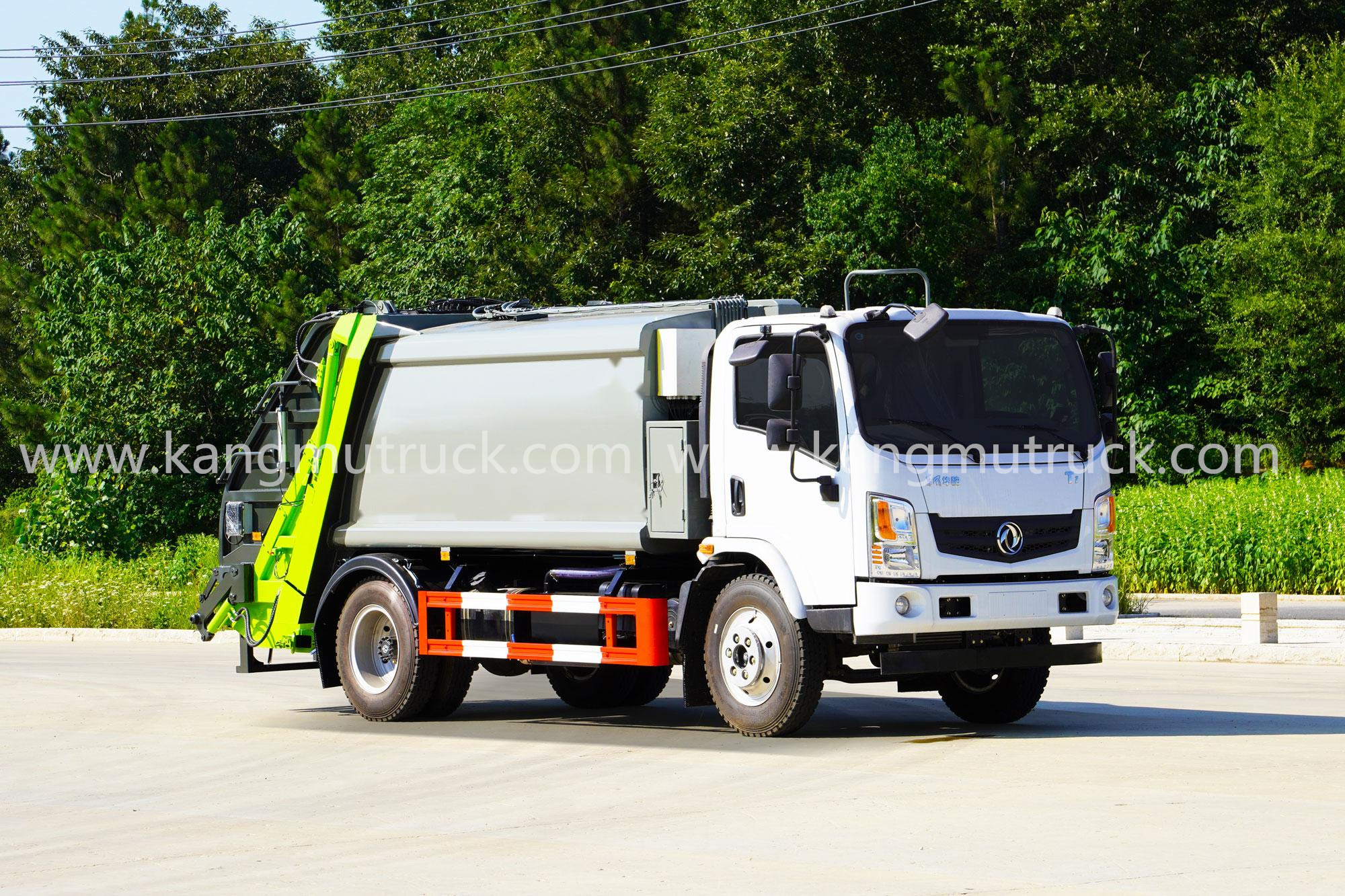

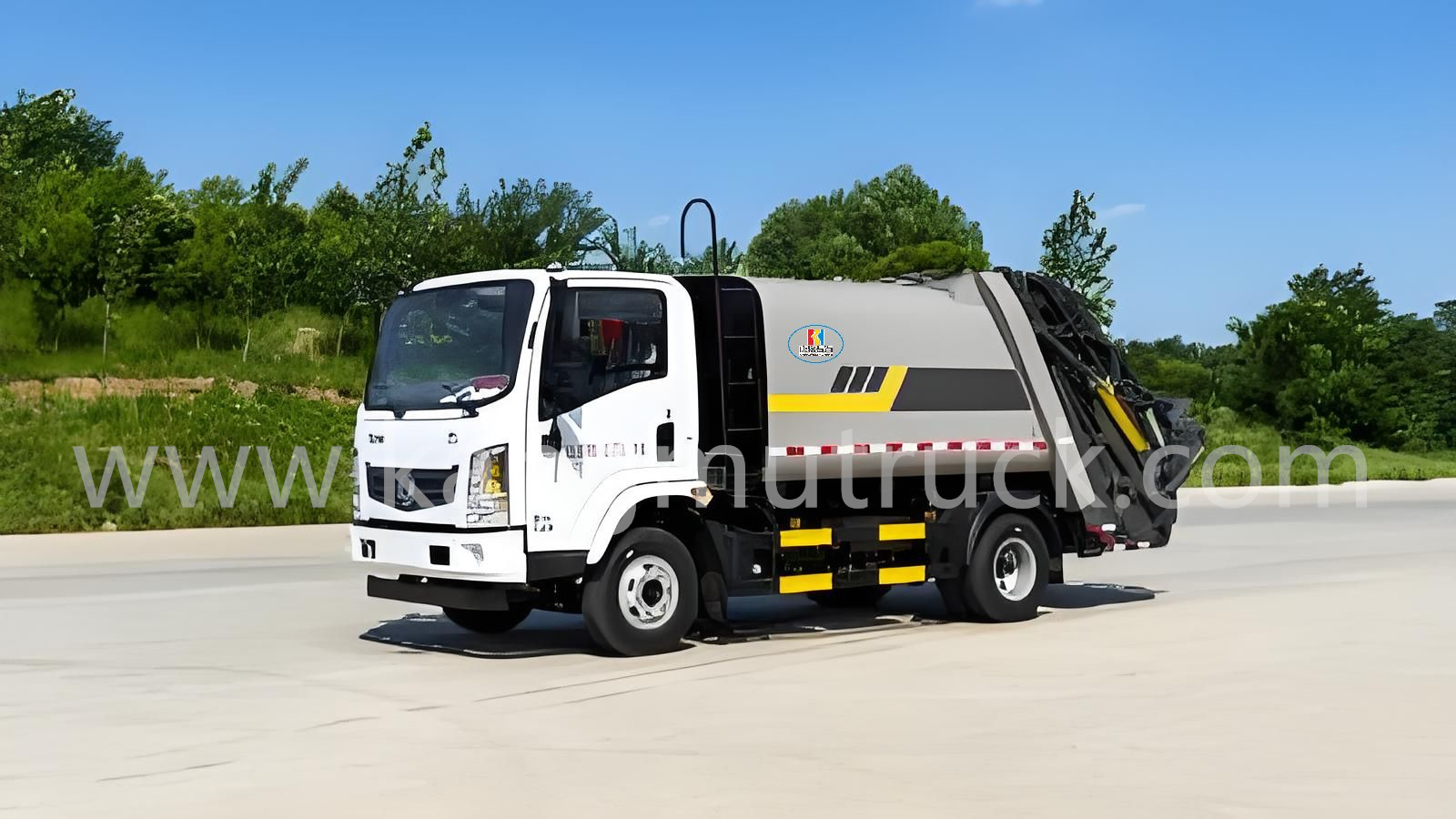

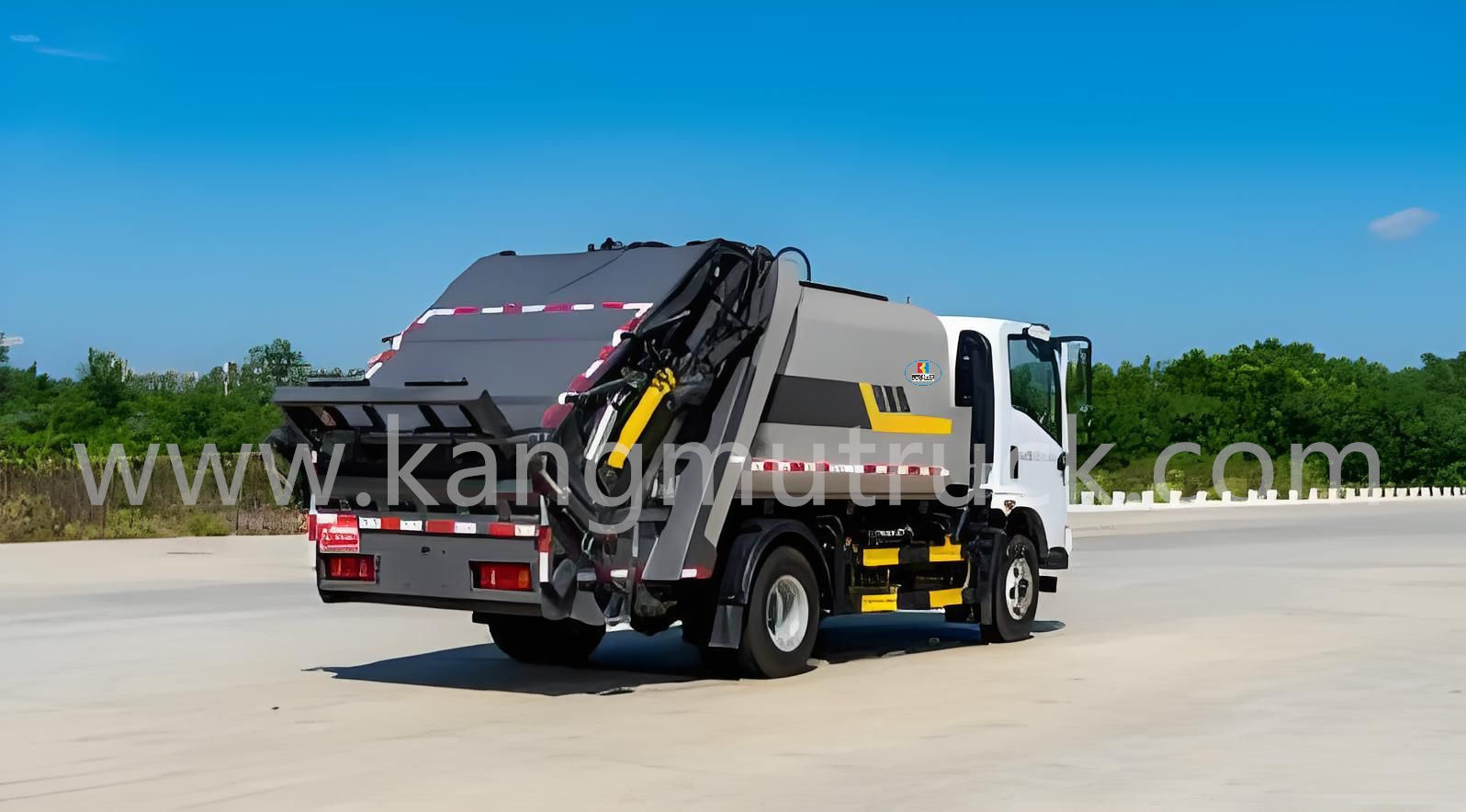

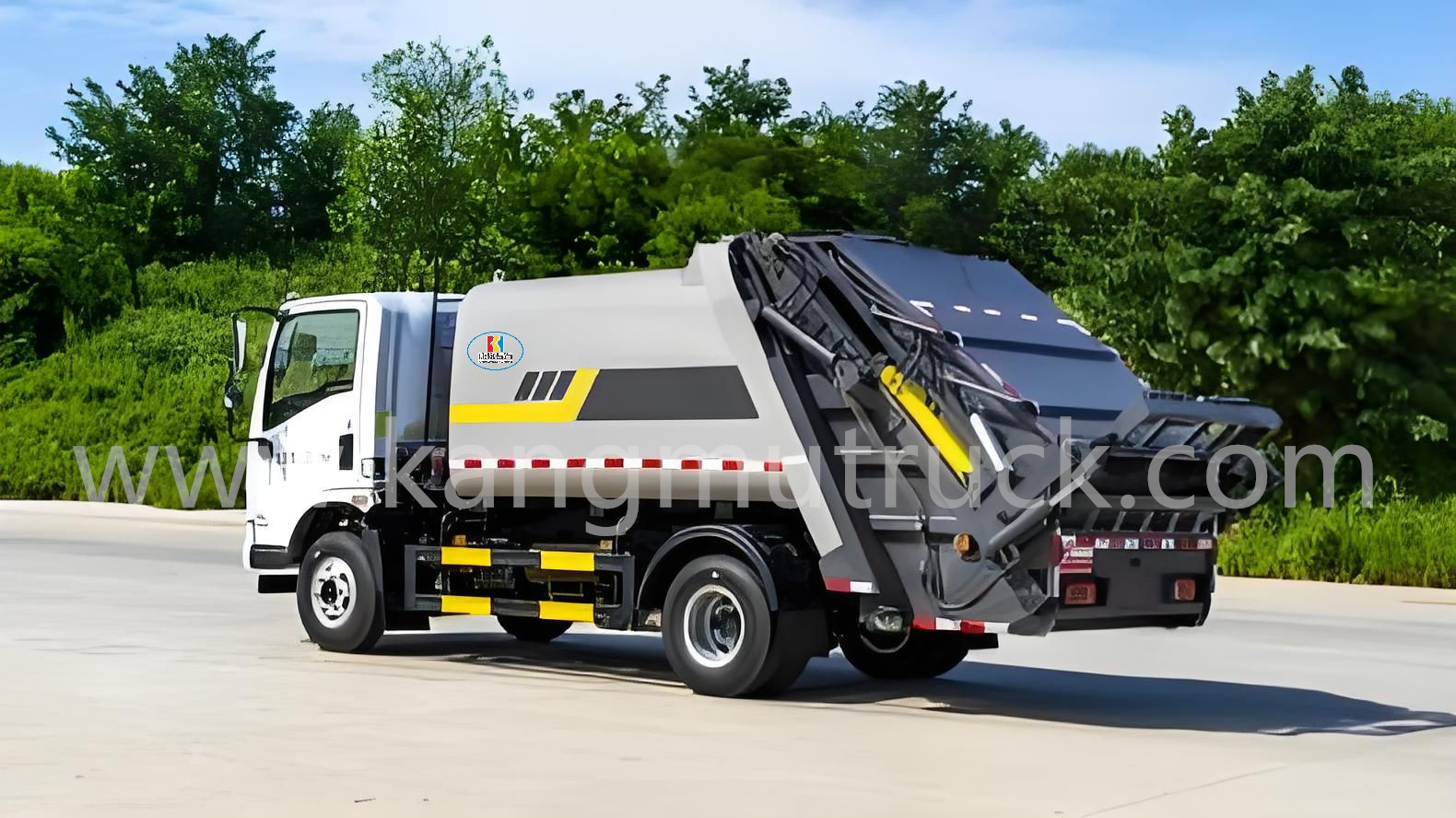

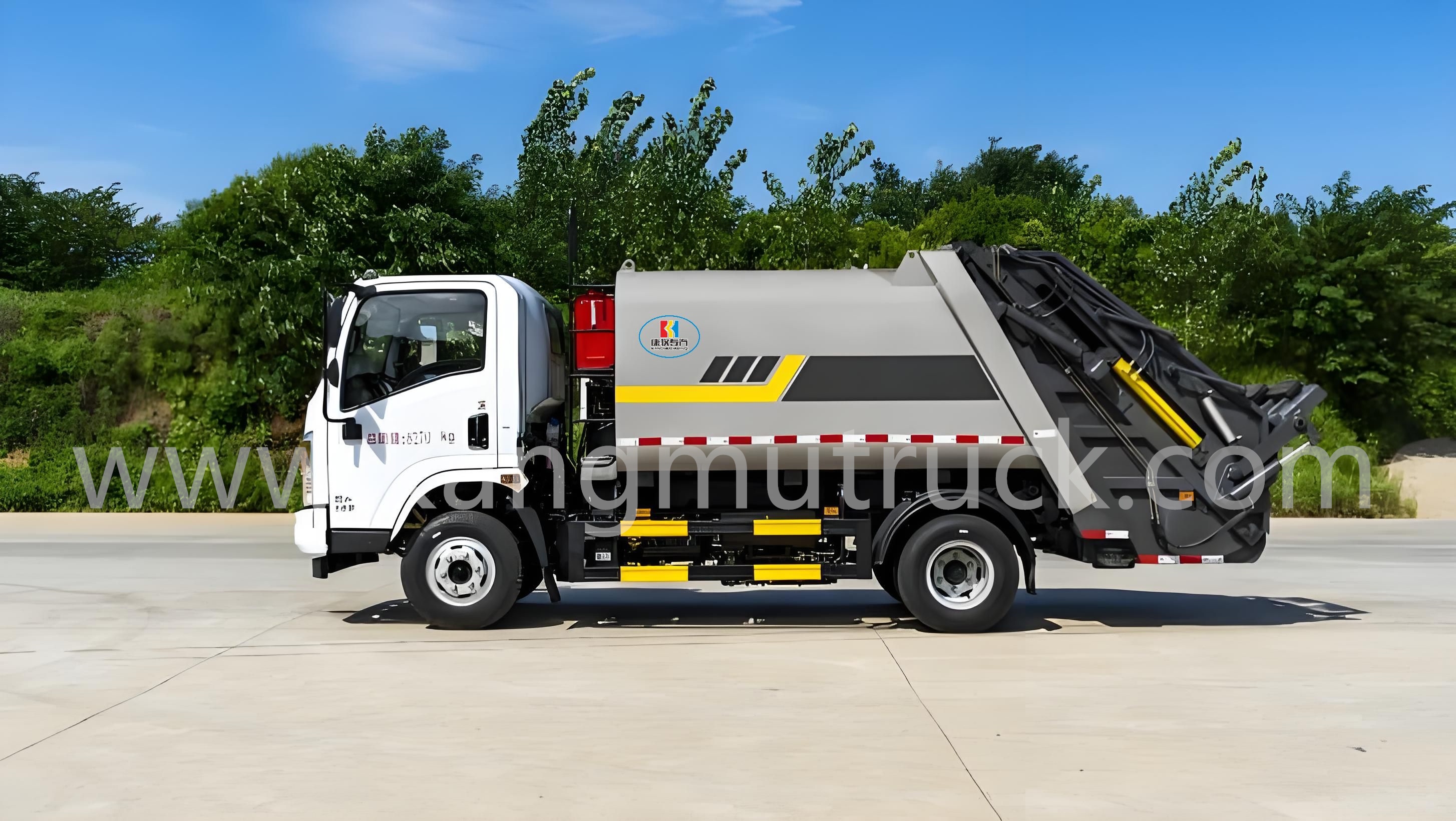

Dongfeng Huashen T1 7 Cbm Compression Garbage Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: Dongfeng Huashen T1 7 Cbm Compression Garbage Truck
  • Keywords: Garbage Truck
  • Attributes: With After-Sale Service, One Year Warranty, Trailer
Availability:
Quantity:
  • KMH5080ZYSE6

  • KANGMU

Dongfeng Huashen T1 7 Cbm Compression Garbage Truck



NAME SPECIFICATIONS
1 Vehicle Model KMH5080ZYSE6
2 Wheelbase 3300MM
3 Tire Specifications 7.50 steel wire tire
4 Engine Model YCY24140-60
5 Engine Power 103KW
6 Vehicle Dimensions(L*W*H) 6990*2200*2950MM
7 Curb Weight 6600KG,6300KG
8 Total Quality 8280KG
9 Rated Load Capacity 1540KG,1475KG,1840KG,1770KG
10 Tank Volume 7CBM
11 Operation Type Electric/Manual/Remote
12 One Feed Cycle Time 12—25S
13 Unloading Time ≤60S
14 Rear Device Flip Board
15 Fuel Type Diesel Oil
16 Emission Standard National VI

Product Advantages:

1. The appearance of the box is a linear shape with circular arc flow, and the four axis rolling machine forms it in one roll, eliminating the risk of leakage. Simple and beautiful, strong deformation resistance, good structural reliability, while effectively increasing the actual volume, surpassing similar products. The material used is high-strength manganese steel plate, which is not easy to deform, wear-resistant, and corrosion-resistant.

2. The electrical system equipped on the entire vehicle can achieve fully automatic control of engine output, ensuring the selection of acceleration or idle state during operation or other working conditions, reducing power loss and failure rate, lowering fuel consumption, and being more stable and energy-saving.

3. The intelligent control system adopts imported CAN bus design and modular structure. By combining proximity switches and hydraulic pressure sensors, an efficient, stable, and easy to maintain compression solution is achieved. It has three sets of manual, automatic, and semi-automatic operation modes, and can be operated inside the cab, in front of the box, and at the back of the box, with remote control equipped, making it convenient and efficient for different working environments.

4. Adopting the latest external oil cylinder structure and bidirectional compression technology, with top-notch domestic and foreign brand accessories, the compression ratio exceeds 1:2.5, with a single cycle of ≤ 20 seconds, achieving a doubling of garbage collection efficiency.

5. Taking into account the customer's usage environment to the greatest extent possible, the humanized design has many highlights, including night lighting, dual sewage tanks, drainage pipes, remote control, complete operation and maintenance manuals and videos.

6. Dedicated personnel test drive, simulate various complex working environments, and conduct physical testing before departure.

7. After sales guarantee, no customer caused damage, unconditional after-sales service for any malfunction, zero cost solution for customers.
