KLF5310ZYSZ6
KANGMU

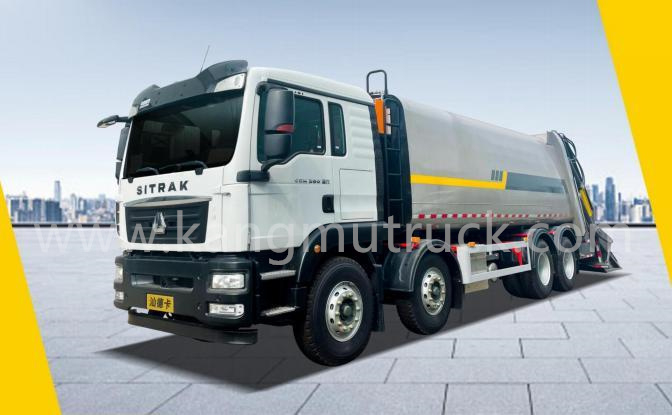

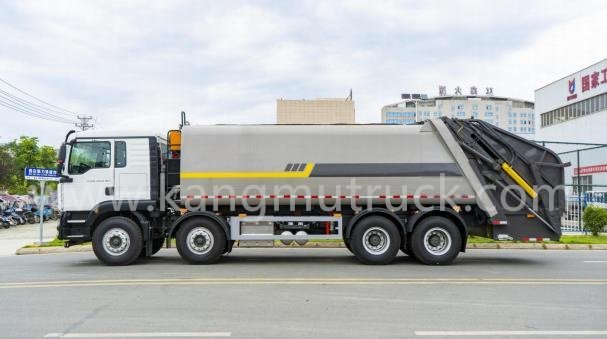

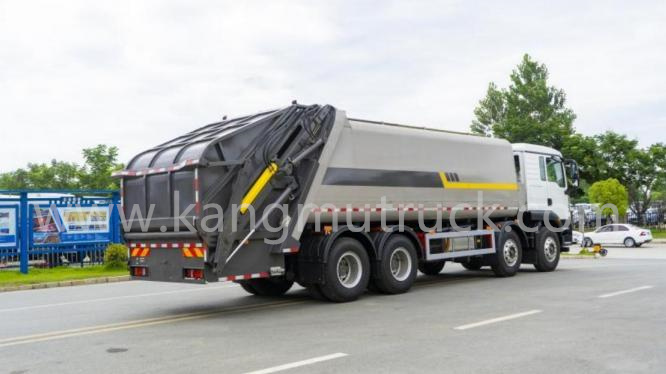

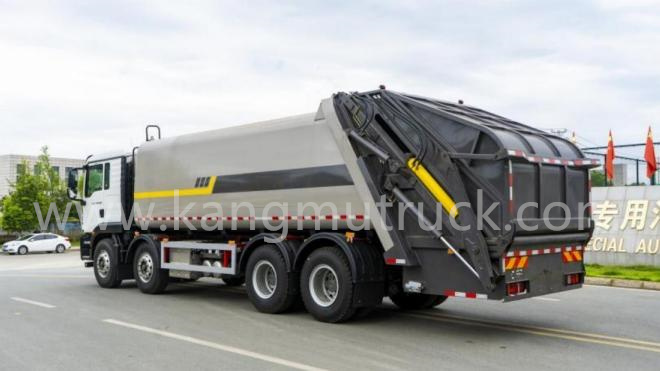

Sinotruk Sitrak 26 Cbm Compression Garbage Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KLF5310ZYSZ6 |
2 | Wheelbase | 1800+3800+1350 |
3 | Tire Specifications | 11.00 Steel Wire Tire |
4 | Engine Model | WP8.350E61 |
5 | Engine Power | 257KW(349.52(Ps) ) |
6 | Vehicle Dimensions(L*W*H) | 11010*2550*3500MM |
7 | Curb Weight | 15860KG |
8 | Total Quality | 31000KG |
9 | Rated Load Capacity | 15010KG |
10 | Tank Volume | 26CBM |
11 | Operation Type | Electric/Manual/Remote |
12 | One Feed Cycle Time | 12—25S |
13 | Unloading Time | ≤120S |
14 | Rear Device | Flip Board |
15 | Fuel Type | Diesel oil |
16 | Emission Standard | National VI |
Product Advantages:
1. The appearance of the box is a linear shape with circular arc flow, and the four axis rolling machine forms it in one roll, eliminating the risk of leakage. Simple and beautiful, strong deformation resistance, good structural reliability, while effectively increasing the actual volume, surpassing similar products. The material used is high-strength manganese steel plate, which is not easy to deform, wear-resistant, and corrosion-resistant.
2. The electrical system equipped on the entire vehicle can achieve fully automatic control of engine output, ensuring the selection of acceleration or idle state during operation or other working conditions, reducing power loss and failure rate, lowering fuel consumption, and being more stable and energy-saving.
3. The intelligent control system adopts imported CAN bus design and modular structure. By combining proximity switches and hydraulic pressure sensors, an efficient, stable, and easy to maintain compression solution is achieved. It has three sets of manual, automatic, and semi-automatic operation modes, and can be operated inside the cab, in front of the box, and at the back of the box, with remote control equipped, making it convenient and efficient for different working environments.
4. Adopting the latest external oil cylinder structure and bidirectional compression technology, with top-notch domestic and foreign brand accessories, the compression ratio exceeds 1:2.5, with a single cycle of ≤ 20 seconds, achieving a doubling of garbage collection efficiency.
5. Taking into account the customer's usage environment to the greatest extent possible, the humanized design has many highlights, including night lighting, dual sewage tanks, drainage pipes, remote control, complete operation and maintenance manuals and videos.
6. Dedicated personnel test drive, simulate various complex working environments, and the only compressed pre departure physical testing company in China.
7. After sales guarantee, no customer caused damage, unconditional after-sales service for any malfunction, and zero cost solution for customers.
