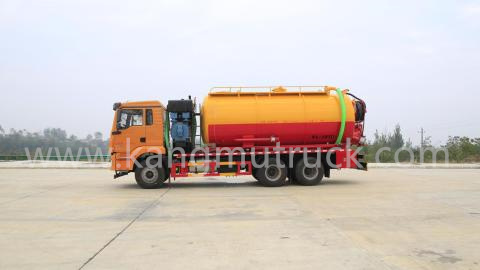

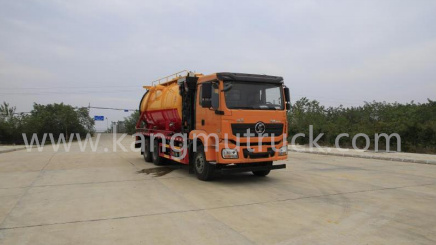

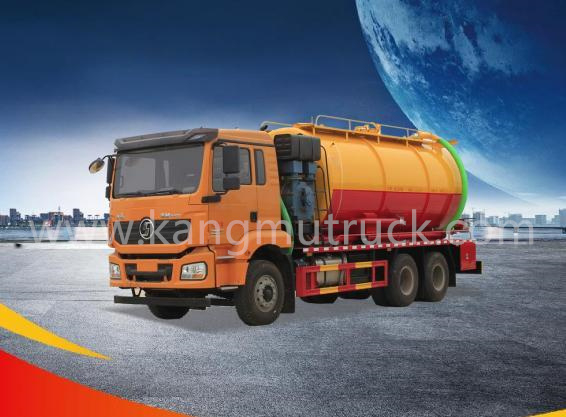

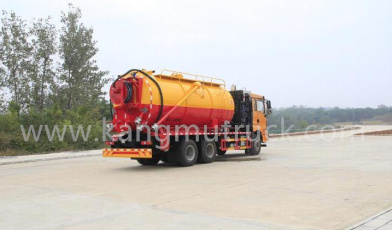

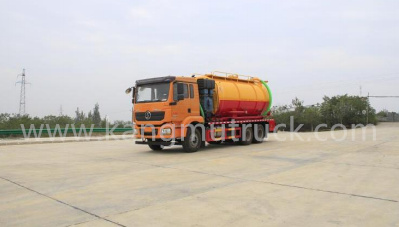

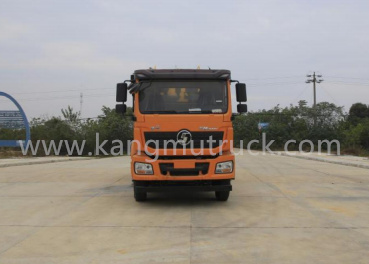

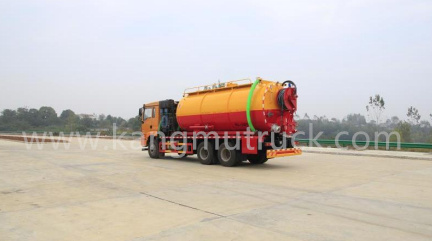

Shacman Delong 21Cbm Combi Suction And Jetting Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: Shacman Delong 21Cbm(With Auxiliary Engine) Combi Suction And Jetting Truck
  • Keywords:Sewage Suction Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
  • KMH5250GQWS6

  • KANGMU

Shacman Delong 21Cbm Combi Suction And Jetting Truck


NAME SPECIFICATIONS
1 Vehicle Model KMH5250GQWS6
2 Wheelbase 4375+1400MM
3 Engine Model WP8.350E61
4 Engine Power 257KW
5 Vehicle Dimensions(L*W*H) 10020,10120  ×  2550  ×  3800, 3850,3900,3950MM
6 Curb Weight 17520KG
7 Total Quality 25000KG
8 Tank Volume 21CBM
9 Fuel Type Diesel oil
10 Emission Standard National VI


Upper Body Configuration:


The appearance dimensions are crafted in accordance with the announcement. It is an integrated tank with an approximate capacity of 15 cubic meters and a 6mm body thickness. It is constructed from high - quality carbon steel.


For the cleaning section: It is equipped with a 250L/min high - pressure pump. The inlet has a filter screen, along with a 100m 22# high - pressure pipe, a 9.5kg emperor nozzle, and a 1m straight nozzle. The reel is mounted on the rear head.


Regarding the suction part: It uses a 2BE - 204 water circulation pump and an 8 - meter suction pipe.

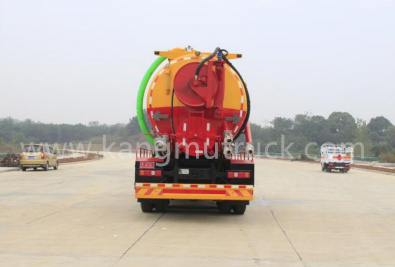

Details: The tank is designed to be liftable. The back cover can be opened hydraulically and locked manually. There is an interconnection between water and sewage systems. On the rear head, there is a 100 ball valve and a 150 ball valve. It is also equipped with arrow lights, work lighting, has an automatic discharge function, and comes with a toolbox.


17345944514961734594475399173459452152317345945576911734594611817173459458564517345946688501734594689729


Hubei Kangmu Special Vehicle Equipment Co., Ltd. is a professional company that focus on automobile technology research and development, truck manufacturing, spare parts production and sales. Founded in March 2016, it covers an area of 120 acres and has more than 300 employees. We are the professional manufacturer of livestock and poultry transport trucks and trailers, bulk feed transport trucks and trailers, refrigerated truck, medical waste disinfection truck, garbage truck, fuel tank truck, sewage suction truck, water tank truck etc., with quality GB/T19001-2016/ISO9001: 2015 standard, and also complies with GB/T24001/2016/ISO14001: 2015 environmental standard. We fully support customization with your special requirements.


The company′s business philosophy of "quality is the life, service is the soul and integrity is the foundation of an enterprise" help us becoming the stable supplier of some famous and large group companies such as Wen′s, New Hope Group, Muyuan, Zhengbang, DaBeiNong, COFCO, etc. Our advanced technology, excellent quality and service make our products present all over the world, especially popular in Southeast Asia, the Middle East and Africa.


Welcome to visit our factory. We hope to cooperate with the friends from all over the world and make mutual benefits!
