KMH5120GQWL6
KANGMU

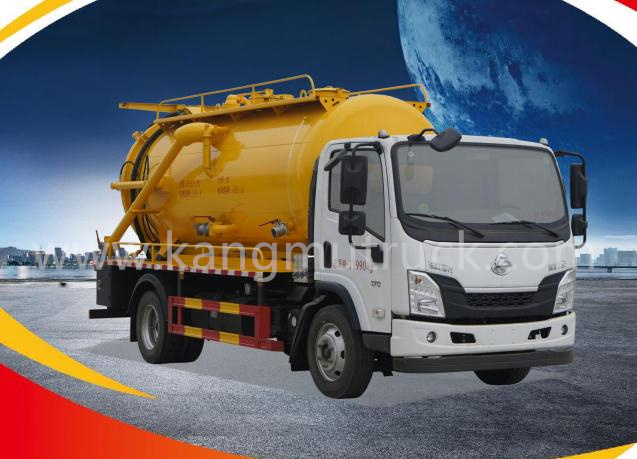

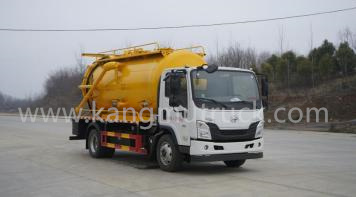

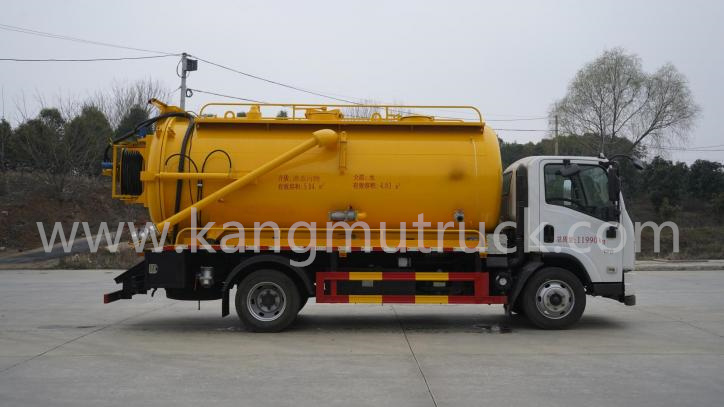

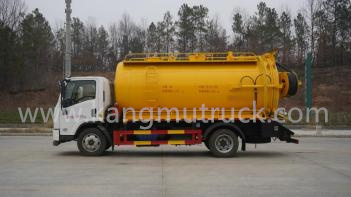

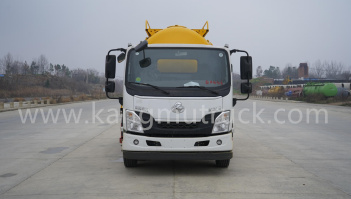

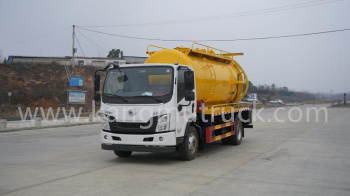

Dongfeng LZM 11Cbm Combi Sunction And Jetting Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5120GQWL6 |
2 | Wheelbase | 3800MM |
3 | Engine Model | YCY30170-60 |
4 | Engine Power | 125KW |
5 | Vehicle Dimensions(L*W*H) | 7460 × 2400,2450 × 3140,3180,3230MM |
6 | Curb Weight | 7760KG |
7 | Total Quality | 11990KG |
8 | Tank Volume | 11Cbm |
9 | Fuel Type | Diesel oil |
10 | Emission Standard | National VI |
Upper Body Configuration:

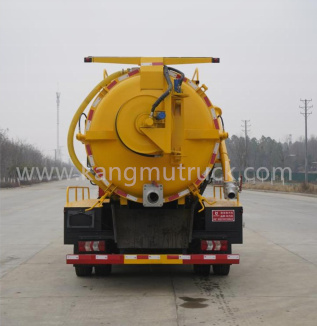

The appearance dimensions are made according to the announcement. The integrated tank has a capacity of about 11 cubic meters and a body size of 6mm. It is made of high-quality carbon steel. Cleaning section: 215L/min high-pressure pump, inlet with filter screen, 60m 19 # high-pressure pipe, set of nozzles 1-10, and the reel is installed on the rear head. Suction part: SK-12 water circulation pump, 8-meter suction pipe. Details: The tank can be lifted, the back cover is hydraulically opened, manually locked, water and sewage are interconnected, there is a 150 ball valve on the rear head, with automatic discharge, and a toolbox.
Product Function:
The strong pressure generated by high-pressure water flow breaks open the blocked pipeline. The main components are the tank body, high-pressure pump, hydraulic system, etc. High pressure cleaning vehicles are mainly used to clean sediments and dredge dead corners of urban sewers and pipelines. They can also be used to clean industrial drainage pipelines, walls, etc., and to clean roads and square floors.
