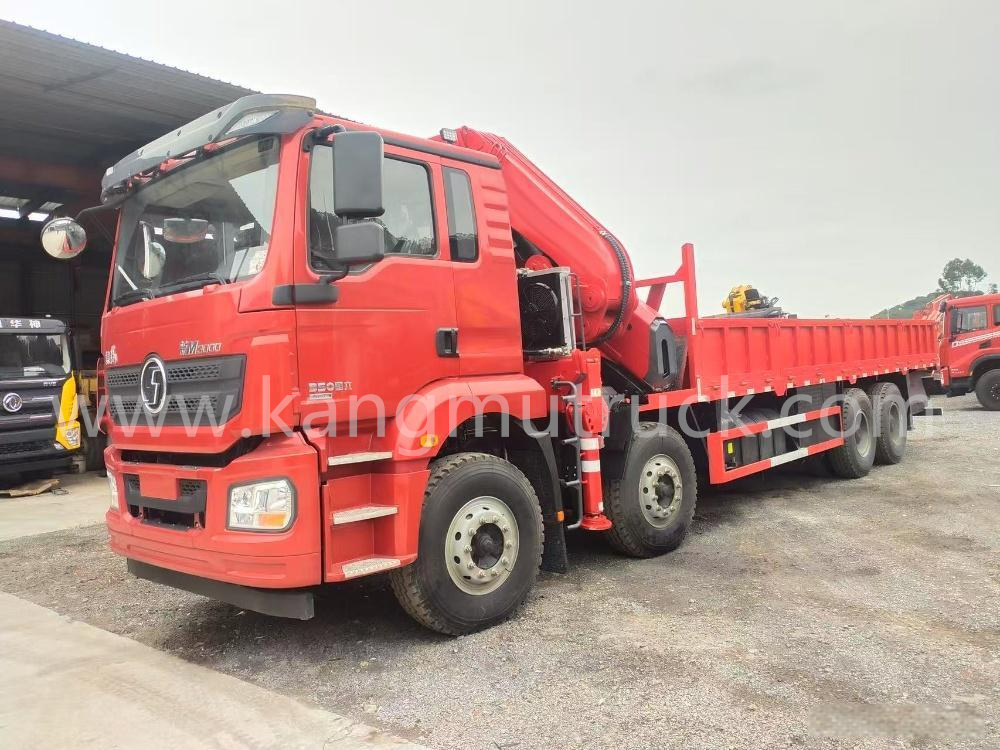

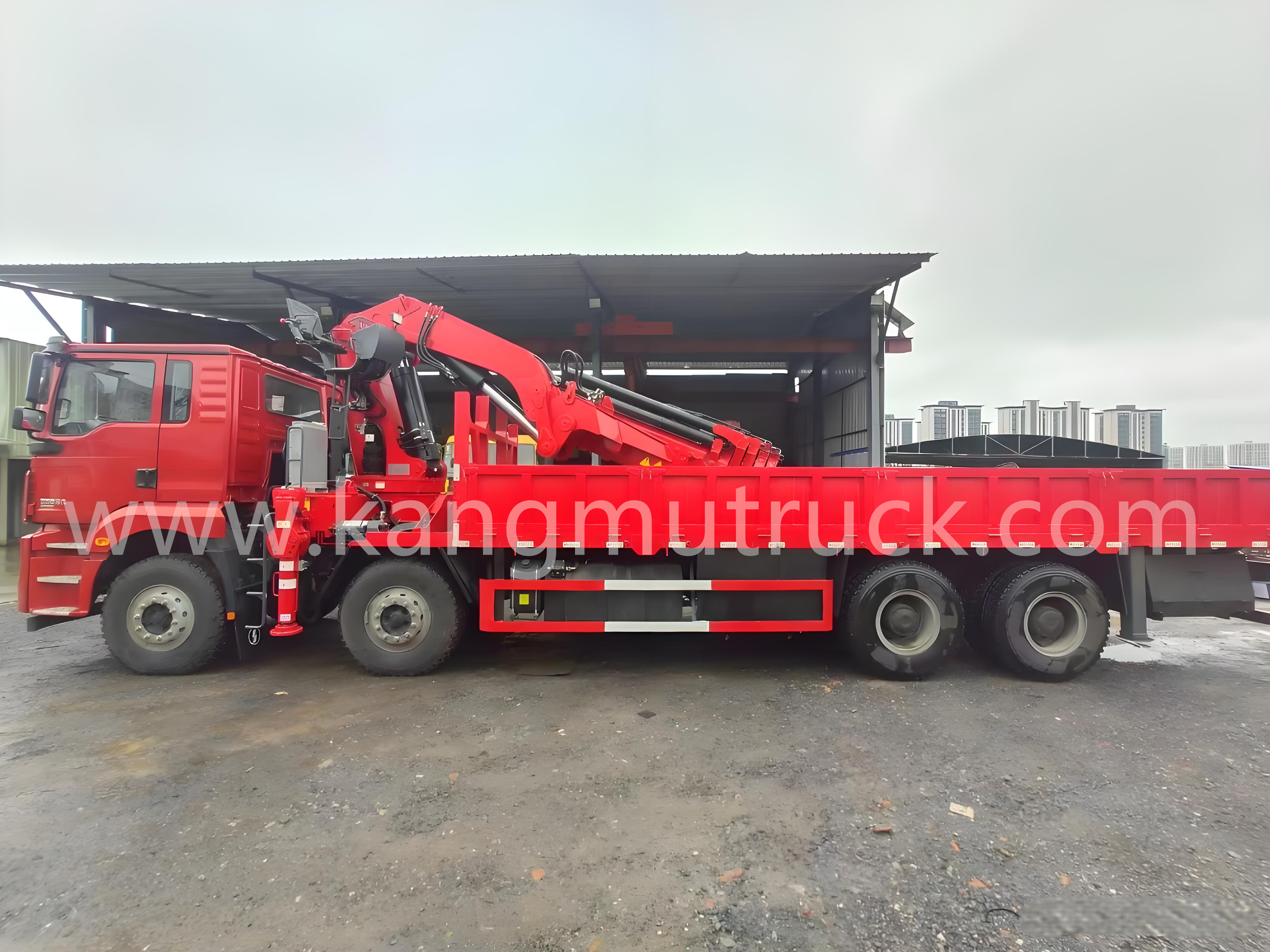

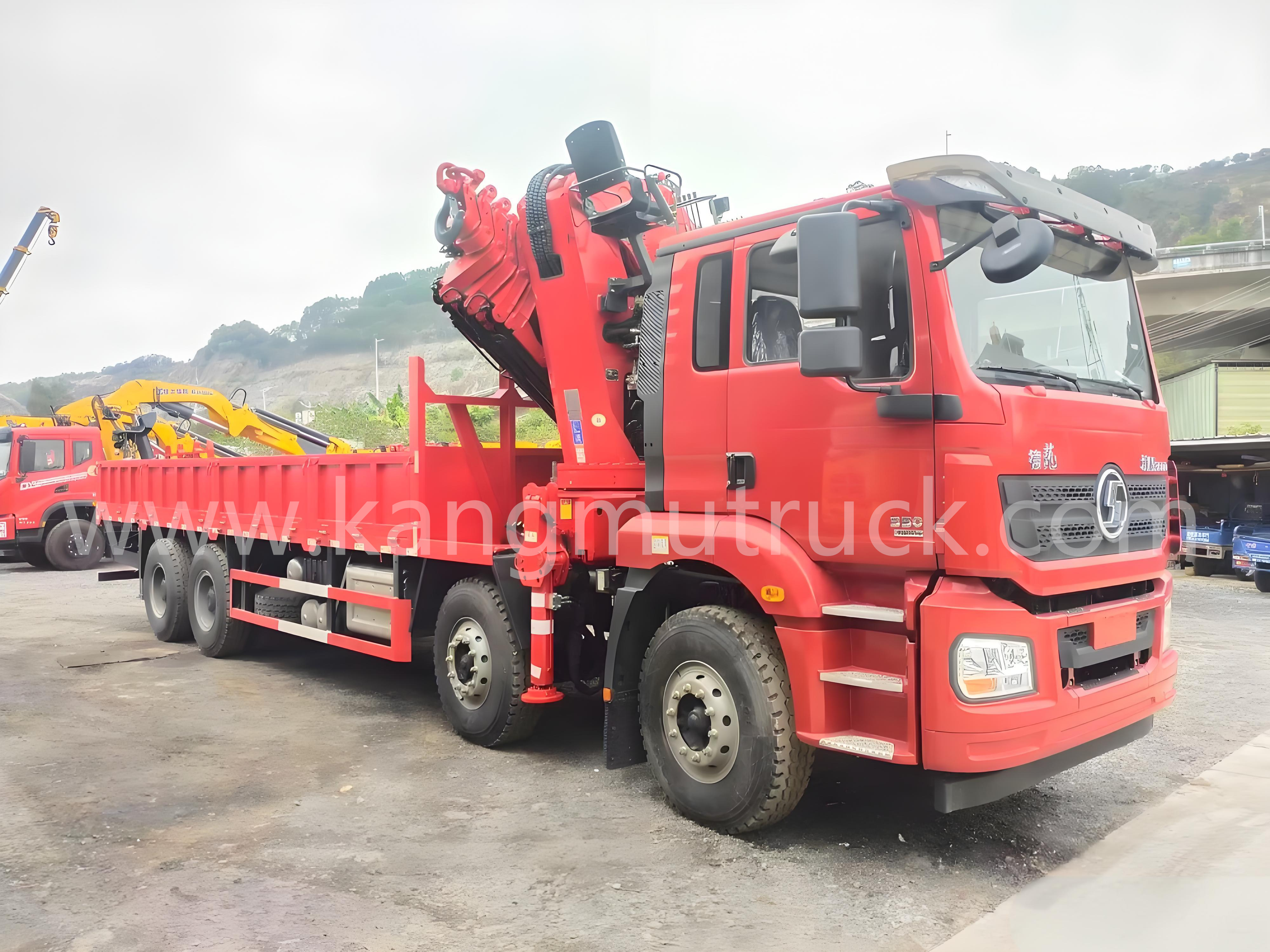

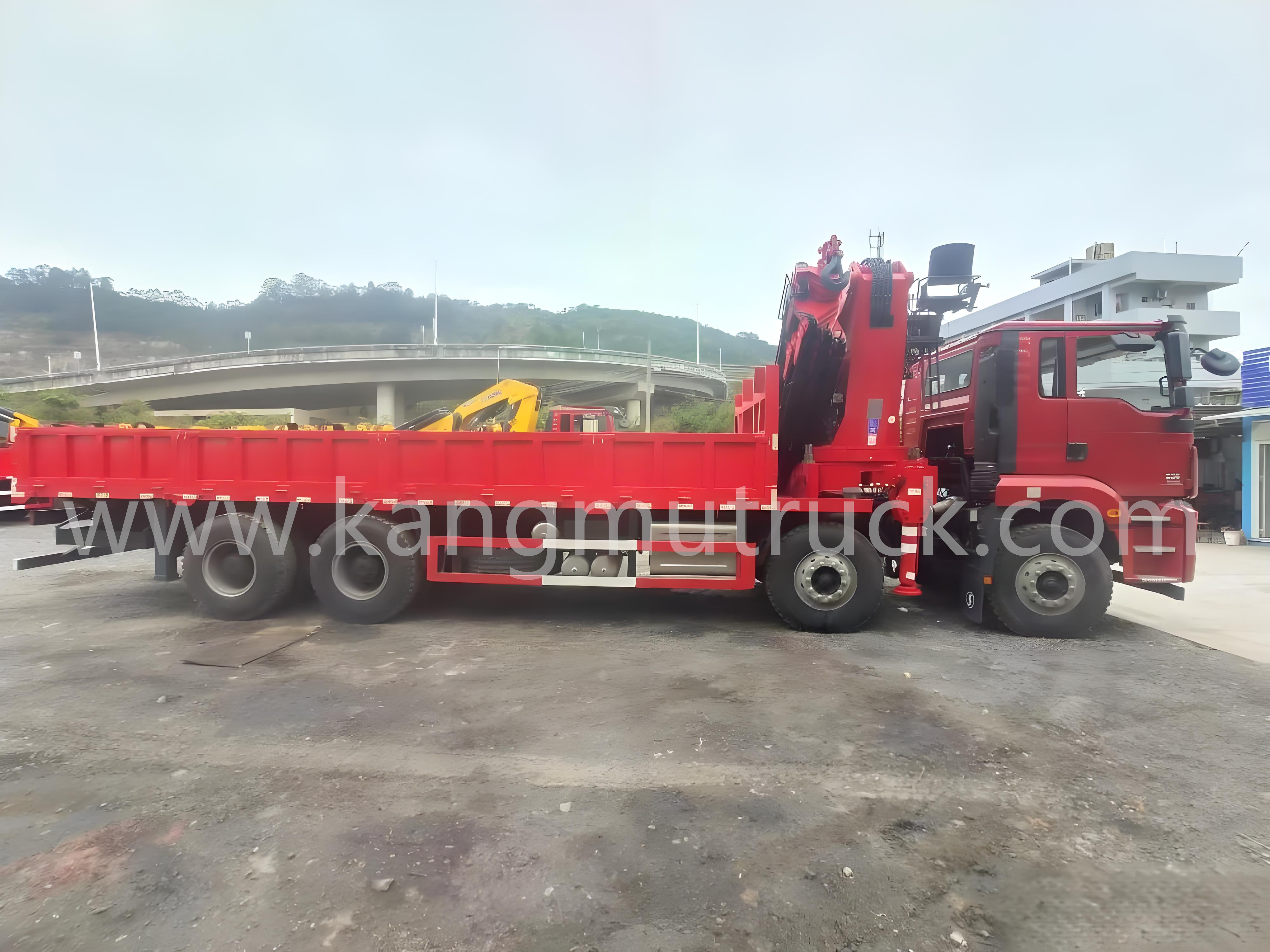

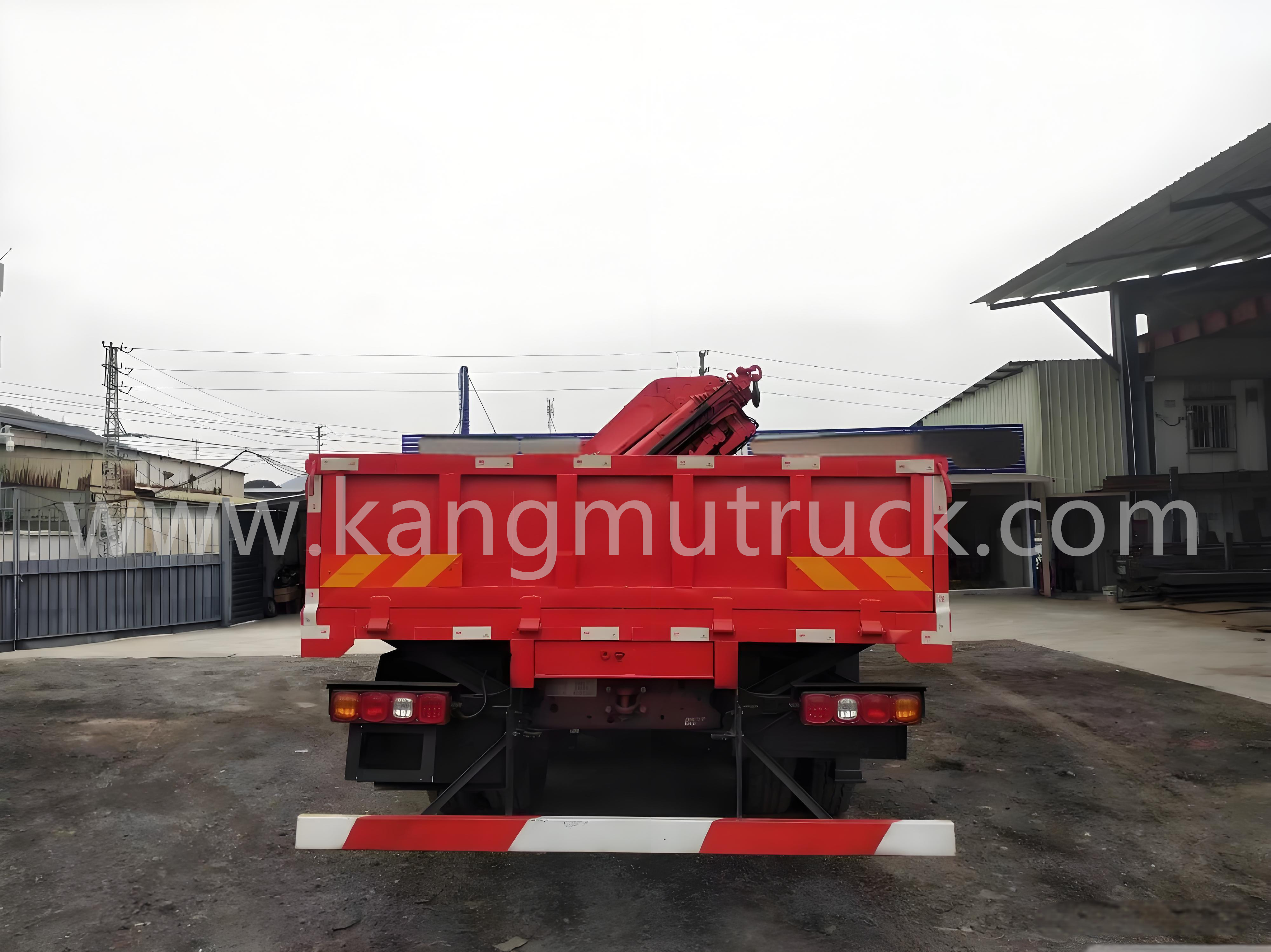

Shacman Delong 28Tons Folding Folding Arm Crane Truck
| NAME | SPECIFICATIONS |
| 1 | Chassis Model | SX1319MC6Z2 |
| 2 | Engine Model | WP8.350E61 |
| 3 | Wheelbase | 2100+4575+1400MM |
| 4 | Tire Specification | 11.00R20 18PR,12.00R20 18PR |
| 5 | Engine Power | 257KW |
| 6 | Engine Displacement | 7800ML |
| 7 | Vehicle Dimensions | 12000 * 2550 * 3870,3950,3790,3700(mm) |
| 8 | Tank Dimensions | 8300,8100,7900,8000,7750,7650,7550 * 2450,2400 * 600,500,550,800 (mm) |
| 9 | Curb Weight | 23800KG, 22500KG |
| 10 | Total Weight | 31000KG |
| 11 | Rated Load Capacity | 7070KG, 8370KG |
| 12 | Fuel Type | Diesel |
| 13 | Emission Standard | National VI |
Vehicle Instructions:
Product Advantages:

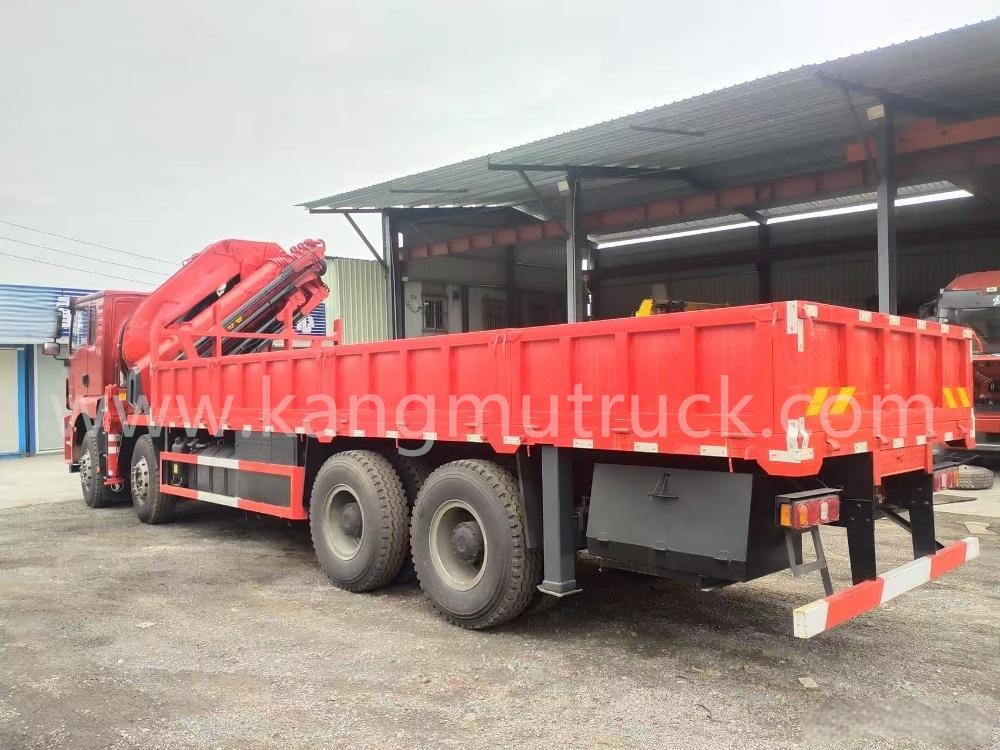

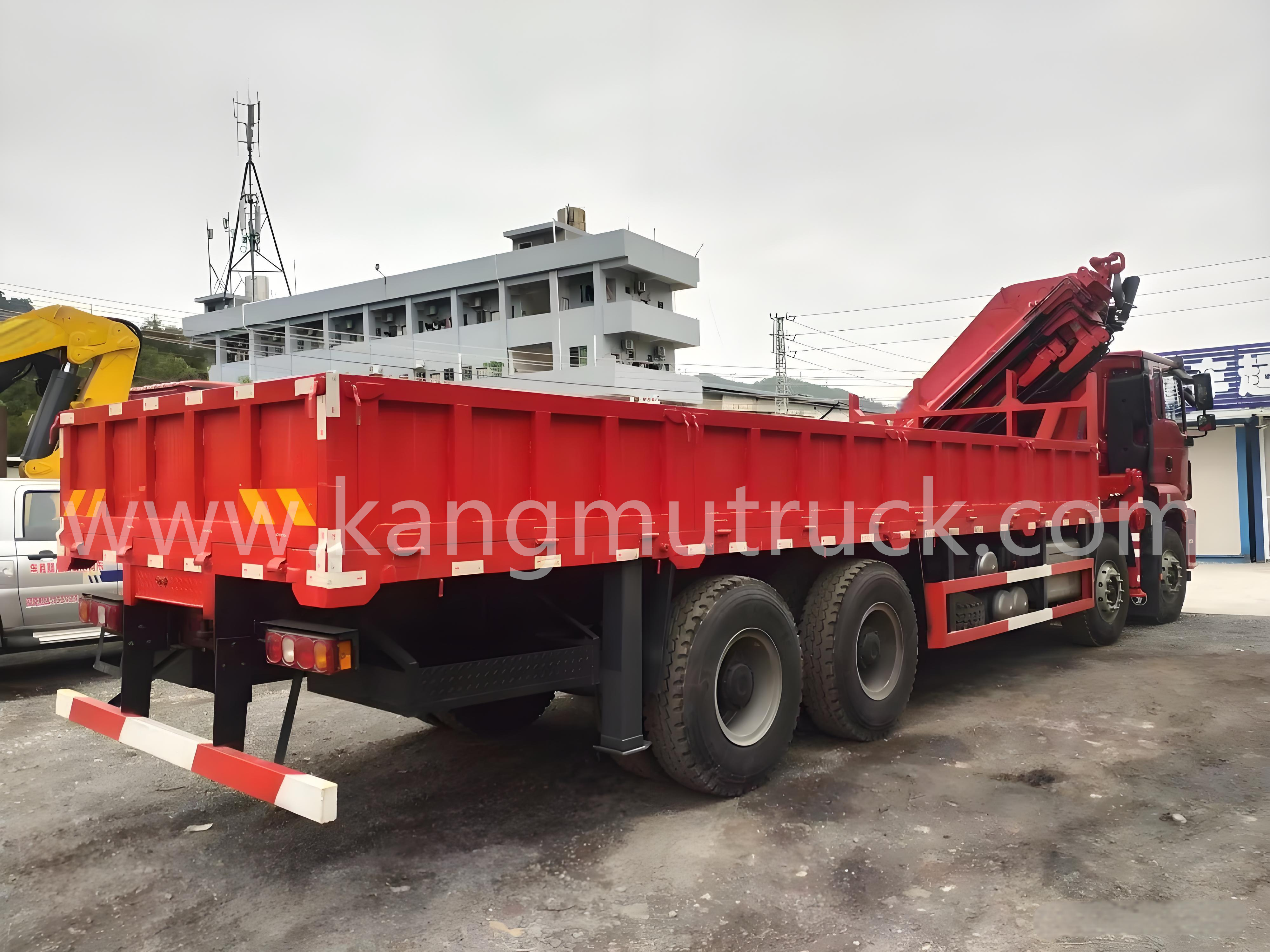

Crane model, maximum lifting load and mass are (Kg): SQS240:95008310. The side rear protection is a metal guardrail made of Q235 material. The connection method for the side protection is bolt connection, and the connection method for the rear protection is welding. The height of the rear protection from the ground is 460mm, the section height is 120mm, and the section width is 50mm.
Optional fence form, optional center console seat and non console seat form Optional rear support legs Optional cab form with chassis
A driving recorder with satellite positioning function has been installed.
The manufacturer and model of the ABS system are: Xi'an Zhengchang Electronics Co., Ltd. (model: ZQFB-V), Guangzhou Kemi Automotive Brake Technology Development Co., Ltd. (Model: CM4XL-4S/4K(4S/4M)).
Optional speed limit device, with a speed limit of 89km/h.

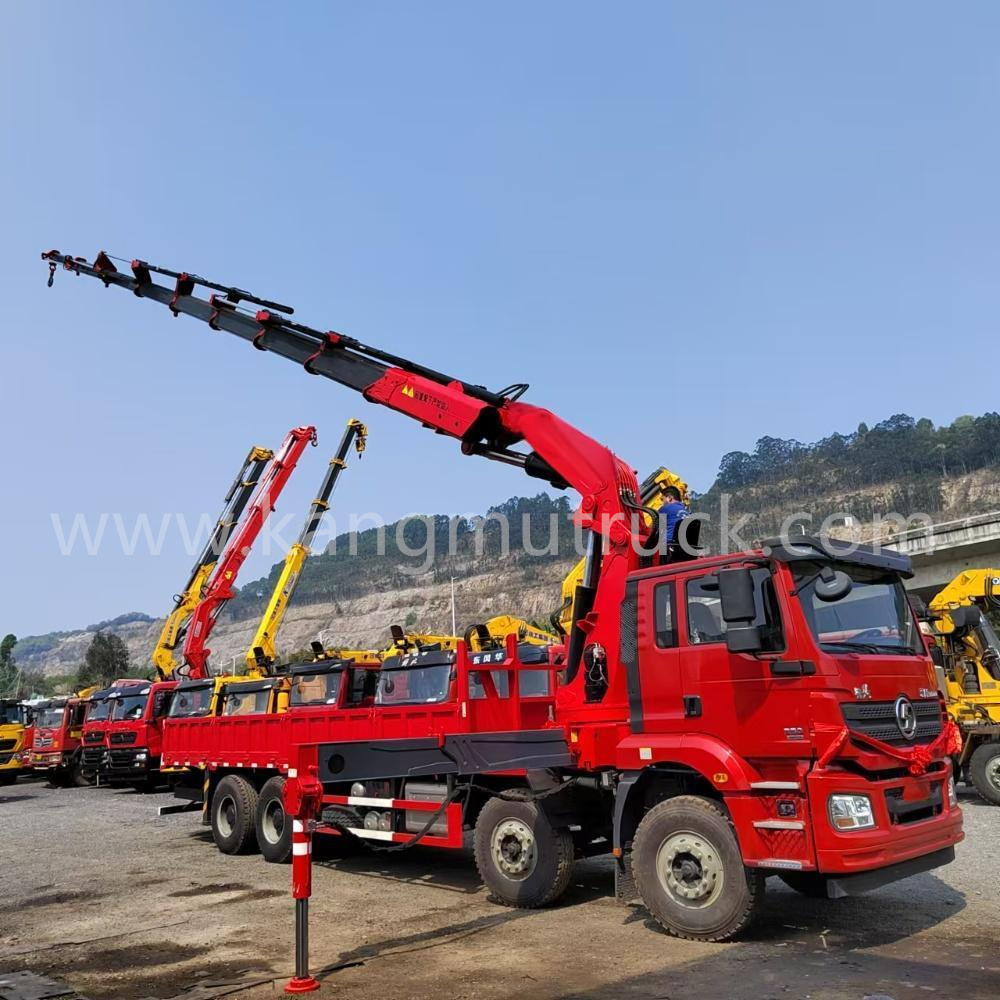

The on-board crane is mainly composed of horizontal support legs, vertical support legs, steering base, and lifting arm, mainly used for lifting and unloading goods by themselves.
Choose engine WP9H350E62, WP10H375E62,WP10H400E62,WP9H336E62,WP9H310E62,WP8.350E61,WP7.300E61. The fuel consumption values are 36.87 (L/100km), 37.18 (L/100km), 37.18 (L/100km), 36.87 (L/100km), 36.87 (L/100km), 37.18 (L/100km), 37.37 (L/100km).
Other instructions: Optional ETC onboard device; Optional leg style, optional radiator, optional control style, optional ladder and no ladder style Optional folding arm crane, crane model, maximum lifting load and mass are (Kg): SQZ240: 95008310. Optional crane reverse installation Optional hoist tail winch Optional arm style Optional gantry style Optional wooden crate for cushioning Optional fuel tank baffle Optional rear lighting fixtures are installed with the chassis Optional spare tire position Optional radiator position Optional wheel guard Optional rear leg style.
