Dongfeng Dolika 6Cbm Combi Sunction And Jetting Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: Dongfeng Dolika 6Cbm Combi Sunction And Jetting Truck
  • Keywords:Sewage Suction Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
  • KMH5071GQWE6

  • KANGMU

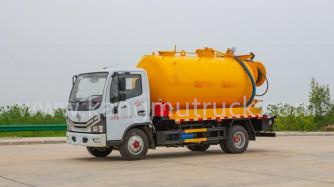

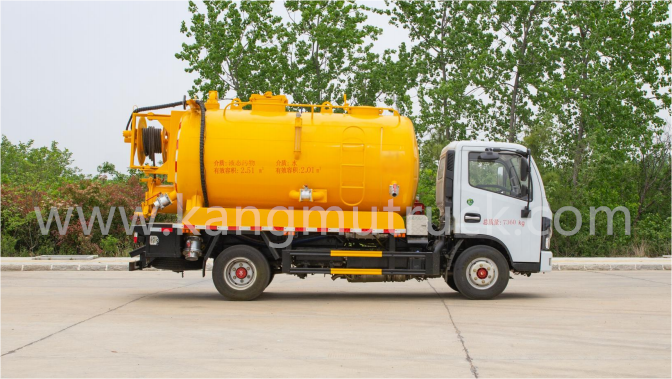

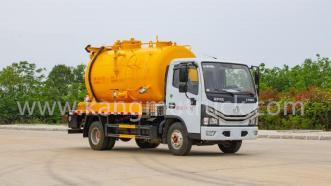

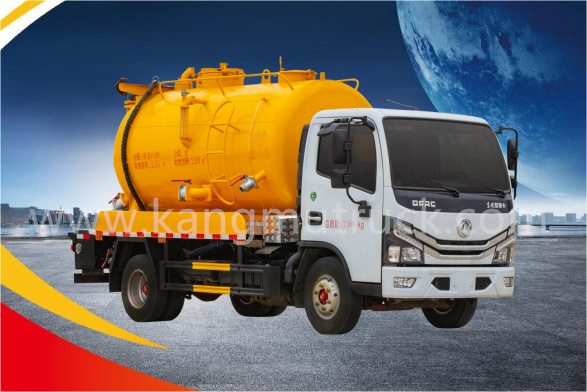

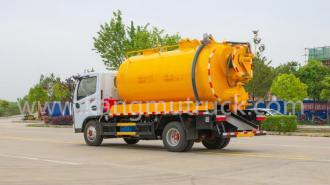

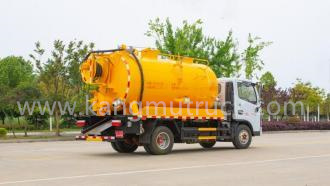

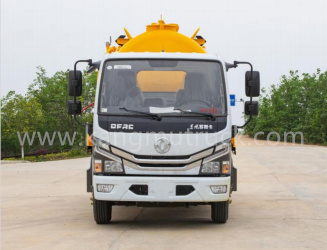

Dongfeng Dolika 6Cbm Combi Sunction And Jetting Truck



NAME SPECIFICATIONS
1 Vehicle Model KMH5071GQWE6
2 Wheelbase 3308MM
3 Engine Model YCY24140-60
4 Engine Power 103KW
5 Vehicle Dimensions(L*W*H) 6180,6165 × 2095,2000 × 3000,3050,2950MM
6 Curb Weight 5150KG
7 Total Quality 7360KG
8 Tank Volume 6CBM
9 Fuel Type Diesel oil
10 Emission Standard National VI



Upper Body Configuration:


The appearance dimensions are made according to the announcement. The elliptical integrated tank has an effective volume of about 3 cubic meters and a body size of 5mm. It is made of high-quality carbon steel. Cleaning section: 122L/min high-pressure pump, inlet with filter screen, 60m 19 # high-pressure pipe, set of nozzles 1-10, and the reel is installed on the rear head. Suction part: Yifeng 3-ton vacuum pump, oil-water separator, 8-meter suction pipe, bottom 200 butterfly valve discharge. Details: Without lifting, the vehicle height is within 2100mm.


Product Function:


The appearance dimensions are made according to the announcement. It is an integrated tank with a capacity of about 6 cubic meters and a body size of 5mm. It is made of high-quality carbon steel. Cleaning section: 170L/min high-pressure pump, inlet with filter screen, 60m 19 # high-pressure pipe, set of nozzles 1-10, and the reel is installed on the rear head. Suction part: SK-9 water circulation pump, 8-meter suction pipe. Details: The tank can be lifted without opening the large lid, with a 400 foot quick opening and manual locking at the tail, water and sewage communication, a 100 ball valve at the rear head, arrow lights at the tail, with automatic discharge, and a toolbox.
