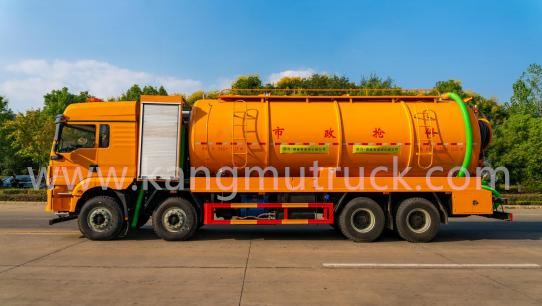

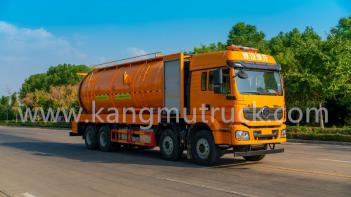

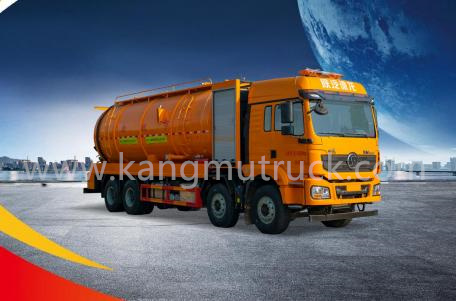

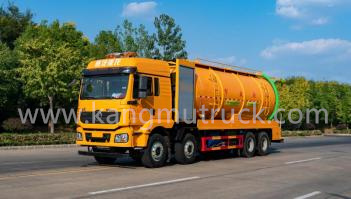

Shacman Delong(With Auxiliary Engine) 32Cbm Combi Suction And Jetting Truck
| NAME | SPECIFICATIONS |
| 1 | Vehicle Model | KMH5310GQWS6 |
| 2 | Wheelbase | 1800+4575+1400MM |
| 3 | Engine Model | WP12.430E62 WP8.350E61 WP12.400E62 |
| 4 | Engine Power | 316KW、257KW、338KW |
| 5 | Vehicle Dimensions(L*W*H) | 11990 × 2550 × 3950,3900,3850MM |
| 6 | Curb Weight | 19640KG |
| 7 | Total Quality | 31000KG |
| 8 | Tank Volume | 32 CBM |
| 9 | Fuel Type | Diesel oil |
| 10 | Emission Standard | National VI |
Upper Body Configuration:
The appearance dimensions are made according to the announcement. It is an integrated tank with a capacity of about 32 cubic meters and a body size of 8mm. It is made of high-quality carbon steel. Cleaning part: 30L/min high-pressure pump, inlet with filter screen, 100m 22 # high-pressure pipe, 1 9.5kg emperor nozzle, 1 1m straight nozzle, and the reel is installed on the rear head. Suction part: 420 horsepower auxiliary engine+2BE258 water ring pump, 8-meter suction pipe. Details: The tank can be lifted, the back cover does not open, the tail is equipped with a 600 quick opening with manual locking, water and sewage are interconnected, the rear head has three 100 ball valves, one 150 ball valve, arrow lights, with automatic discharge, and a toolbox.
Product Function:
The strong pressure generated by high-pressure water flow breaks open the blocked pipeline. The main components are the tank body, high-pressure pump, hydraulic system, etc. High pressure cleaning vehicles are mainly used to clean sediments and dredge dead corners of urban sewers and pipelines. They can also be used to clean industrial drainage pipelines, walls, etc., and to clean roads and square floors.
PARAMETER | PICTURE |
Multi way valve: It has the advantages of compact structure, low pressure loss, low resistance to slide valve movement, multi position function, and long service life |
|
Pressure gauge: Accurate display, good seismic performance, used for real-time monitoring of pressure inside the tank, convenient for later detection of the sealing of the tank and internal pipelines |  |
Hydraulic oil tank: Increased tank capacity effectively improves cooling efficiency, stabilizes oil temperature and pressure, and extends oil quality usage time |
|
