KMH5041GQWE6
KANGMU

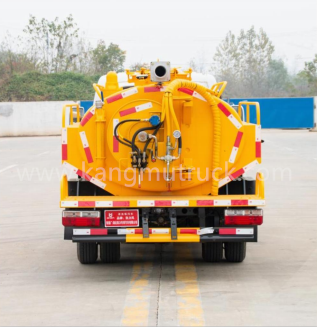

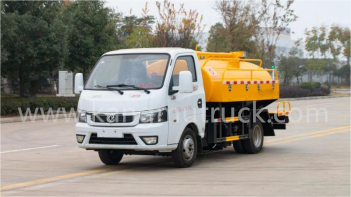

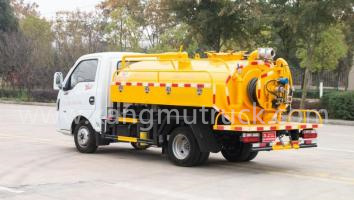

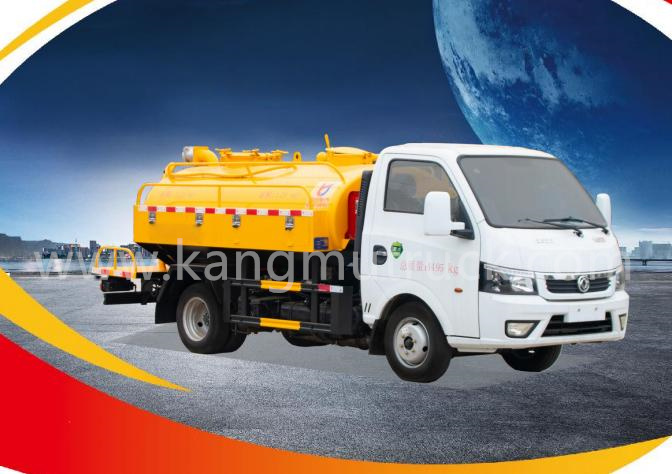

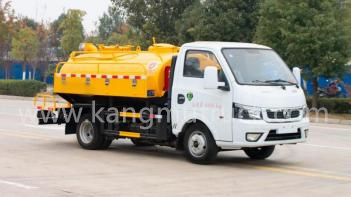

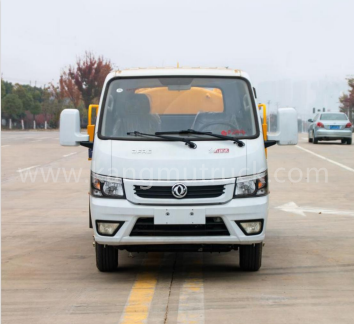

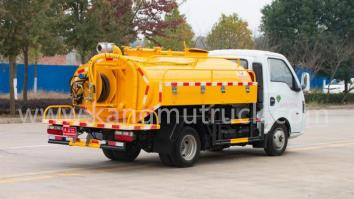

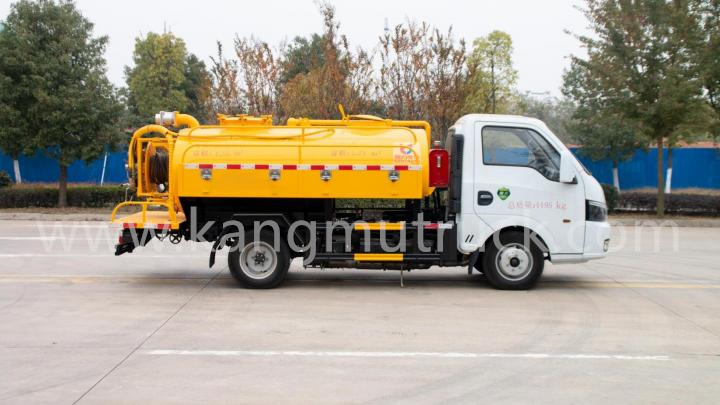

Dongfeng Tuyi 3Cbm Combi Sunction And Jetting Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5041GQWE6 |
2 | Wheelbase | 2800MM |
3 | Engine Model | Q23-95E60 |
4 | Engine Power | 70KW |
5 | Vehicle Dimensions(L*W*H) | 5700,5600 × 1900,1880,1850 × 2050,2000,1980MM |
6 | Curb Weight | 3350KG |
7 | Total Quality | 4495KG |
8 | Tank Volume | 3CBM |
9 | Fuel Type | Diesel oil |
10 | Emission Standard | National VI |
Upper Body Configuration:
The appearance dimensions are made according to the announcement. The elliptical integrated tank has an effective volume of about 3 cubic meters and a body size of 5mm. It is made of high-quality carbon steel. Cleaning section: 122L/min high-pressure pump, inlet with filter screen, 60m 19 # high-pressure pipe, set of nozzles 1-10, and the reel is installed on the rear head. Suction part: Yifeng 3-ton vacuum pump, oil-water separator, 8-meter suction pipe, bottom 200 butterfly valve discharge. Details: Without lifting, the vehicle height is within 2100mm.
Product Function:
The strong pressure generated by high-pressure water flow breaks open the blocked pipeline. The main components are the tank body, high-pressure pump, hydraulic system, etc. High pressure cleaning vehicles are mainly used to clean sediments and dredge dead corners of urban sewers and pipelines. They can also be used to clean industrial drainage pipelines, walls, etc., and to clean roads and square floors.
