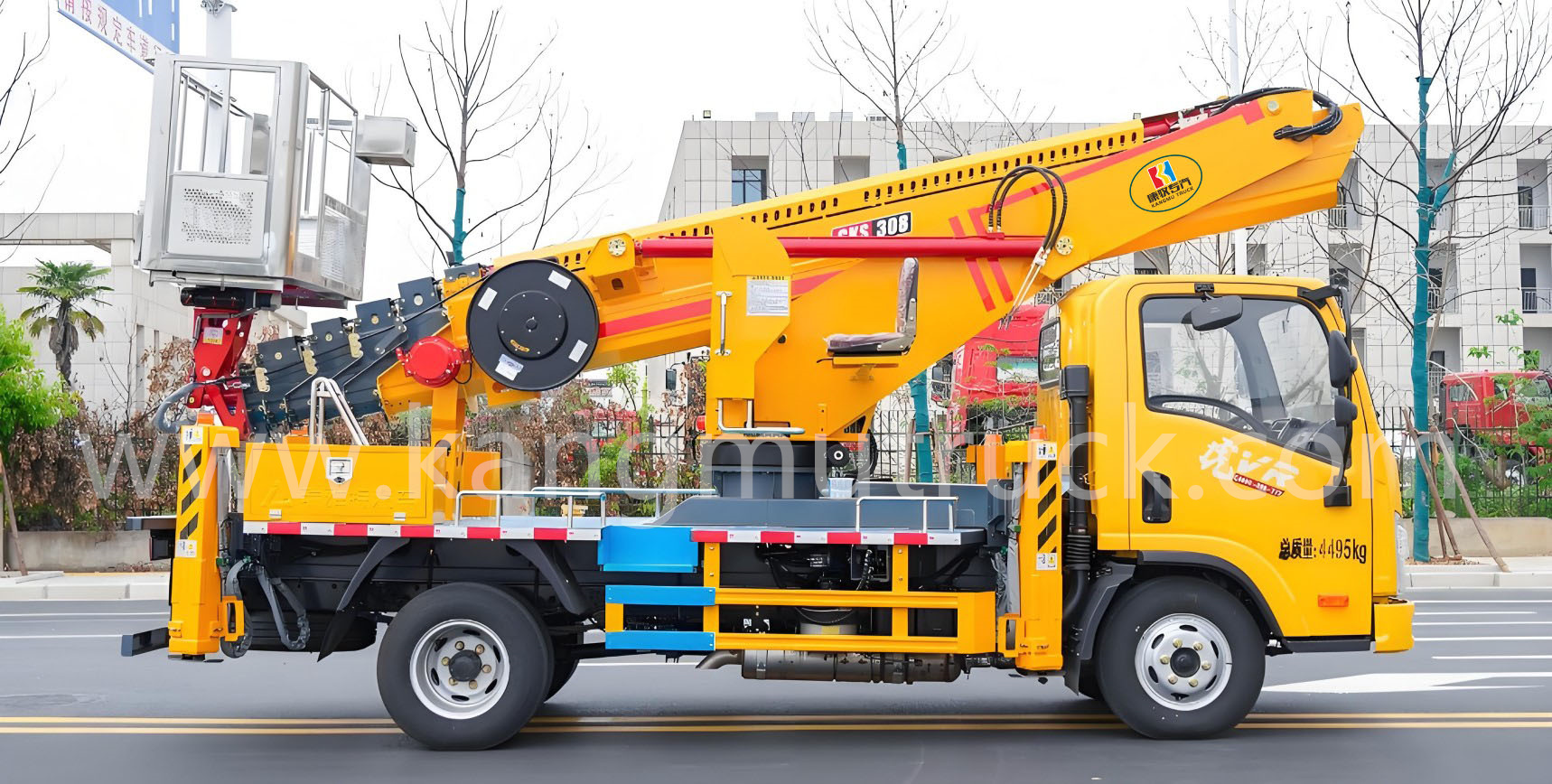

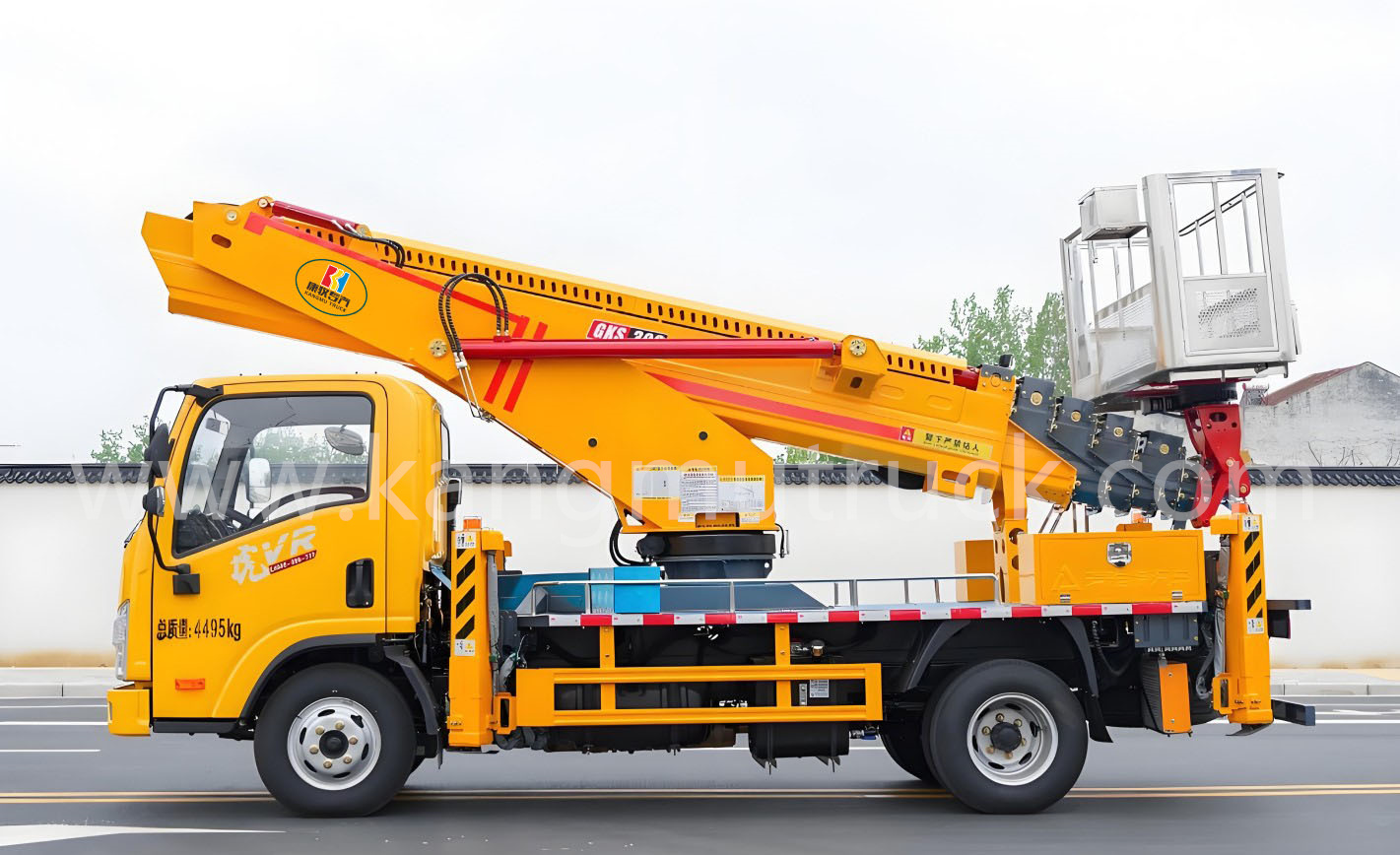

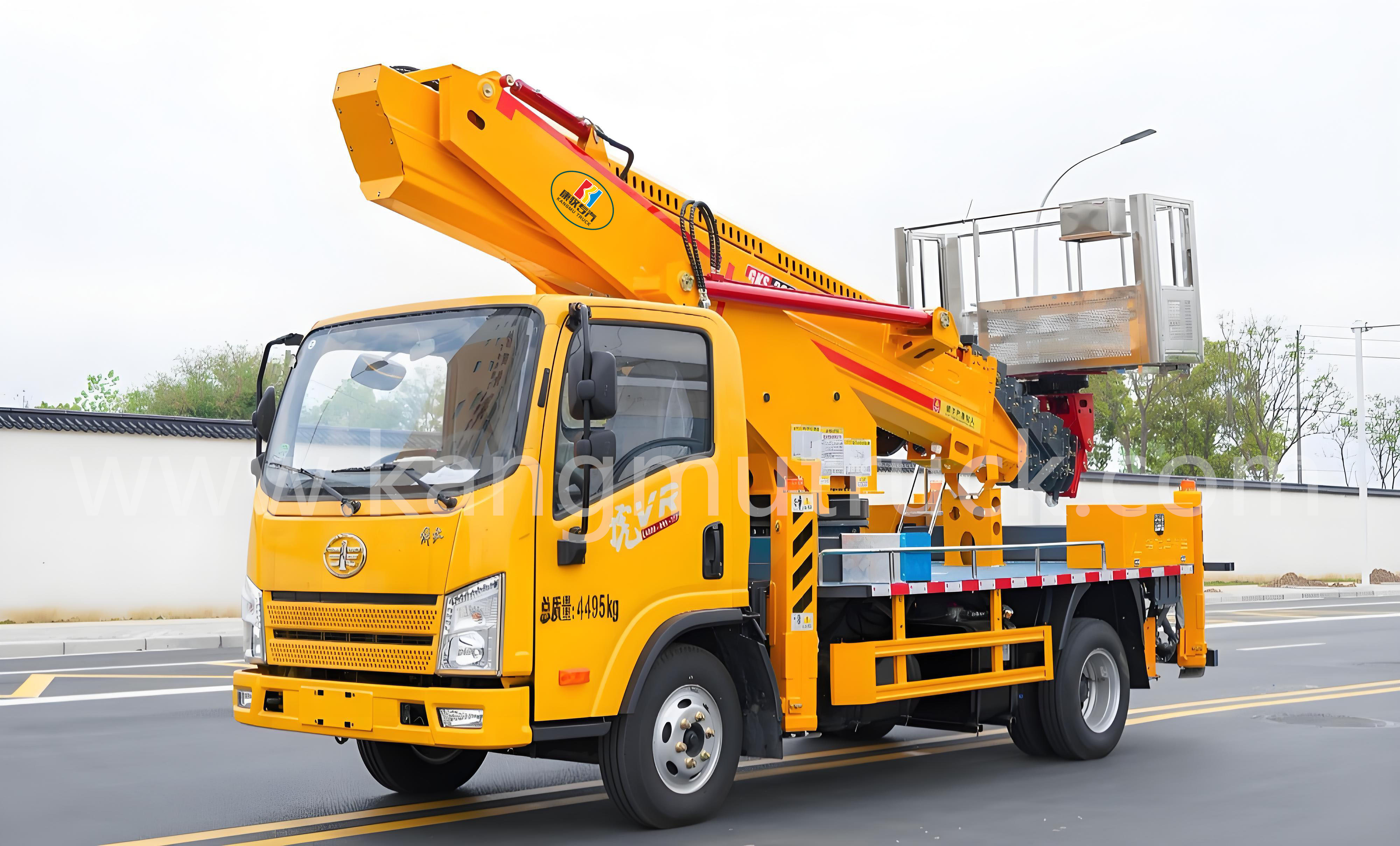

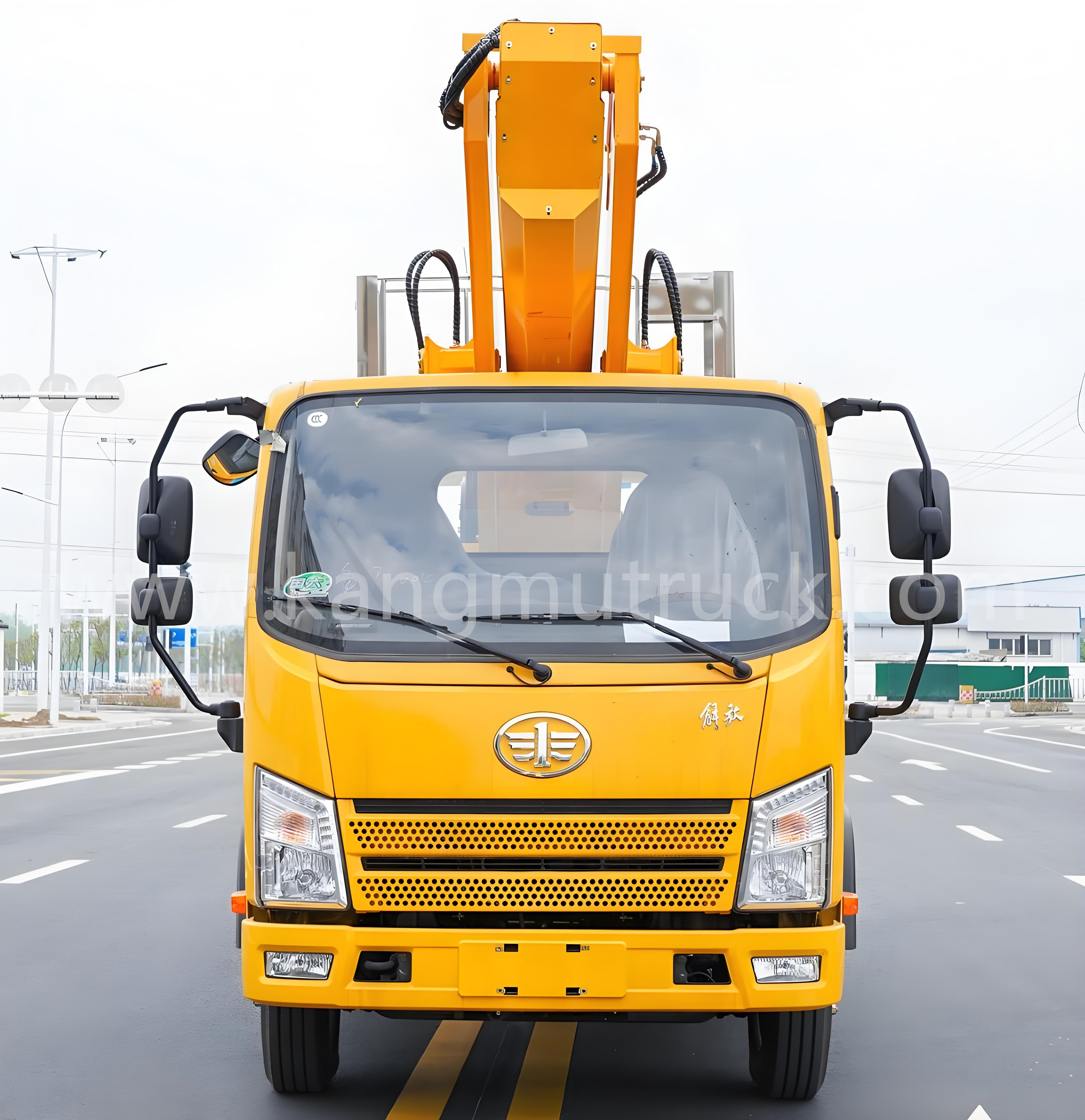

FAW Jiefang Tiger VR 31-Meter Aerial Lift Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: FAW Jiefang Tiger VR 31-Meter Aerial Lift Truck
  • Keywords: Aerial Lift Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
Inquire Add to Basket

  • KANGMU

FAW Jiefang Tiger VR 31-Meter Aerial Lift Truck
Main Technical Parameters of Aerial Work Platforms
Category Item Unit Data
Dimension Parameters Overall Length mm 5995
Overall Width mm 2080
Overall Height mm 3200
Mass Parameters Number of Passengers (including the Driver) Person 2/3
Gross Vehicle Weight kg 4495

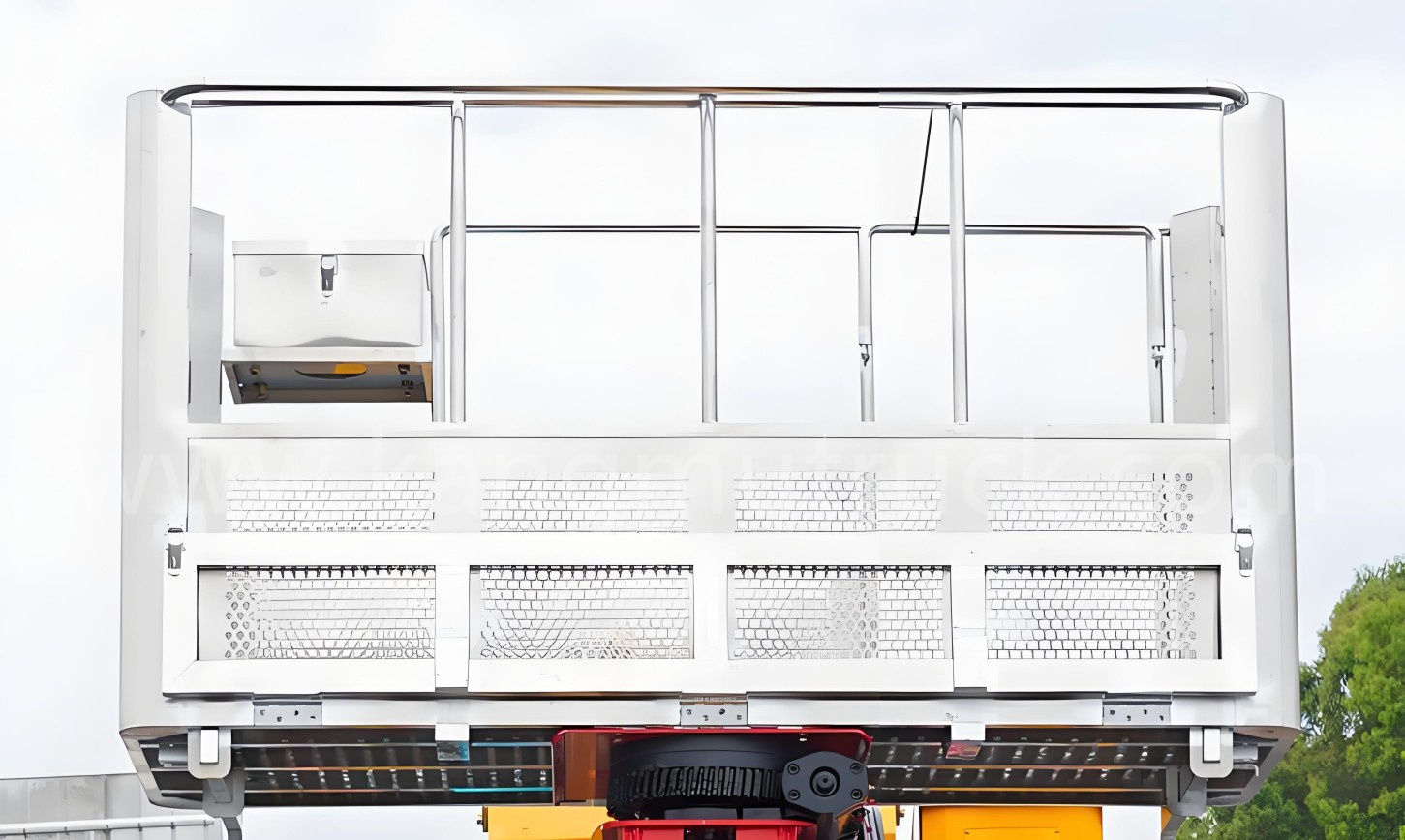

Main Performance Parameters Rated Load of the Working Platform kg 200

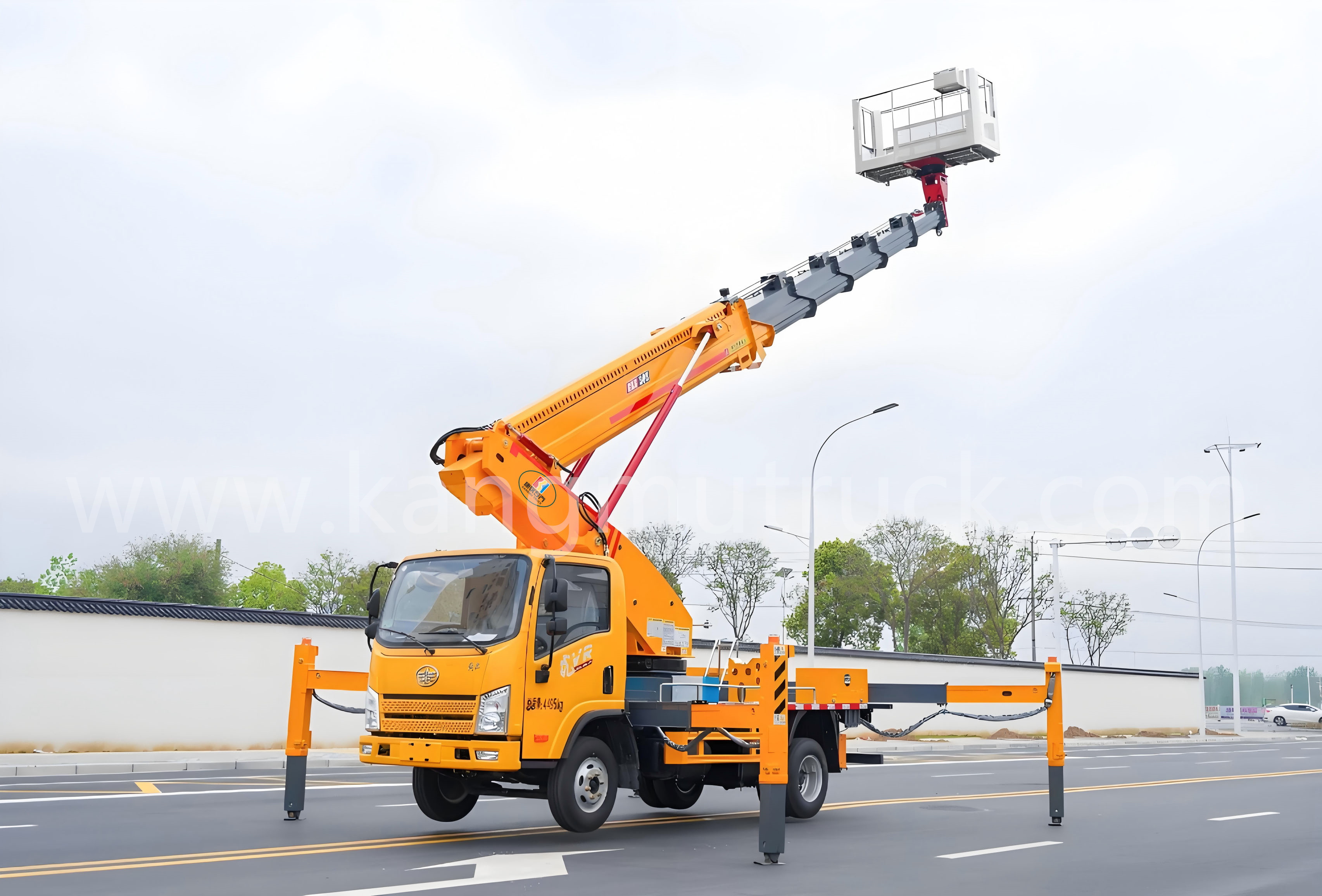

Maximum Working Height m 31
Working Radius at Maximum Working Height m 4

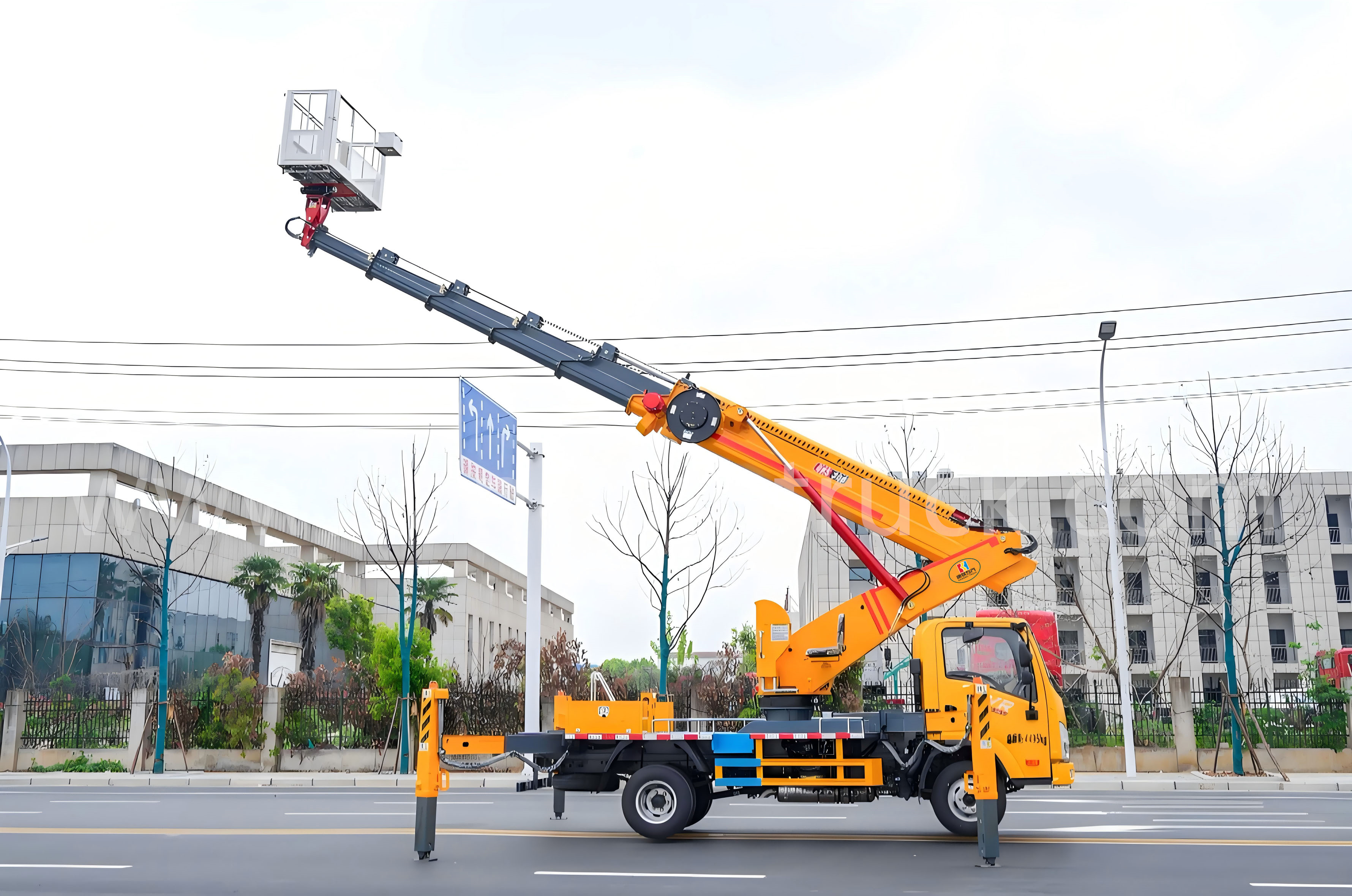

Maximum Working Radius m 23
Working Height at Maximum Working Radius m 19
Horizontal Outrigger Span mm 5400
Longitudinal Outrigger Span mm 5100
Rotation of the Working Platform ° 360
Boom Luffing Time s 70≤t≤90

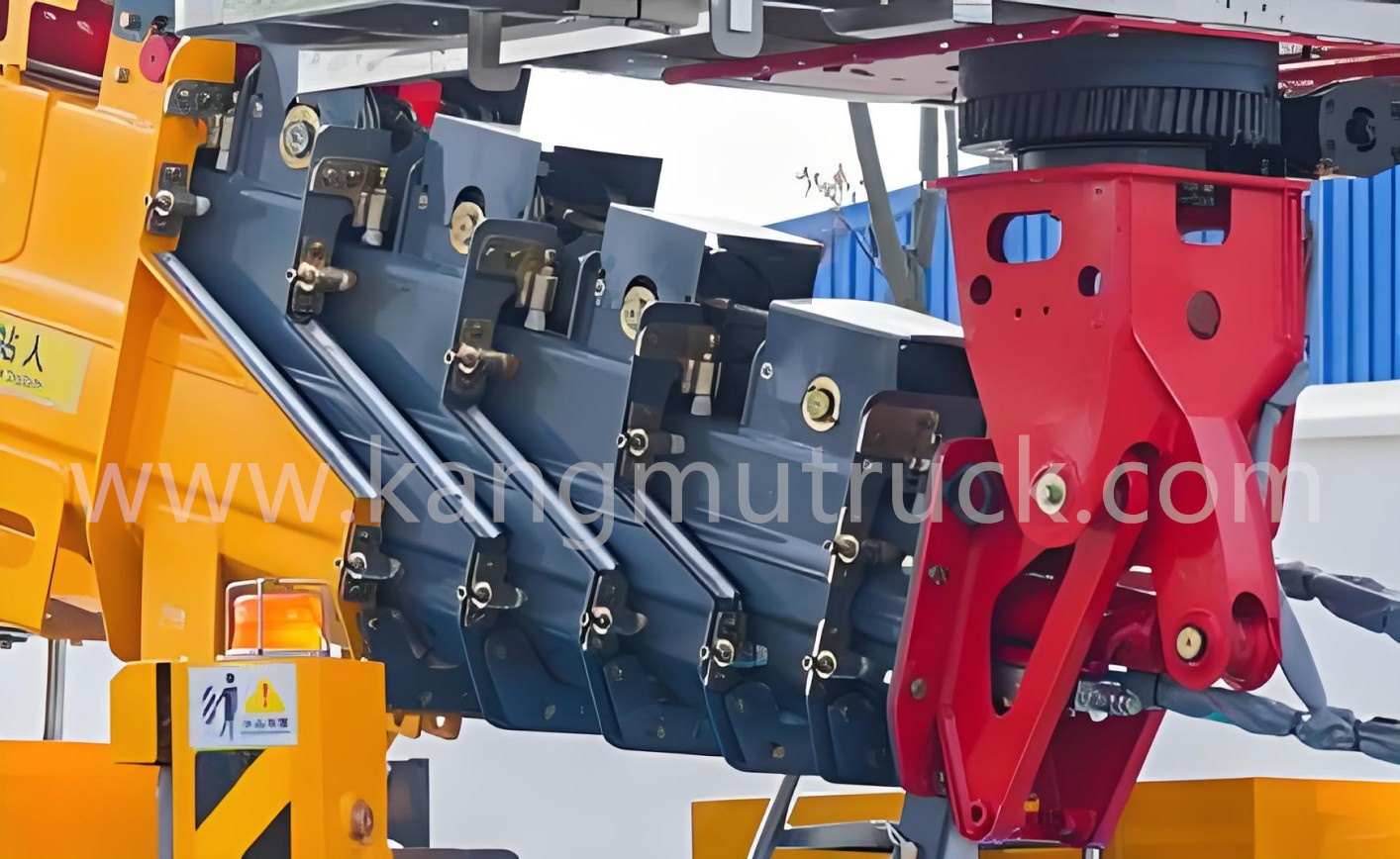

Boom Telescoping Time s 80≤t≤100
Boom Rotation Speed s/r 130≤t≤150
Outrigger Deployment/Retraction Time s 60≤t≤70
Driving Parameters Front Overhang mm 1150
Rear Overhang mm 1545
Front Extension mm /
Rear Extension mm /
Wheelbase mm 3300
Maximum Driving Speed km/h 100
Minimum Ground Clearance mm 370
Approach Angle ° 13
Departure Angle ° 15

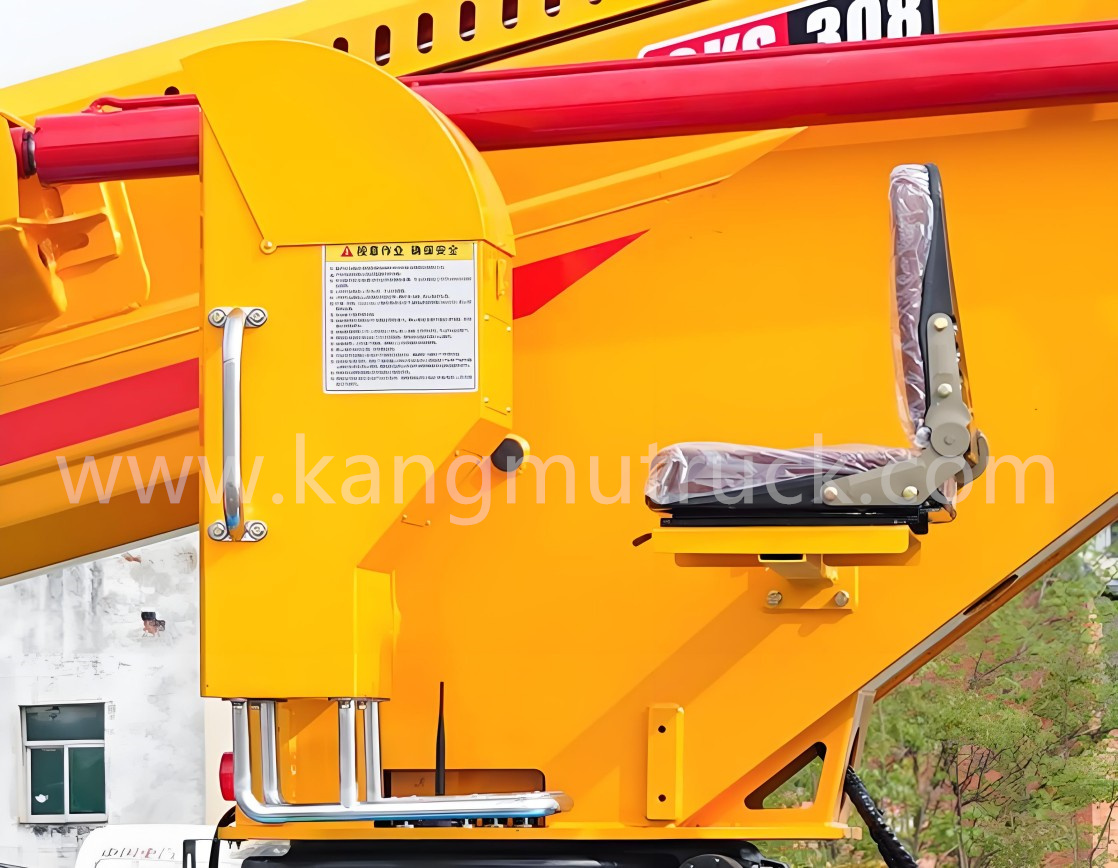

1747703895252副本17477042884821747704261762副本2174770438911617477044243021747703933275副本1747705939836副本1747704071629
