| Vehicle Technical Parameters | Overall Dimensions (Length × Width × Height) (mm) | 12200×2500×3985 |
| Gross Mass (kg) | 40000 |
| Curb Weight (kg) | 11300 |
| Payload Capacity (kg) | 28700 |
| Wheelbase (mm) | 7030+1310+1310 |
| Chassis Configuration | Suspension Type | Steel Plate Axle |
| Fifth Wheel Coupling Model | 50 Fifth Wheel Coupling |
| "Fuhua Brand" 13-ton Axles (units) | 3 |
| 12R22.5 18PR Vacuum Tires | 12 sets |
| "Fuhua Brand" Support Devices | 2 sets |
| ABS Anti-lock Braking System | Available |
| Carriage Structure | Made of full aluminum alloy profiles, featuring light weight, high strength, and strong corrosion resistance; |
| Equipped with 20 compartments, each layer is 1158mm high; the loading area is 48.5 ㎡; |
| Can carry about 95 adult pigs weighing 110kg each; approximately 700 weaned piglets; |
| Automatically liftable roof, facilitating personnel entry and exit, pig loading/unloading, and cleaning; |
| An insulation partition is installed on the top of the carriage to effectively prevent high-temperature conduction and control the internal temperature of the carriage. |
| Panel System | A "panel system" is installed on both sides of the carriage, with independent switches controlled manually; |
| Generally closed when the vehicle is empty or in extremely harsh weather conditions. |
| Fan System | Installed on the left and right sides of the vehicle, with high humanization; |
| Each compartment is equipped with one fan to ensure smooth air circulation inside the carriage; |
| Configured with 24 fans, each layer can blow alternately. |
| Water Supply System | Each compartment is equipped with two "water nozzles"; |
| Equipped with a 600L water tank. |
| Sprinkler System | Each compartment is equipped with a sprinkler head, which has a significant cooling effect. |
| Monitoring System | Equipped with video, temperature, and ammonia monitoring devices; |
| Through video monitoring, the condition of pigs on each layer of the carriage can be viewed in real-time in the cab; |
| Through the temperature monitoring device, if the temperature inside the carriage exceeds the safe temperature range, it is convenient for the driver to adjust the internal temperature of the carriage. |

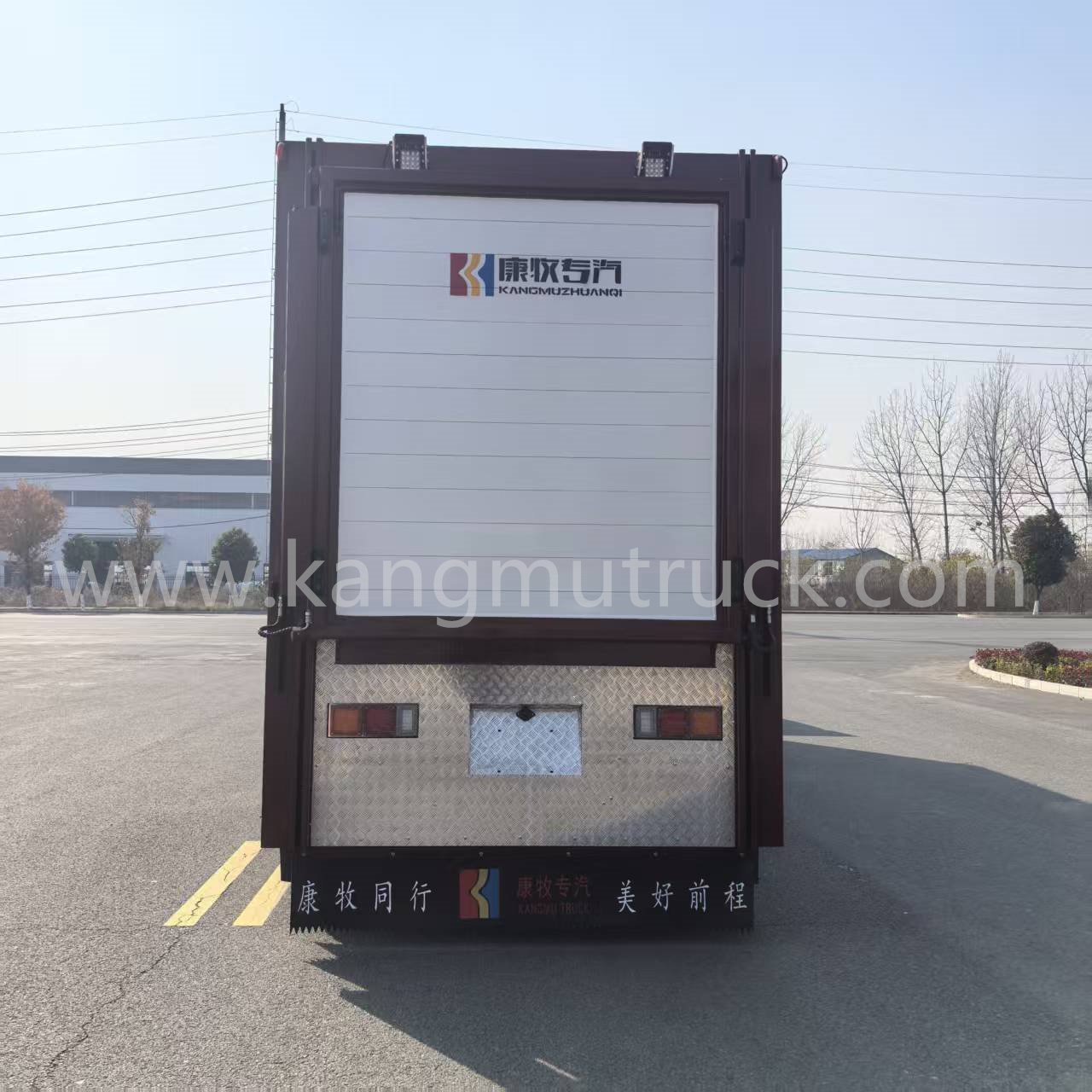

| Lighting System | Night lighting lamps are installed at the rear of the carriage to facilitate pig loading and unloading at night. |
| Hydraulic Lifting System | High loading efficiency; |
| Low failure rate and high reliability. |
| Control System | Manual-automatic integrated control system: The lifting platform can be operated manually in emergency situations; |
| Remote control: Controls the movement of the lifting platform, and the on/off of fans and spotlights; |
| Wired controller: Can control the movement of the lifting platform when the remote control fails; |
| Control display panel (inside the electrical control box): Manually controls fans and spotlights. |
| Air Conditioning System | Carrier independent refrigeration unit, the carriage can be adjusted to the appropriate temperature required by piglets at any time. |
| Power Supply System | A dedicated generator ensures the power supply for various electrical equipment of the vehicle during transportation. |
