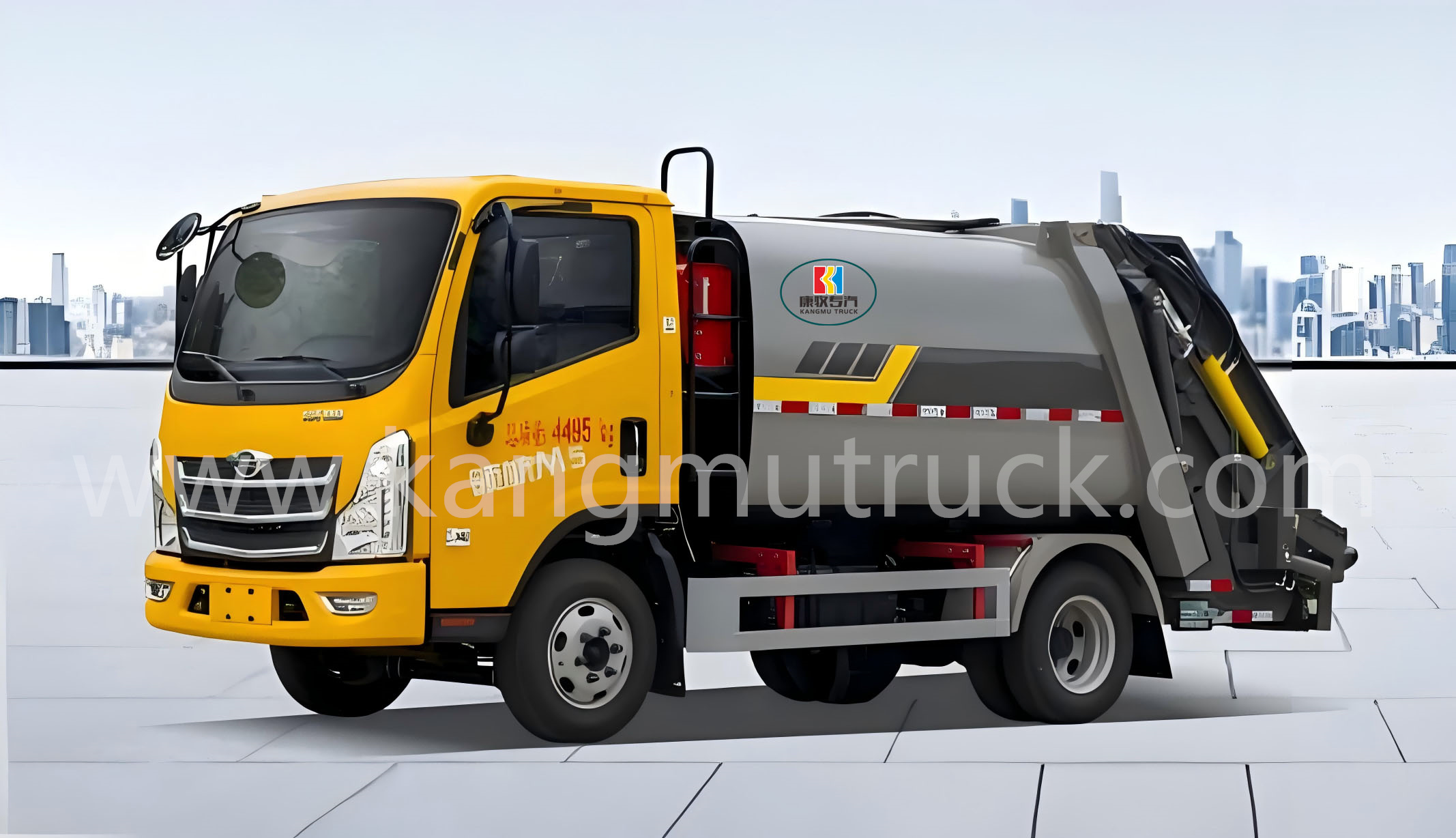

6 CBM Foton Pilot M5 Compression Garbage Truck
| NAME | SPECIFICATIONS |
| 1 | Vehicle Model | KMH5041ZYSB6 |
| 2 | Wheelbase | 2800MM |
| 3 | Tire Specification | 6.50 Steel Wire Tire |
| 4 | Engine Model | Q25A-150E60 |
| 5 | Engine Power | 110KW |
| 6 | Vehicle Dimension(L*W*H) | 5995 * 2000/2050 * 2450 MM |
| 7 | Curb Weight | 3860KG |
| 8 | Toal Quality | 4495KG |
| 9 | Rated Loading Capacity | 505KG |
| 10 | Tank Volume | 6 CBM |
| 11 | Operation Type | Electric/Manual/Remote |
| 12 | One Feed Cycle Time | 12—25S |
| 13 | Unloading Time | ≤60S |
| 14 | Rear Device | Flip Board |
| 15 | Fuel Type | Diesel |
| 16 | Emission Standard | National VI |

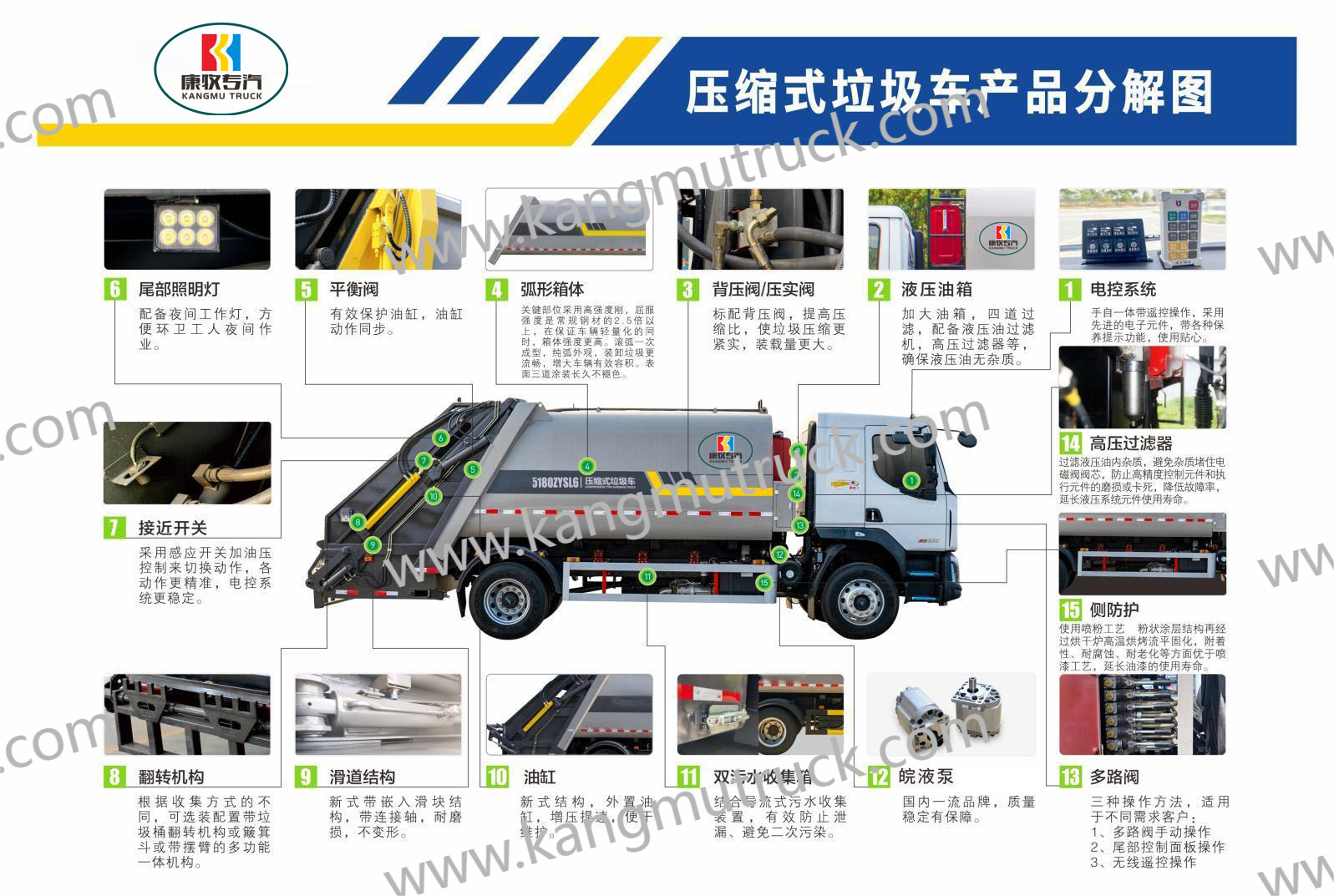

Product Configuration:
The box body showcases an elegantly curved, aerodynamic design, meticulously crafted through a single continuous arc rolling process by a four-axis plate rolling machine. This seamless manufacturing method effectively eliminates any potential for leakage, while also presenting a sleek and aesthetically pleasing appearance. With exceptional anti-deformation capabilities and robust structural integrity, the box body offers enhanced durability. Moreover, its unique design maximizes internal volume, outperforming comparable products in the market. Constructed from high-strength manganese steel plates, the box body resists deformation, wear, and corrosion, ensuring long-lasting performance.
The vehicle-wide electrical system enables fully automated regulation of engine output. It allows for seamless switching between acceleration and idling modes, adapting to diverse operational conditions. This intelligent control not only minimizes power wastage and reduces the likelihood of malfunctions but also significantly cuts down on fuel consumption, delivering a more stable and energy-efficient performance.
The intelligent control system incorporates an imported CAN bus and a modular architecture. By integrating proximity switches with oil pressure sensors, it provides a highly efficient, stable, and maintenance-friendly compression solution. Offering three distinct operation modes—manual, automatic, and semi-automatic—users can conveniently operate the system from the cab, the front or rear of the box body, or even remotely. This versatility ensures optimal functionality across various working environments.
Featuring the latest external hydraulic cylinder configuration and dual-direction compression technology, along with top-tier domestic and international components, the system achieves an impressive compression ratio of over 1:2.5. With a single cycle time of ≤ 20 seconds, it doubles the efficiency of garbage collection operations.
Designed with the user's operational environment in mind, the product boasts numerous user-centric features. These include built-in night lighting, a dual sewage tank with drainage pipes, remote control functionality, as well as comprehensive operation and maintenance manuals and instructional videos.
Before delivery, the product undergoes rigorous testing by professional technicians who simulate a wide range of complex working scenarios. This thorough physical testing ensures that the product meets the highest quality standards.
In terms of after-sales service, we offer unconditional support for any issues not caused by the customer. Our commitment ensures that customers can resolve problems at no cost, providing peace of mind and long-term reliability.
