KMH5140GXWE6
KANGMU

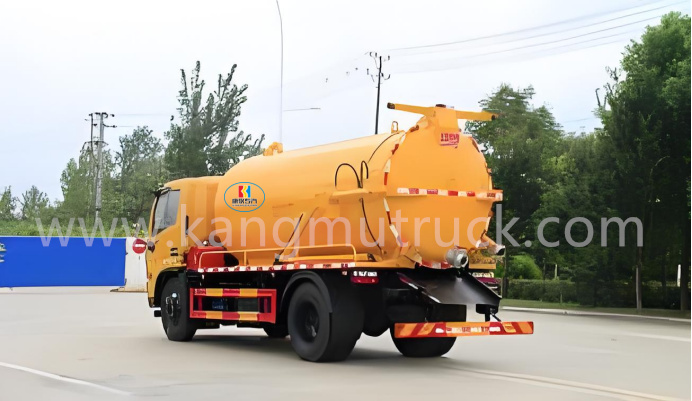

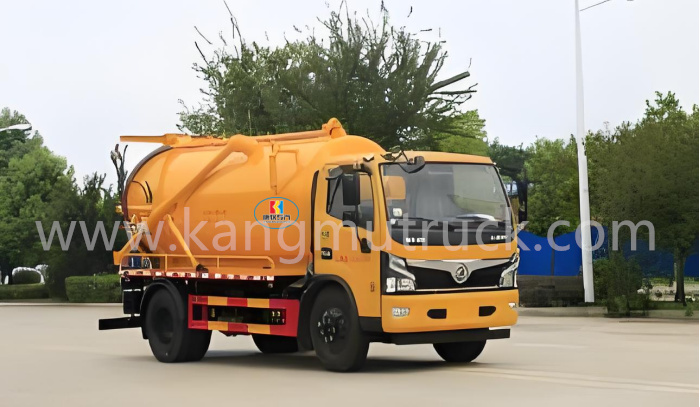

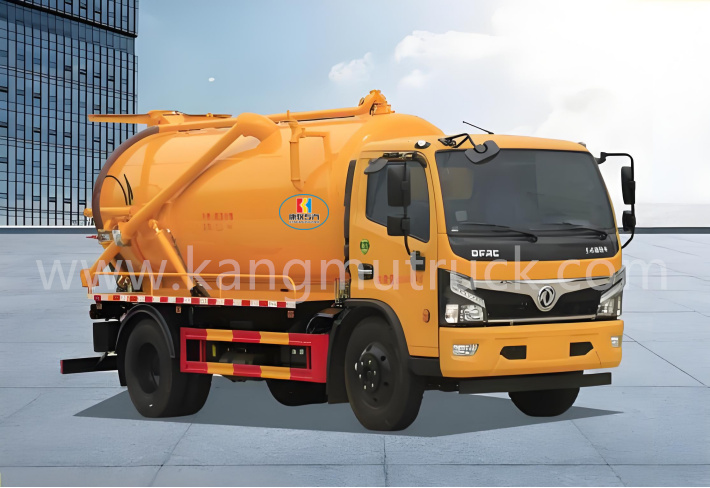

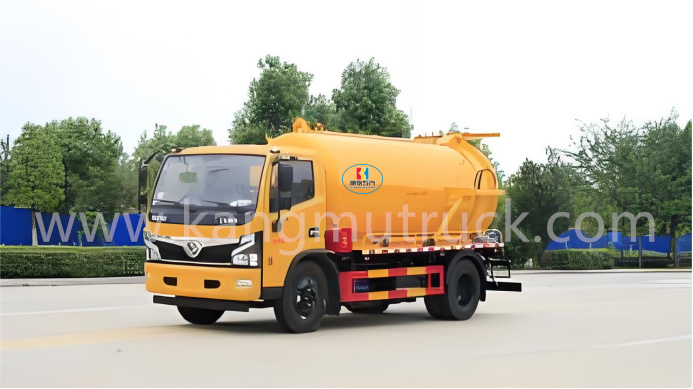

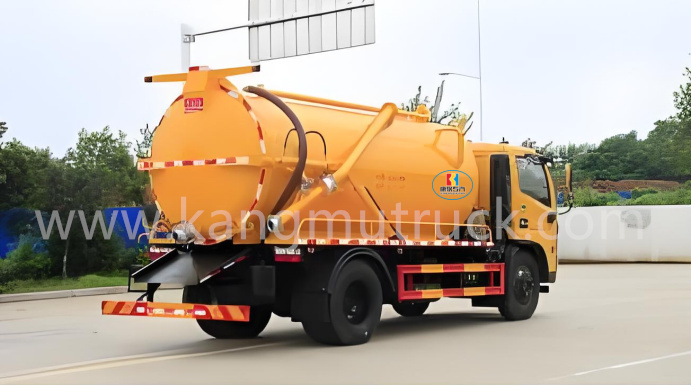

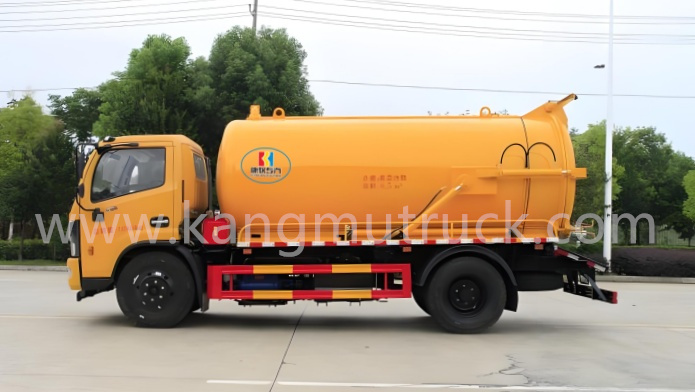

Dongfeng Dolika 10Cbm Sewage Suction Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5140GXWE6 |
2 | Wheelbase | 3800MM |
3 | Engine Model | YCY30165-60 |
4 | Engine Power | 121KW |
5 | Vehicle Dimensions(L*W*H) | 6930,7067×2260,2400×3150,3250,3350,2950,3000MM |
6 | Curb Weight | 7385KG |
7 | Total Quality | 14060KG |
8 | Hydraulic System Pressure | 18MP |
9 | Tank Volume | 10CBM |
10 | Tank Material | carbon steel (6MM) |
11 | Tank Dimension | 4200×1700MM |
12 | Fuel Type | Diesel |
13 | Emission Standard | National VI |
Upper Body Configuration:
The appearance and dimensions shall be manufactured in accordance with the announcement. It is equipped with a dished head. The rear door of the tank body is hydraulically opened and mechanically locked. The tank body is of lifting and self-unloading type. There is a sewage viewing pipe on the upper part of the right side of the tank body, and a 100 ball valve below the rear head. It is equipped with a 10-ton vacuum pump/SK-9 water circulation pump, a water-oil separator, an anti-overflow valve. The side lights are electrically powered. One 8-meter-long sewage suction pipe is provided, and the rest are standard configurations.
