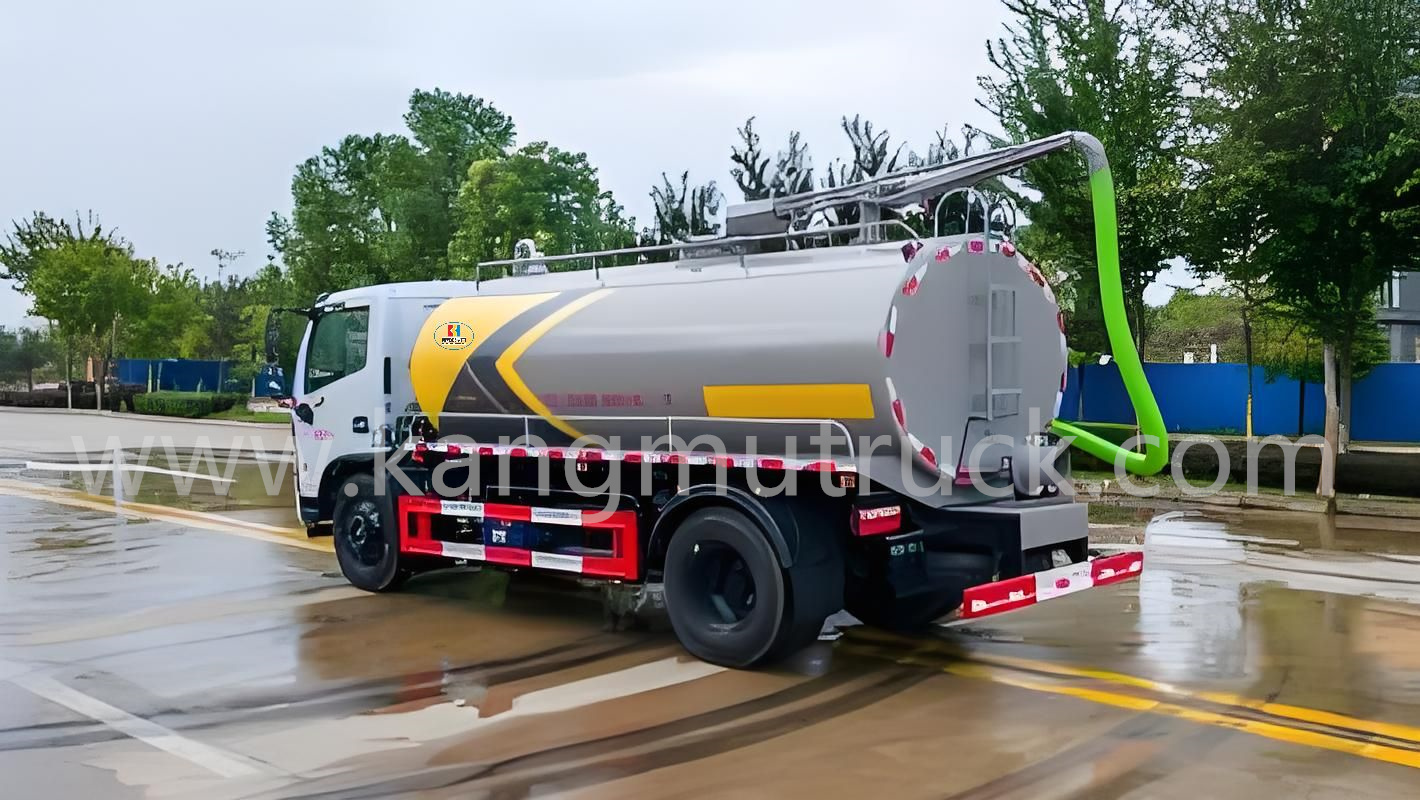

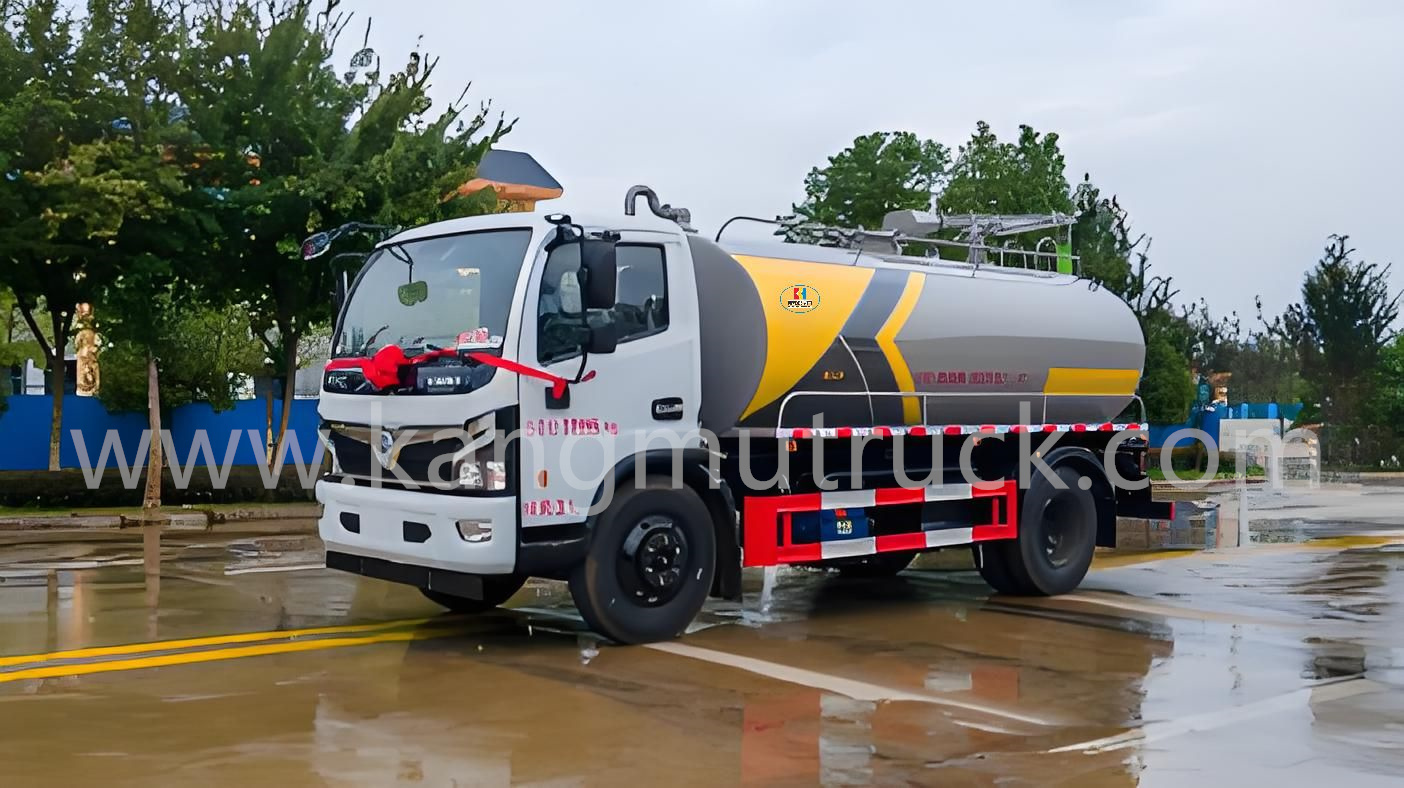

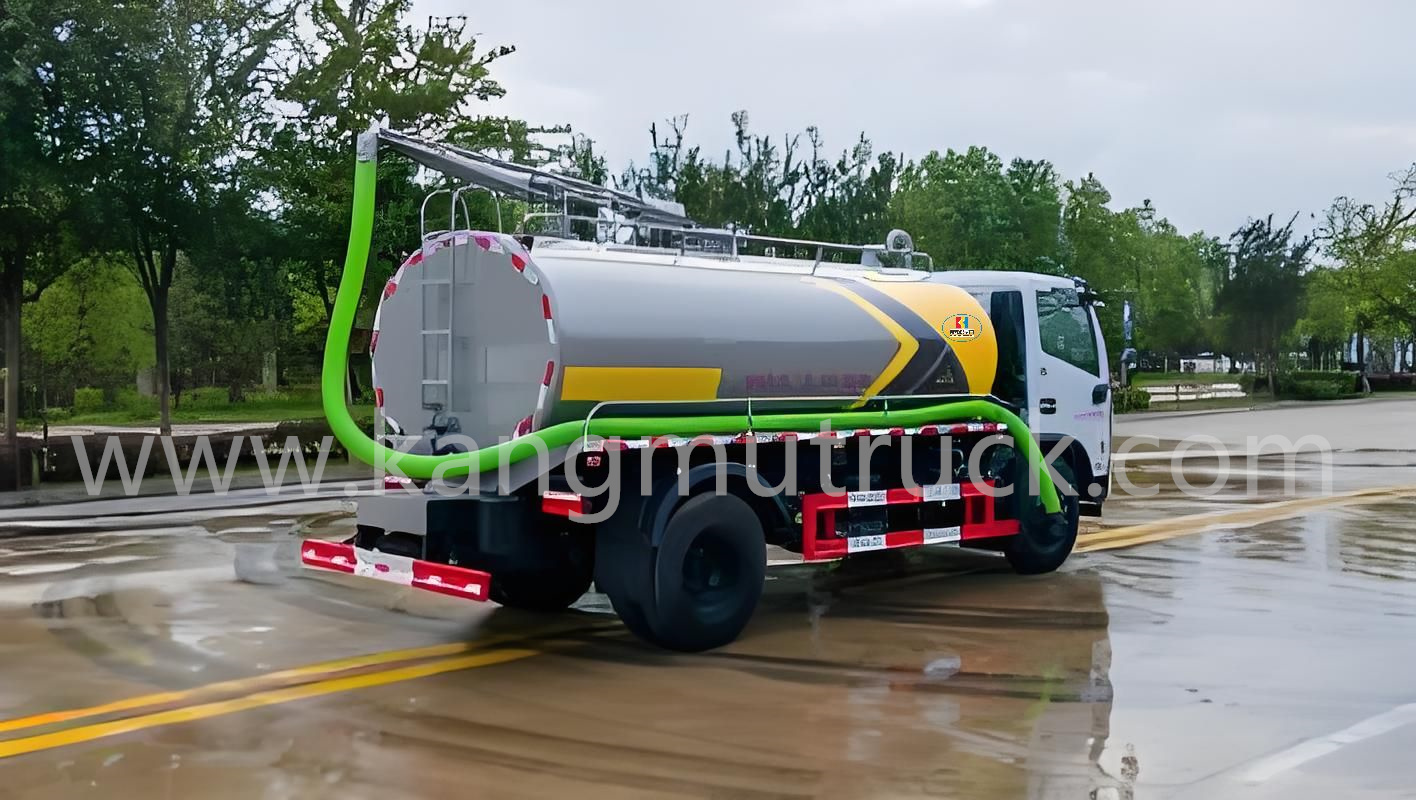

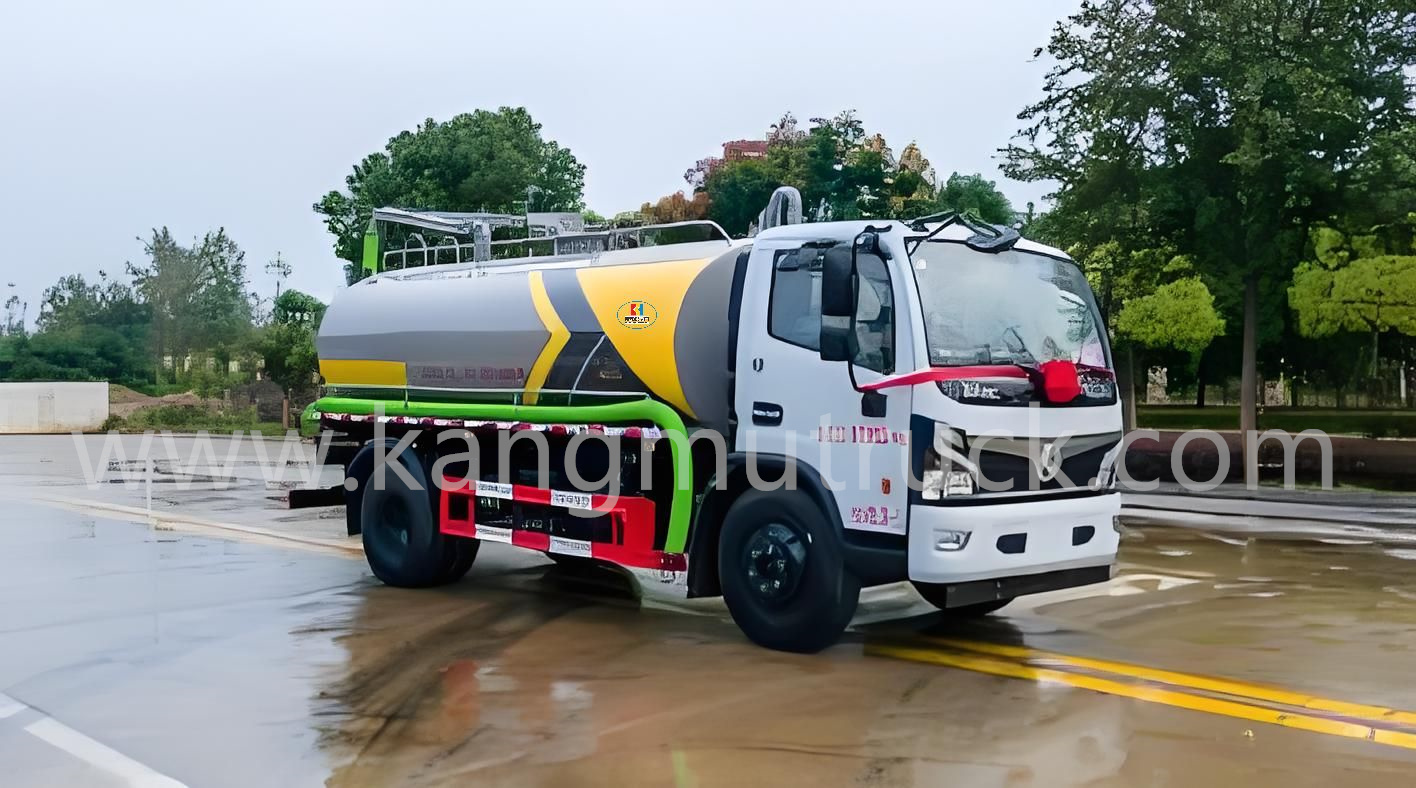

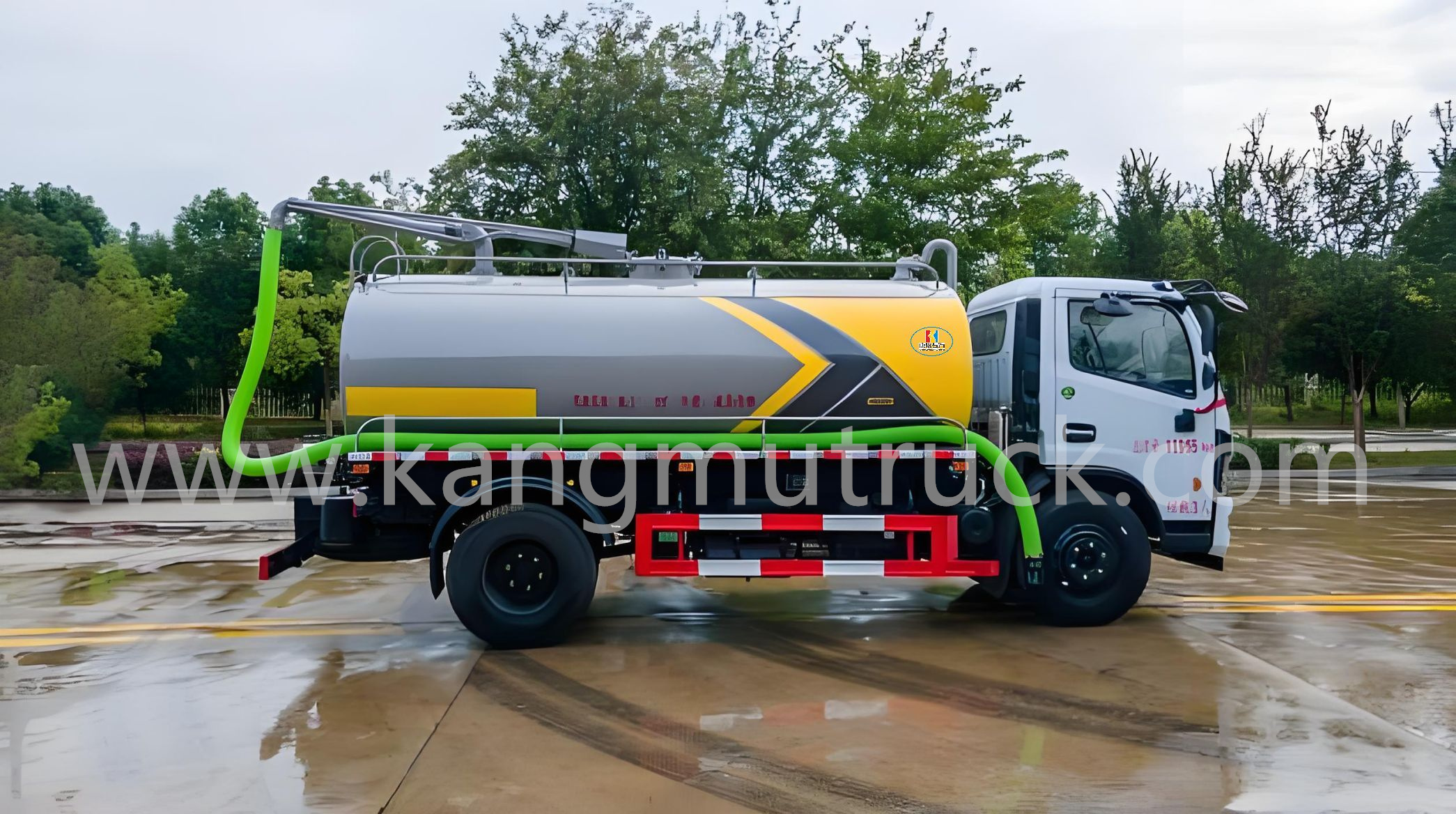

Dongfeng Furuka 10Cbm Suction Truck
| NAME | SPECIFICATIONS |
| 1 | Vehicle Model | KMH5120GXEE6 |
| 2 | Wheelbase | 3800mm |
| 3 | Engine Model | YCY30165-60 /D25TC IF1 |
| 4 | Engine Power | 121/110 |
| 5 | Vehicle Dimensions(L*W*H) | 6430,6480,6617,6610×2300,2400×3010,3130Mm |
| 7 | Curb Weight | 5170Kg 5315Kg |
| 8 | Total Quality | 11995Kg |
| 9 | Rated Load Capacity | 6695Kg 6630Kg 6485Kg 6550Kg |
| 10 | Tank Volume | 10Cbm |
| 11 | Tank Material | 6Mm Carbon Steel |
| 12 | Tank Dimension | 4170×2100×1460 |
Upper Body Configuration:
Made according to the external dimensions of the announcement, equipped with a hand washing device, a thickened sewage observation pipe, a suction and filling port (1) with a DN200 butterfly valve, an 8T oil pump, a water oil separator, an overflow valve, a suction and sewage pipe of 8 meters, a 360 degree rotating suspension rod seat, and an 8-inch discharge outlet at the tail.
Product Performance:
The tank body and metal accessories of the entire vehicle have been sprayed with polymer anti-corrosion primer and metal topcoat, which have strong adhesion, good corrosion resistance, uniform paint film, bright and long-lasting color, improved aesthetics, and can withstand adverse environments such as humidity, dust, salt spray, etc. Long term use will not cause problems such as cracking, peeling, fading, etc., not only improving the aesthetics of the product, but also effectively preventing rust.
A suction truck is used to suck feces, sewage, sludge, and liquids mixed with small suspended debris. It can also be used for emergency response to sudden environmental pollution accidents. By fully utilizing vacuum technology, the dual anti overflow pump device can better prevent tank overflow and extend the service life of the vacuum pump. The overall design structure of the vehicle is reasonable, with excellent performance and flexible and easy operation.
The tank is rigidly connected and installed on the frame, with a buffer pad in between to reduce damage to the tank caused by vehicle vibration. The tank is equipped with anti sway plates inside to reduce the severe shaking and impact of liquids caused by vehicle movement, which can damage the tank and its frame connection parts.
