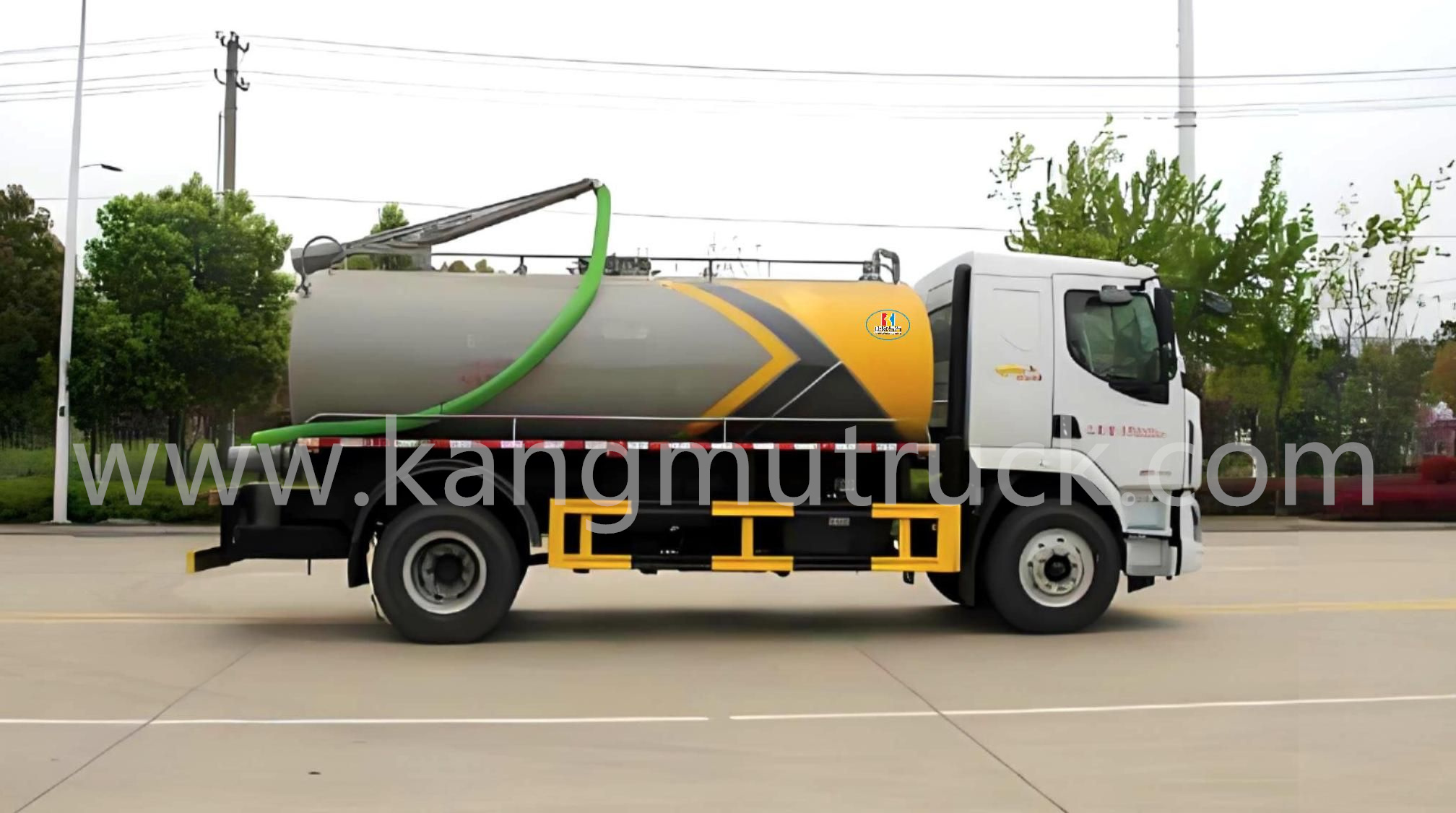

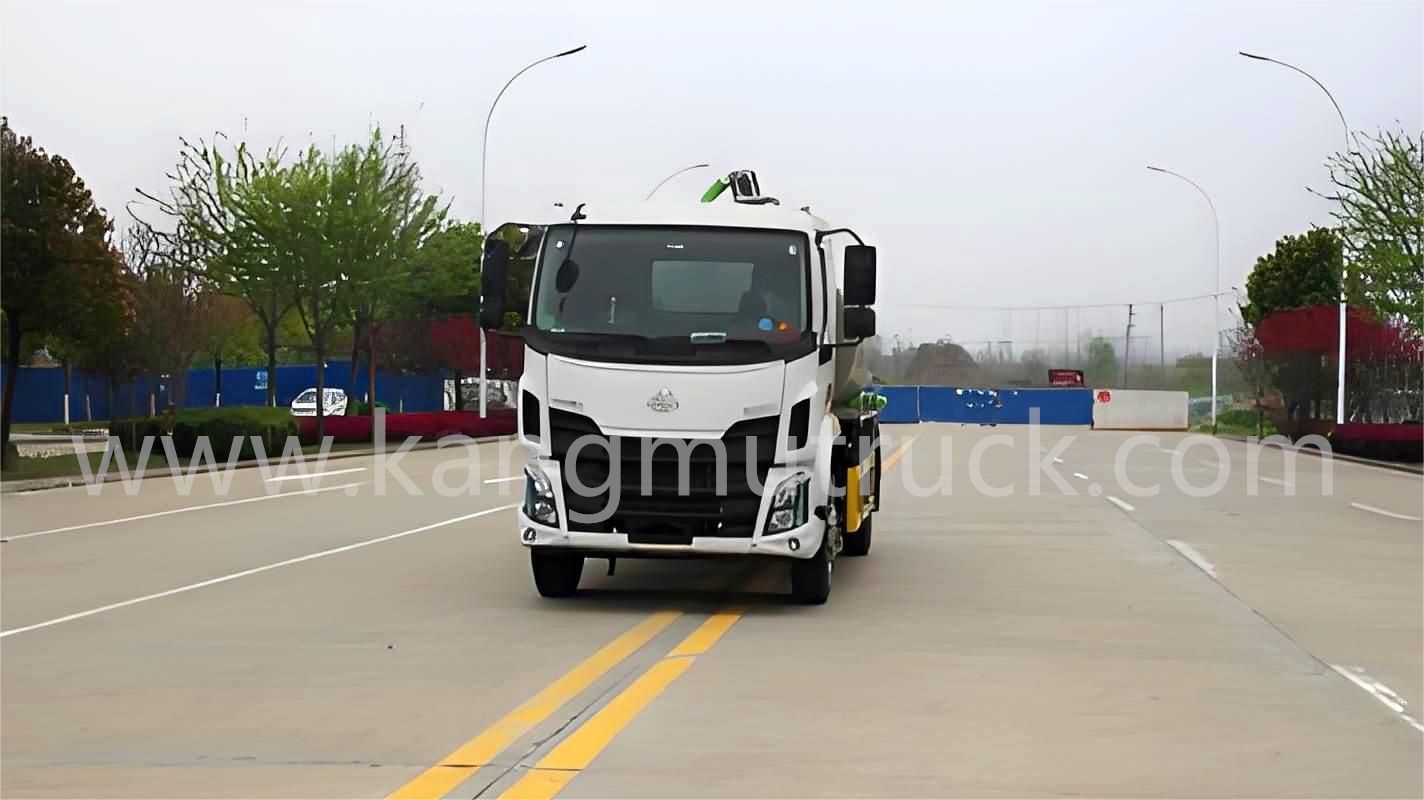

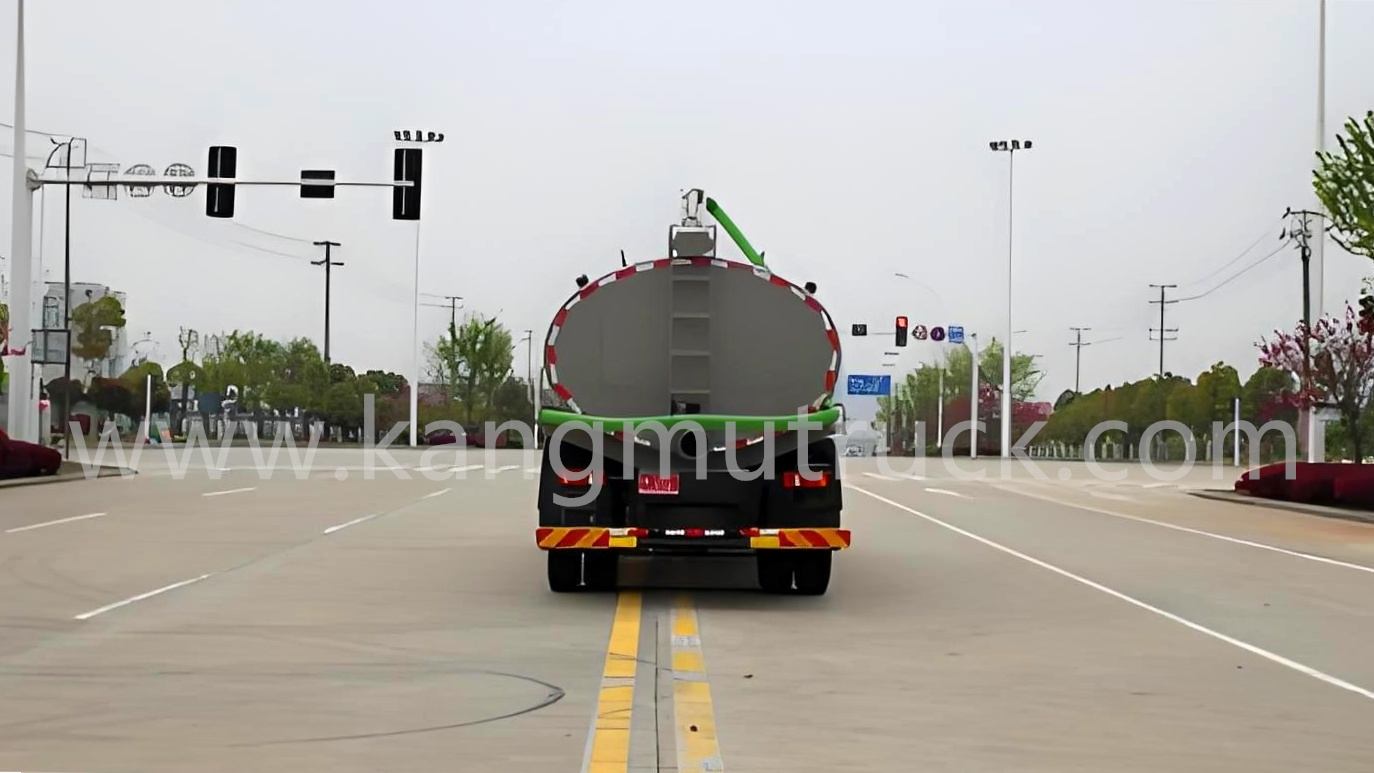

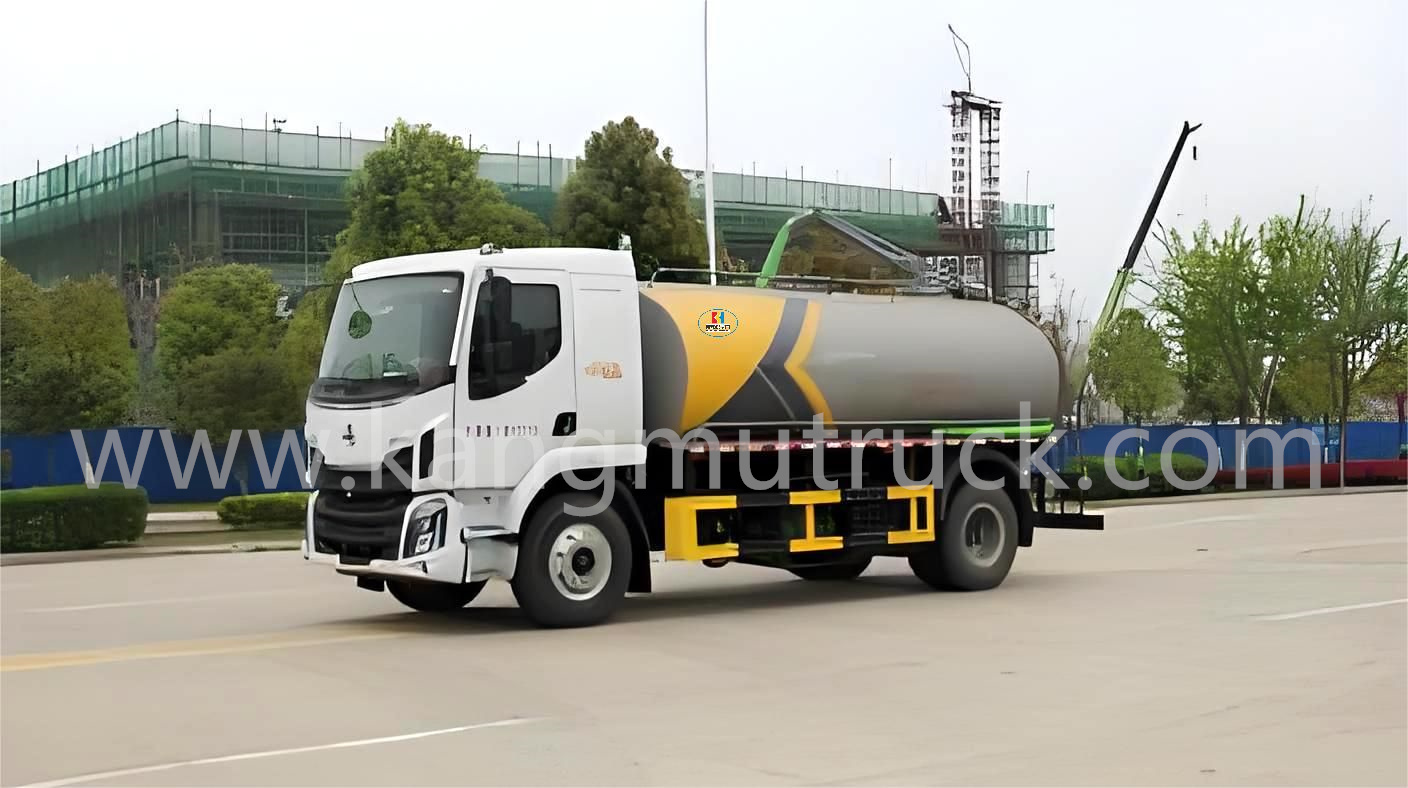

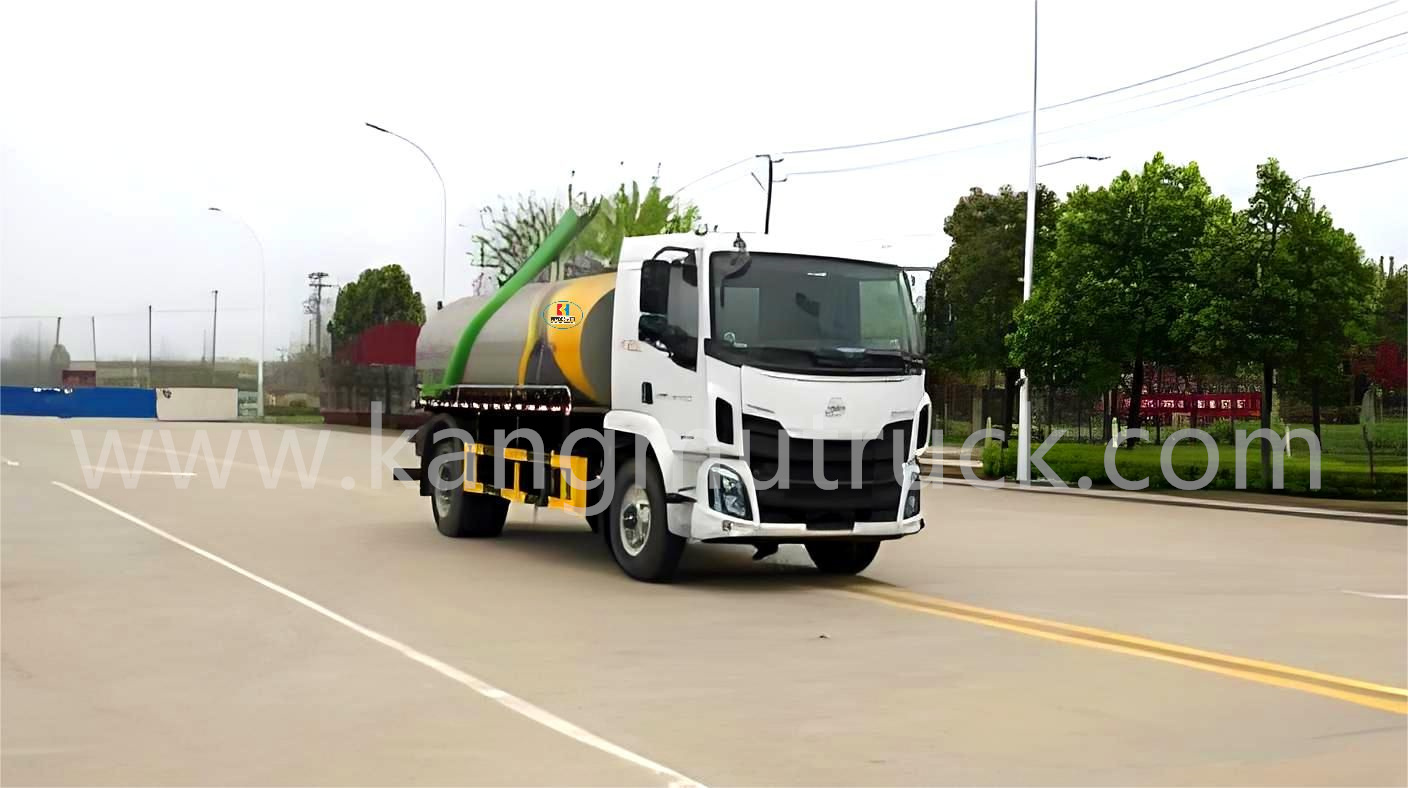

Dongfeng LZM M3 14Cbm Cesspit Emptier And Suction Truck
| NAME | SPECIFICATIONS |
| 1 | Vehicle Model | KMH5180GXEL6 |
| 2 | Wheelbase | 4500MM |
| 3 | Engine Model | YCS04200-68，YCS06 245-60 |
| 4 | Engine Power | 147/180KW |
| 5 | Vehicle Dimensions(L*W*H) | 7680,7780×2500,2550×3200,3250,3300MM |
| 6 | Curb Weight | 8000KG |
| 7 | Total Quality | 18000KG |
| 8 | Rated Load Capacity | 9370KG 9305KG 9825KG 9760KG |
| 9 | Tank Volume | 14CBM |
| 10 | Tank Material | 6MM Carbon Steel |
| 11 | Tank Dimension | 4650×2400×1600MM |
| 12 | Fuel Type | Diesel |
| 13 | Emission Standard | National VI |
Upper Body Configuration:
Manufacture in accordance with the external dimensions specified in the announcement. It should be equipped with a hand - washing device, a thickened sewage observation pipe, a feces suction filling port (1 unit) with a DN200 butterfly valve, a 10T oil pump, a water - oil separator, an anti - overflow valve, a 1 - piece 8 - meter feces and sewage suction pipe, a 360 - degree rotating boom seat, and an 8 - inch sewage outlet at the rear.
Product Performance:
The entire vehicle tank and metal accessories are sprayed with high - molecular anti - corrosion primer and metal topcoat. The paint has strong adhesion, excellent corrosion resistance, a uniform film, and its bright color lasts for a long time. This not only improves the aesthetic appearance but also enables the vehicle to withstand adverse environments such as humidity, dustiness, and salt spray. Over long - term use, problems like cracking, peeling, and fading will not occur, effectively preventing rust and corrosion.
The manure suction vehicle is used to suck feces, sewage, sludge slurry, and liquids mixed with small suspended debris. It can also be used for emergency handling of sudden environmental pollution accidents. By making full use of vacuum technology, the dual anti - overflow pump device can better prevent tank overflow and extend the service life of the vacuum pump. The overall vehicle is designed with a reasonable structure, excellent performance, and is flexible and easy to operate.
The tank is installed on the vehicle frame in a rigid connection method. A buffer pad is set between them to reduce the damage to the tank caused by the vehicle's vibration. Anti - sloshing plates are installed inside the tank to reduce the severe sloshing impact of the liquid caused by the vehicle's movement, thereby protecting the tank and its connection with the vehicle frame from damage.
