KMH5121GXEEQ6
KANGMU

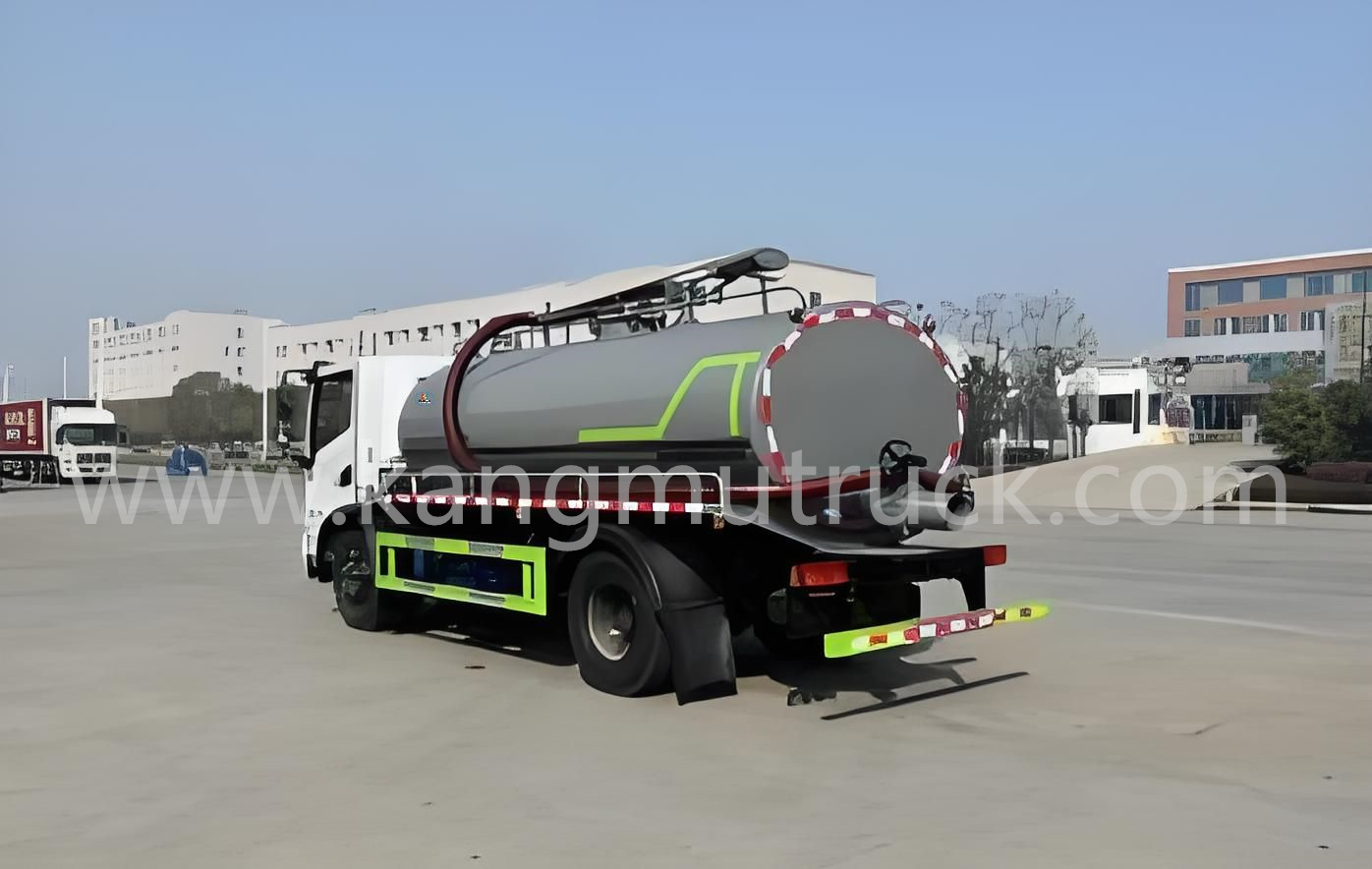

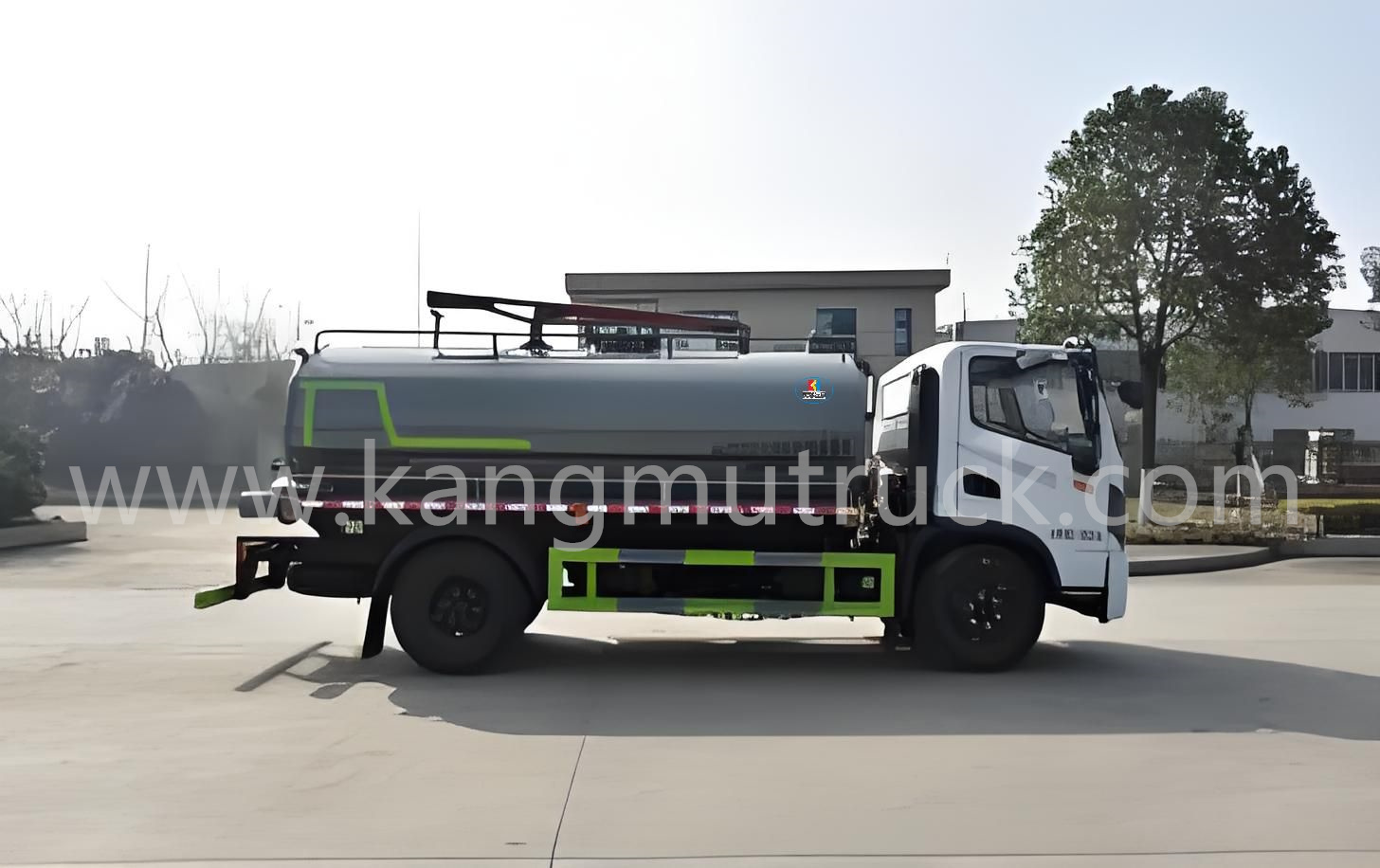

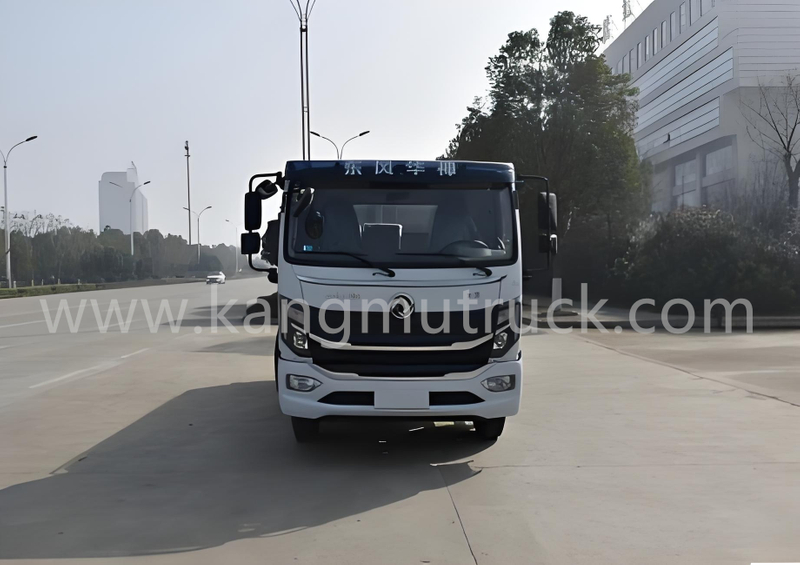

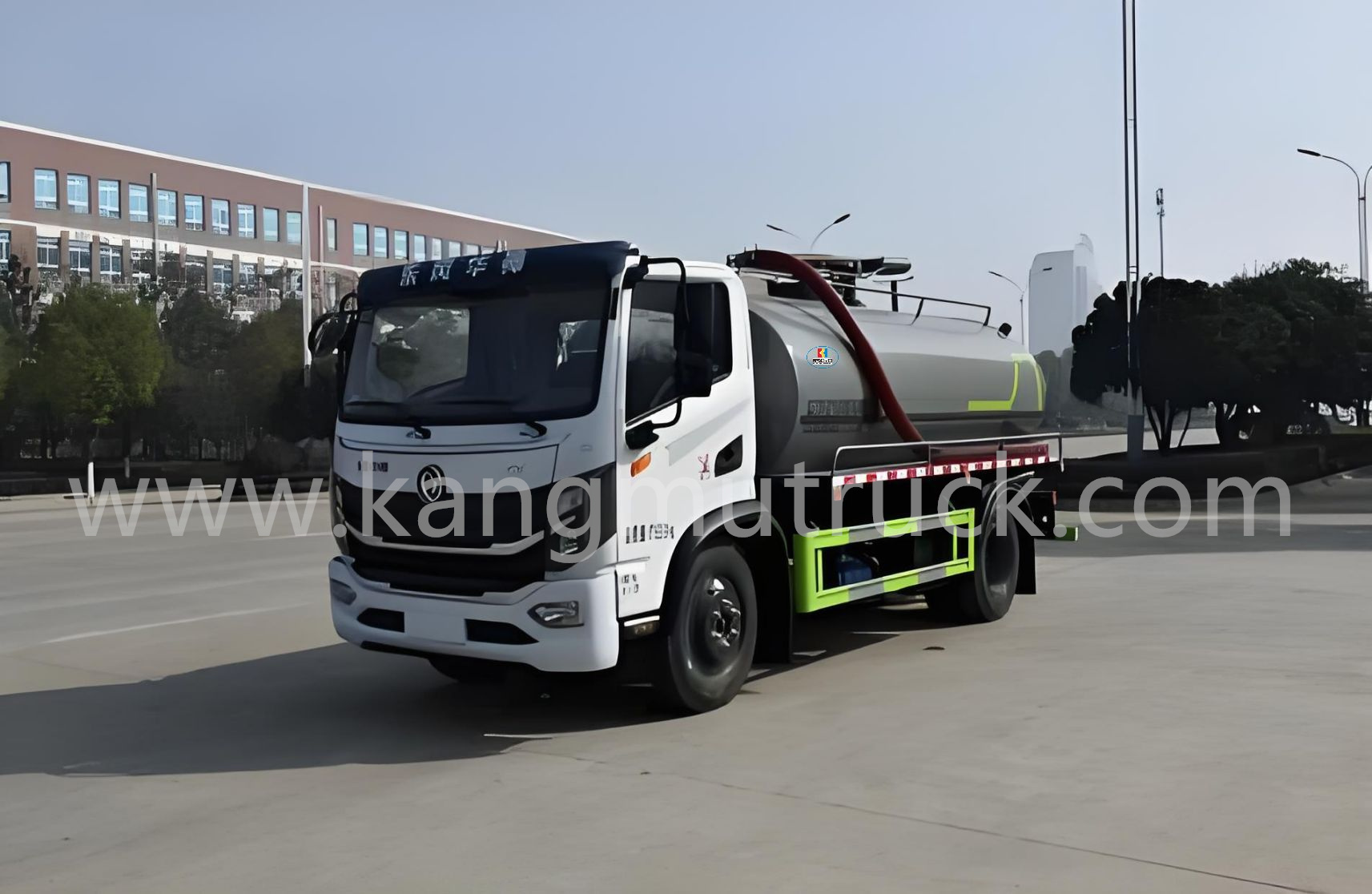

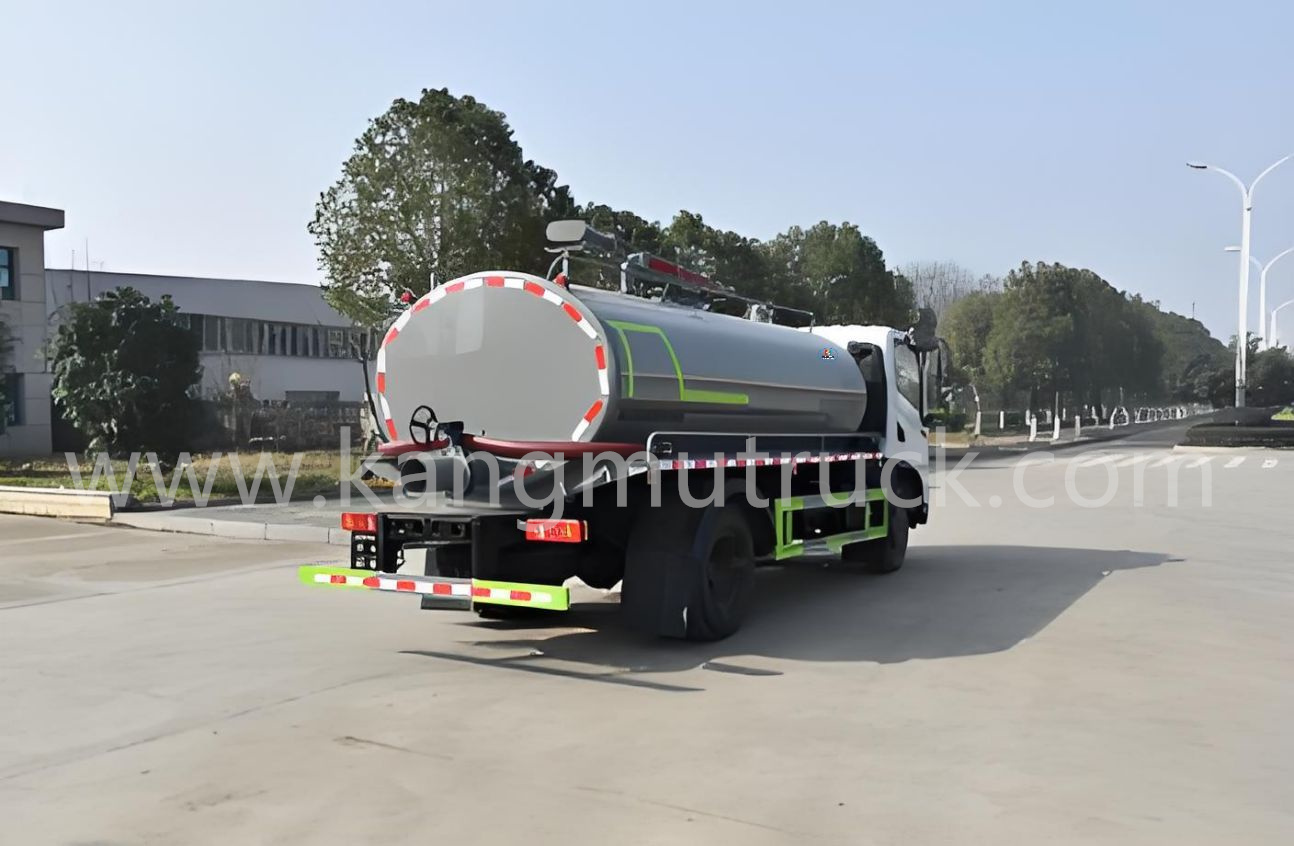

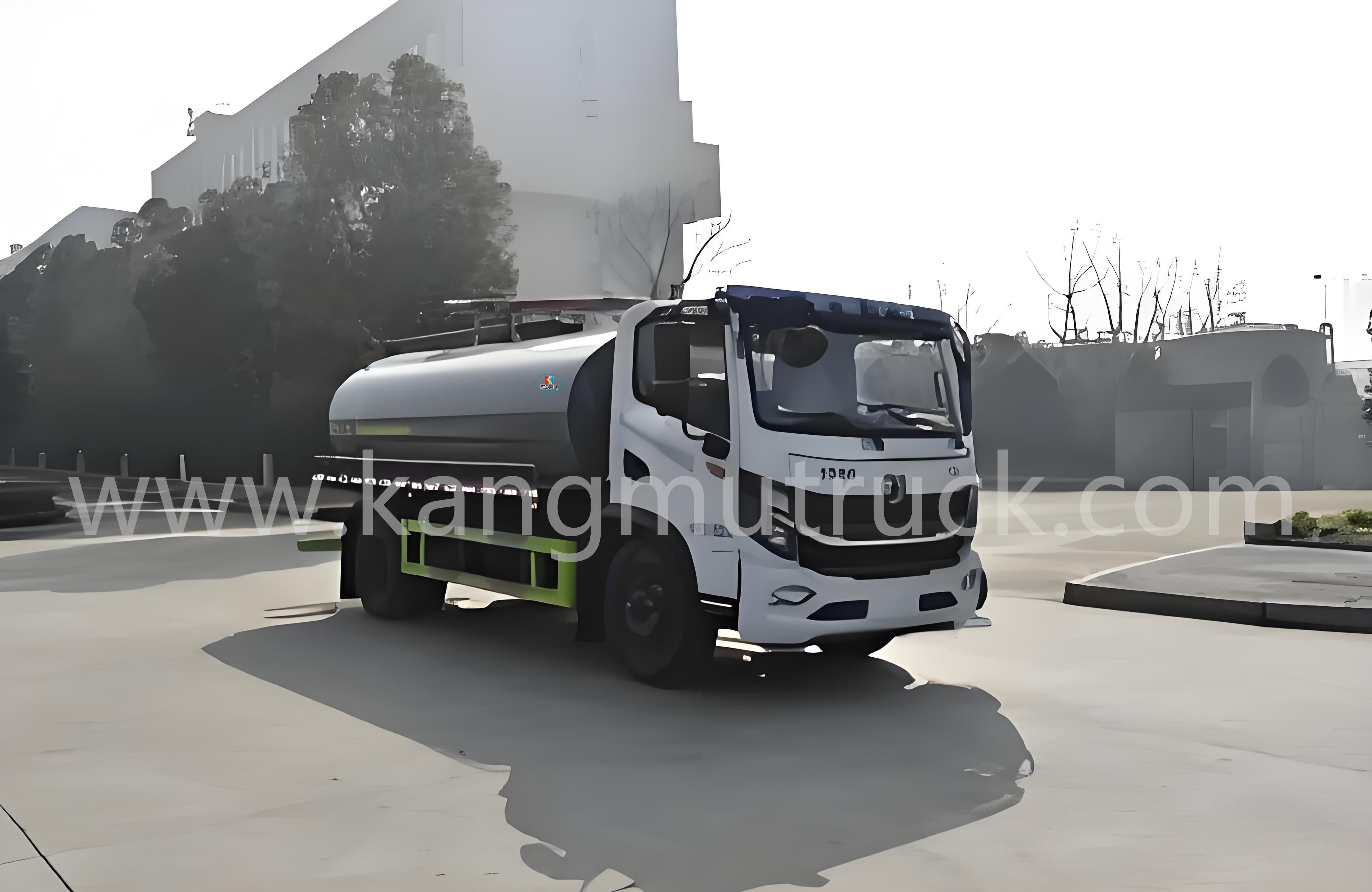

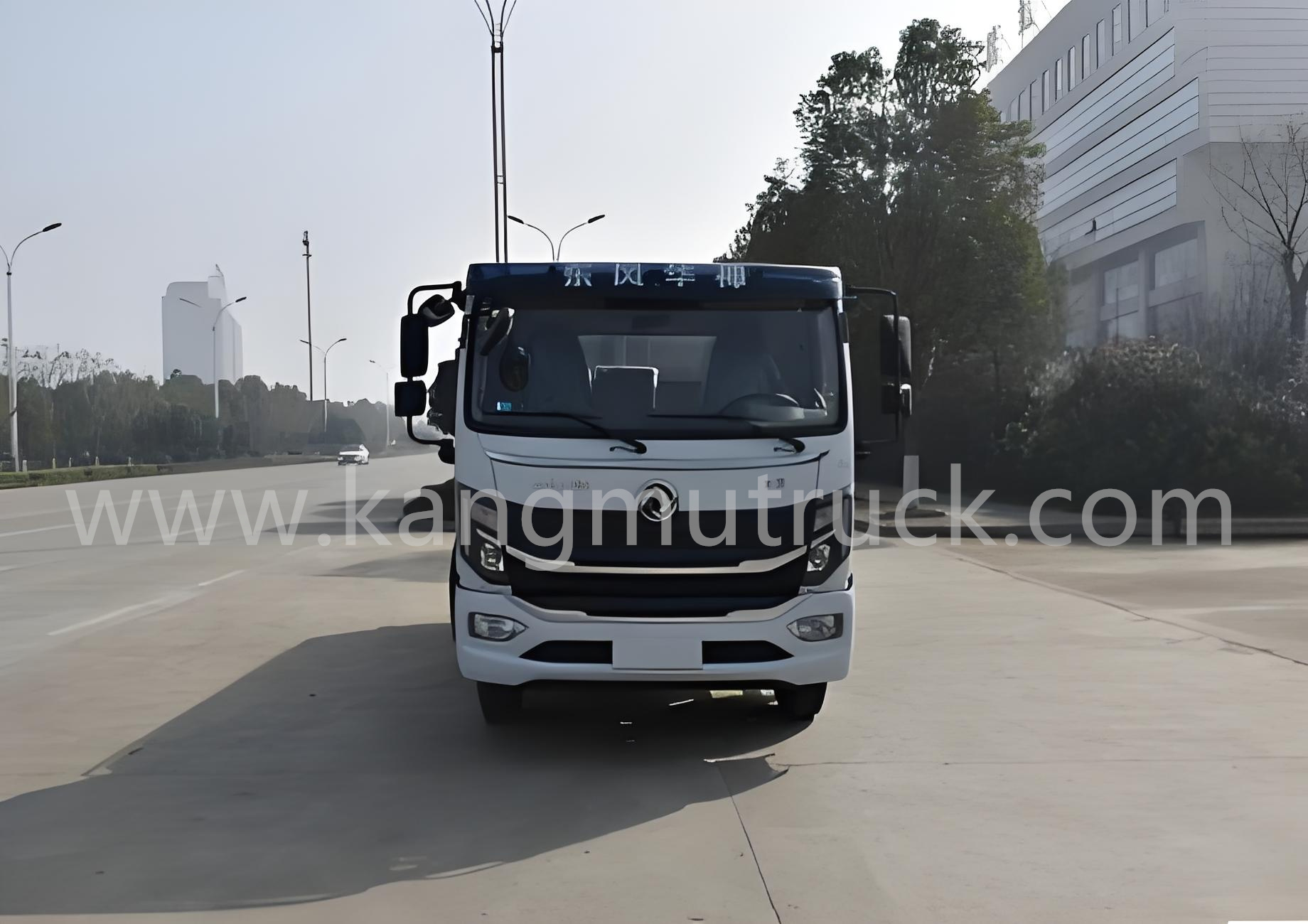

Dongfeng Huashen T3 9Cbm 165HP Cesspit Emptier And Suction Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5121GXEEQ6 |
2 | Chassis Model | EQ1120GL6DJ |
3 | Wheelbase | 3800MM |
4 | Engine Model | YCY30165-60 YUCHAI 165HP |
5 | Engine Power | 121KW |
6 | Tank Dimension | 6900/2350/2850MM |
7 | Curb Weight | 5600KG |
8 | Total Weight | 11990KG |
9 | Tank Volume | 9CBM |
10 | Fuel Type | Diesel |
11 | Emission Standard | National VI |
12 | Operation Type | Manual |
Product Performance and Features:
The entire vehicle tank and metal accessories have undergone phosphating treatment before painting, and are sprayed with high - molecular anti - corrosion primer and metal topcoat. The paint has strong adhesion and good corrosion resistance. The paint film is uniform, and the color is bright and long - lasting, which improves the aesthetic appearance. It can withstand adverse environments such as humidity, dust, and salt spray. Over long - term use, there will be no problems such as cracking, peeling, or fading. This not only enhances the product's aesthetic appeal but also effectively prevents rust.
The fecal suction truck is used to suck feces, sewage, sludge slurry, and liquids mixed with small suspended debris. It can also be used for emergency handling of sudden environmental pollution accidents. By making full use of vacuum technology, the double anti - overflow pump device can better prevent tank overflow and extend the service life of the vacuum pump. The overall vehicle is designed with a reasonable structure, excellent performance, and is flexible and easy to operate.
The tank is installed on the vehicle frame in a rigid connection manner, and a buffer pad is provided in the middle of the two, which can reduce the damage to the tank caused by the vehicle's vibration.
Anti - sloshing plates are installed inside the tank to reduce the damage to the tank and its connection with the vehicle frame caused by the intense sloshing impact of the liquid during vehicle driving.
Product Advantages:
The tank adopts an elliptical shape, which features a more compact structure. With anti - wave plates installed inside, it can effectively reduce the liquid sloshing caused by vehicle movement. Meanwhile, it can withstand higher pressure, providing greater suction power and a long suction range. The tail discharge port is designed with a large - diameter butterfly valve, enabling a more thorough discharge of the absorbed impurities.
The entire vehicle is characterized by high suction efficiency, self - suction and self - discharge capabilities. It has a long service life, fast working speed, simple operation, and convenient transportation.
The three - layer spraying process makes the tank more corrosion - resistant, and the brightness of the paint color remains as new over time.
