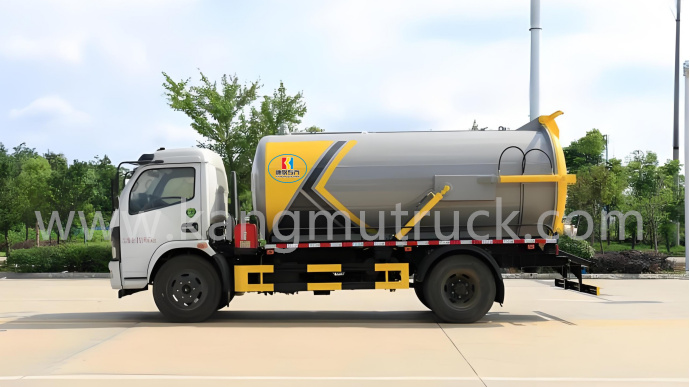

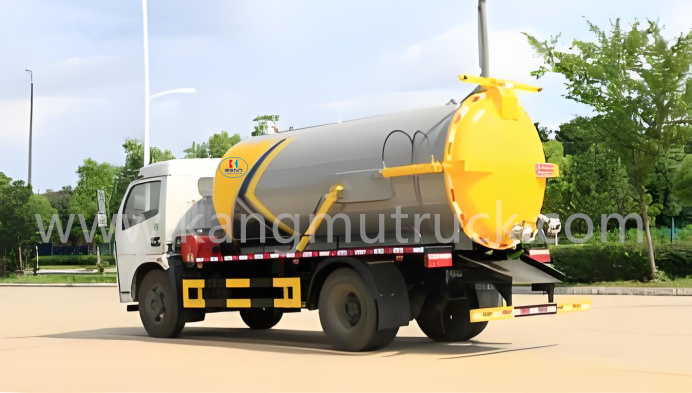

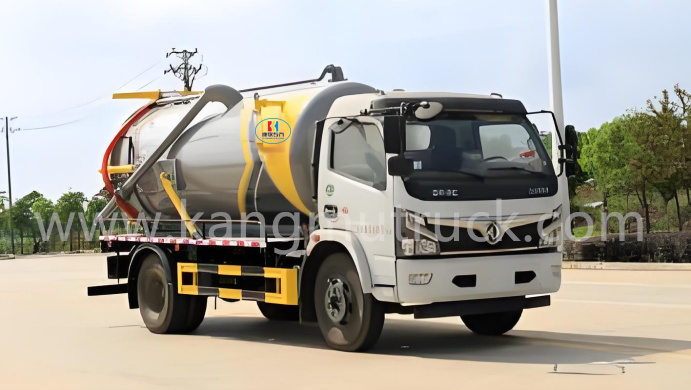

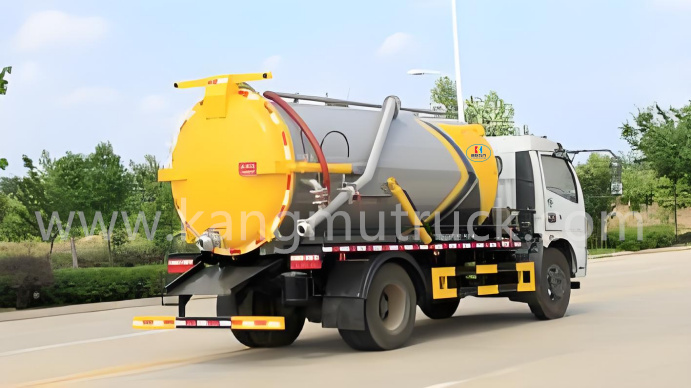

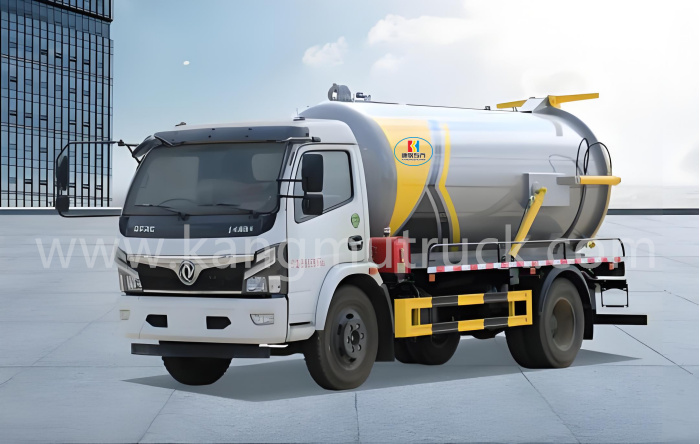

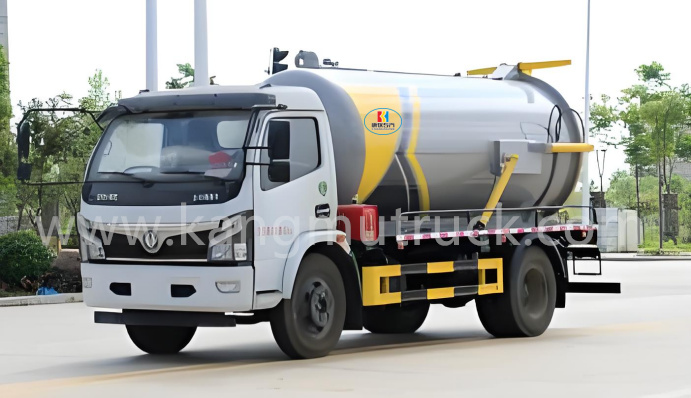

Dongfeng Furuka 8Cbm Sewage Suction Truck
| NAME | SPECIFICATIONS |
| 1 | Vehicle Model | KMH5120GXWE6 |
| 2 | Wheelbase | 3800MM |
| 3 | Engine Model | YCY30165-60 ，Q28-130E60，D30TC IF1 |
| 4 | Engine Power | 96/121/125KW |
| 5 | Vehicle Dimensions(L*W*H) | 6860,6910,7047,7040×2220,2400×3050,3170,2900,2850MM |
| 6 | Curb Weight | 5385/5600KG |
| 7 | Total Quality | 11995KG |
| 8 | Hydraulic System Pressure | 18MP |
| 9 | Tank Volume | 8 CBM |
| 10 | Tank Material | carbon steel (6MM) |
| 11 | Tank Dimension | 3520×1350MM |
| 12 | Fuel Type | Diesel |
| 13 | Emission Standard | National VI |
Upper Body Configuration:
The appearance dimensions are fabricated in accordance with the announcement. It is equipped with a butterfly-shaped head. The rear door of the tank body is hydraulically opened, mechanically locked. The tank body can be lifted for self-unloading. There is a sewage viewing pipe at the front of the right side of the tank body, and a 150 ball valve is installed below the rear head. It is equipped with an 8-ton vacuum pump/SK-9 water circulation pump, a water-oil separator, an anti-overflow valve, a hand-washing device. The side lights are electrically powered, and there is a 8-meter-long sewage suction pipe. The rest are standard configurations.
