KMH5042ZYSBJ6
KANGMU

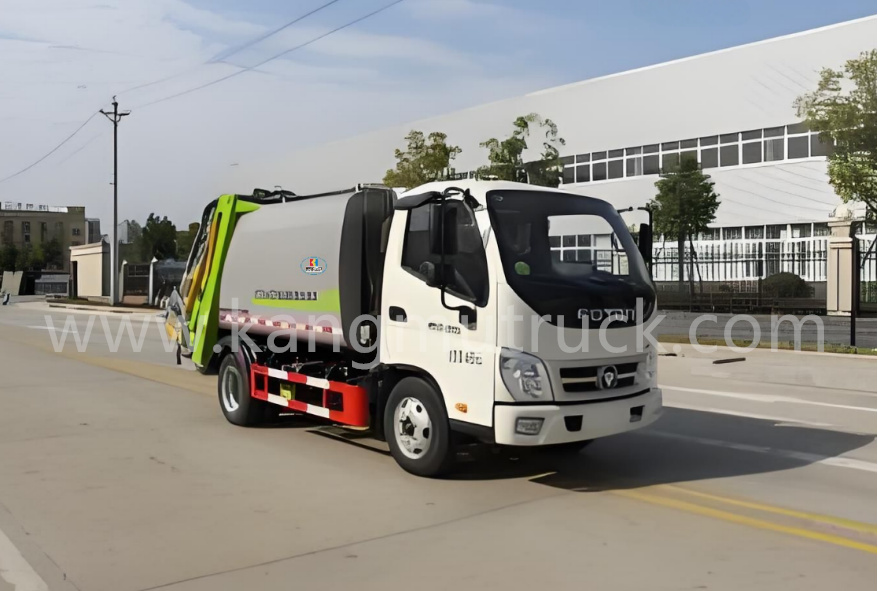

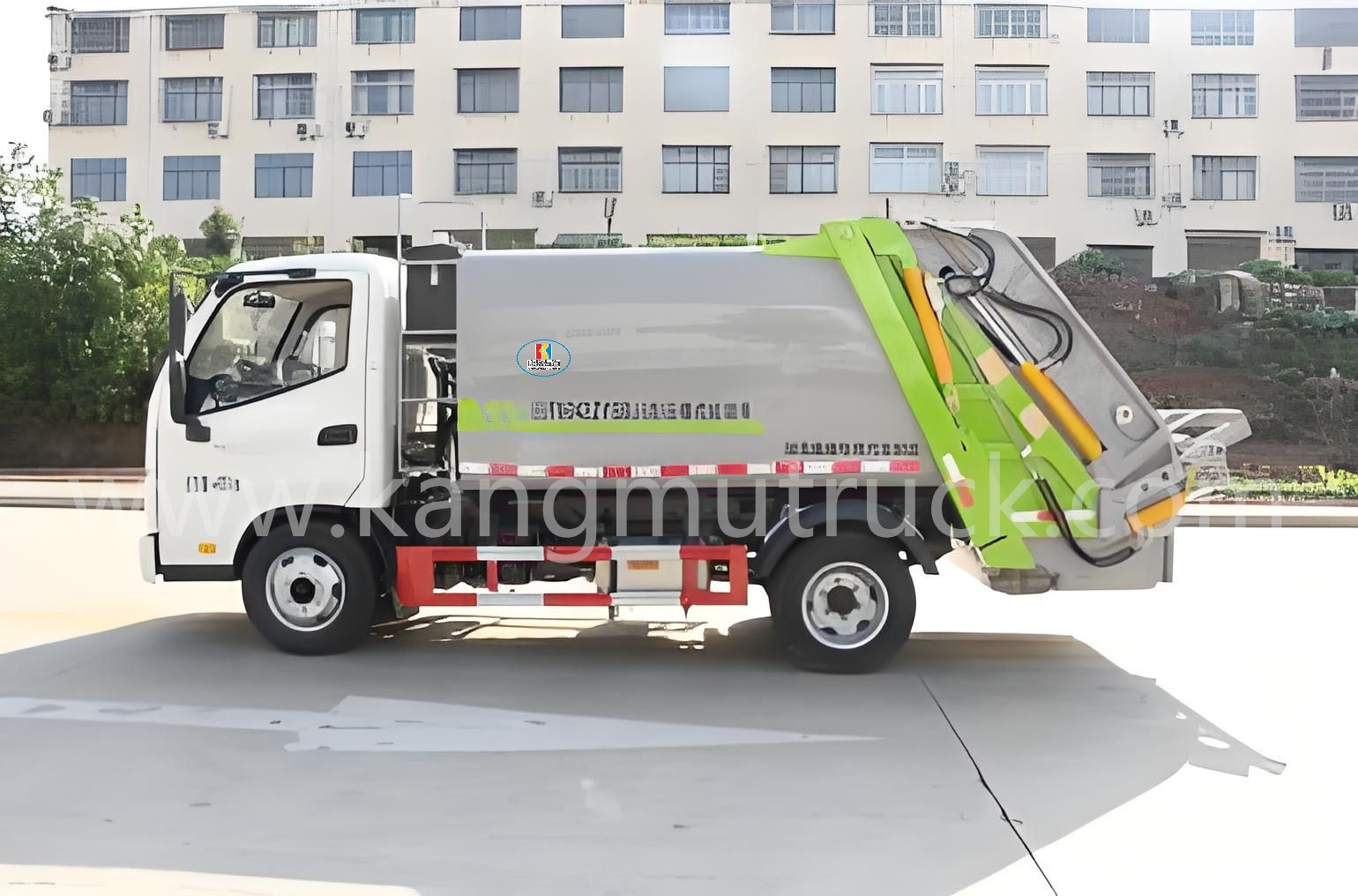

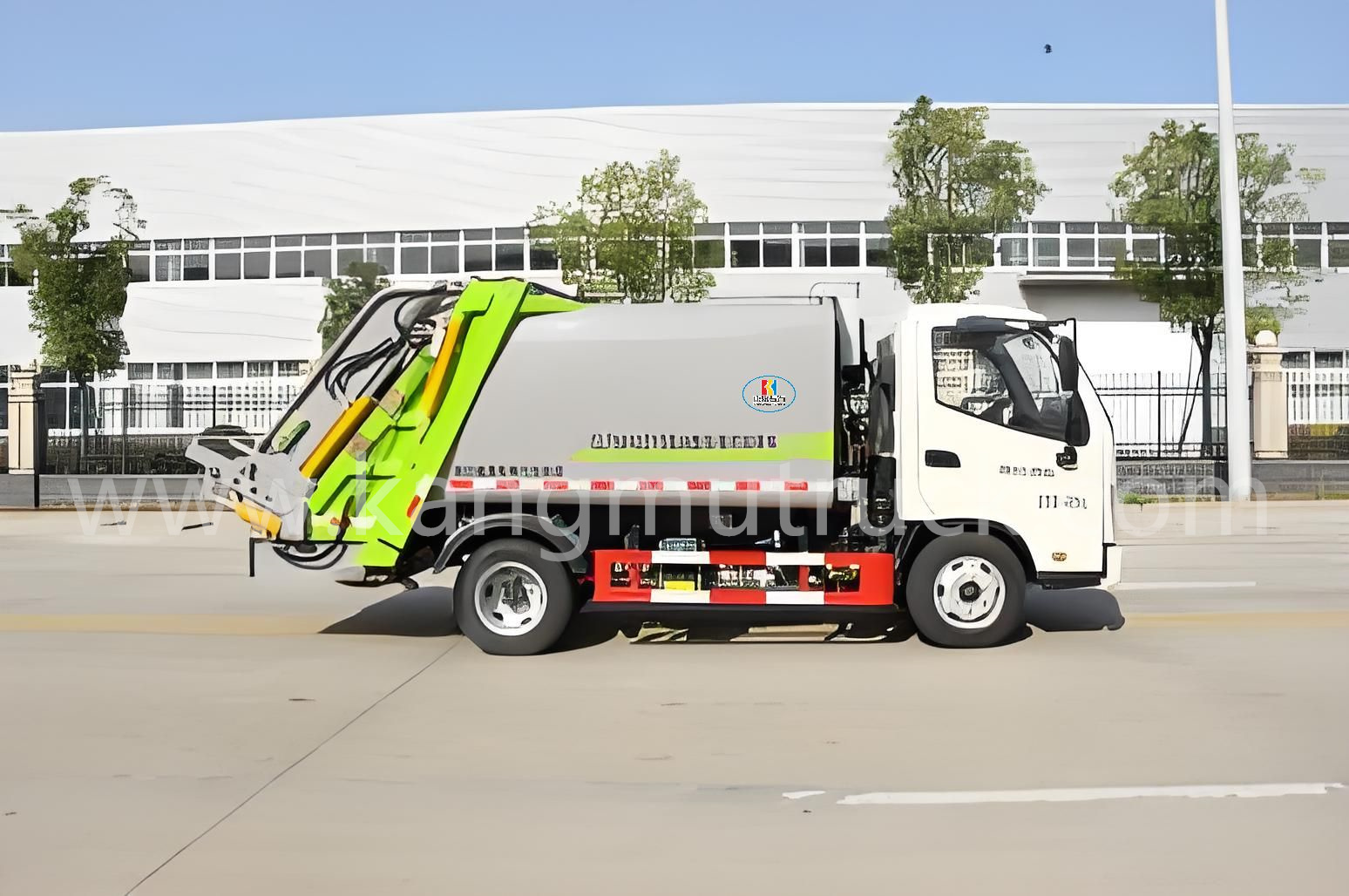

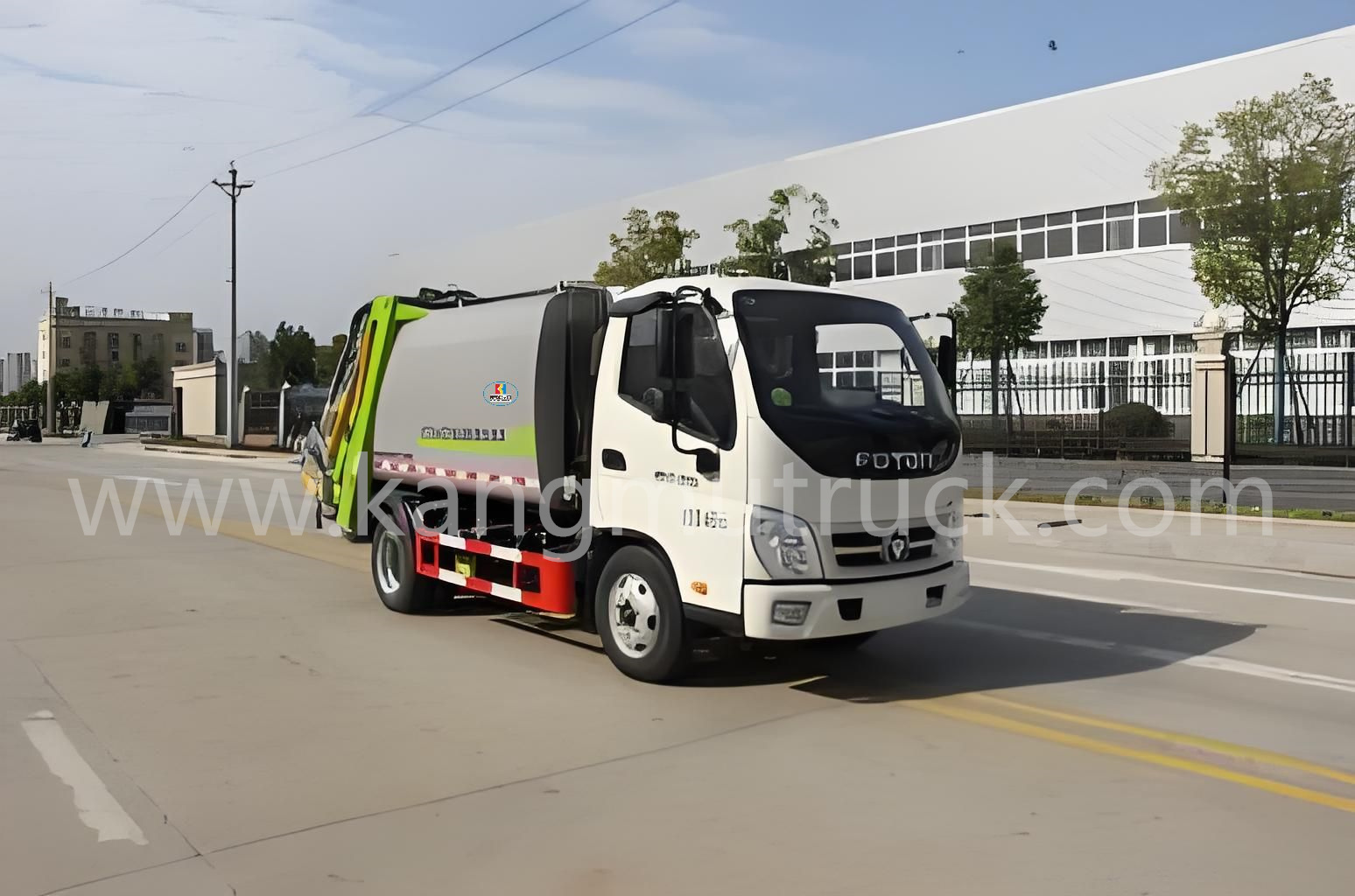

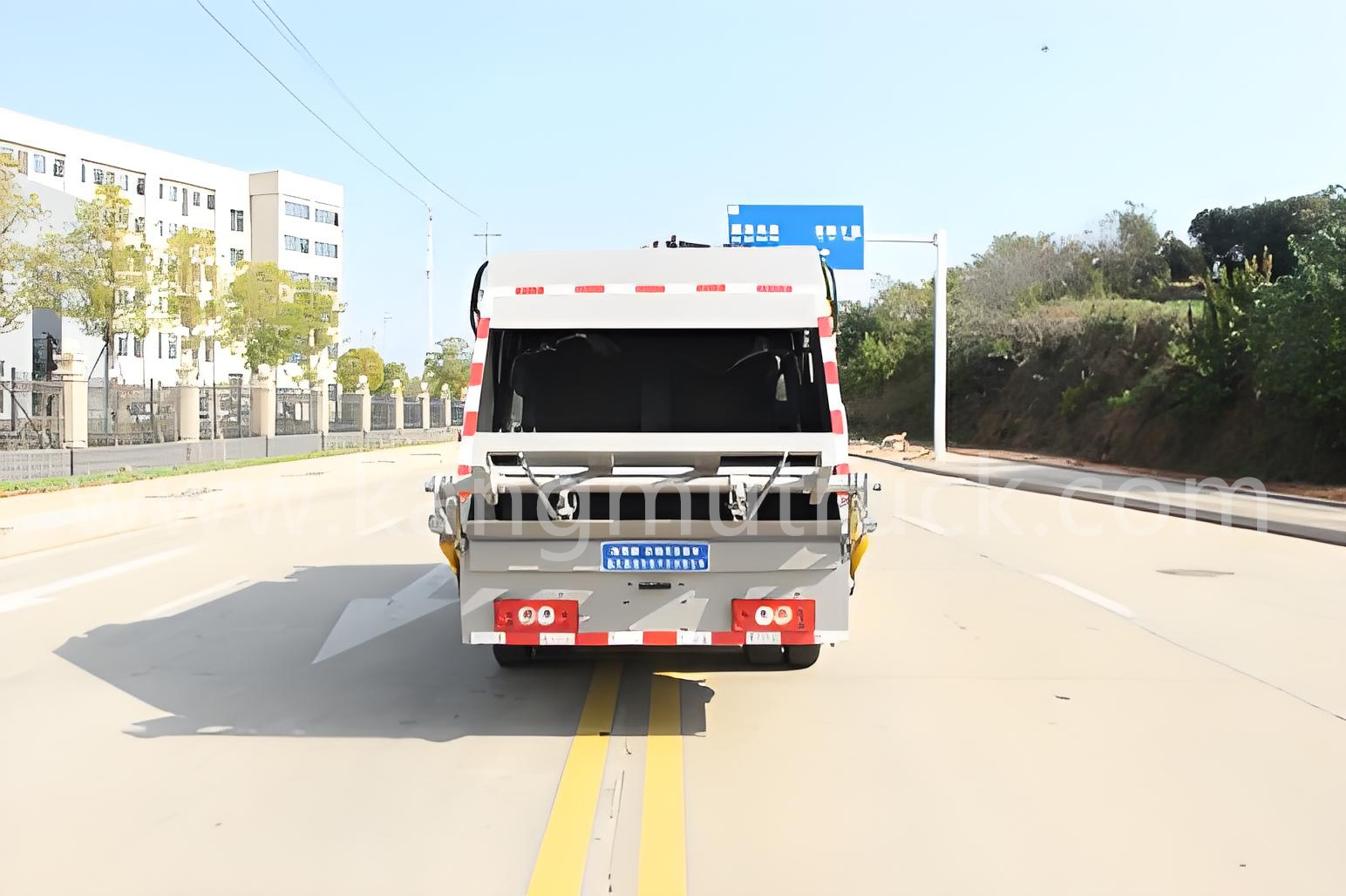

Foton Ollin 142HP 5Cbm Compression Garbage Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5042ZYSBJ6 |
2 | Wheelbase | 2800MM |
3 | Tire Specifications | 6.50 steel wire tire |
4 | Engine Model | Q23A-142E60 |
5 | Engine Power | 103KW |
6 | Vehicle Dimensions(L*W*H) | 5995x2000x2450MM |
7 | Curb Weight | 3860KG,3965KG |
8 | Total Quality | 4495KG |
9 | Rated Load Capacity | 505KG,400KG |
10 | Tank Volume | 5CBM |
11 | Operation Type | Electric/Manual/Remote |
12 | Engine Displacement | 2300ML |
13 | Transmission | WLY 5 gear |
14 | Electric System | CAN bus control |
15 | Fuel Type | Diesel Oil |
16 | Emission Standard | National VI |
Chassis Configuration:
The engine is all diesel with 142 horsepower, equipped with a 5-speed gearbox, 2800 wheelbase, 6.50 steel tires, central locking system, electric glass, original air conditioning, and air brake.
Upper Body Configuration:
1. The total volume of the box is 5 cubic meters.
2. Standard remote control.
3. The curved box greatly increases the volume of the box and enhances the overall aesthetics of the vehicle.
4. Hengli oil cylinder reduces mechanical failure rate and comes with a one-year and a half warranty.
5. Changyuan gear pump multi way valve, simple and reliable, stable flow, easy to install and maintain.
6. Install compaction valves on the entire vehicle to increase compression density and increase loading capacity. The loading capacity is equivalent to two and a half times that of non compressed waste of the same tonnage.
7. CAN bus control mode; Less wiring, low failure rate, automatic display of fault codes, convenient for maintenance and repair.
8. Homework automation: Adopting a dual system control of photoelectric switch and time, with one key unloading, all filling and unloading operations only require one driver to operate, and can be set to fully automatic and semi-automatic operation modes.
9. Dual insurance system: The operating system has dual functions of computer control and manual operation, greatly ensuring and improving the utilization rate of vehicles.
10. Flip mechanism: An optional flip mechanism with a garbage bin (or bucket) can be installed. Can hang 120L/240L national standard plastic trash cans.
