KANGMU
8704
Product Parameters
HOWO-NX 8x4 Truck Chassis Specification | ||
Chassis | Model series | HOWO-NX |
Emission standard | EURO 3 | |
Driving type | 8X4 | |
Cabin | Type | HOWO H77L cab,4 points full floating,air suspenssion driver seat,electrical lifting door windows,electrical adjusting mirrors,one sleepers,with A/C. |
Seating capacity | 2 | |
Engine | Model | MC11.43-30 |
Type | 6 cylinders in line,4 strokes common rail diesel engine, water cooling,Intercooler Turbocharged | |
Displacement(cc) | 10518 | |
Borexstroke(mm) | 120x155mm | |
Max.power(HP/rpm) | 430HP(316KW)/1900rpm | |
Max.torque(N.m/rpm) | 2100N.m/1000-1400rpm | |
Gearbox | Brand | Z F |
Model | HW25712XA | |
Gear nos. | AMT Transmission,12F+1R | |
Ratio | F:15.01/11.67/9.03/9/7.14/5.57/4.38/3.43/2.67/2.06/1.6 3/1.27/1 R:13.81 | |
Max torque(Nm/RPM) | 2500N,m | |
PTO model | HW70 flange connect PTO | |
Dimensions | Overall dimensions (L×W×H)(mm) | 11925*2550*3450 |
Wheel base (mm) | 2100+4300+1350+2625 | |
Wheel track (front/rear)(mm) | 2022/1860 | |
Overhang(Front/Rear)(mm) | 1550/2625 | |
Approach/departure angle(°) | 13/19 | |
Weight | GVW(kg) | 51000 |
Body | |||
Loading Medium | Bulk feed, grain, powder, etc. | ||
Bulk Capacity | 31 tons | ||
Bulk Volume | 42 cbm | ||
Material | Carbon steel | ||
Thickness: 4mm | |||
Rust Resistance | Anticorrosive paint | ||
Compartments | Quantity: 4 | ||
Color | As your request | ||
Logo | As your request | ||
Driving form | Electrical driving | ||
Main Parts | Mobile conveyor | ||
Vertical conveyor | |||
Electric operation box | |||
Conveyor maintenance port | |||
Horizontal conveyor | |||
Top auger (8.5m) | |||
Discharging operation handle | |||
Ladder |

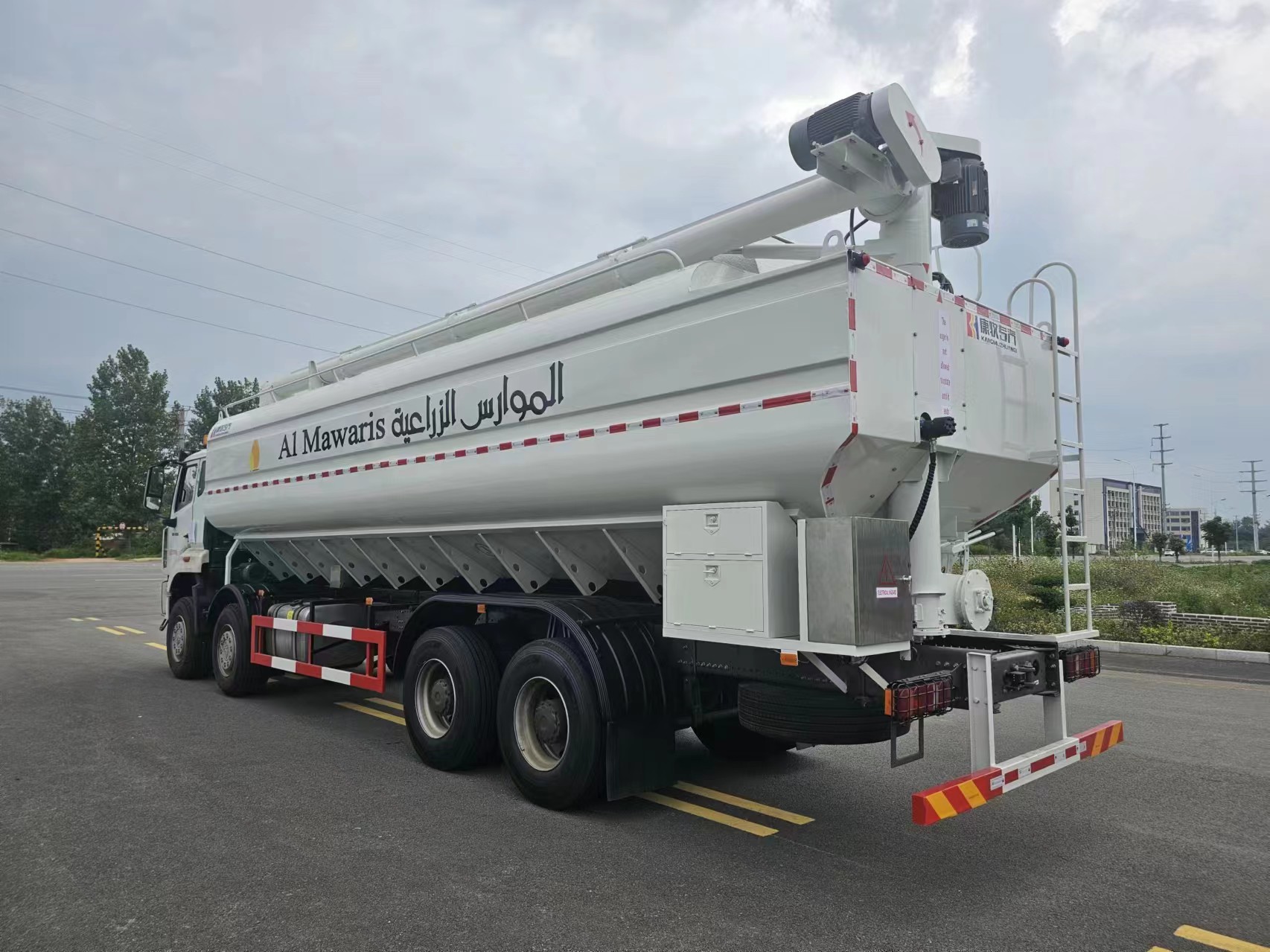

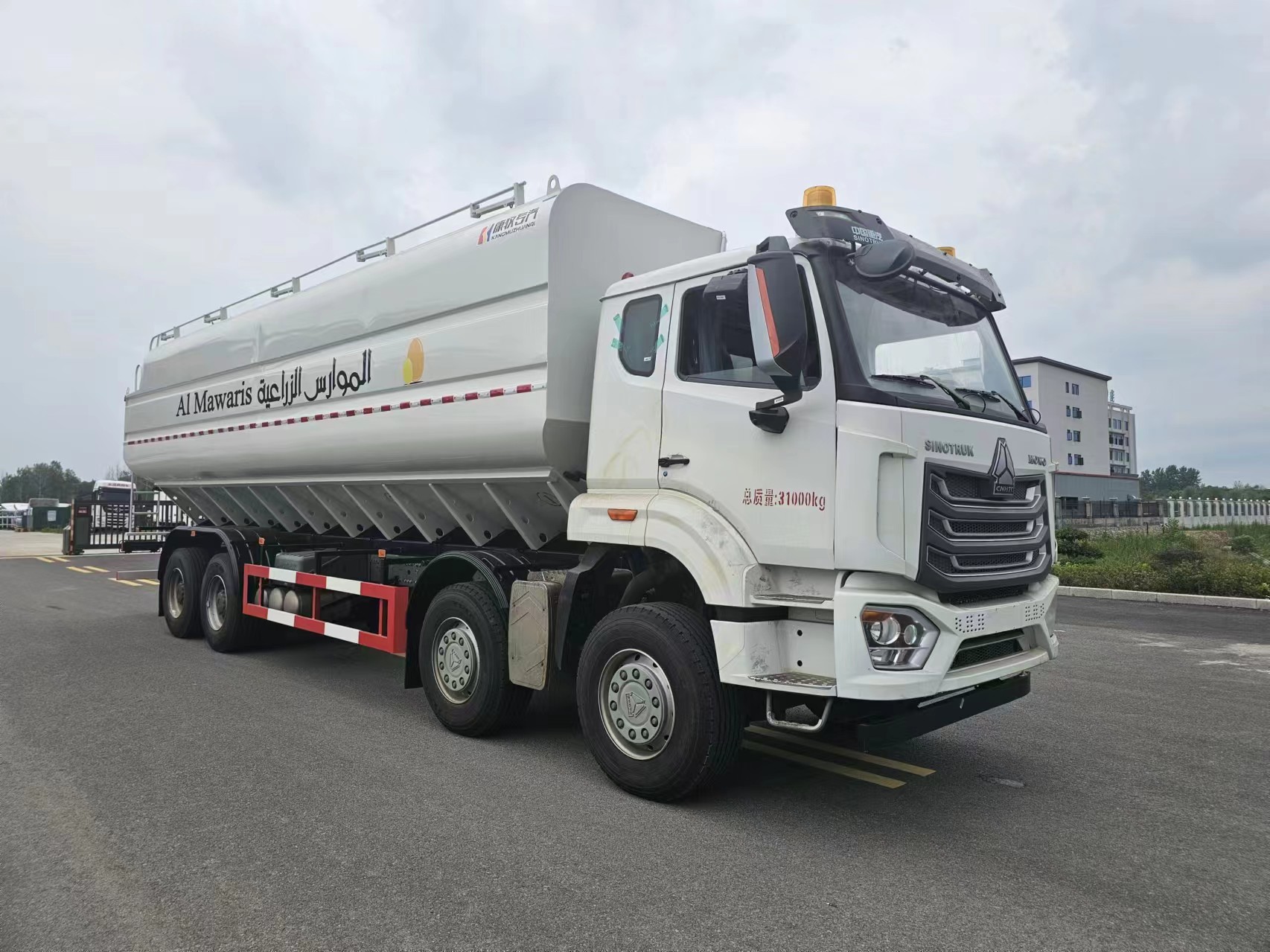

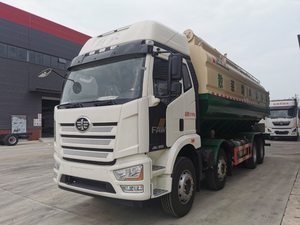

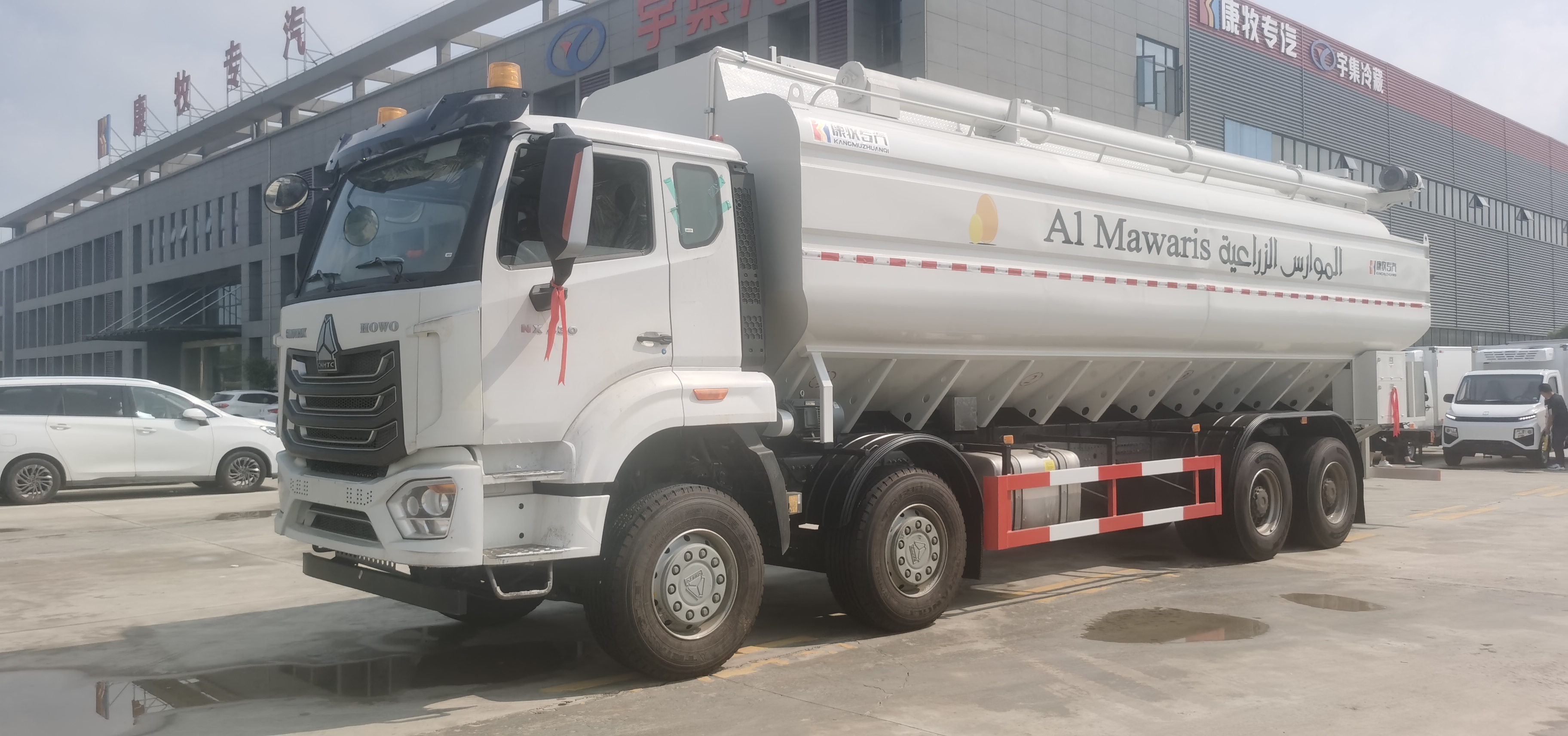

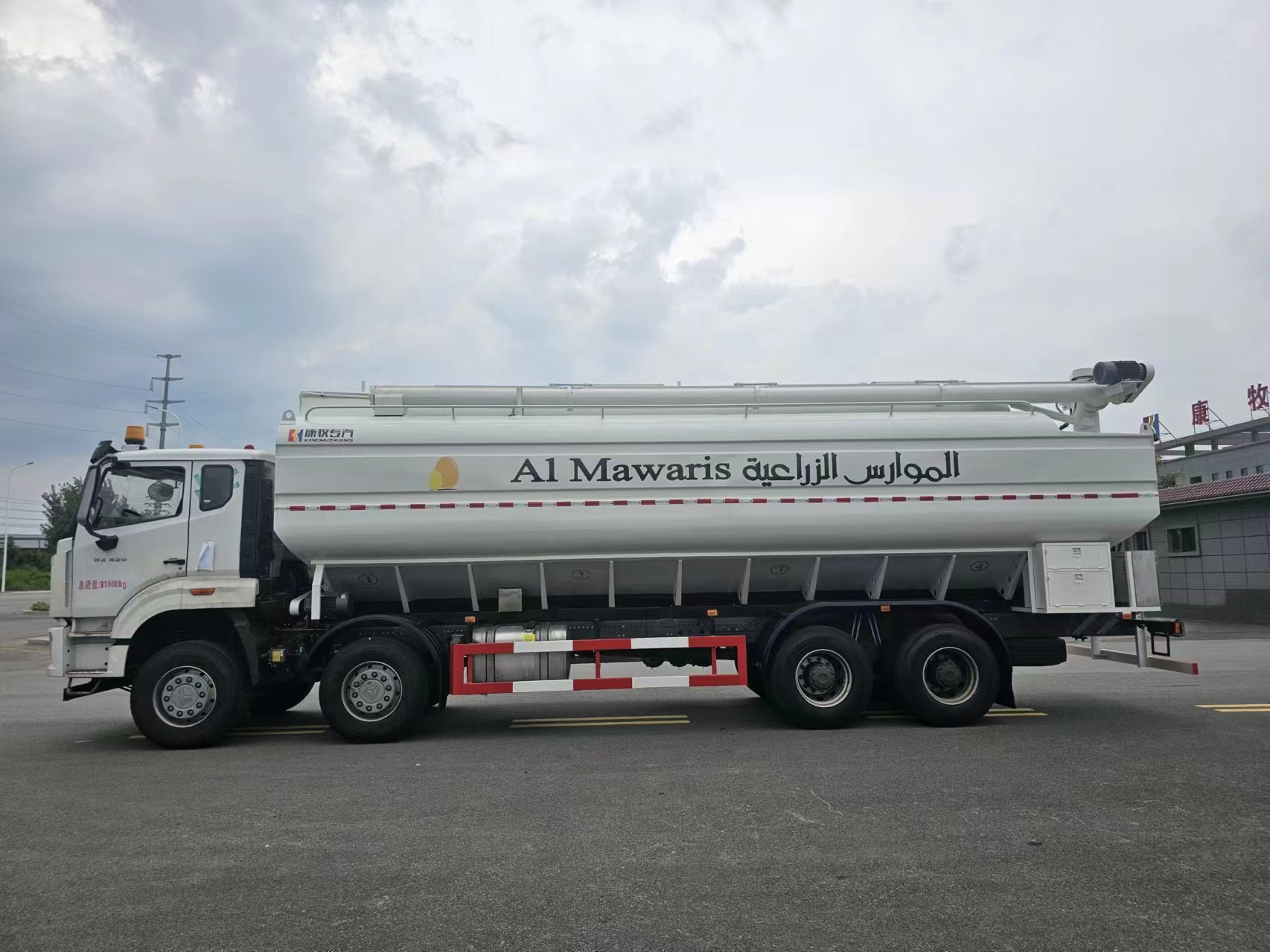

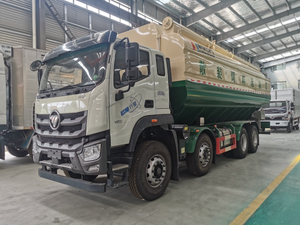

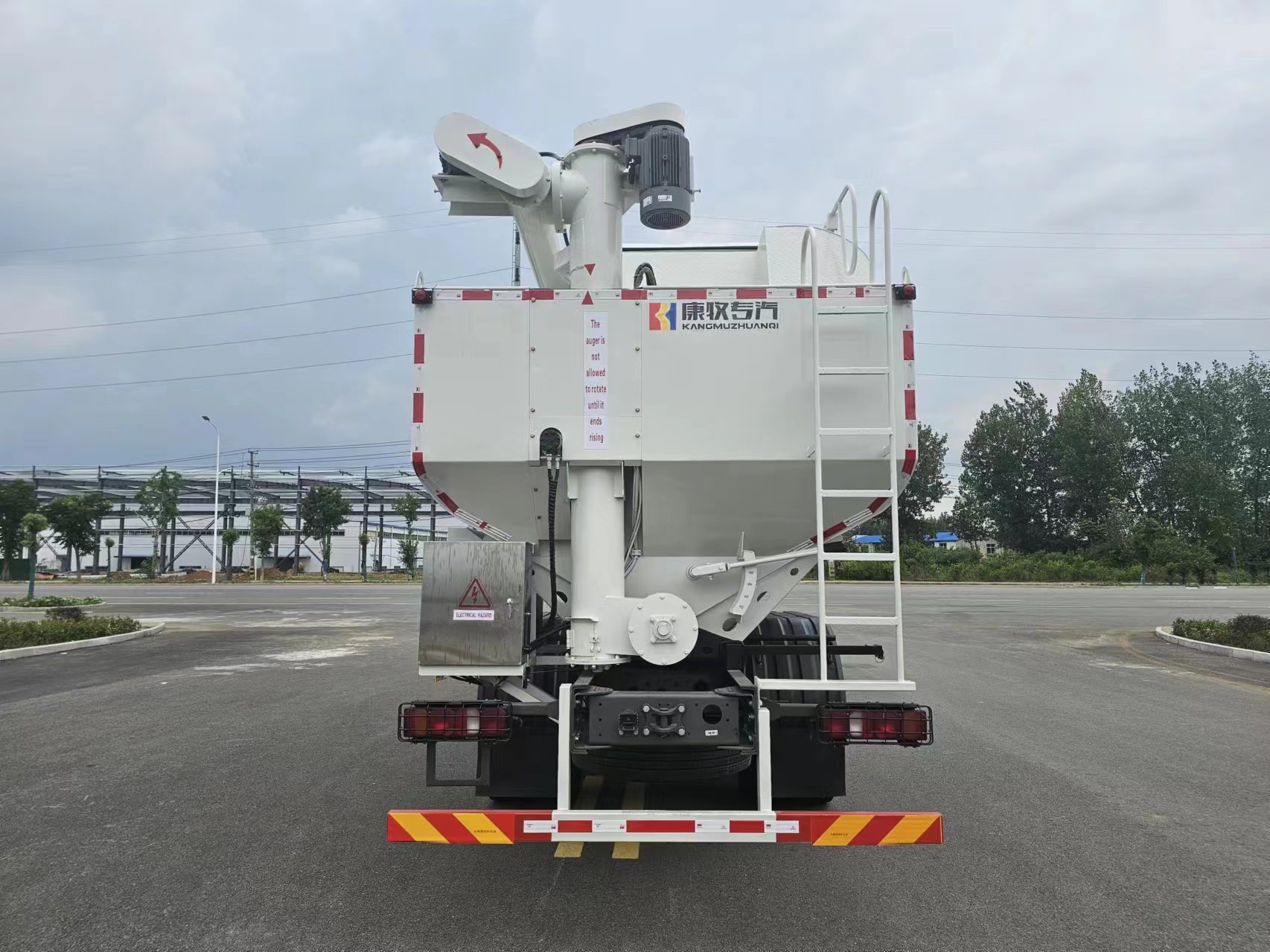

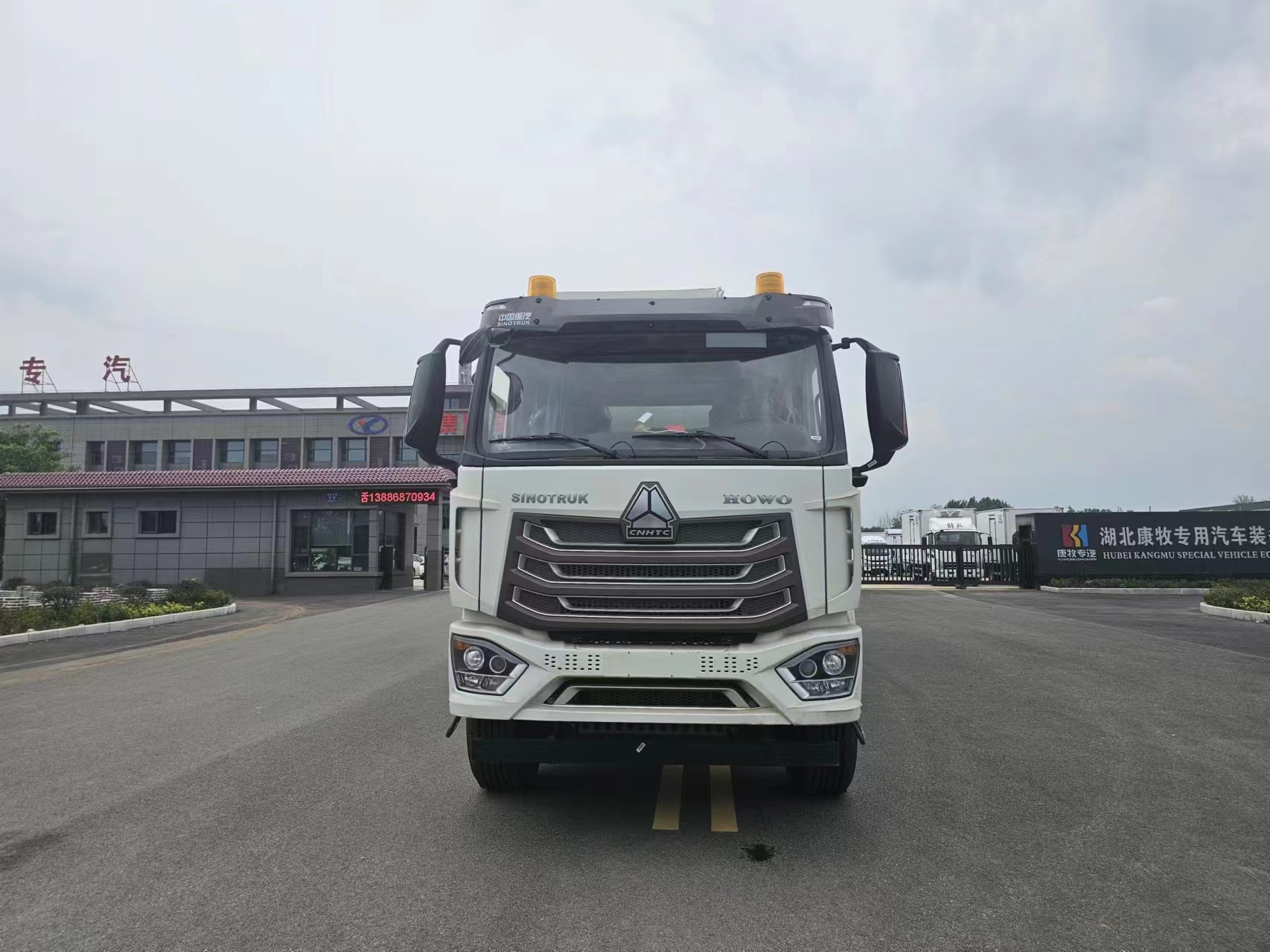

Detailed Photos
Certifications
Packaging & Shipping
Our Teams
