Isuz 33-Meter Nine-Section Boom Aerial Lift Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name:Isuz 33-Meter Nine-Section Boom Aerial Lift Truck
  • Keywords: Aerial Lift Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
Inquire Add to Basket

  • KANGMU

Isuz 33-Meter Nine-Section Boom Aerial Lift Truck


Main Technical Parameters of Aerial Work Platforms
Category Item Unit Data
Dimension Parameters Overall Length mm 5995
Overall Width mm 2080
Overall Height mm 2860
Mass Parameters Number of Passengers (including the Driver) Person 3
Gross Vehicle Weight kg 4495
Main Performance Parameters Rated Load of the Working Platform kg 200
Maximum Working Height m 33
Maximum Working Radius m 23
Horizontal Outrigger Span mm 5800
Longitudinal Outrigger Span mm 5000
Rotation of the Working Platform ° 360
Boom Luffing Time s 60≤t≤90
Boom Telescoping Time s 70≤t≤100
Boom Rotation Speed s/r 90≤t≤120
Outrigger Deployment/Retraction Time s 60≤t≤90
Driving Parameters Front Overhang mm 1090
Rear Overhang mm 1545
Front Extension mm /
Rear Extension mm /
Wheelbase mm 3360
Maximum Driving Speed km/h 100
Minimum Ground Clearance mm 400
Approach Angle ° 20
Departure Angle ° 16

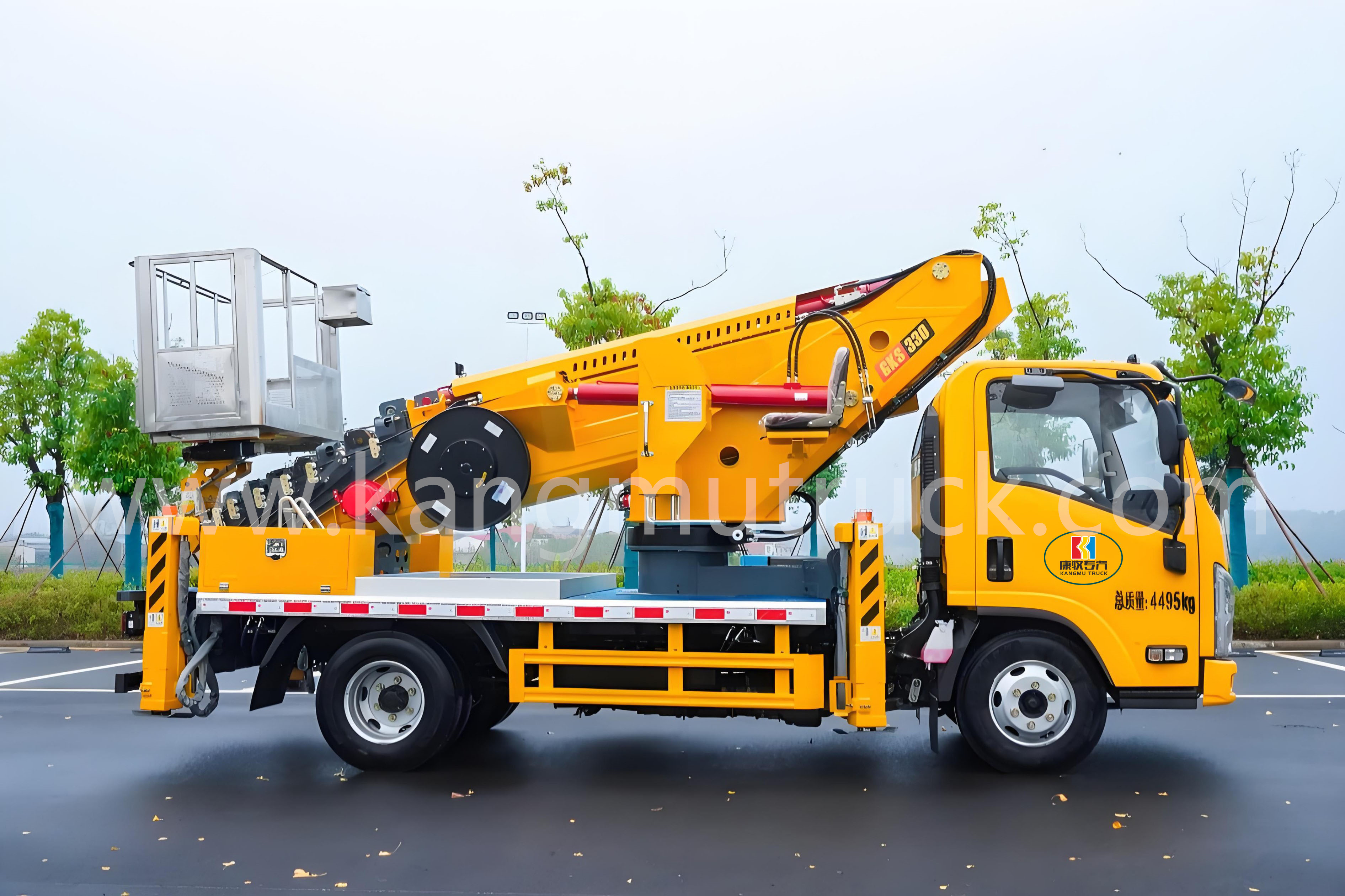

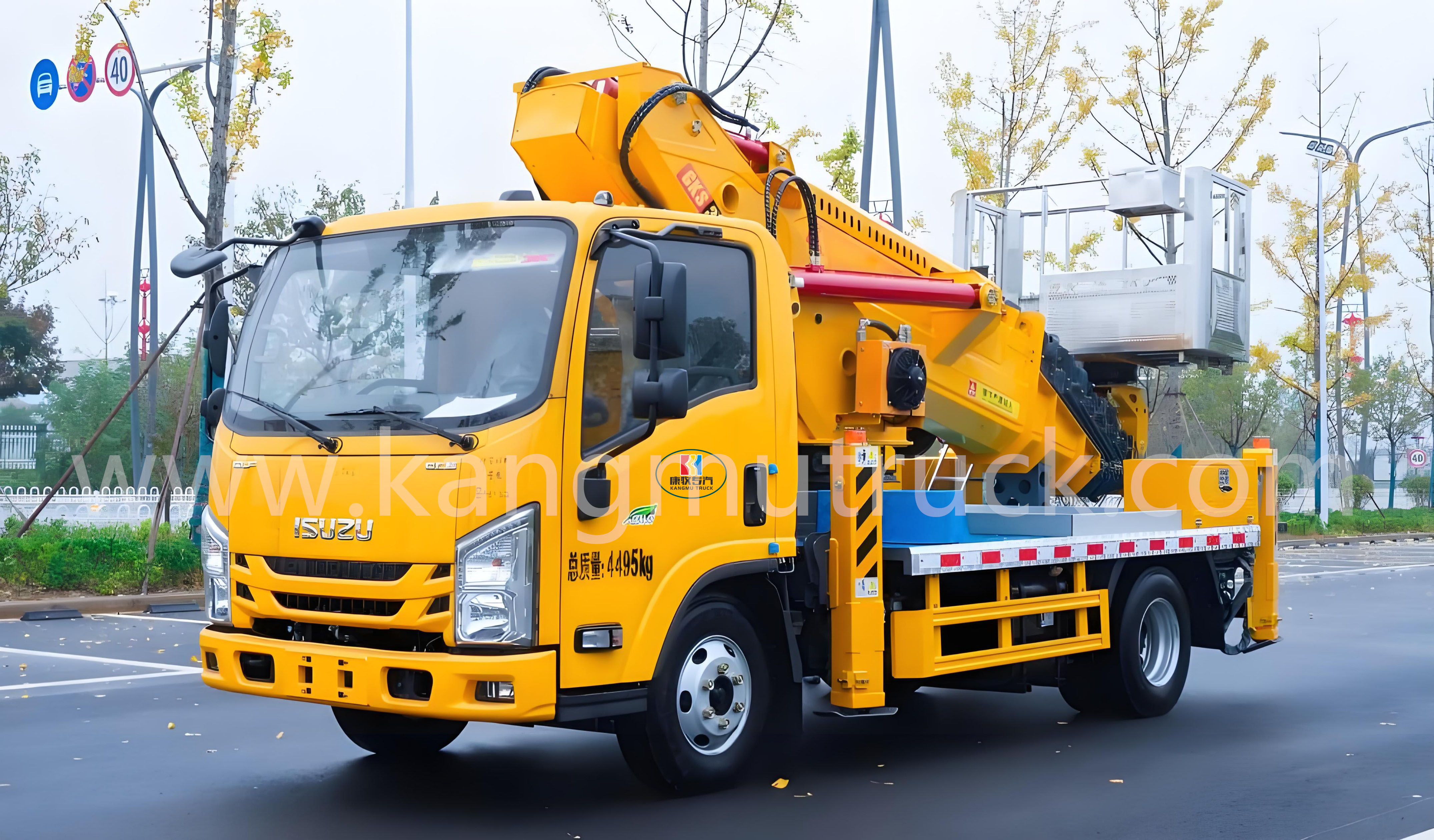

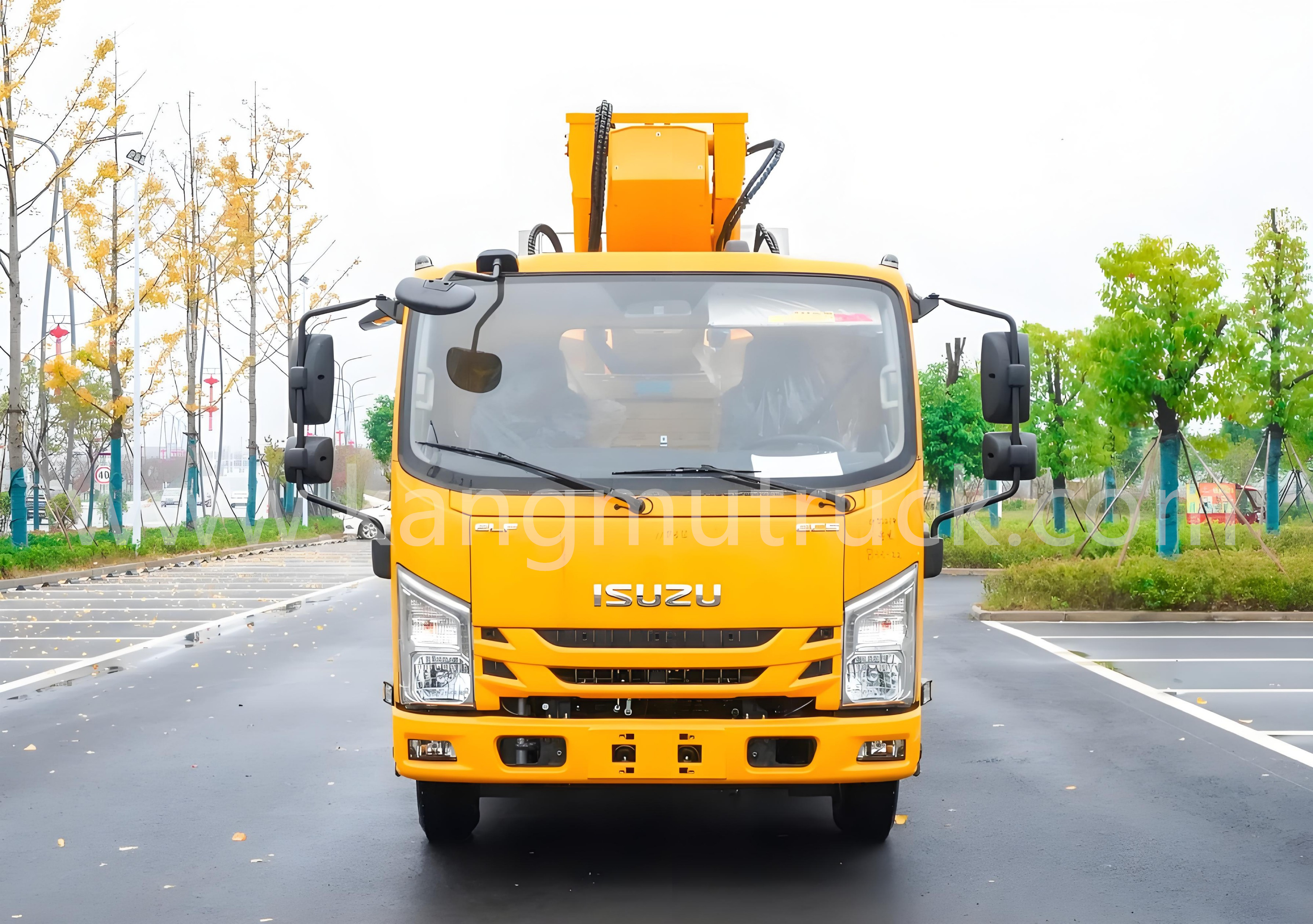

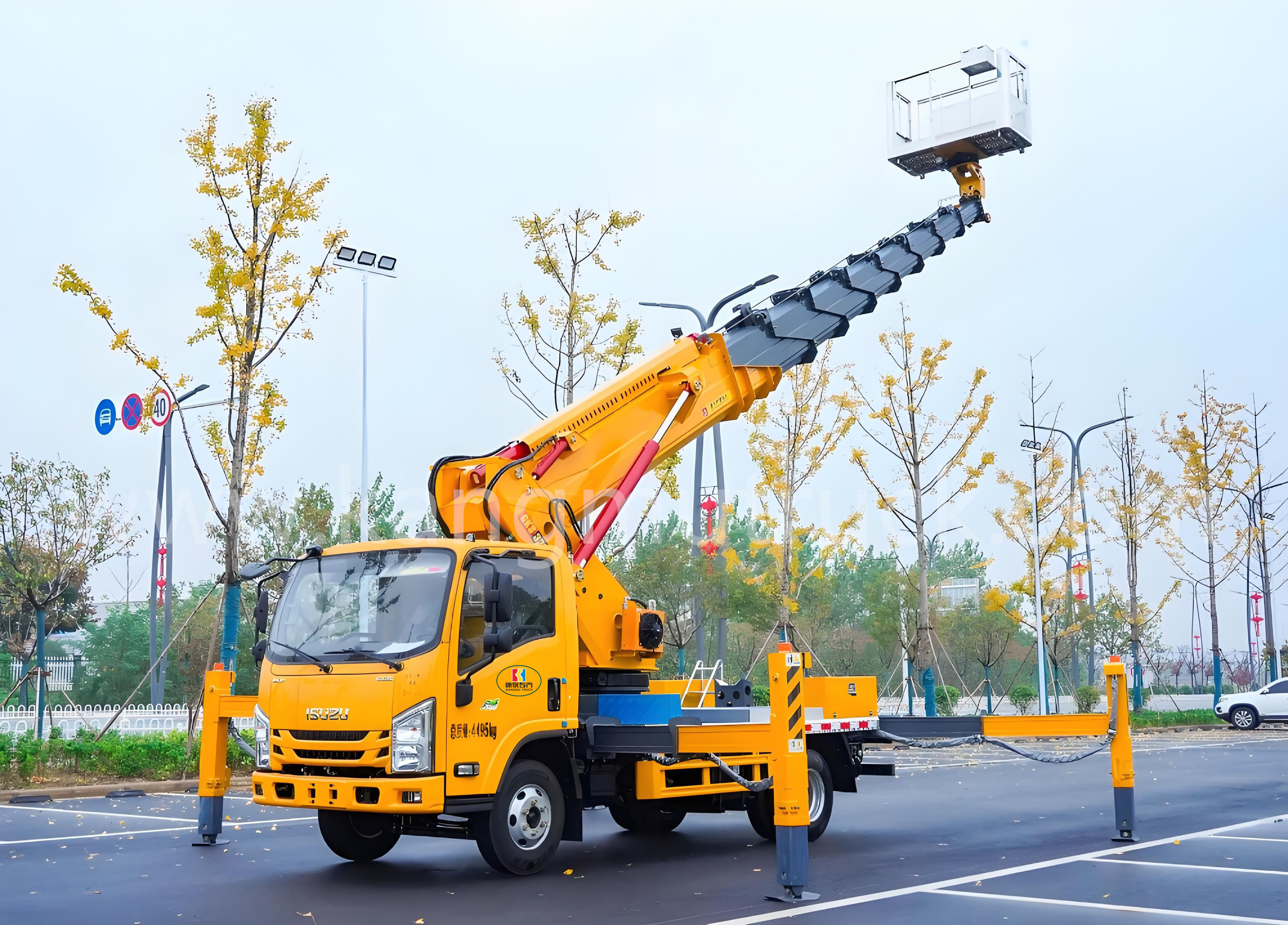

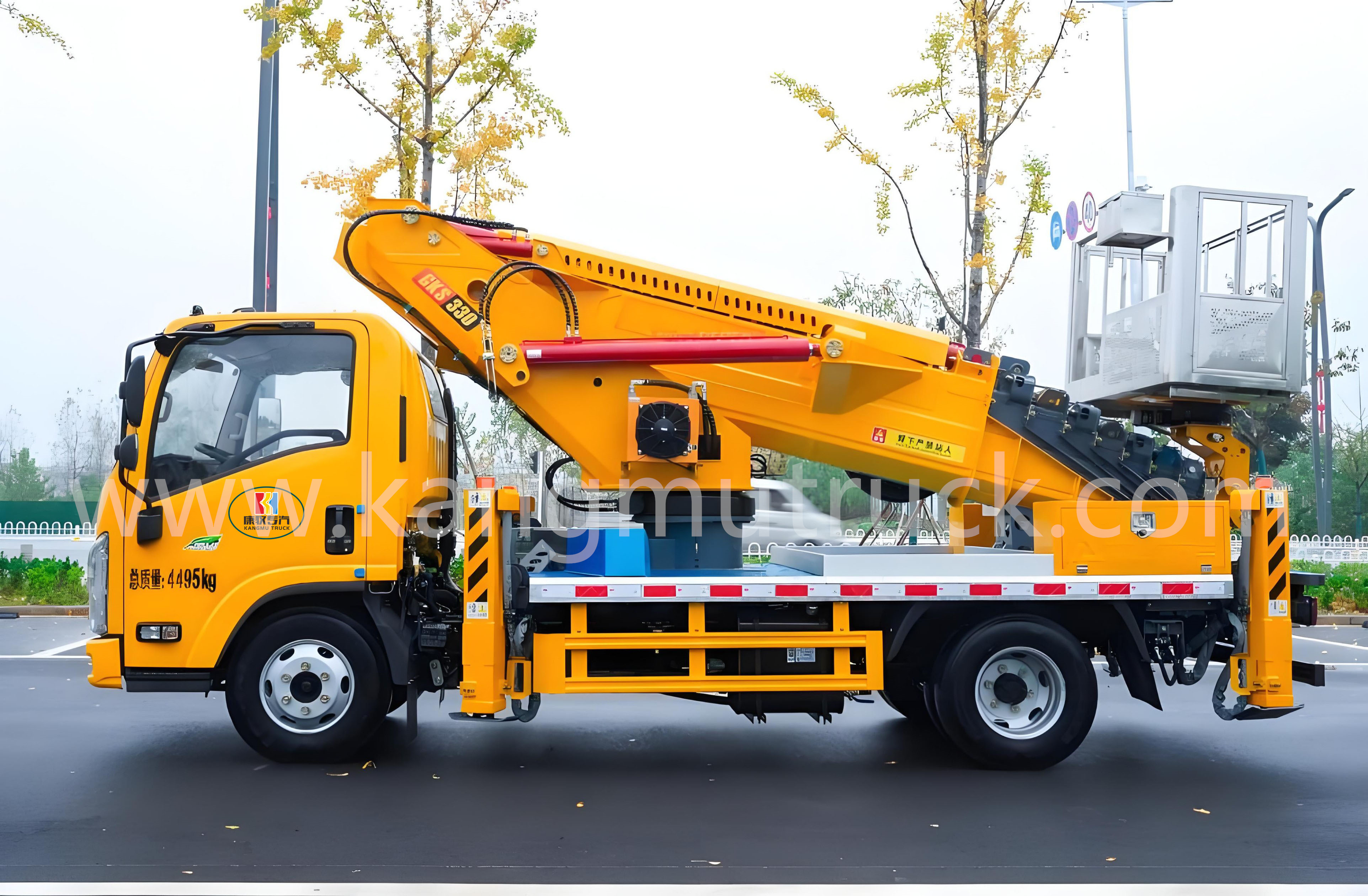

1749171989508副本1749171661400副本1749172233724副本17491722813601749172126768副本
