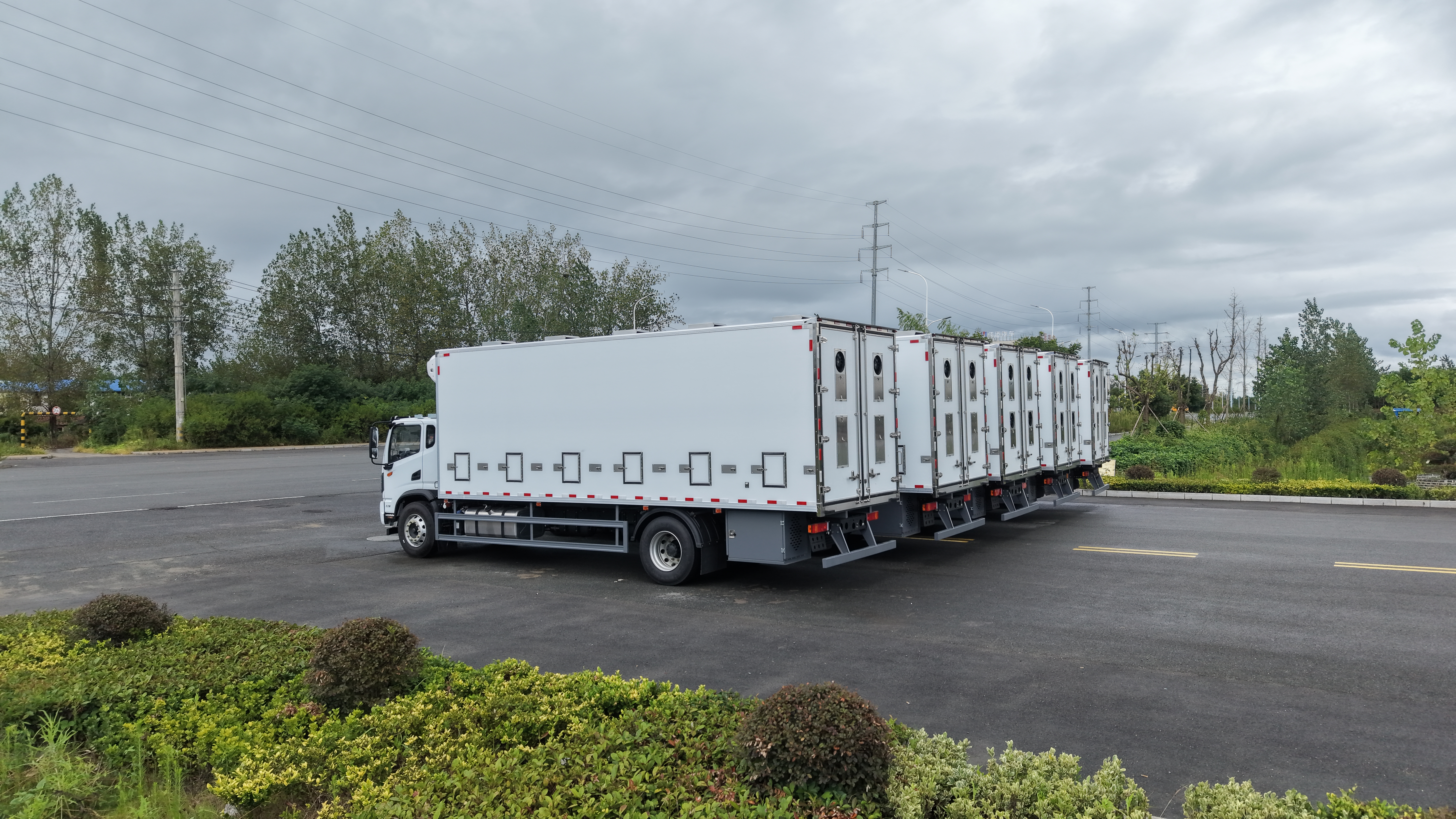

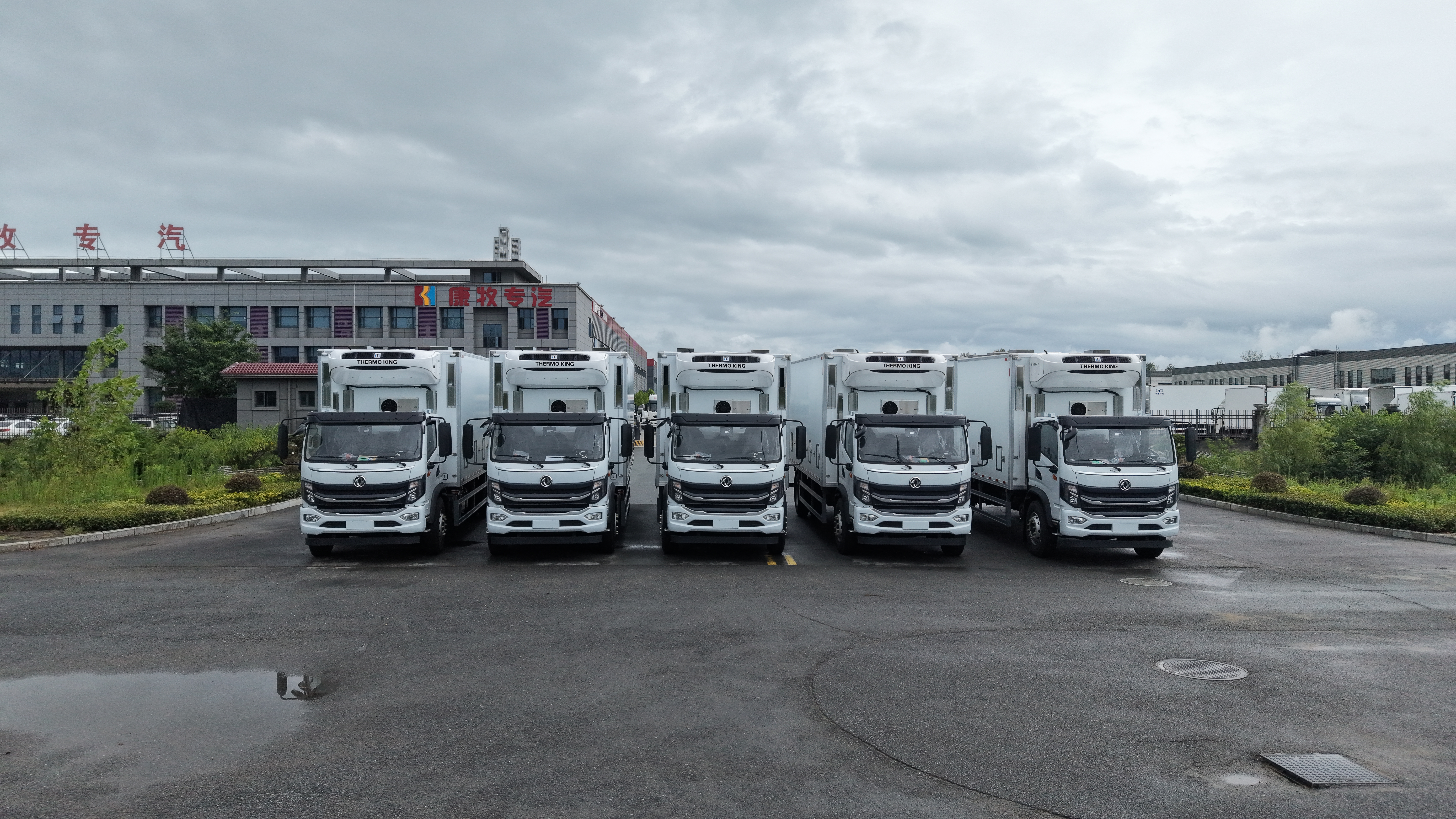

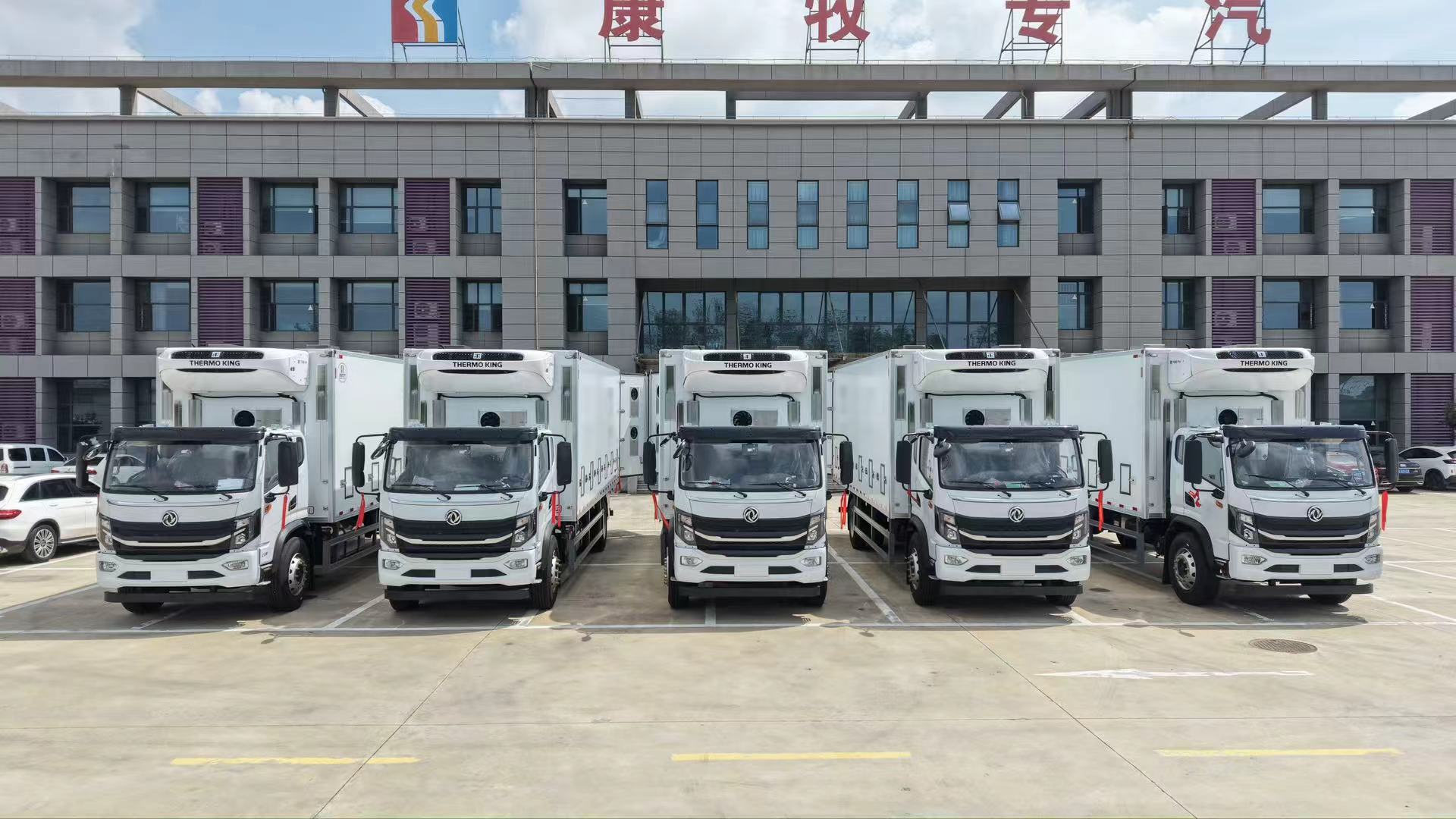

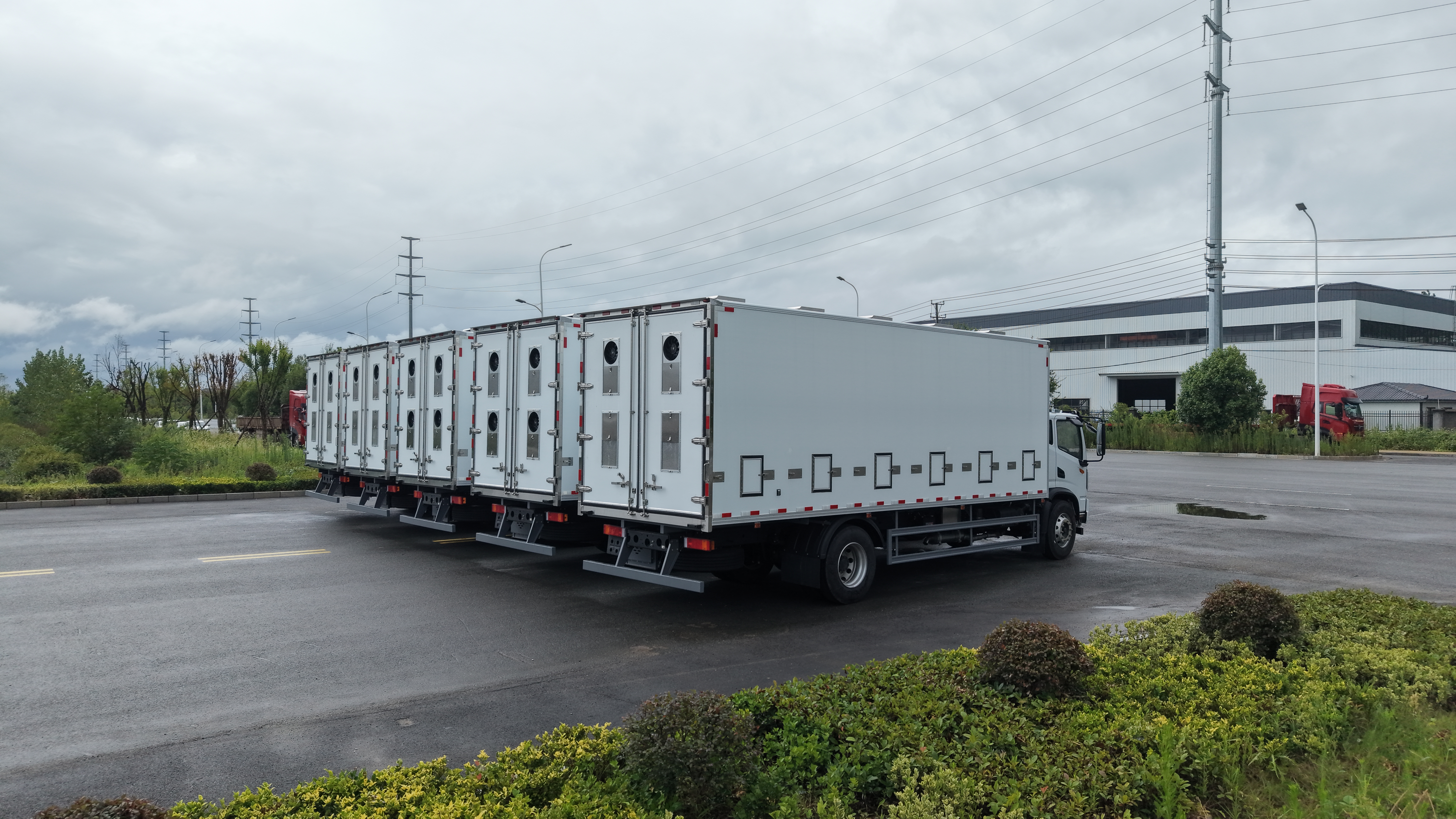

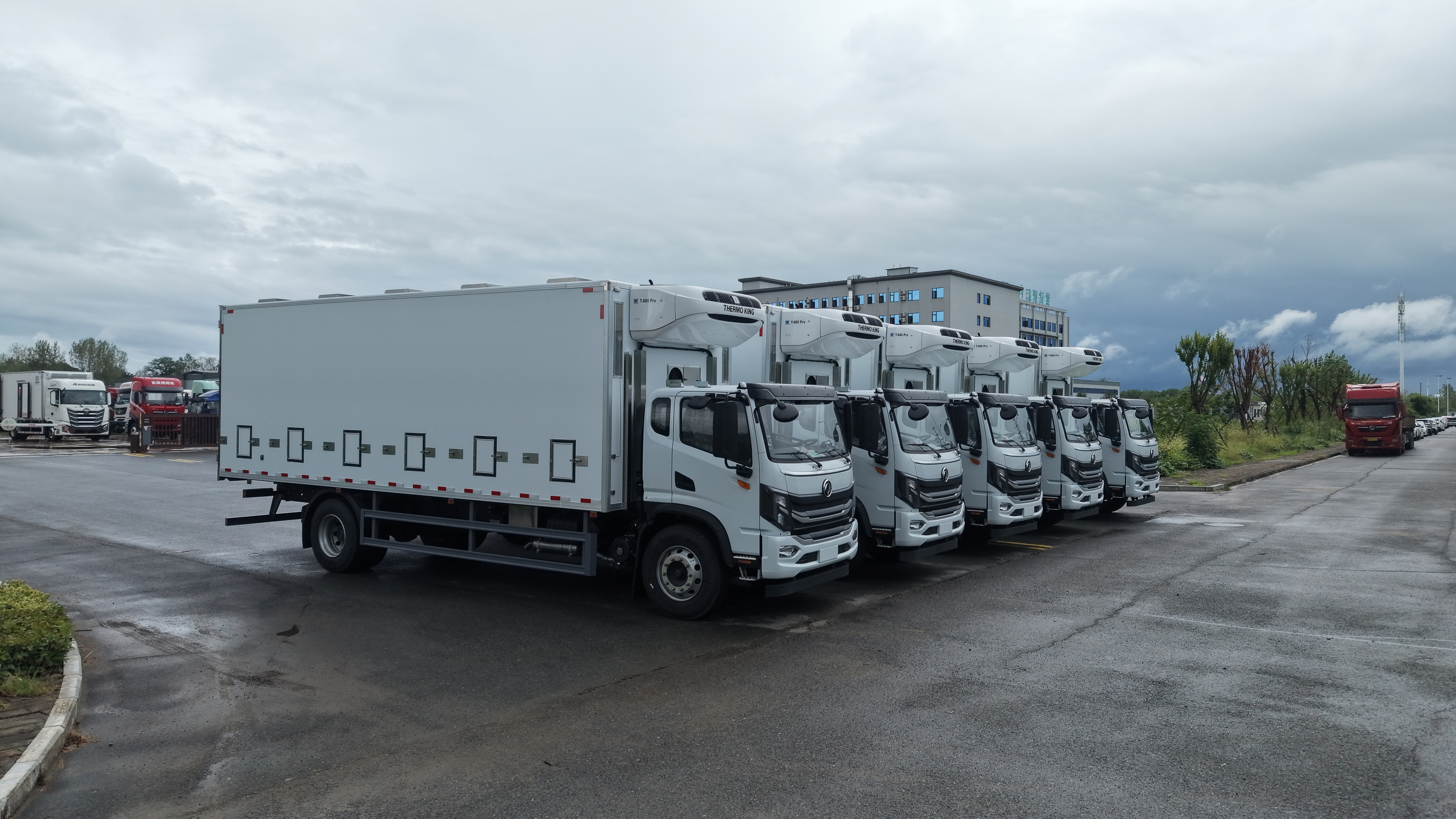

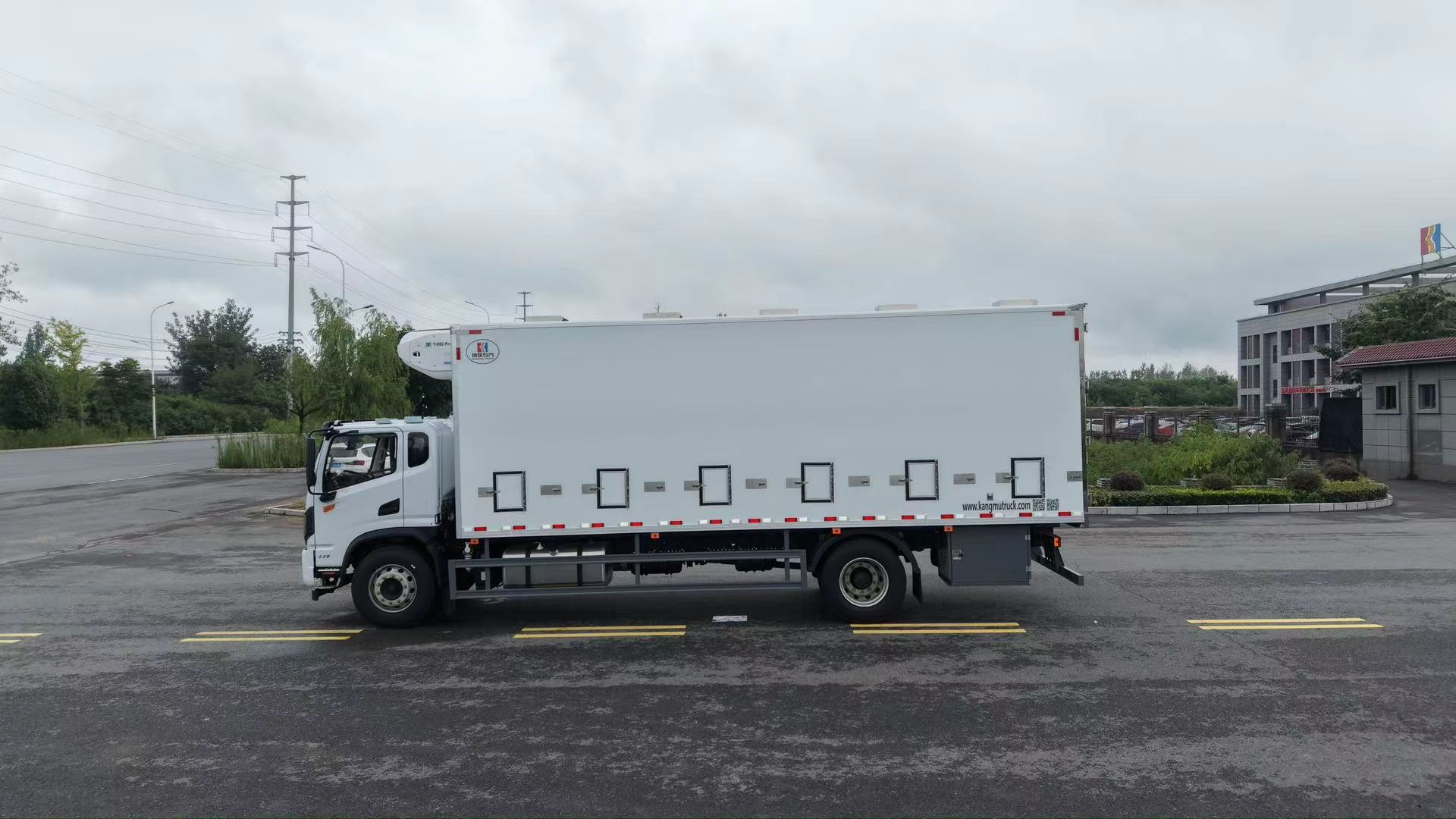

| KANGMU TEMPERATURE-CONTROLLED DAY-OLD CHICK TRANSPORT TRUCK |
| Item | Content | Parameters |
| Vehicle Overall Parameters | Overall Dimensions (L×W×H) | 9800 × 2550 × 3930 mm |
| Wheelbase | 5800 mm |
| Curb Weight | Approx. 16,000 kg |
| Chassis Parameters | Engine Power | 162 kW (220 HP) |
| Fuel Tank | 400 L, aluminum alloy material |
| Axle Count / Brand | 2 / Dongfeng |
| Suspension | Front: 10-leaf spring; Rear: 10+8 leaf springs |
| Main Frame | Original factory high-strength steel frame |
| Outriggers | None |
| Brake System & Relay Valve | Brake system: SORL; Relay valve: Dongfeng original factory matching |
| Tires | 11R22.5 steel rims, 6 pieces |
| Superstructure (Body) Parameters | Body Volume | Approx. 44 m³ |
| Body Material | Outer surface: new thickened matte fiberglass-reinforced plastic; Core: polystyrene insulation material; Body thickness: 80 mm; Aluminum alloy ventilation ducts added at the bottom of the body |
| Body Thickness | 80 mm |
| Sensors | CO₂ probe, temperature probe; matching Chinese-English independent LCD display assembly |
| Refrigeration Unit | Thermo King 880 |
| Auxiliary Generator Set | Added KEPU 5 kW diesel generator set; front panel pre-embedded according to generator set parameters |
| Internal Configuration | Stainless steel racks; LED interior lighting, clearance lights + side marker lights |
| Ventilation | Ventilation windows on both sides and front of the body; 4 roof hatches on top, 5 fans on each side of the roof hatches; 4 fans at the rear |
| Rear Door Assembly | Thickened stainless steel door trim, rear lower/upper corner guards, handles; stainless steel rear door frame, no side doors; thermal-break insulated white rubber seals |
| Subframe & Chassis Accessories | Subframe | High-strength steel subframe; anti-rust primer on subframe bottom, surface electrostatic powder coated with glossy industrial paint; 15 mm rubber cushion pad on main frame; rear impact-absorbing rubber blocks; 3M reflective panels |
