KMH5180GXWL6
KANGMU

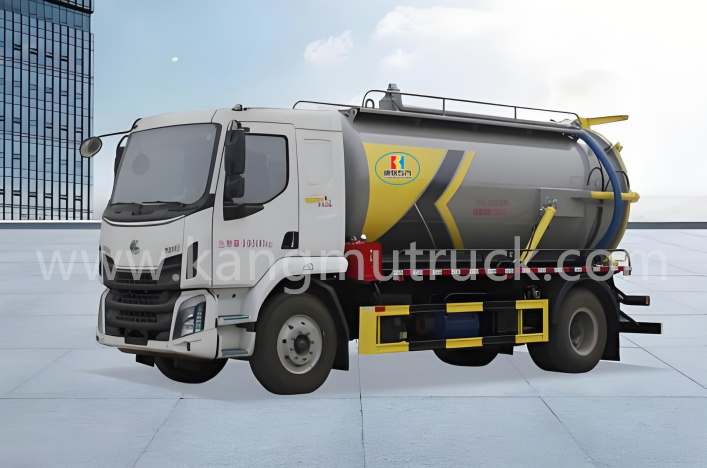

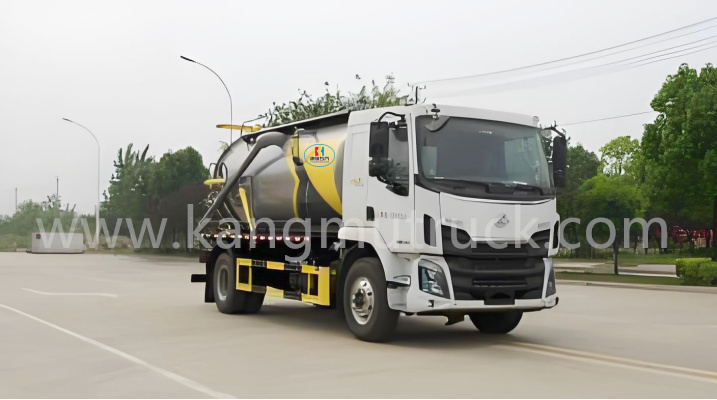

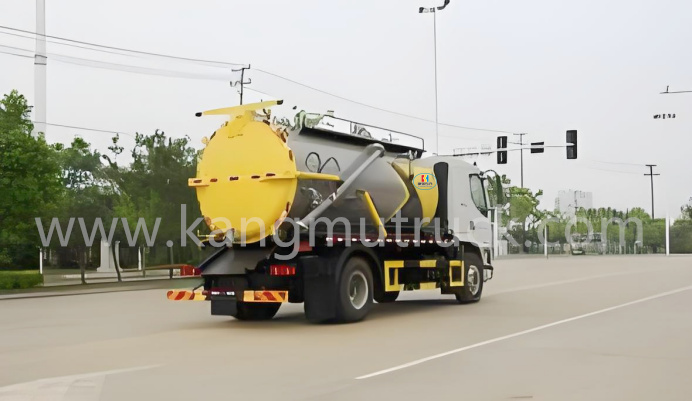

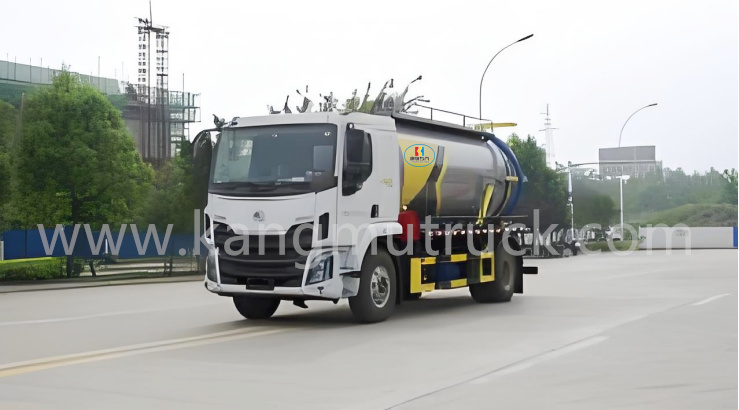

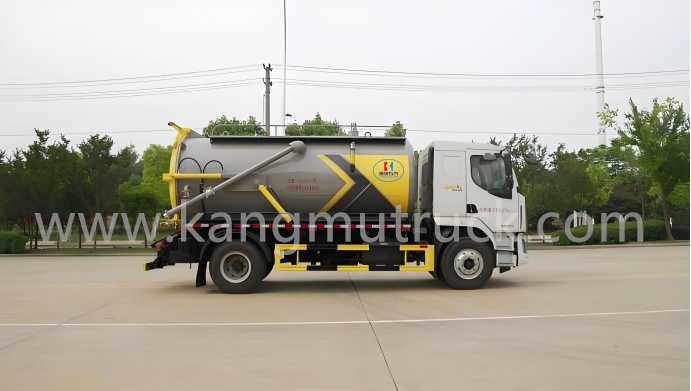

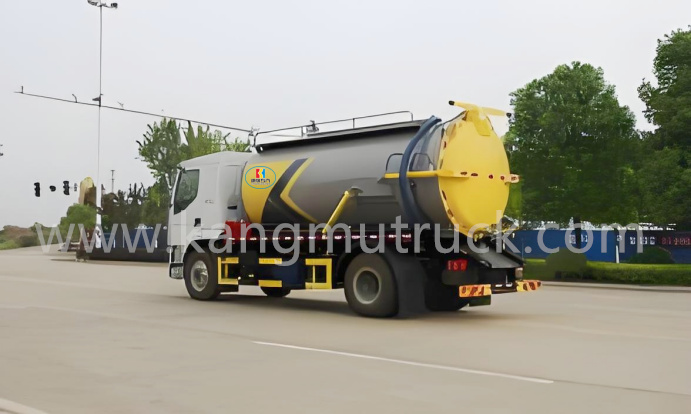

Dongfeng LZM M3 13Cbm Sewage Suction Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5180GXWL6 |
2 | Wheelbase | 4500MM |
3 | Engine Model | YCS04200-68 |
4 | Engine Power | 147KW |
5 | Vehicle Dimensions(L*W*H) | 8010,8040,7300,7330,7550, 7580,7880,7910×2500× 3340,3250,3450 |
6 | Curb Weight | 9425KG,9490KG,9006KG,9070KG |
7 | Total Quality | 18000KG |
8 | Hydraulic System Pressure | 18KG |
9 | Tank Volume | 13CBM |
10 | Tank Material | Carbon Steel (6MM) |
11 | Tank Dimension | 5200×1800MM |
12 | Fuel Type | Diesel |
13 | Emission Standard | National VI |
Upper Body Configuration:
The appearance and dimensions shall be manufactured in accordance with the announcement. It adopts a dished head. The rear door of the tank body is hydraulically opened and mechanically locked. The tank body can be lifted for self-unloading. There is a sewage viewing pipe on the upper right side of the tank body, and a 100 ball valve is installed below the rear head. It is equipped with a 10-ton Yifeng vacuum pump/SK-12 water circulation pump, a water-oil separator, an anti-overflow valve. The side lights are electrically operated. One 8-meter-long sewage suction pipe is provided, and the rest are standard configurations.
