KMH5189GPSZZ6

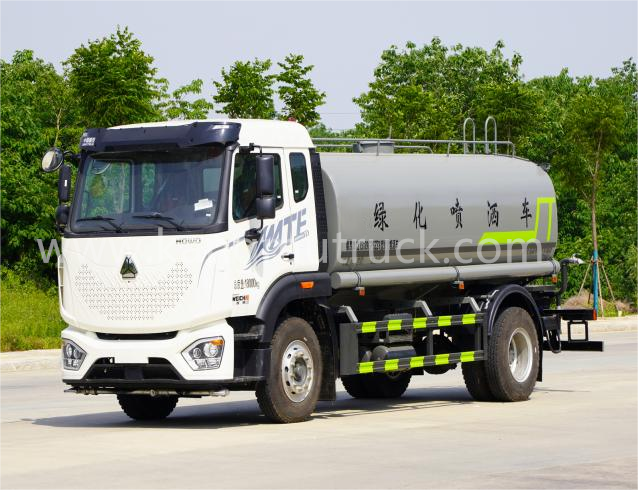

HOWO MATE 15CBM Sprinkler Truck
name | specifications | |
1 | Vehicle Model | KMH5189GPSZZ6 Green Spraying Vehicle |
2 | Engine Model | WP4.6NQ240E62 |
3 | Engine Horsepower/Power | 240/177 |
4 | Engine Displacement | 4580ML |
5 | Transmission Case | HOWO 8 gear (with high and low speeds) |
6 | Tire Specifications | 10.00 steel wire tire |
7 | Wheelbase | 4700 |
8 | Total Quality | 18000KG |
9 | Curb Weight | 7300KG |
10 | Rated Load Capacity | 10505KG |
11 | Vehicle Dimensions(L*W*H) | 8.55*2.5*3.2 |
12 | Tank Volume | 15CBM |
13 | Fuel Type | diesel |
14 | Emission Standard | National VI |
15 | Pump Model | 60/90 |
16 | Tank Material | Q235 carbon steel |
Chassis configuration:
Sinotruk HOWO MATE, engine Weichai 240 horsepower (4 cylinder), HOWO 8-speed with synchronizer, wheelbase 4700mm, 10.00 steel wire tires, four point suspension cab, automatic air conditioning, airbag seats, double-layer frame, ABS, driving recorder, central locking system, electric glass lift remote control.
Upper body configuration:
1. The tank body is approximately 15CBM.
2. The side lights are electrified, and two red width lights are installed above the tail of the tank.
3. The standard front spray is a duckbill straight jet, and the standard rear spray allows users to adjust the offset position according to their own needs.
4. Punching platform (with enhanced load-bearing capacity), and the rear cover of the barrel is a customized bolt buckle.
5. The front spray, back flush, back spray, and side spray, as well as the green anti-aircraft gun switch ball valve, all use 50 large diameter stainless steel ball valves.
6. The new bearing type water cannon is more durable.
7. 60-90 type water pump.
8. Anti corrosion flange gasket.
9. Aluminum is not easy to explode after sprinkling.
10. Automatic welding of tank body (Lincoln welding machine and power supply from the United States), automatic welding of panel assembly, welding of head ring seam, no porosity, and beautiful weld seam.
11. The side guard and rear bumper are all bolted together for easy disassembly and maintenance.
12. Plastic mudguards, replacing iron mudguards, are more lightweight and connected with bolts for easy disassembly.
13. The connection between the front and rear main pipes is a 6-hole circular flange, which is not easy to pad.
