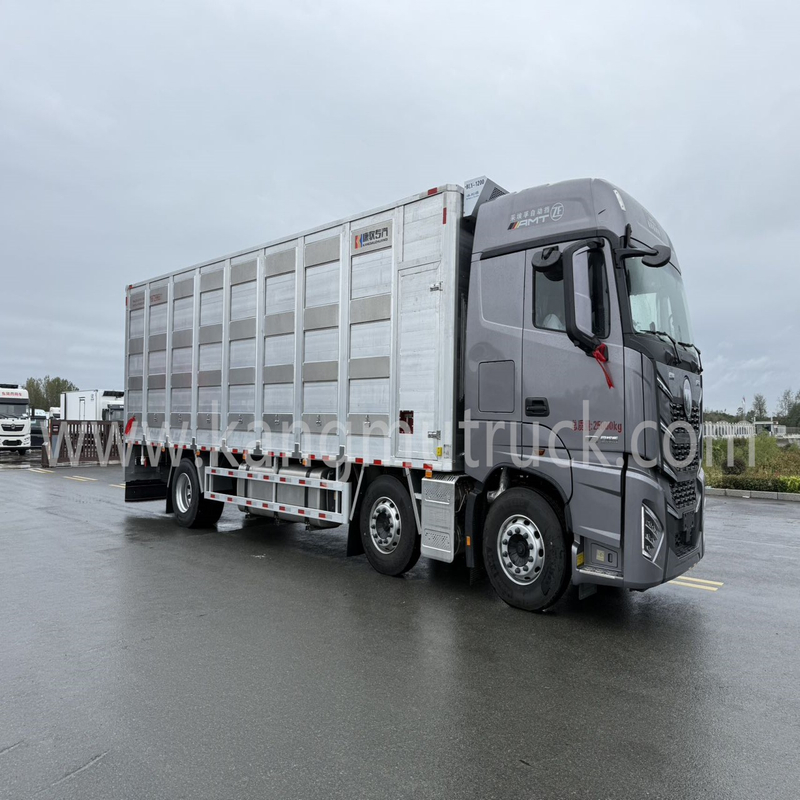

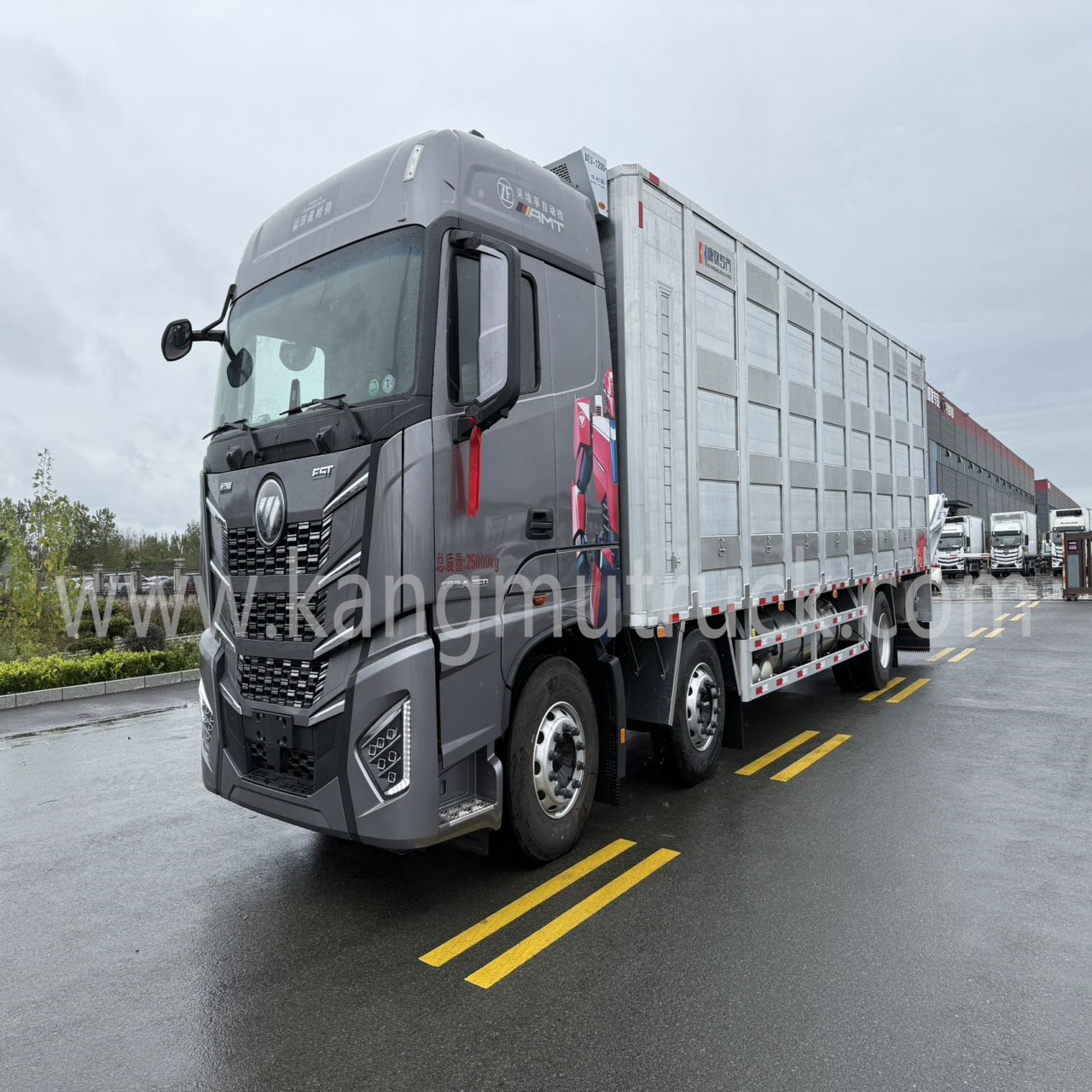

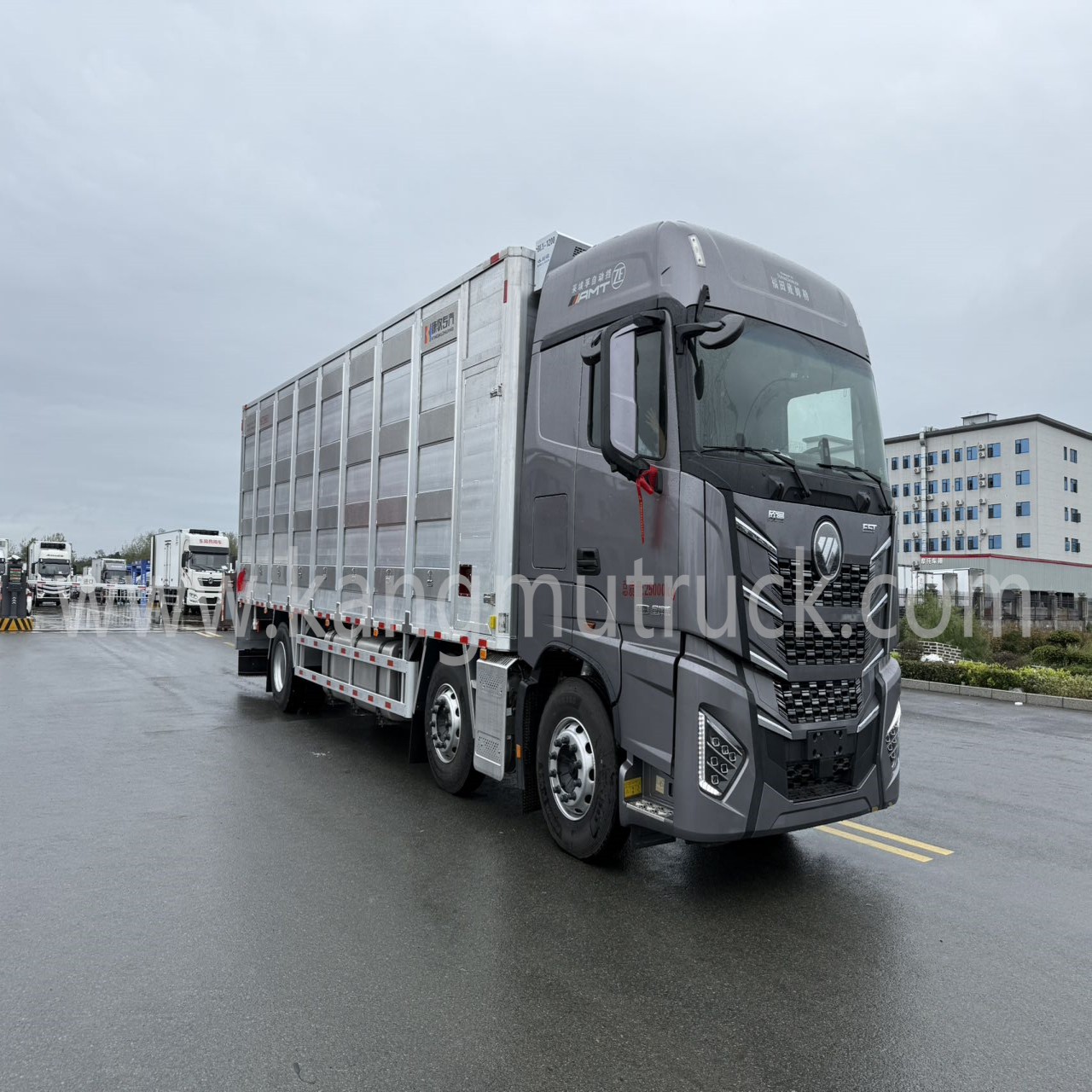

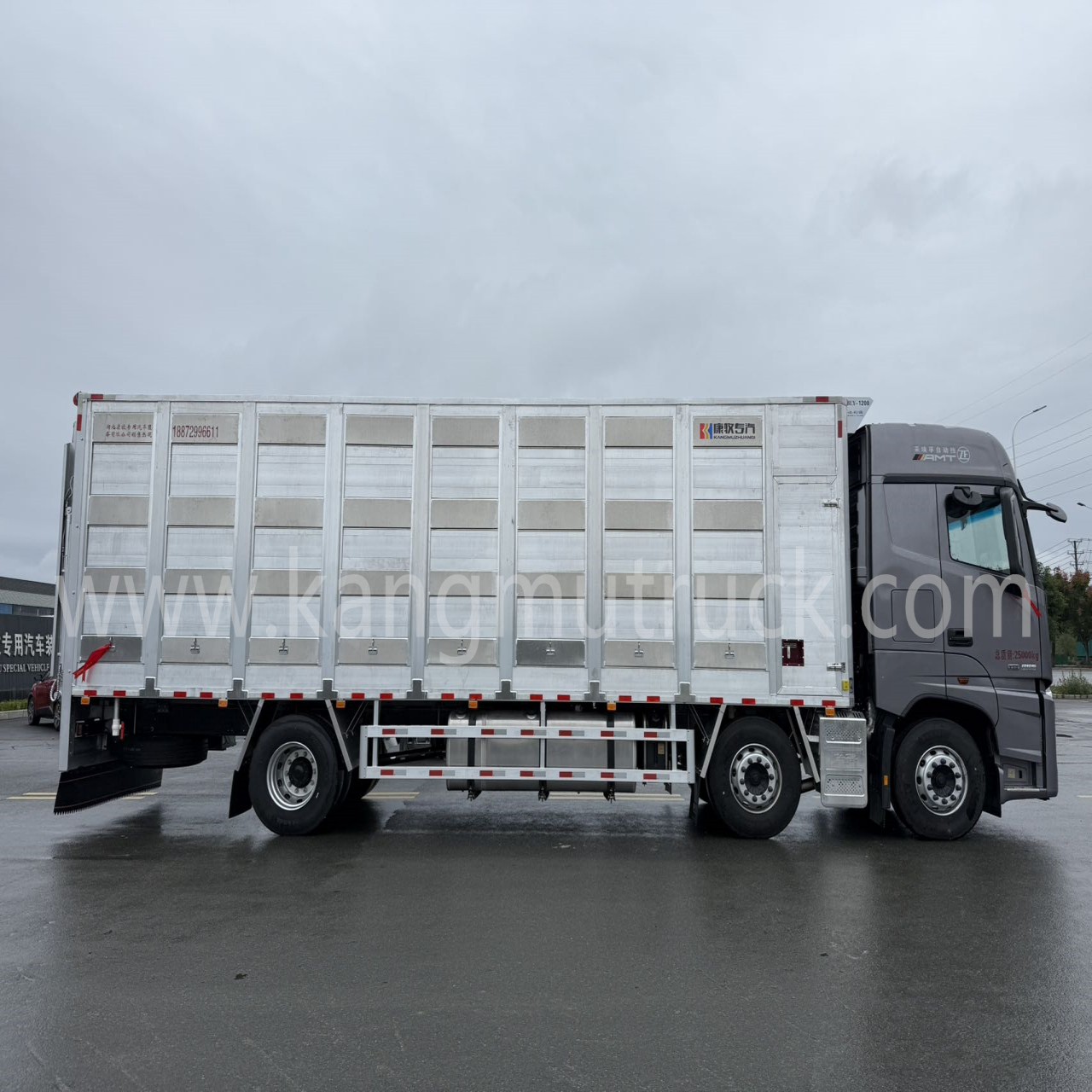

Foton Daimler Three-Axle Aluminum Alloy Livestock & Poultry Transport Vehicle
Engine: Cummins 360 HP
Vehicle Model: KMH5250XCQBJ6
Chassis Model & Configuration: EST Star Edition 6*2, high-roof high-floor cab, Cummins A8.5NS6B360 engine, ZF 9AS1517TO aluminum automatic transmission, 440 rear axle (gear ratio 3.364), P12-12R22.5-18 mixed-steel 42 tires, no independent heat source, air-suspension seat with electric heating, side waist support and armrest, electric cab tilting, electric heating front downward-view mirror, 12.3-inch LCD combination instrument, electric-adjustable exterior mirror with heating, 220AH lead-acid battery, manual sunroof, 10-inch MP5 screen, fully floating 4-airbag cab, equipped with 1000W voltage converter, imported rims for front and rear axles, wheelbase 2100+5400mm, noble gray. Leaf spring: 3/3/4+3, 1000L dual-label fuel tank.
Overall Dimensions: 12000×2550×3995/3850 mm; 11000×2550×3995/3850 mm
Compartment Dimensions: 9300/8300×2440×2650/2500 mm
Gross Vehicle Mass: 25000 kg
Rated Load Mass: 11870/12370 kg
Curb Weight: 13000/12500 kg
Wheelbase: 2100+5400 mm / 2100+4500 mm

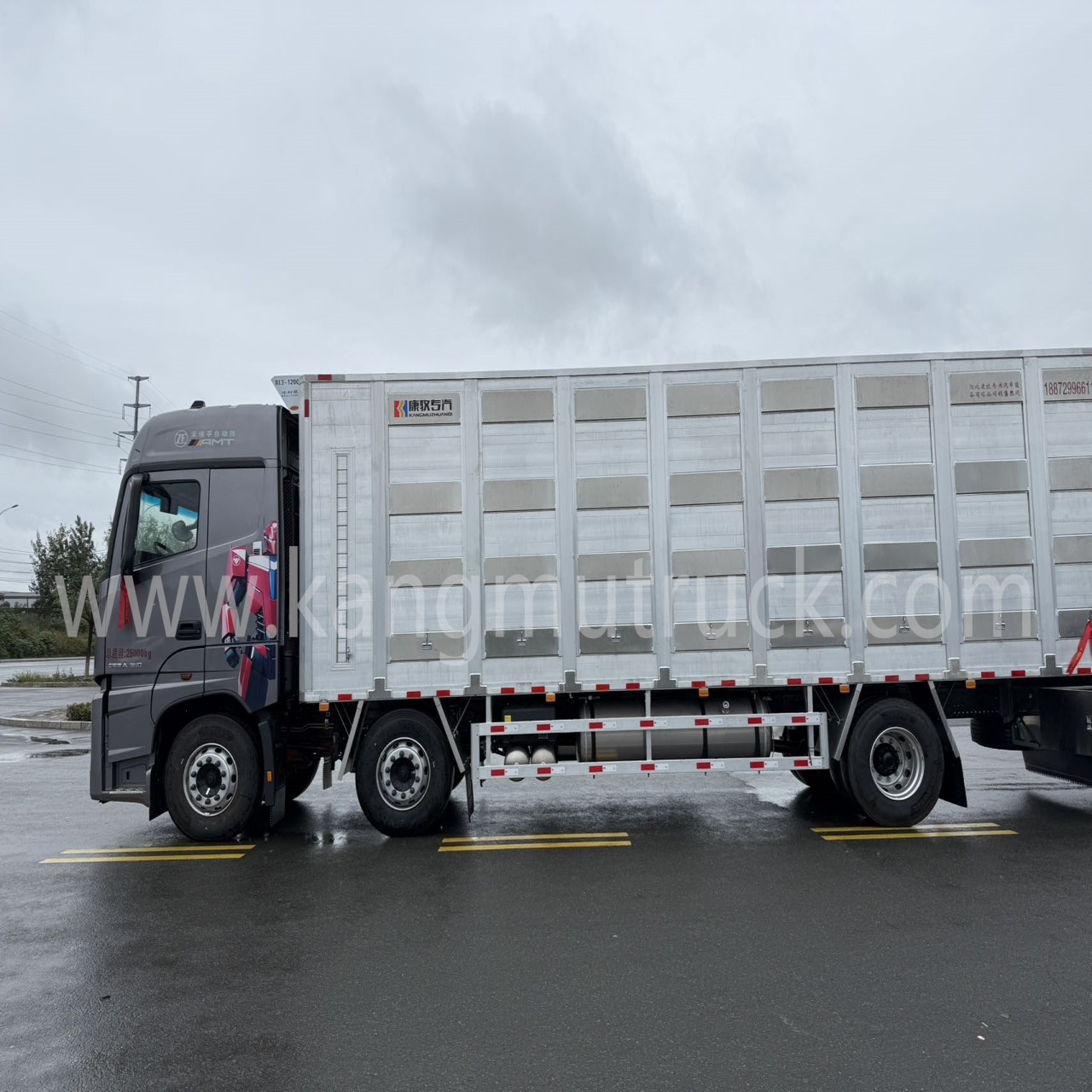

The compartment adopts a fully enclosed structural frame design, made of all-aluminum alloy profiles, featuring light weight, high strength and strong rust resistance. The vehicle is designed with a 4-to-3-to-2 adjustable layer system, equipped with 16 fans and 3 partitions. The floor panels use magnetic suction, and each layer is equipped with sprayers, drinking devices, cameras and temperature sensors. The floor panels are double-folding type, with a hydraulic umbrella-shaped roof and a dual-cylinder hydraulic tailgate.
The top adopts an advanced umbrella-shaped roof design, which can be lifted up and down to facilitate loading/unloading of the top layer, cleaning and disinfection, as well as temperature control during transportation. As standard, each side of each compartment section on every layer is equipped with axial flow fans (positive pressure). For the high-end configuration, each layer is equipped with front-section positive pressure and tail-section negative pressure axial flow fans.

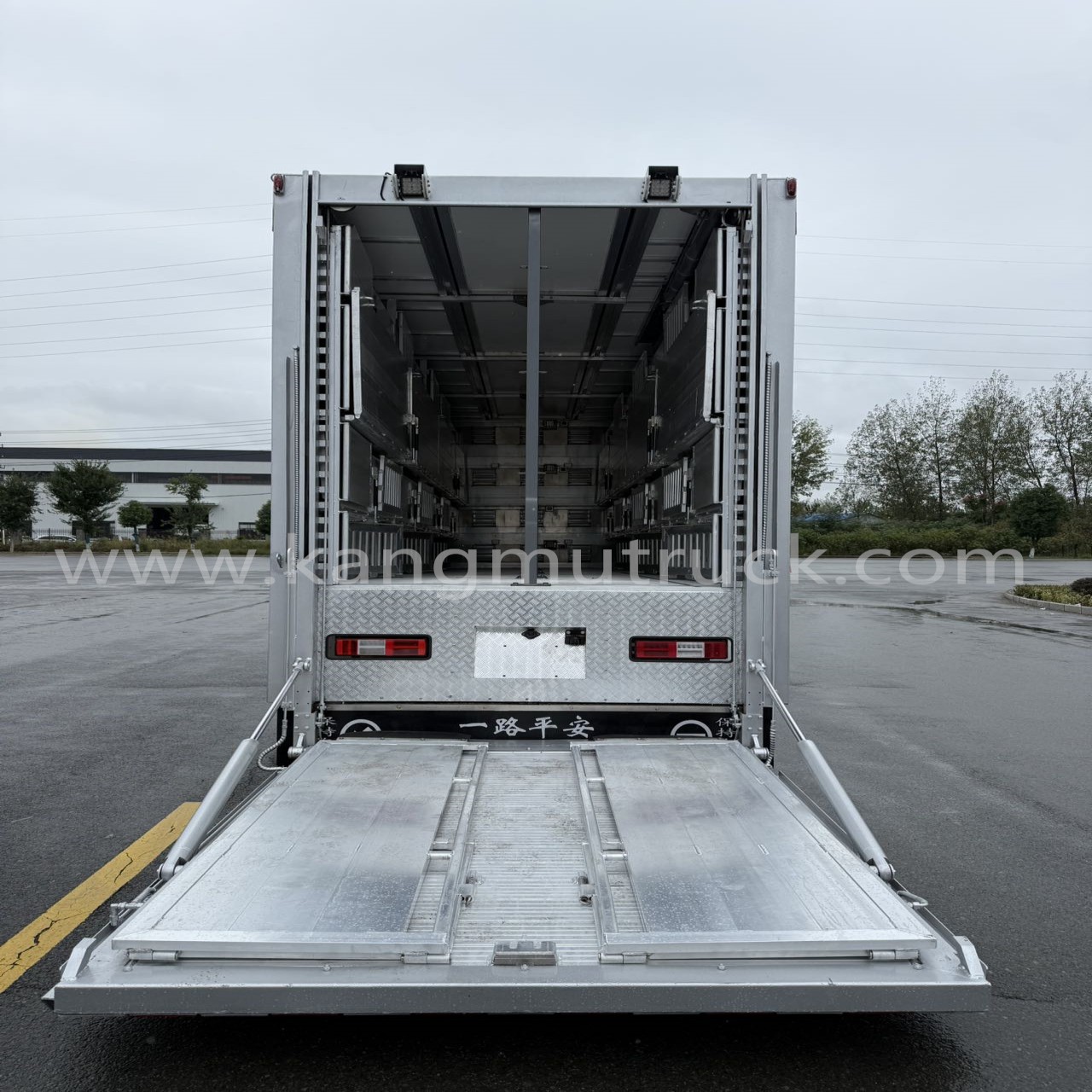

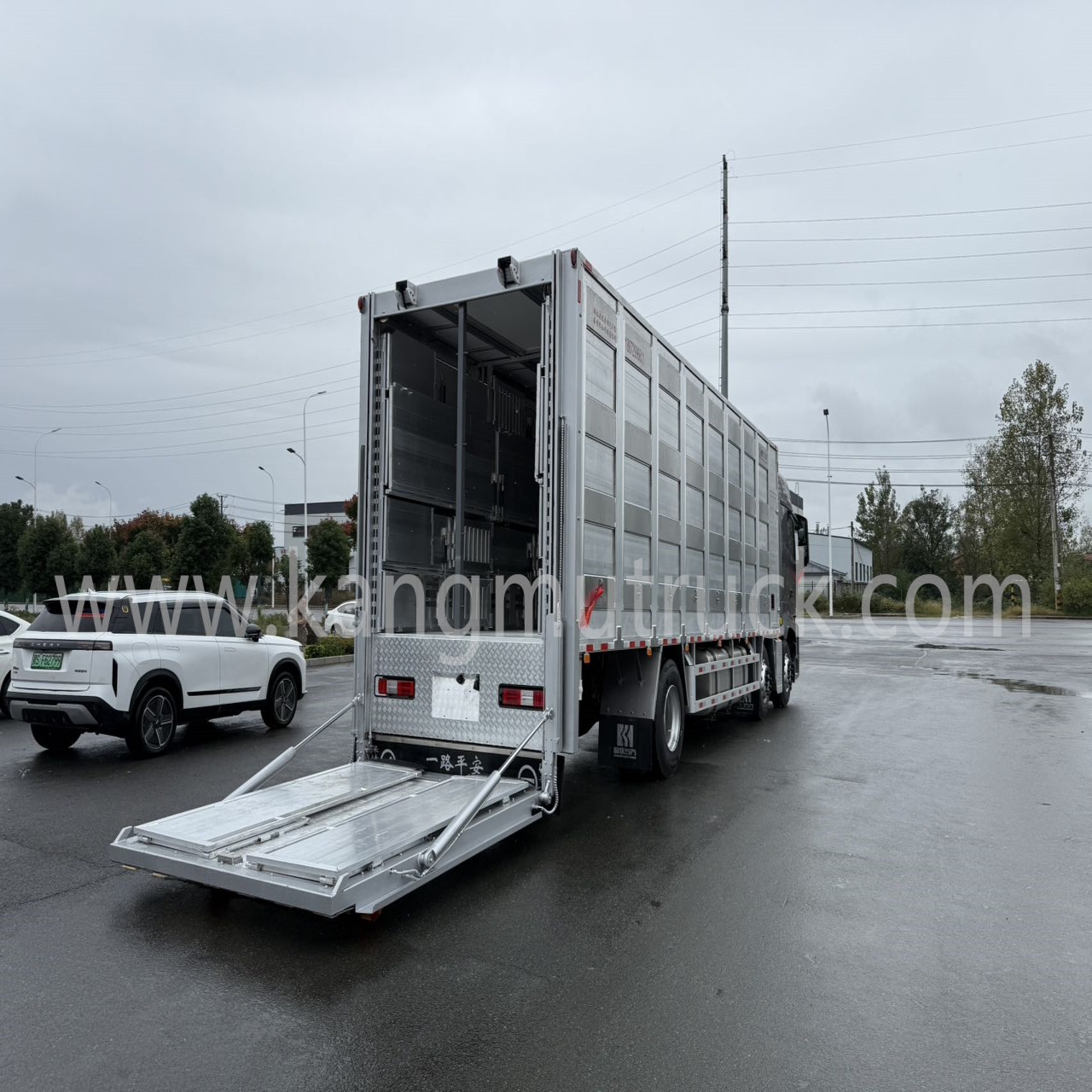

The special equipment adopts Dutch technology, with a tail lifting loading/unloading method and double internal channels that can be flipped up for easy loading/unloading, cleaning and disinfection. Both sides of each compartment layer are designed with manual sliding windows, used for emergency purposes in high-temperature and extreme weather, with manual opening/optional manual flip covers. The floor panels are double-opening type, connected by rotating shafts. The tail can be optionally equipped with a hydraulic lifting tailgate or a double-door tailgate at the rear, operated by hydraulic remote control. Each layer is equipped with fans, spray drinking devices, lighting, temperature sensors and camera systems; a wire rope hydraulic lifting tailgate is available as an option...
