| Vehicle parameters |
| Vehicle Model | EQ3182E |
|
|
| Overall dimensions | 7000X2500X2700mm | Curb weight | 6505kg |
| Van dimensions | 4200X2300X1000mm | Loading capacity | 15tons |
| Chassis parameters |
| Chassis model | EQ5182GLJ | Chassis brand | DONGFENG |
| Overall dimensions | 6700x2350x2550mm | Wheel base | 3800mm |
| Front/rear wheel track | 1745/ 1630mm | Front/rear suspension | 1130/ 1795mm |
| Approach/departure angle | 25/ 18° | Maximum speed | 88km/h |
| Chassis Manufacturer | Dongfeng Motor Company |
| Cab | Configuration | Dongfeng JIANJIN cab, a row and a half deluxe cab(with sleeping berth),allowable 3
passengers |
| Color | White,other color is optional |
| Engine | Model | C260 33 |
| Emission | Euro 3 |
| Type | 6 cylinders, in-line,diesel engine |
| Rated power | 260hp |
| Displacement | 8300ml |
| Max.torque | 1090N.m |
| Manufacturer | Dongfeng Cummins Engine Co.,Ltd |
| Tire | Size | 11.00R20 steel wire tire |
| Number | 6+1 nos |
| Brake | exhaust brake |
| Front axle | 6.5T |
| Rear axle | 16.0T |
| Drive form | 4X4 |
| Rated voltage | 24V,DC |
| Transmissions | Fast 10JS120 |
| Steering device | Power assisted steering |
| Steering wheel | Left hand drive |

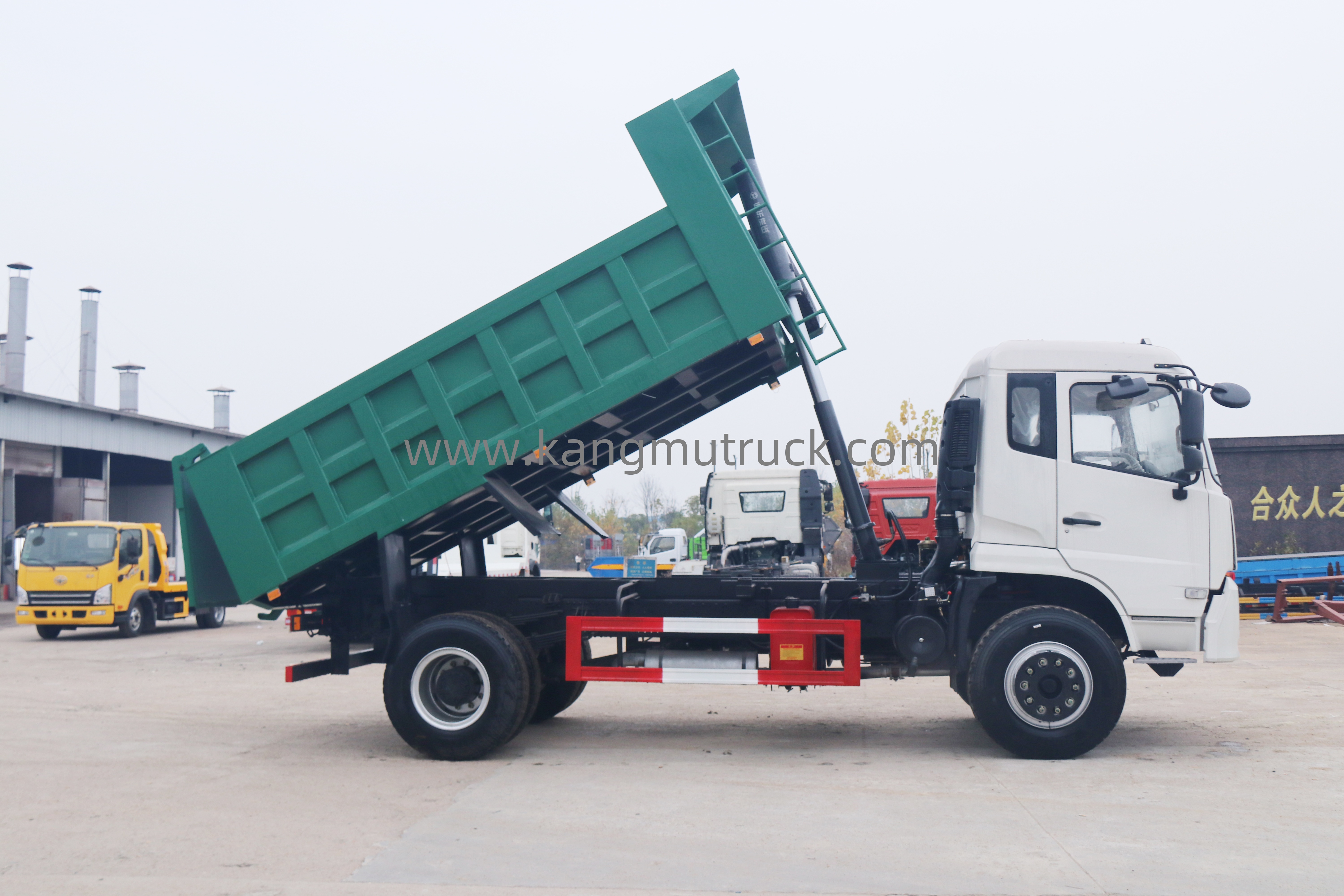

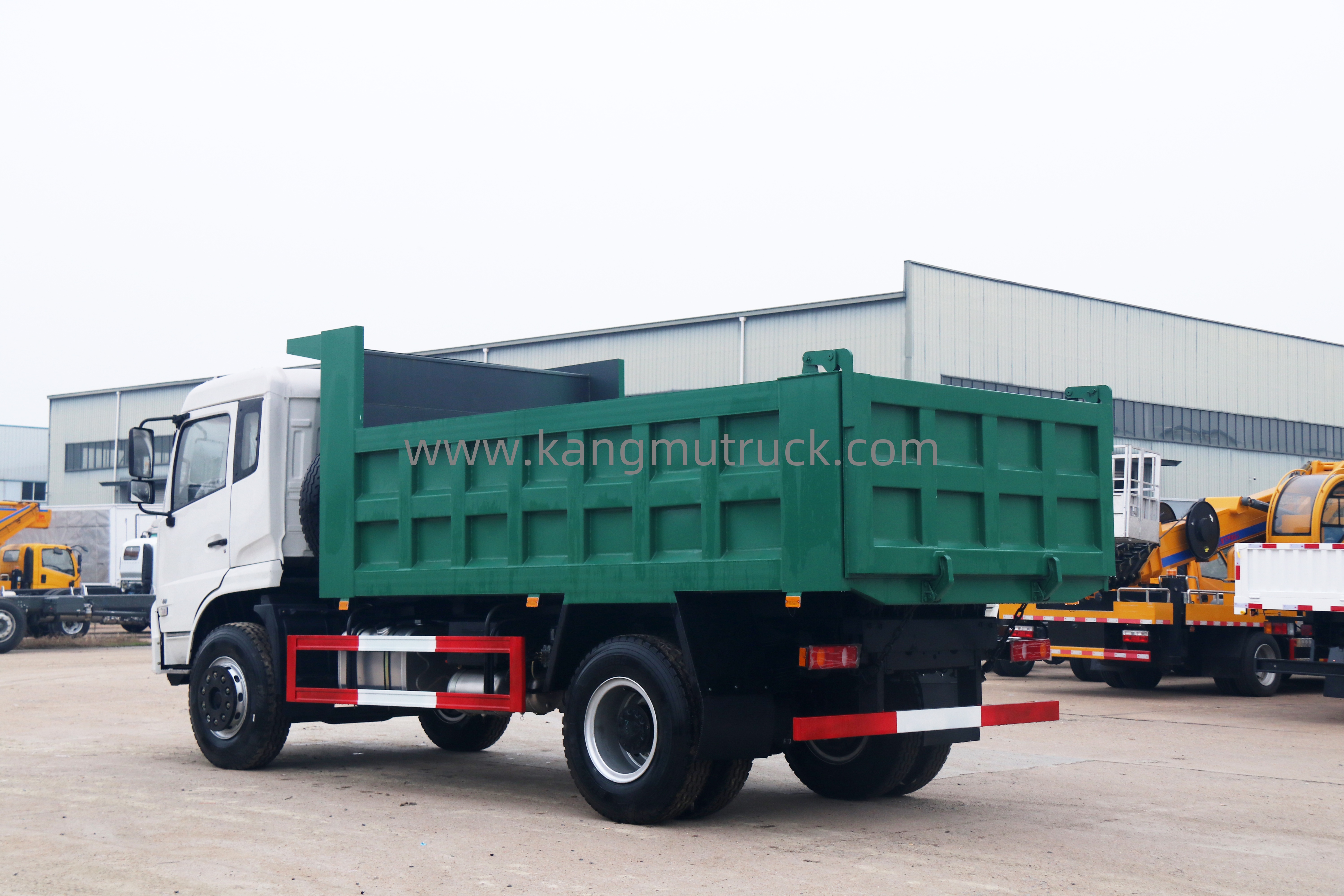

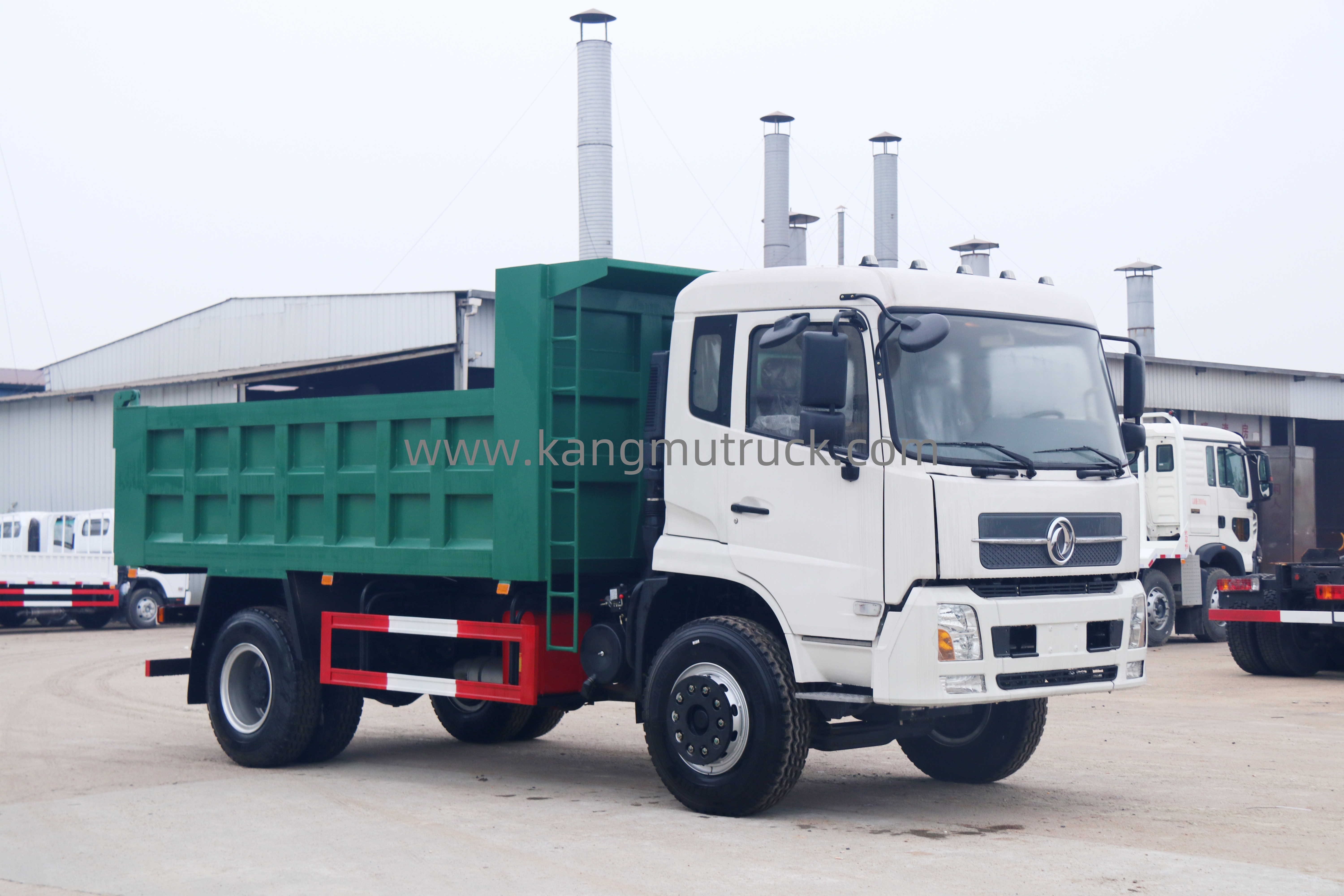

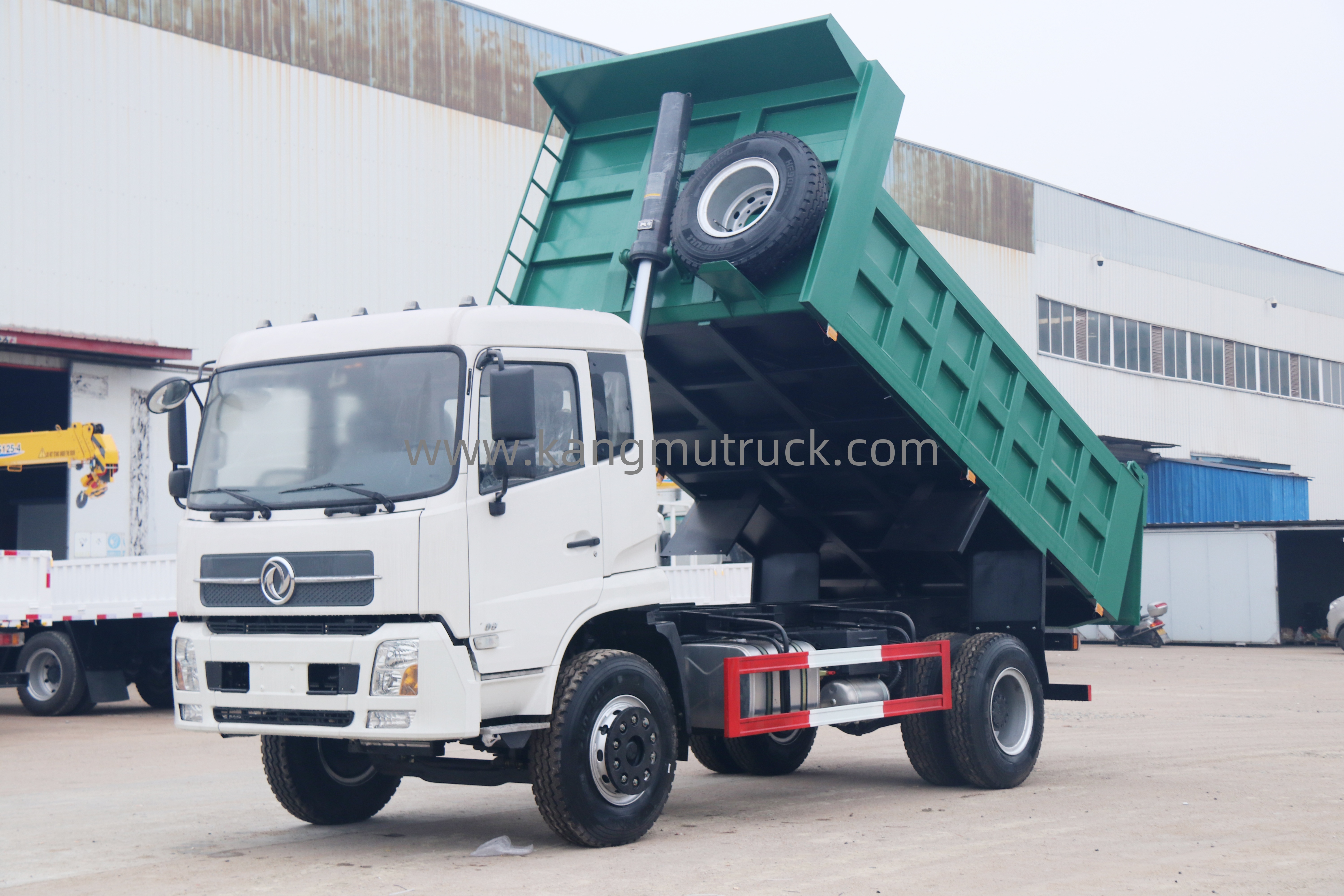

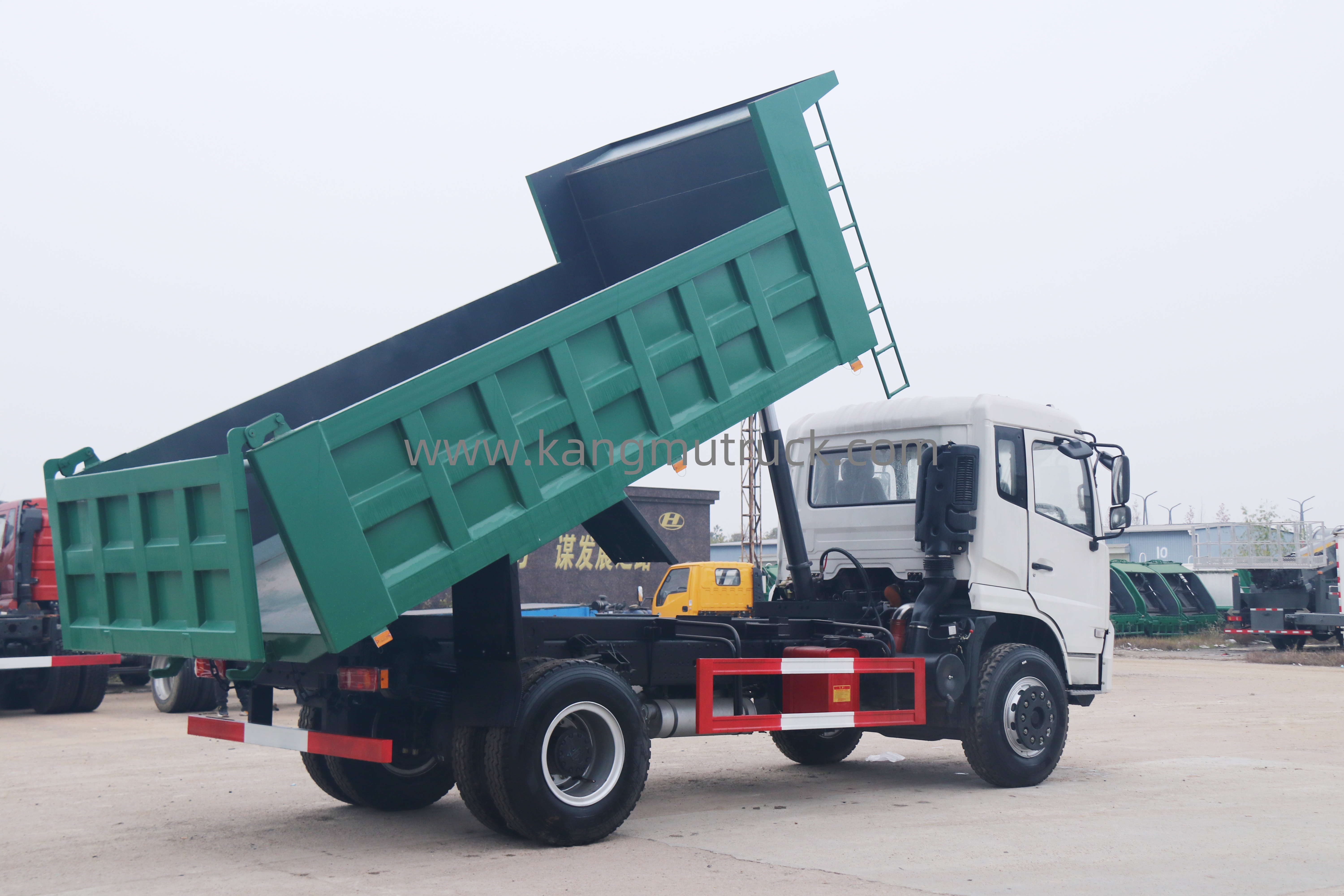

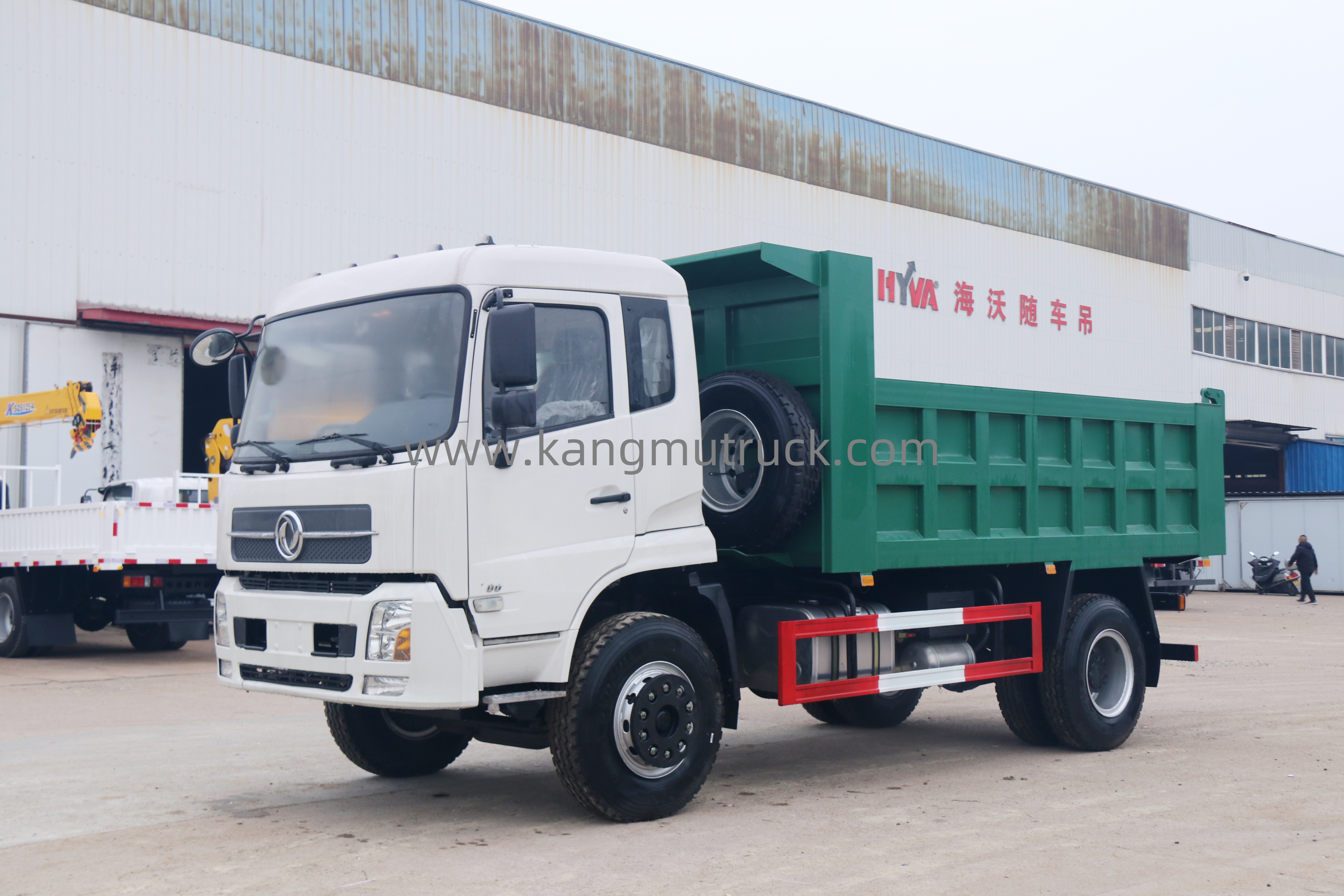

| Dump truck structure parameters |
| Van body dimensions | 4200X2300X1000mm | Side wall | 4mm |
| Bottom plate | 5mm | Van body material | Common steel |
| Lifting position | Front | Dumping direction | Rear |
| Oil Cylinder | Domestic | Color and Logo | Optional |
| Standard configuration | chassis,sub frame,van body side 4mm bottom 5mm,domestic front lifting hydraulic cylinder,common steel,two longitudinal beams,rectangular van body,single door |
