Foton Navigation S1 Double Row 70K/80K Anti Collision Buffer Vehicle

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: Foton Navigation S1 Double Row 70K/80K Anti Collision Buffer Vehicle
  • Keywords: Anti Collision Buffer Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:

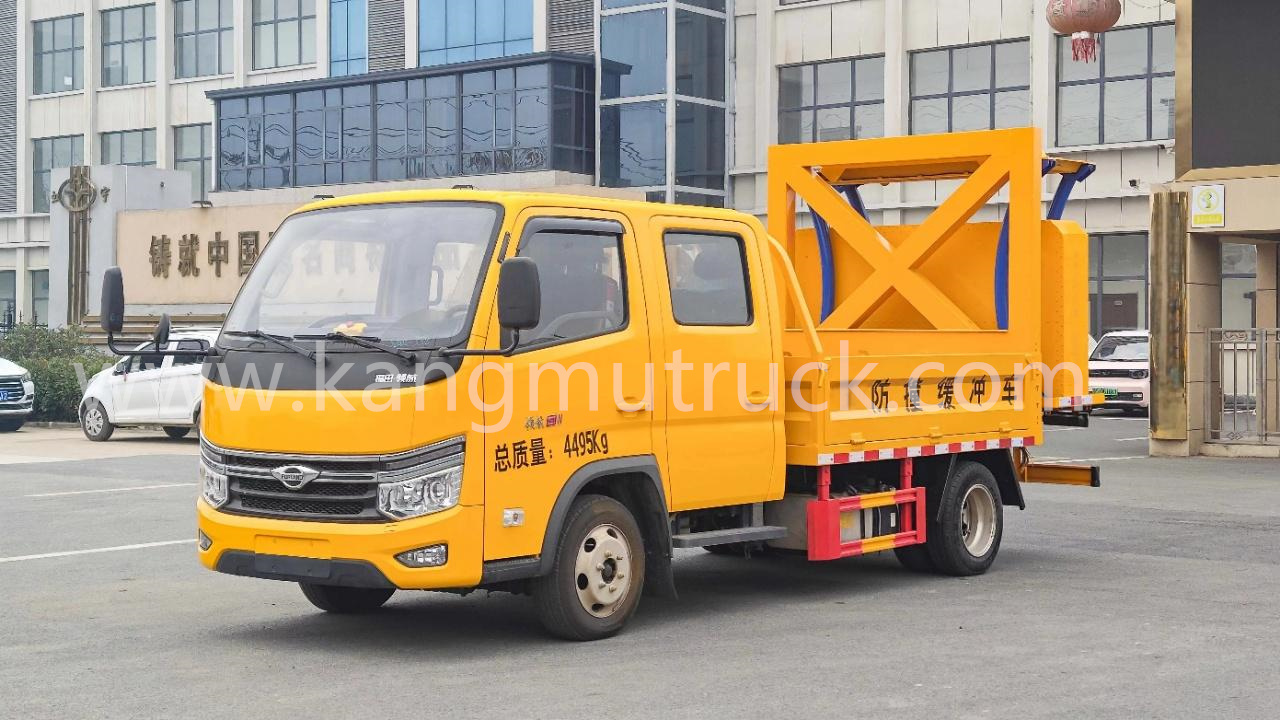

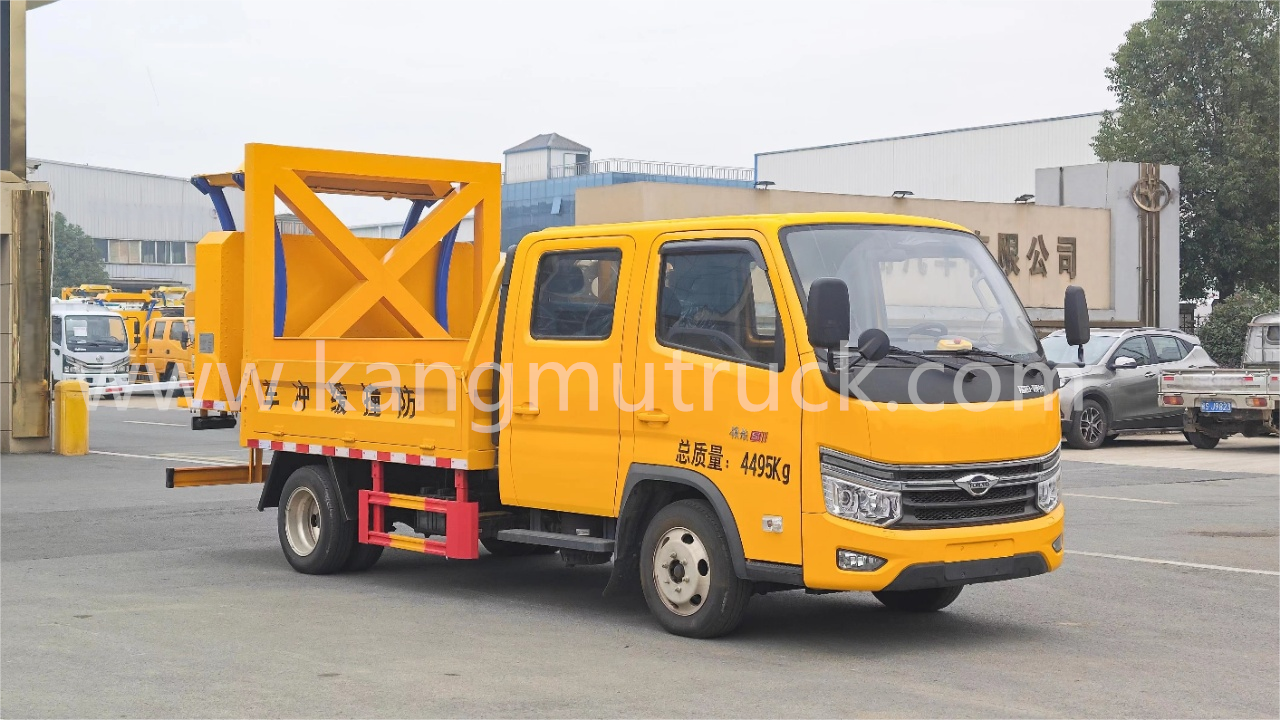

Foton Navigation S1 Double Row 70K/80K Anti Collision Buffer Vehicle
Chassis configuration:
Chassis model: BJ1045V9AB7-26, all diesel 122 horsepower diesel engine, 5-speed manual transmission, wheelbase 3360mm, 185R15LT 8PR tires, with directional assistance, original clutch assistance, original air conditioning, 2+3 passengers, spacious and comfortable driving.
Upper body configuration:

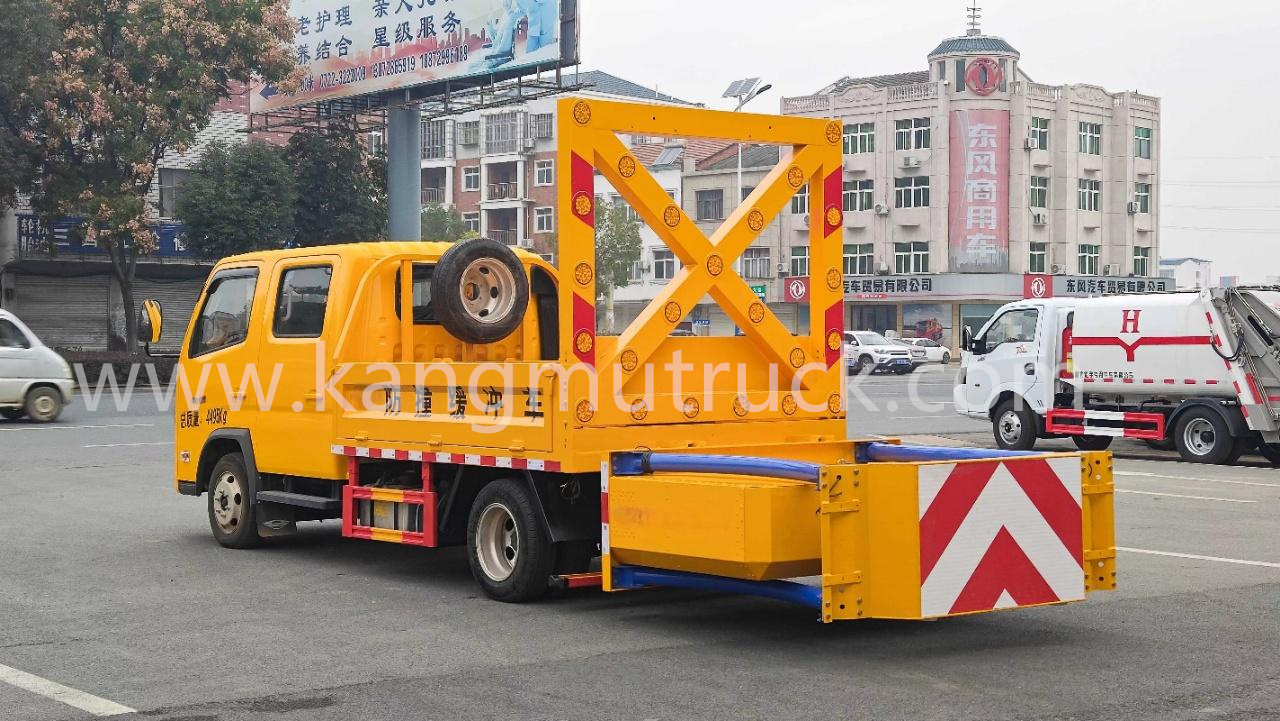

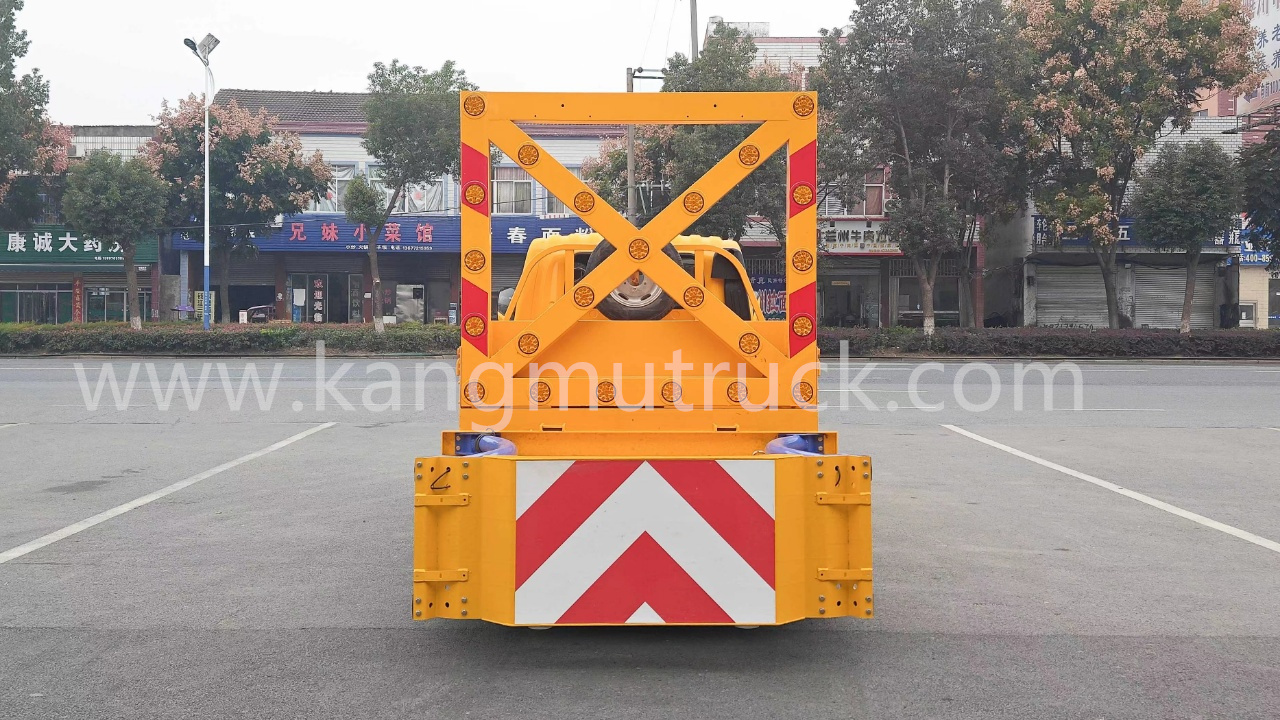

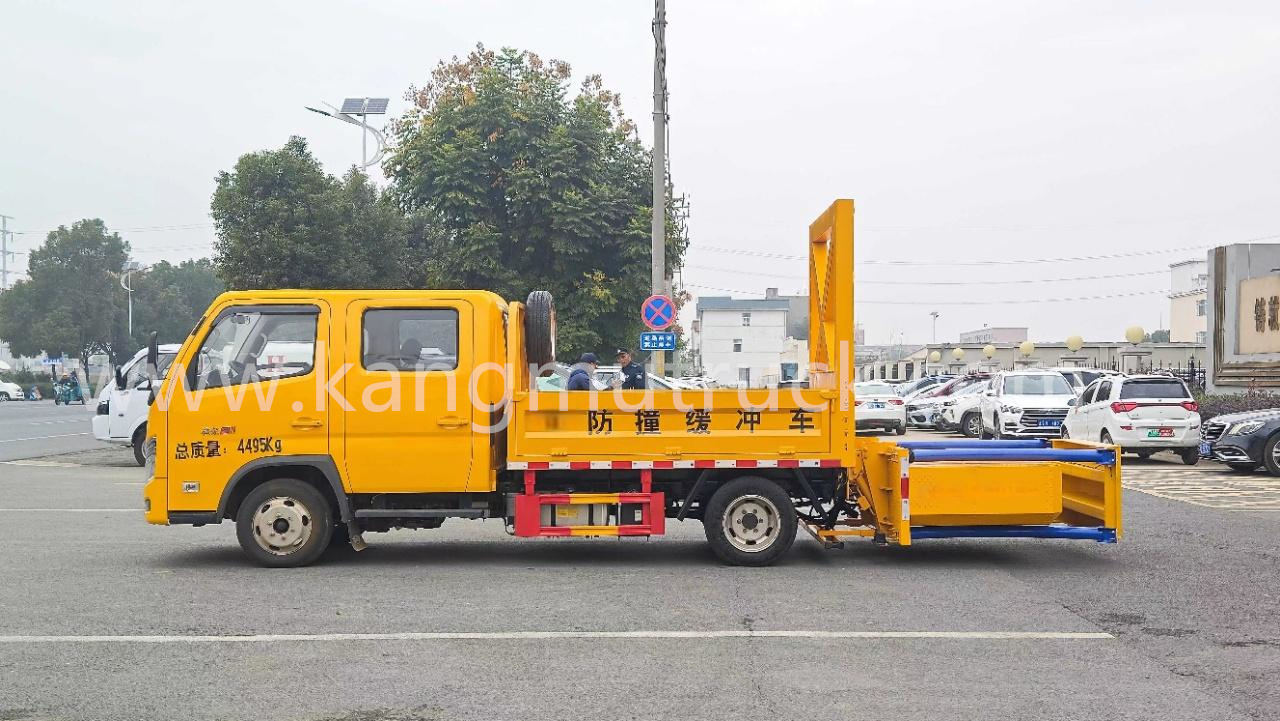

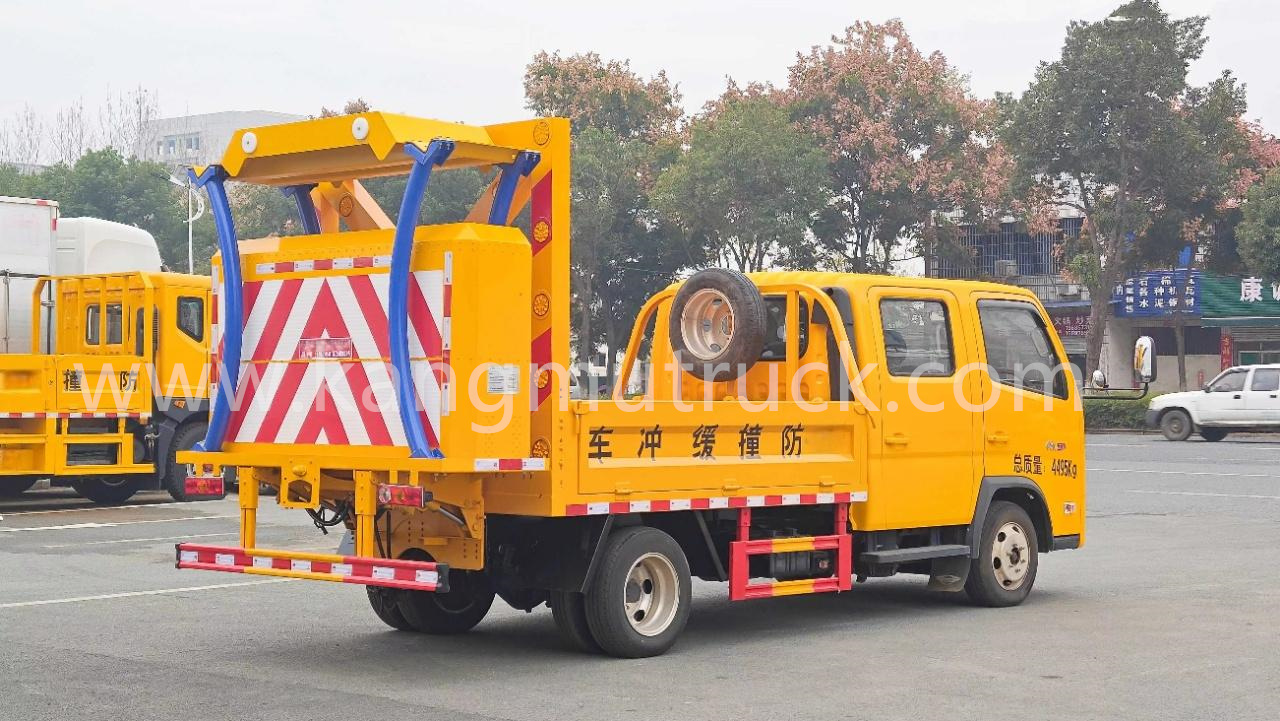

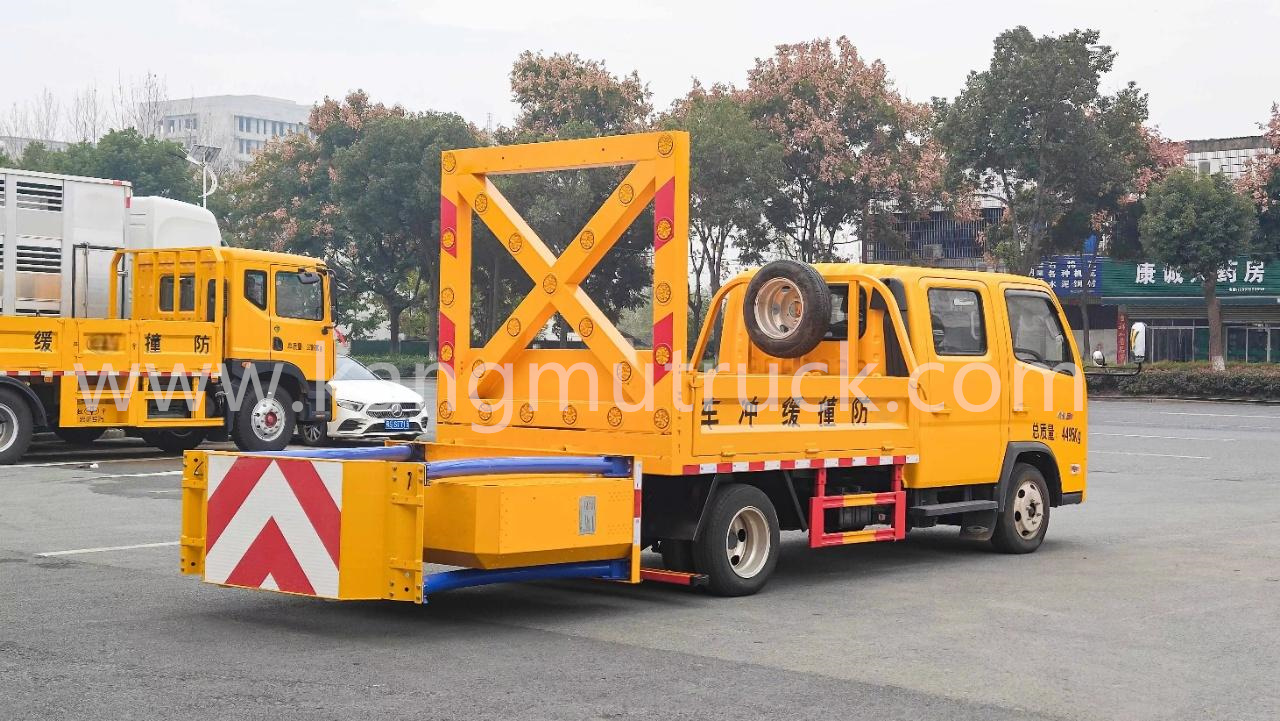

The box body is constructed from premium - grade sheet metal that complies with national standards, ensuring both durability and reliability. For enhanced safety, the rear anti - collision buffer module of the box body incorporates world - renowned technological products, specifically the 70K/80K anti - collision buffer module, which operates with remarkable smoothness. The anti - collision buffer energy absorption module consists primarily of a car - type anti - collision buffer pad and a guide sign frame. This combination is designed to efficiently absorb impact energy in the event of a collision.
The light frame of the box body is highly versatile and can be outfitted with an array of sound and light warning systems. These include an LED screen for displaying important information, LED arrow indicator lights to guide traffic, a voice warning horn to alert nearby personnel, and LED flashing lights to enhance visibility. Together, these components function as a vigilant buffer guard at the rear of the construction vehicle.
In the unfortunate event of a rear - end collision, a buffer zone is immediately created between the affected vehicle and the construction area in front. This buffer zone effectively absorbs the impact energy through the controlled deformation of its mechanical structure. By doing so, it significantly reduces the likelihood of protected personnel and equipment being struck, thereby providing a high level of safety.
Furthermore, the vehicle is equipped with a high - performance hydraulic system. This system enables rapid lifting and lowering operations, guaranteeing not only the safety of the operators but also the stability and efficiency of the overall operation. Whether it's for quick setup at a construction site or for efficient material handling, the hydraulic system ensures seamless performance
Advantages of our anti-collision package:

1. The anti - collision buffer energy absorption module makes use of the globally renowned technological products, the 70K/80K anti - collision bags. It has successfully cleared the NCHRP350TL - 2 collision test in the United States. This module is capable of absorbing the impact energy generated when a 2 - ton vehicle is moving at a speed of either 70 kilometers per hour or 80 kilometers per hour. The interior of the anti - collision buffer pad is filled with cushioning material of aerospace grade. In the event of an accidental rear - end collision involving a vehicle, the cushioning material gets compressed and deformed, thus accomplishing the absorption of collision energy.

2. Four sets of metal curved pipes are installed on both the top and bottom of the collision buffer pad. In case of a collision, these curved pipes proactively absorb a substantial amount of the initial collision energy. Once the collision energy exceeds the limit of the aluminum tube's deformation, the structure filled with cushioning material transitions into a state of deformation - based energy absorption. The peak material of the aluminum alloy film utilized in the collision buffer pad will experience controlled deformation, which enables it to efficiently absorb the collision energy.

微信图片_20240730150539微信图片_20240730150547微信图片_20240730150551微信图片_20240730150553微信图片_20240730150556微信图片_20240730150545(1)微信图片_20240730150558微信图片_20240730150600
