KMH5254TDYDF6A
KANGMU

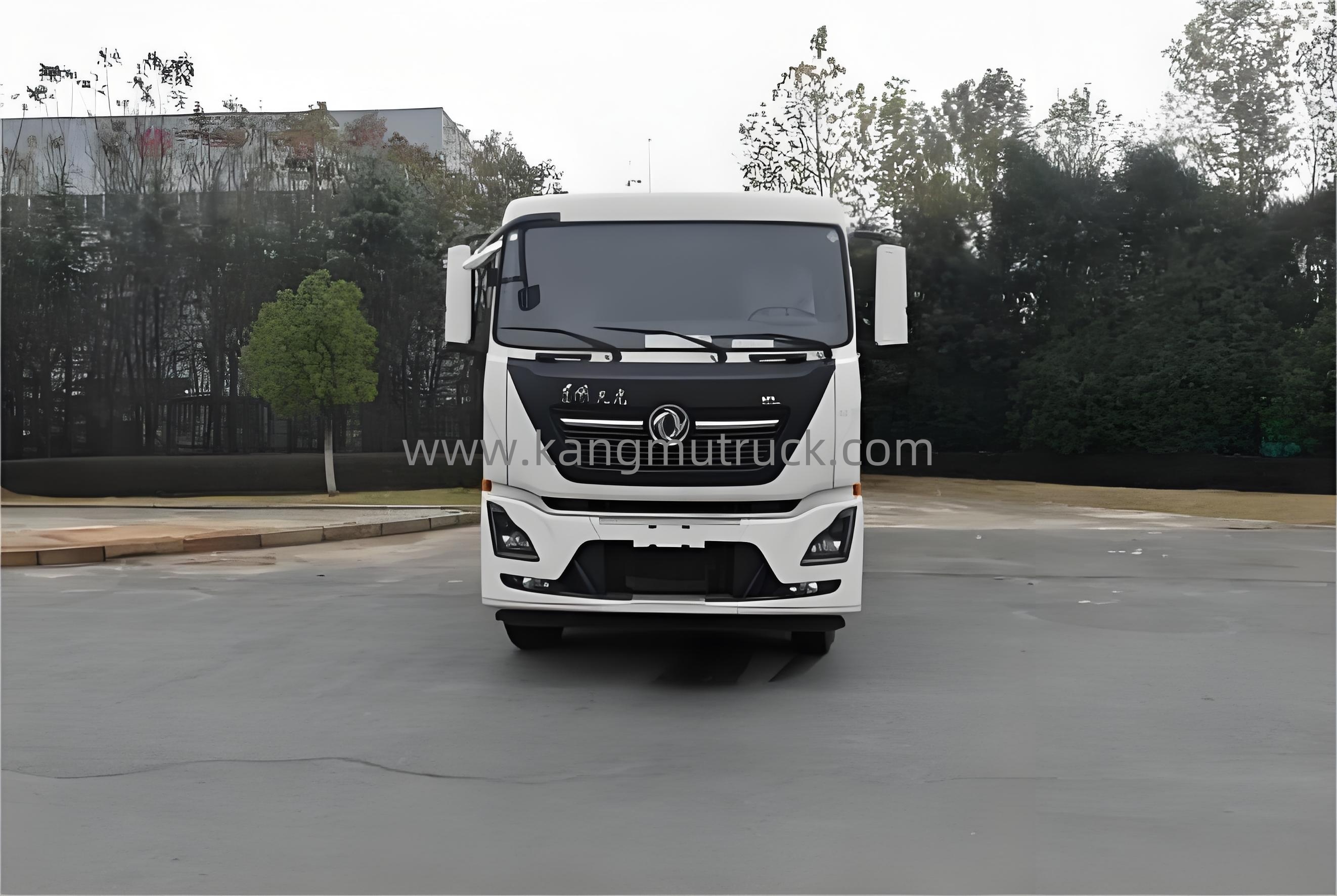

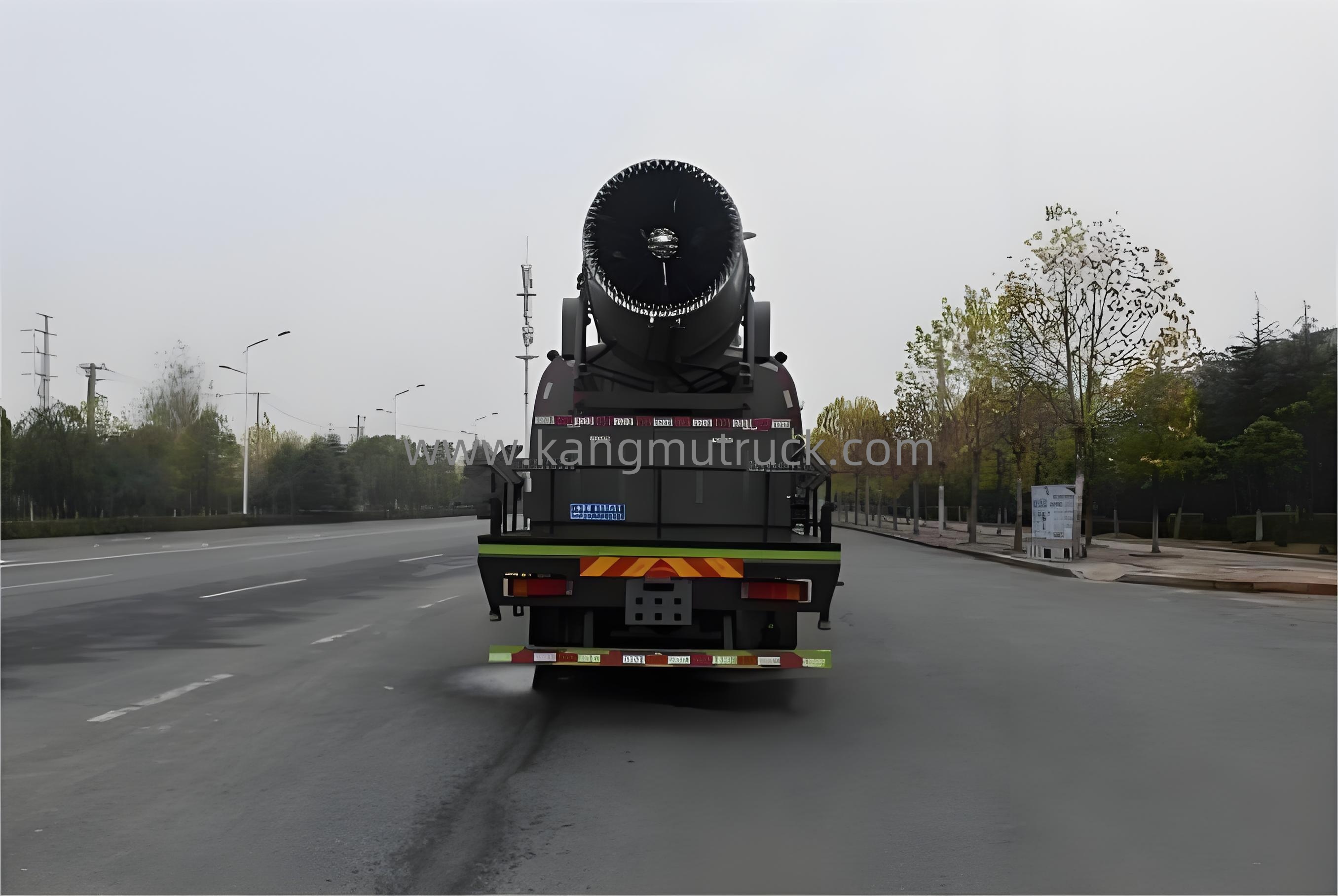

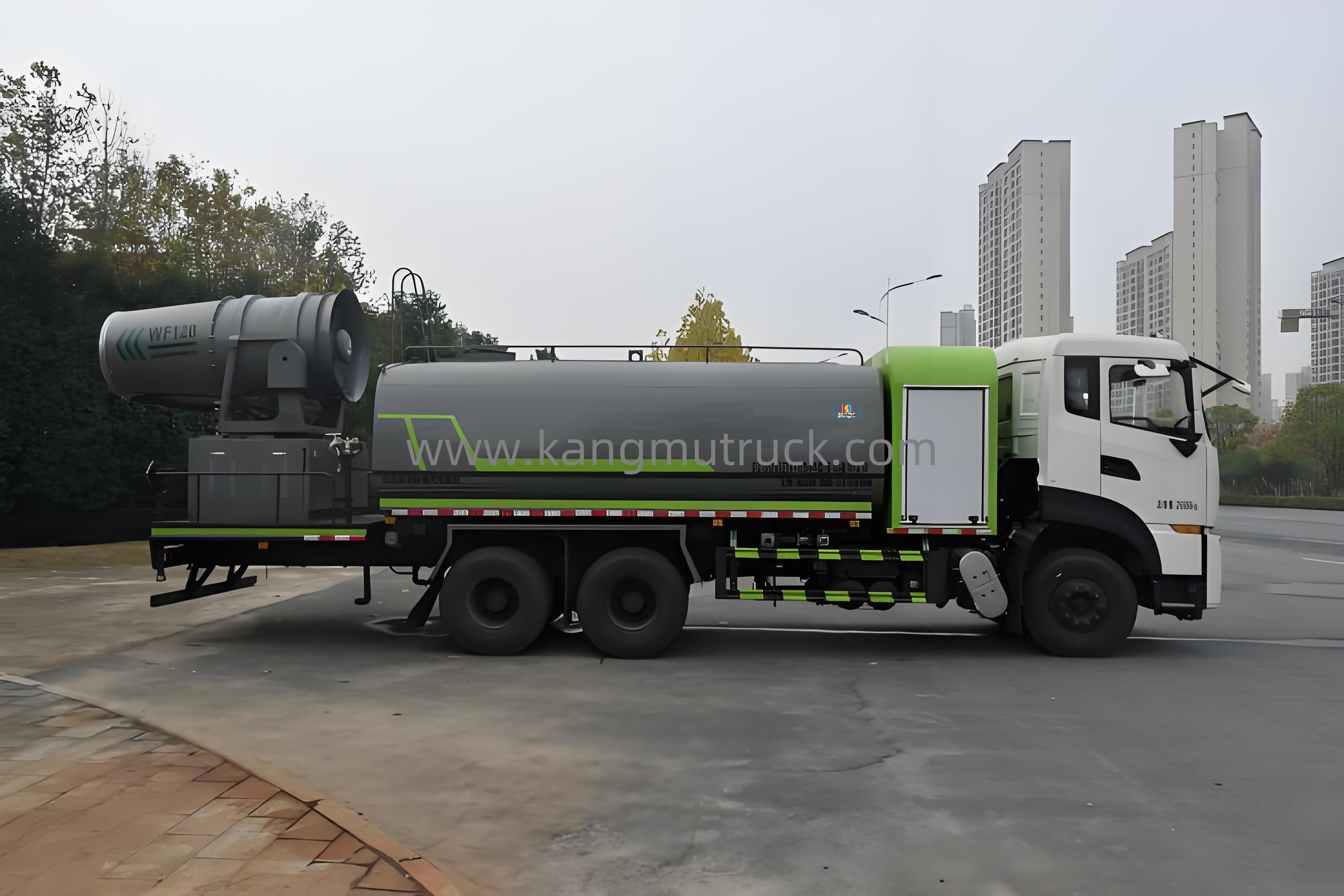

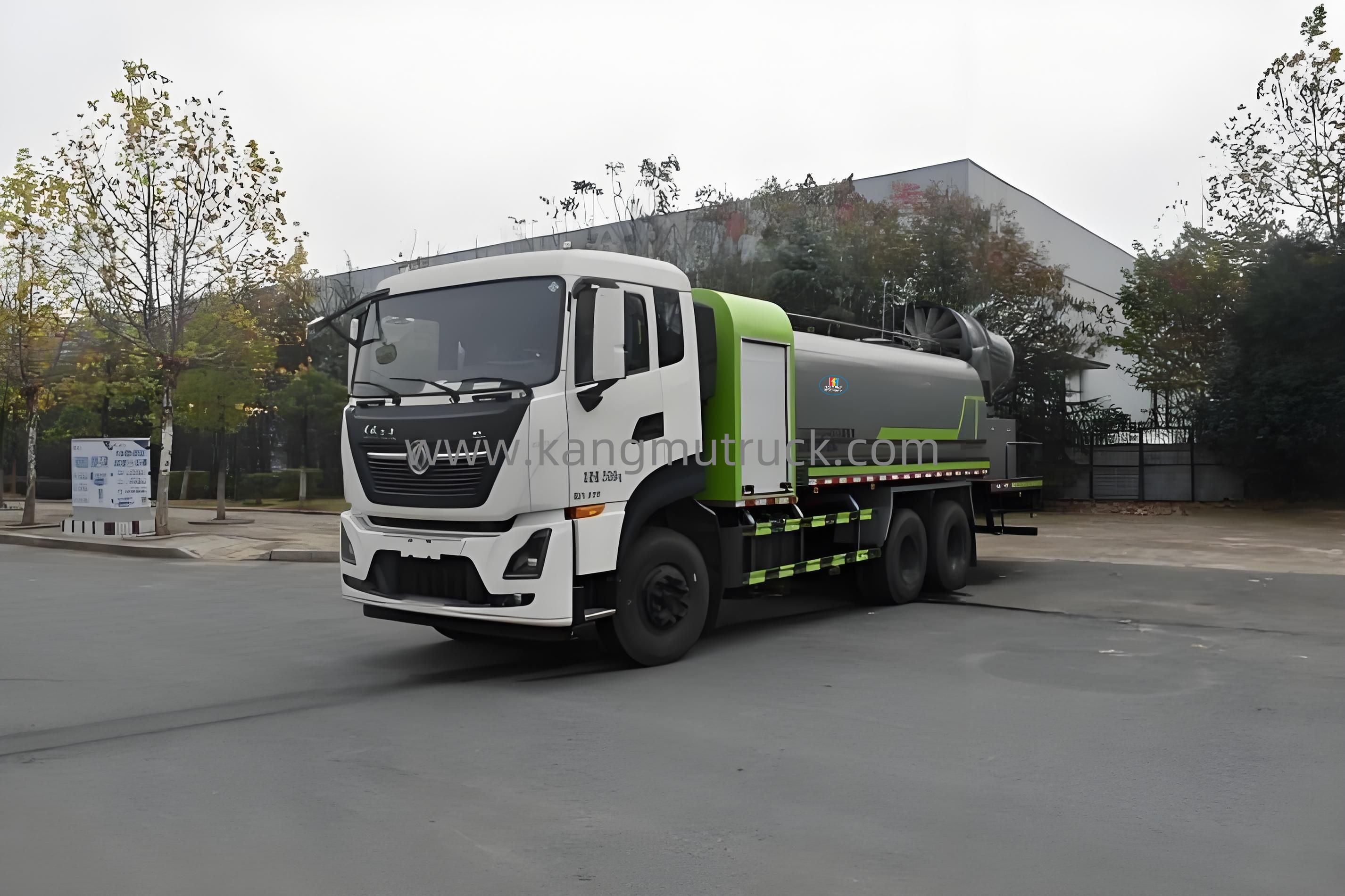

Dongfeng KL Cummins 290HP Dust Suppression Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5254TDYDF6A |
2 | Engine Model | D6.7NS6B290 |
3 | Engine Power | Cummins 290 HP |
4 | Engine Displacement | 6700ML |
5 | Transmission | Datong 8 Gear |
6 | Tire Specification | 295 Vacuum Tire |
7 | Wheelbase | 4350+1350MM |
8 | Total Weight | 25000KG |
9 | Curb Weight | 14750KG,14250KG,13500KG |
10 | Rated Loading Capacity | 10120KG,10055KG,10620KG 10555KG,11370KG,11305KG |
11 | Vehicle Dimension | 10650,11580*2500,2550*3800,3900 |
12 | Tank Volume | 17CBM |
13 | Fuel Type | Diesel |
14 | Emission Standard | National VI |
15 | Water Pump Model | 60/90 |
16 | Tank Material | Q235 Carbon Steel |
Chassis Configuration:
Equipped with a Cummins engine boasting 290 horsepower.
Features a Datong 8-speed transmission.
Comes with a D320 semi-luxury KL cab.
Has a 5.5-ton front axle and dual 10-ton rear axles.
Fitted with 295 vacuum tires.
The wheelbase is 4350+1350mm, and it has a 300 double-layer beam structure.
Includes electric windows, central locking, airbag seats, air conditioning, and a driving recorder.
Installation Configuration:

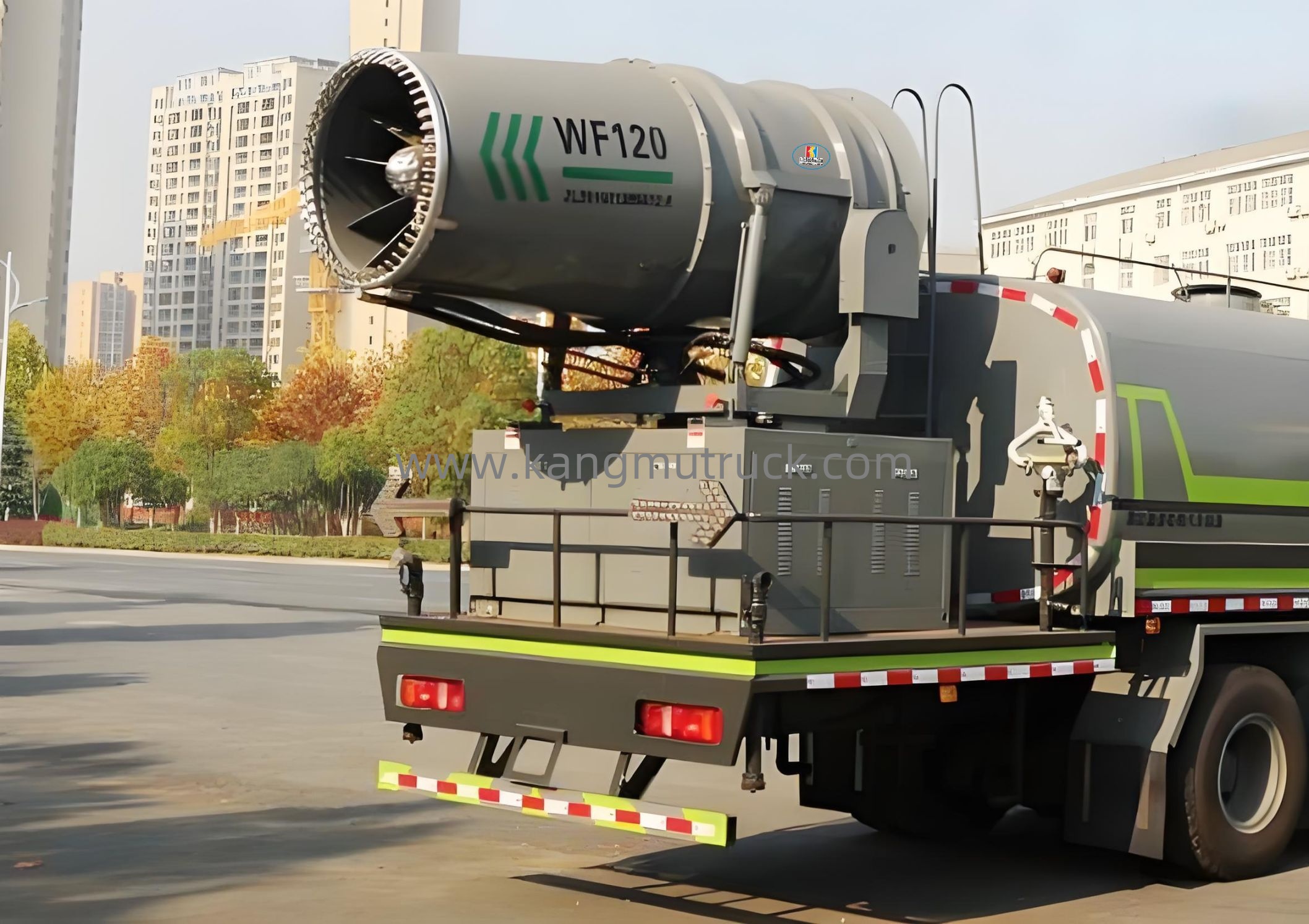

The tank has an approximate area of 17 square meters and can be fitted with 60-120 type fog cannons.
Side lights are electrified, and two standard red width lights are installed above the tail of the tank.
The standard front spray is a duckbill straight jet, and the standard rear hedge is adjustable as needed.
A patterned anti-slip platform is provided, along with customized bolt buckles for the barrel's back cover.
The front spray, rear hedge, rear spray, and side spray, as well as the green anti-aircraft gun ball valves, all utilize 50mm large diameter stainless steel ball valves.
The new bearing type water cannon offers enhanced durability.
Equipped with a 60-90 type water pump.
Anti-corrosion flange gaskets are used.
Aluminum is utilized for the sprinkling system, reducing the risk of explosion.
The tank body is automatically welded using a Lincoln welding machine and power supply from the United States. Assembled panels are also automatically welded, with head and circumferential seams welded to ensure no porosity and an aesthetically pleasing weld seam.
The side guard and rear bumper are bolted together for easy disassembly and maintenance.
Plastic mudguards replace iron ones, making them more lightweight and connected with bolts for easy disassembly.
The connection between the front and rear main pipes is a 6-hole circular flange, which is less likely to pad.
